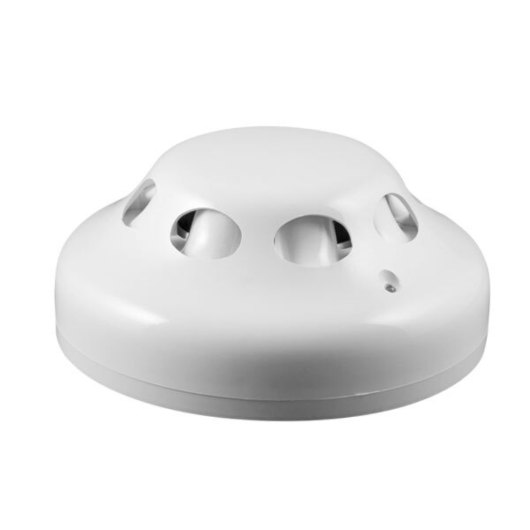

Zerio Plus Wireless Optical Smoke Detector with Optional Integrated Sounder and Beacon
The Radio Optical Smoke Detector for Zerio Plus wireless fire alarm systems is powered by two lithium batteries and communicates with the control panel wirelessly, drastically reducing installation time and costs. Fully configurable from the control panel, including sensor sensitivity and address, all settings are stored permanently in the detector's built-in memory which will even survive total power loss. Sophisticated self-testing and complex error-checking minimise detector maintenance while providing peace of mind that the system is working correctly. The EDA-R5000 has an IP21 rating and is available as just a detector, with integrated sounder, or with both a sounder and beacon, making it ideal for any indoor installation.
- Up to 5 year battery life provided by replaceable dual lithium cells
- Optical detector for enhanced smoke detection
- Sounder and Sounder-Beacon models available
- for indoor use
- Complex error-checking and automatic fault diagnostic reporting
- Non-volatile memory protects configuration data from total power loss
- High-intensity, two-colour LED for status indication
- Alarm: solid red
- Fault: flashing red
- Log-on mode: solid green
- Sensor sensitivity can be set from the panel after installation
- Fully addressable for location reporting in the event of a fire or fault
- All models comply with BS 5839 Part 1 and
- Models with an integrated sounder also comply with BS EN 54 Part 3
- Supplied with base and battery for easy installation
Customer Reviews (0)
Reviews by Real Customers
To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.
No Reviews Available
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data
| Product Code | EDA-R5000 |
|---|---|
| Brand | Electro Detectors |
| Battery Type | AA Lithium Thynol Chloride Cells (Part EDA-Q690) |
| Battery Life | Up To 60 Months |
| Compatible Products | Zerio Plus Series |
| Colour | White |
| Approvals & Markings | CE Marked |
| Compliance | BS 5839-1 |
| BS EN 54-3 | |
| EN 54-25 | |
| Display | LED Indicators |
| Equipment Type | Detector |
| Fixing Options | Ceiling Mounted |
| IP Rating | IP21 |
| Material | ABS Plastic |
| Operating Temperature | 0°C To +60°C |
| Radio Linking Frequency | 868MHz |
| Relative Humidity | 0% To 95% |
| Sensor Type | Optical |
| Sound Level | 80dB |
| Recyclable | Yes - Valpak's WEEE Distributor Take-back Scheme |
| Warranty | 1 Year |
| Suitability | Indoor |
| Dimensions (Unit) |
|
| Weight | 200g |
| Datasheets |
Compatible Devices
The tables below show all the units available from Safelincs that are compatible with this device.
|
Product Code
|
Type of unit
|
| EDA-Z5008 | 8-Zone Control Panel |
| EDA-Z5020 | 20-Zone Control Panel |
| 100-Zone Control Panel |
|
Product Code
|
Type of unit
|
| EDA-R5000 | Optical Smoke Detector |
| EDA-R6000 | Optical Smoke Detector with Sounder |
| EDA-R6030 | Optical Smoke Detector with Sounder & Beacon |
| EDA-D5000 | A1 Heat Detector |
| EDA-D6000 | A1 Heat Detector with Sounder |
|
Product Code
|
Type of unit
|
| EDA-A6000 | Open Area Sounder |
| EDA-A6030 | Open Area Sounder with Beacon |
| EDA-A6060 | LED Beacon |
|
Product Code
|
Type of unit
|
| EDA-C5000 | Manual Call Point |
