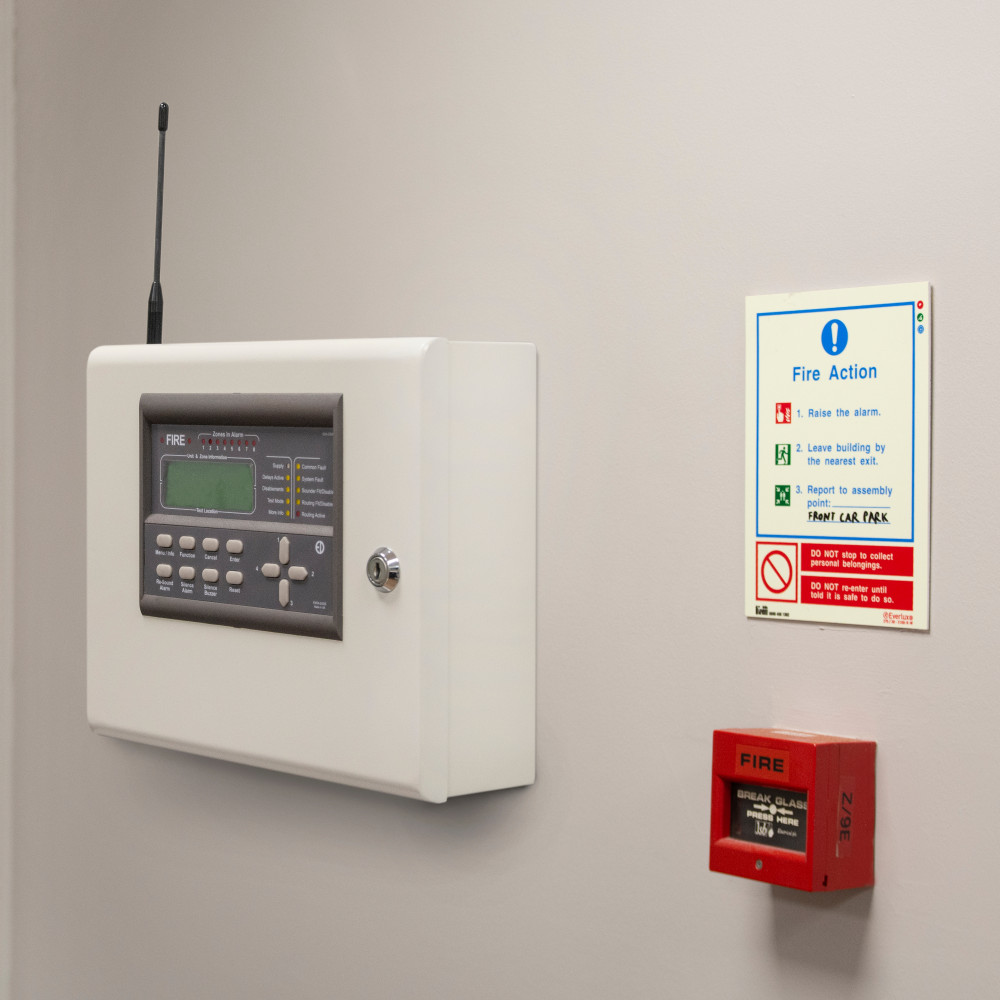

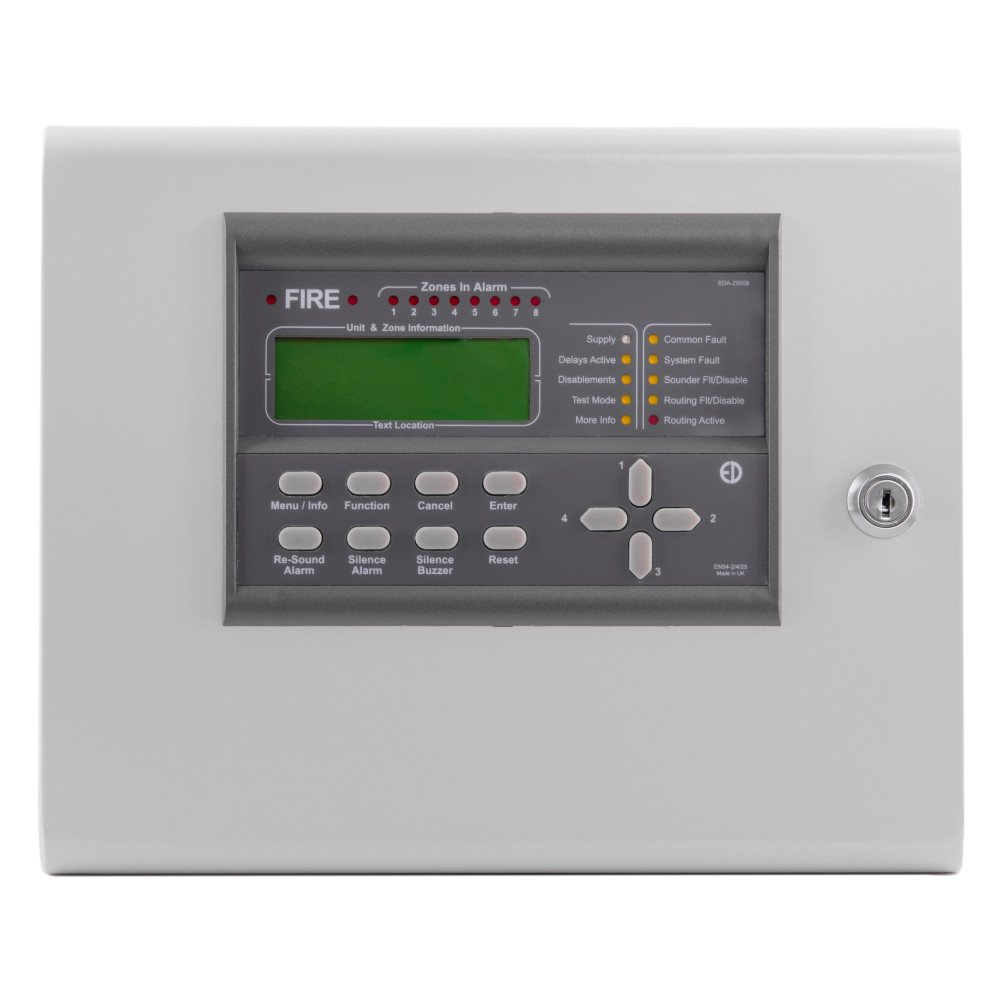

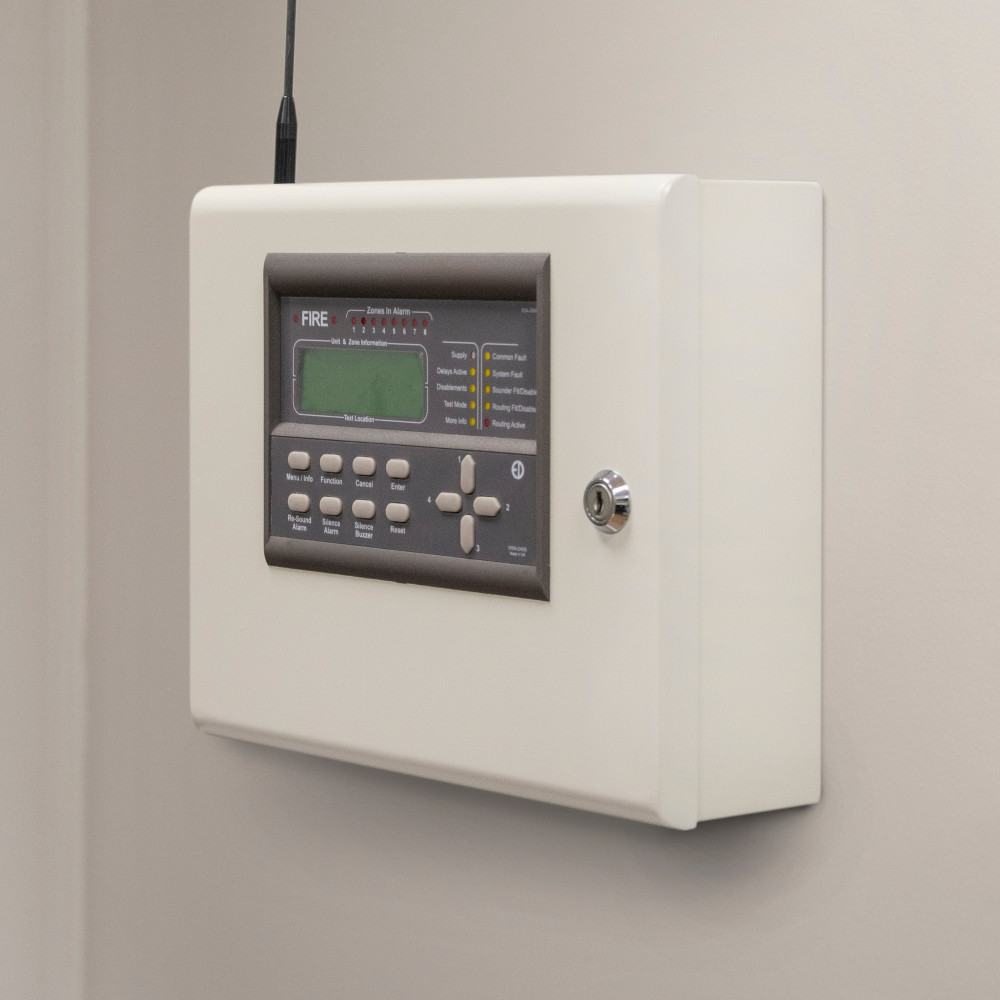

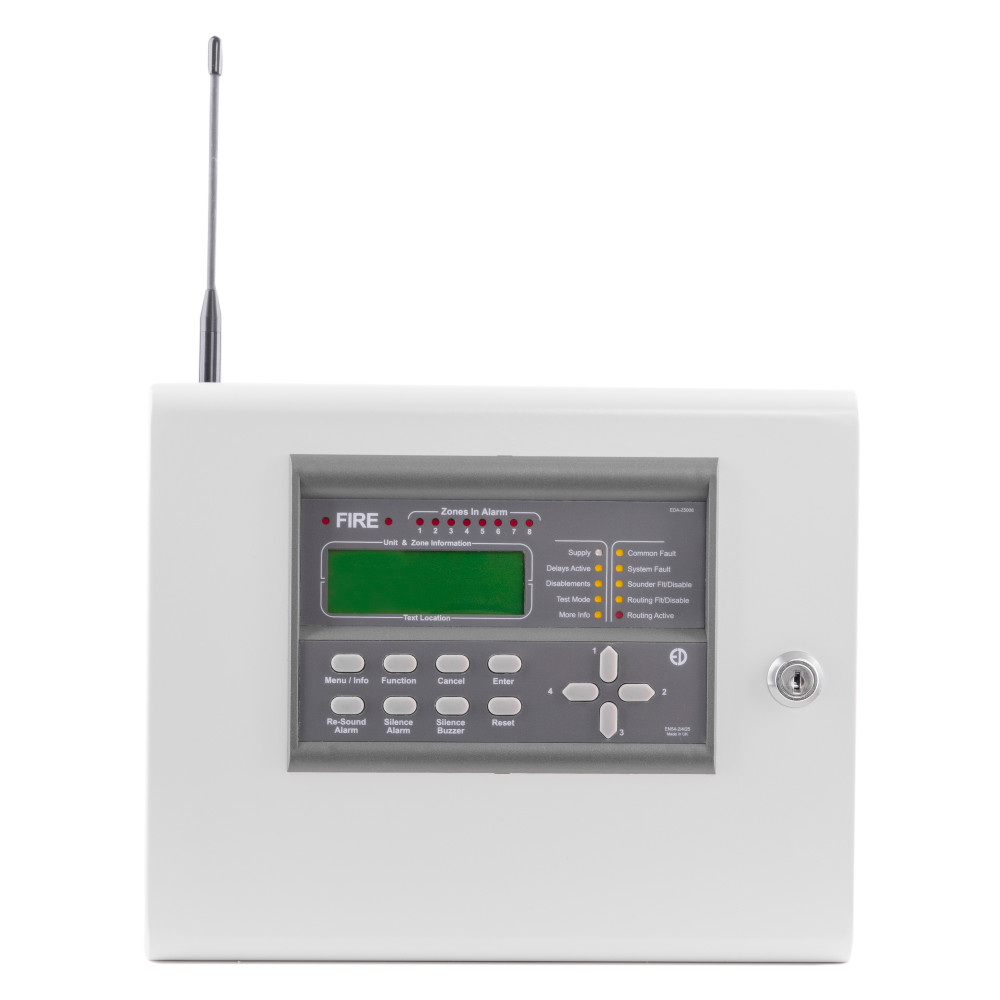

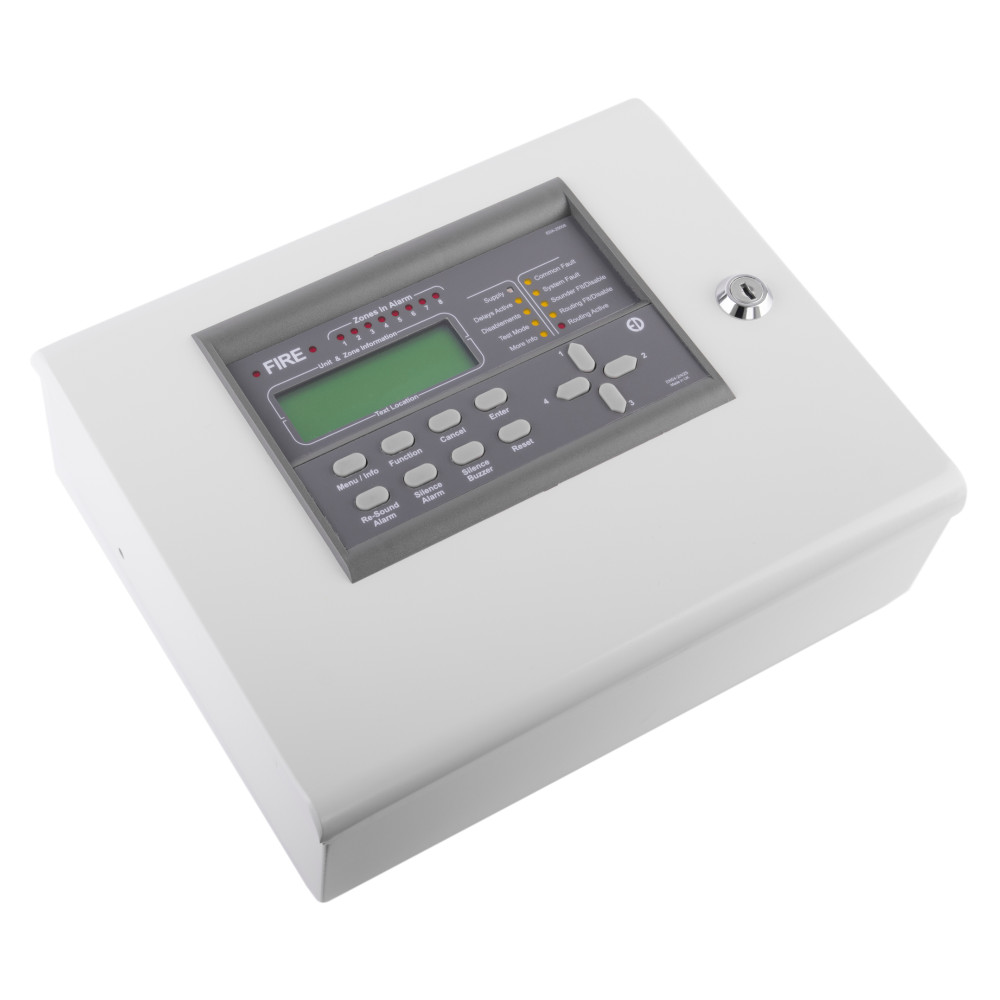

Zerio Plus 8-Zone Wireless Fire Alarm Control Panel

Programmable via the built-in keypad or a standard USB keyboard, this 8-zone control panel is ideal for engineers. With its integrated 12V charger and support for up to a 72 hour backup power supply, installation requires only connecting the panel to the mains – no expensive and disruptive cabling works are needed for the entire system. The Zerio Plus 8-Zone Fire Control Panel supports up to 8 virtual "zones" and 240 fully-addressable wireless devices, enabling accurate location and system status information at any time via the backlit LCD display and zone LEDs. Zerio Plus panels also support programmable sounder circuits and fire / fault relays, hardwired monitored inputs, 5 access levels, and backup of configuration data via removable memory card.

• Supports up to 240 addressable devices across 8 zones

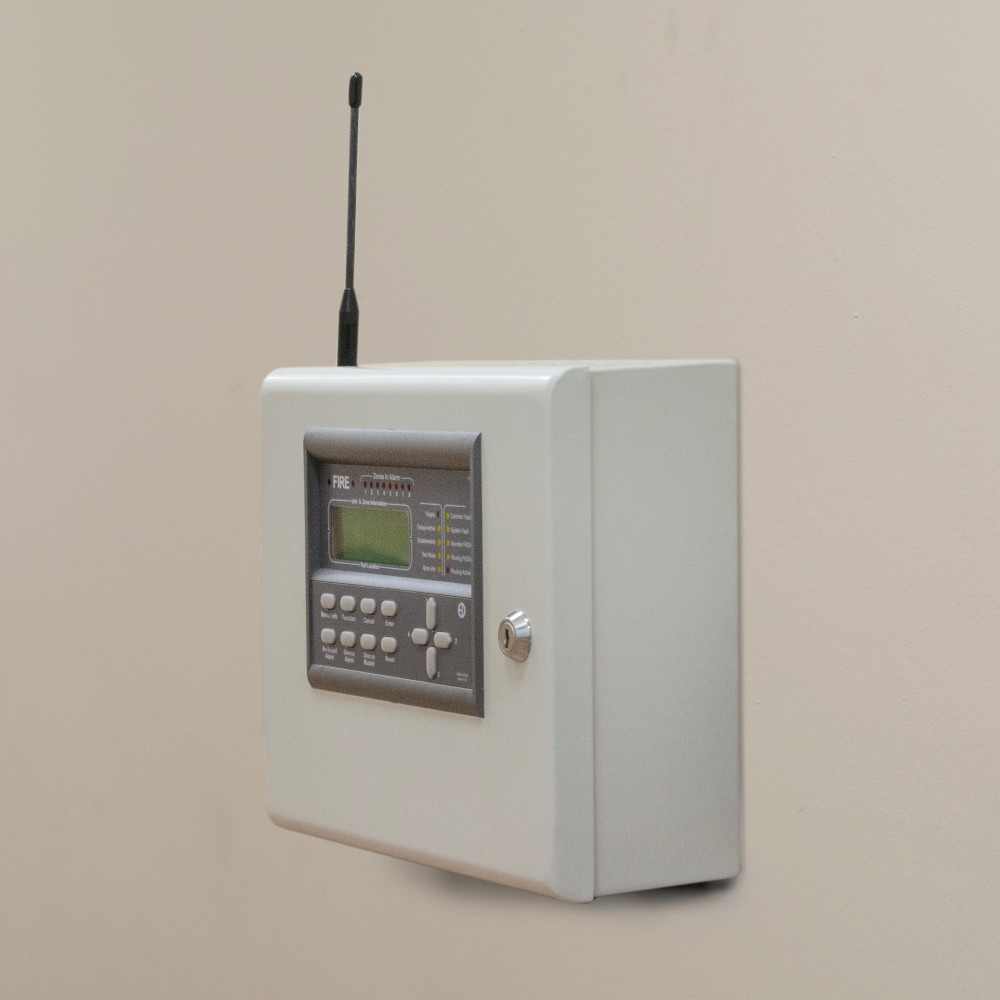

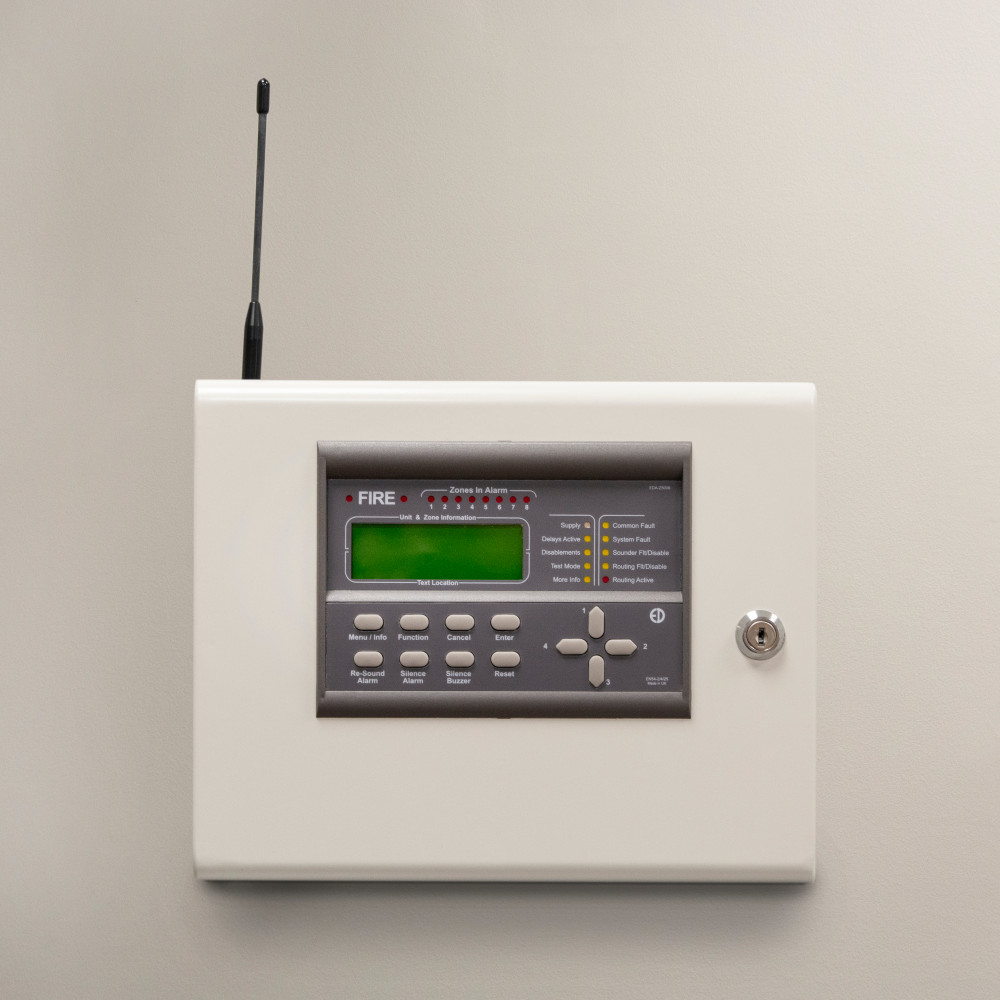

• Easy to install – only a single mains connection required
• 2 configuration methods to suit any engineer:

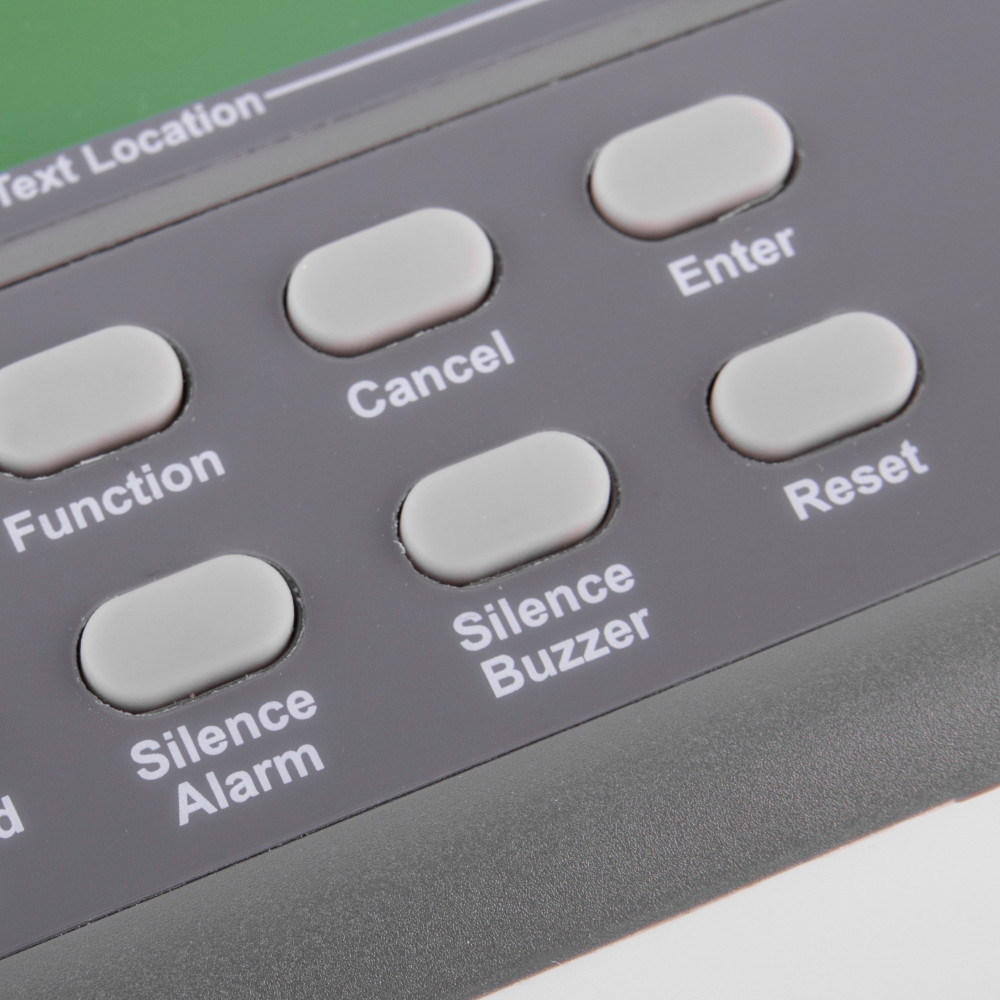

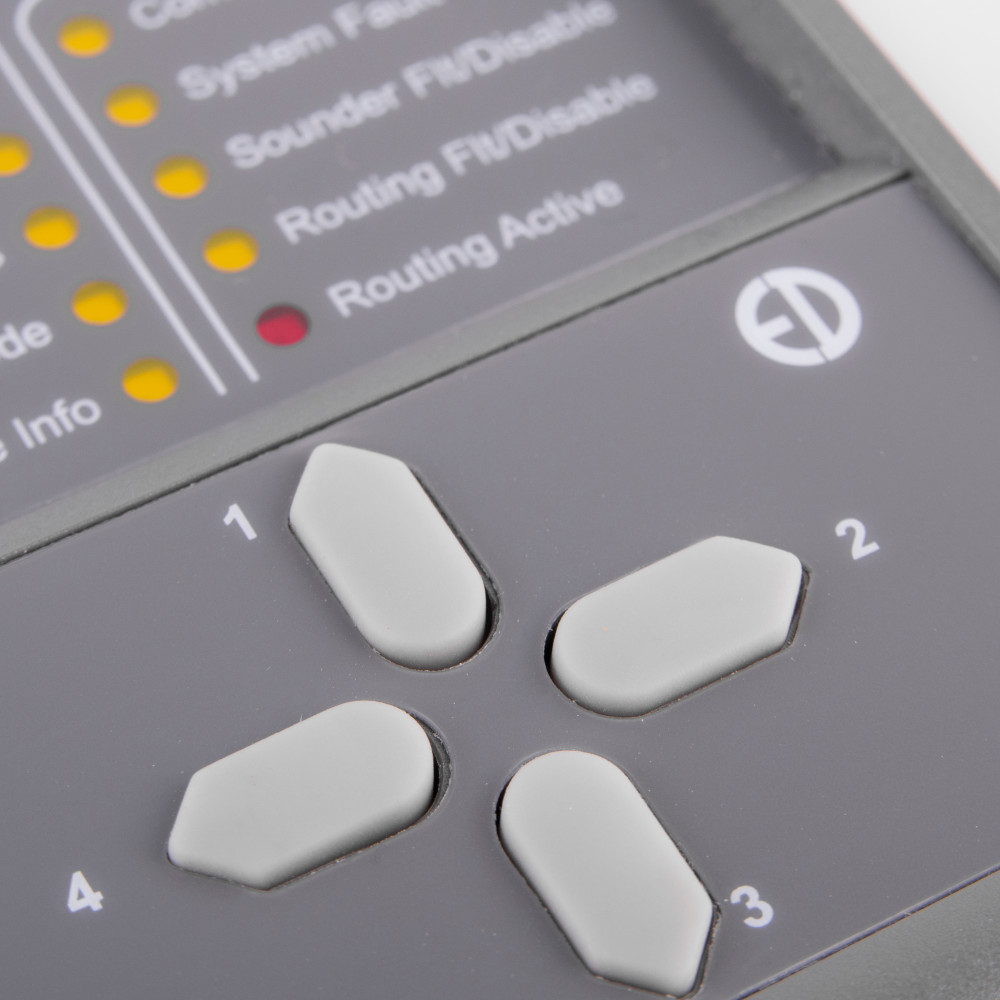

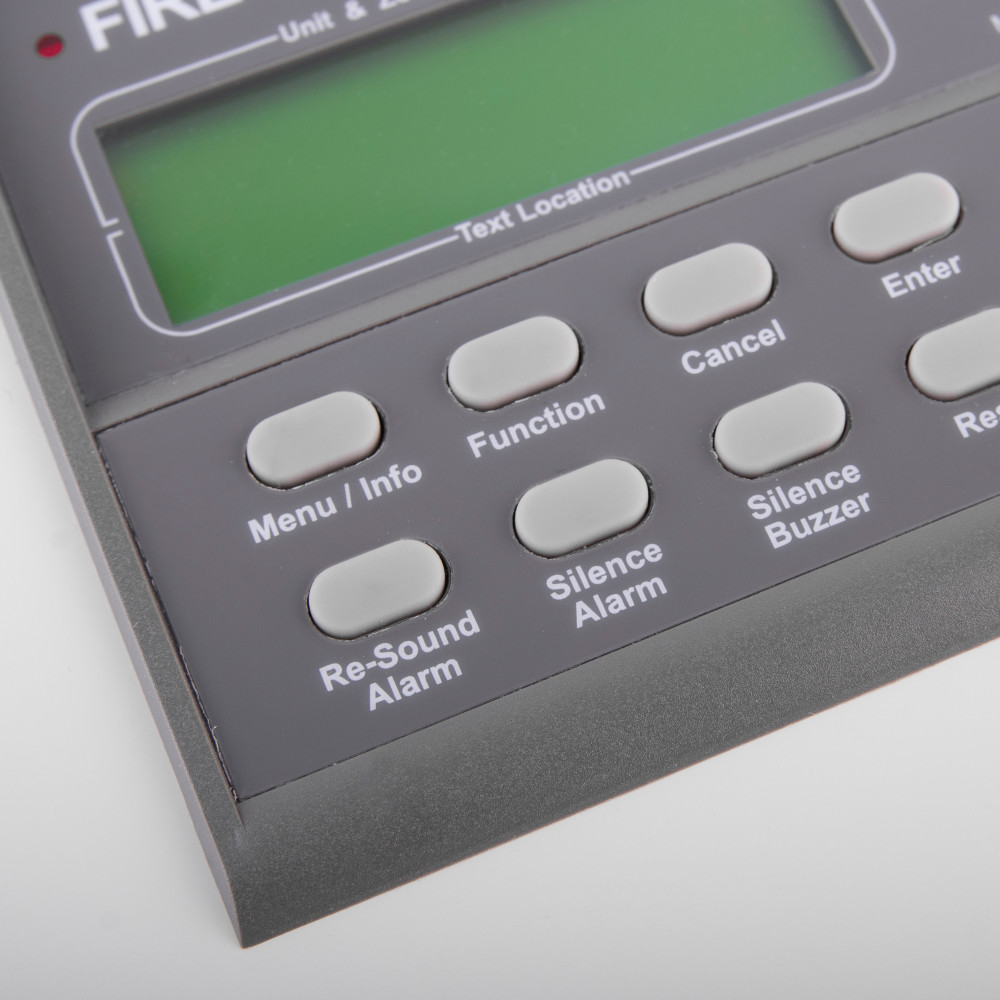

  • All features programmable via the built-in keypad
  • Connect a standard USB keyboard for quicker text input

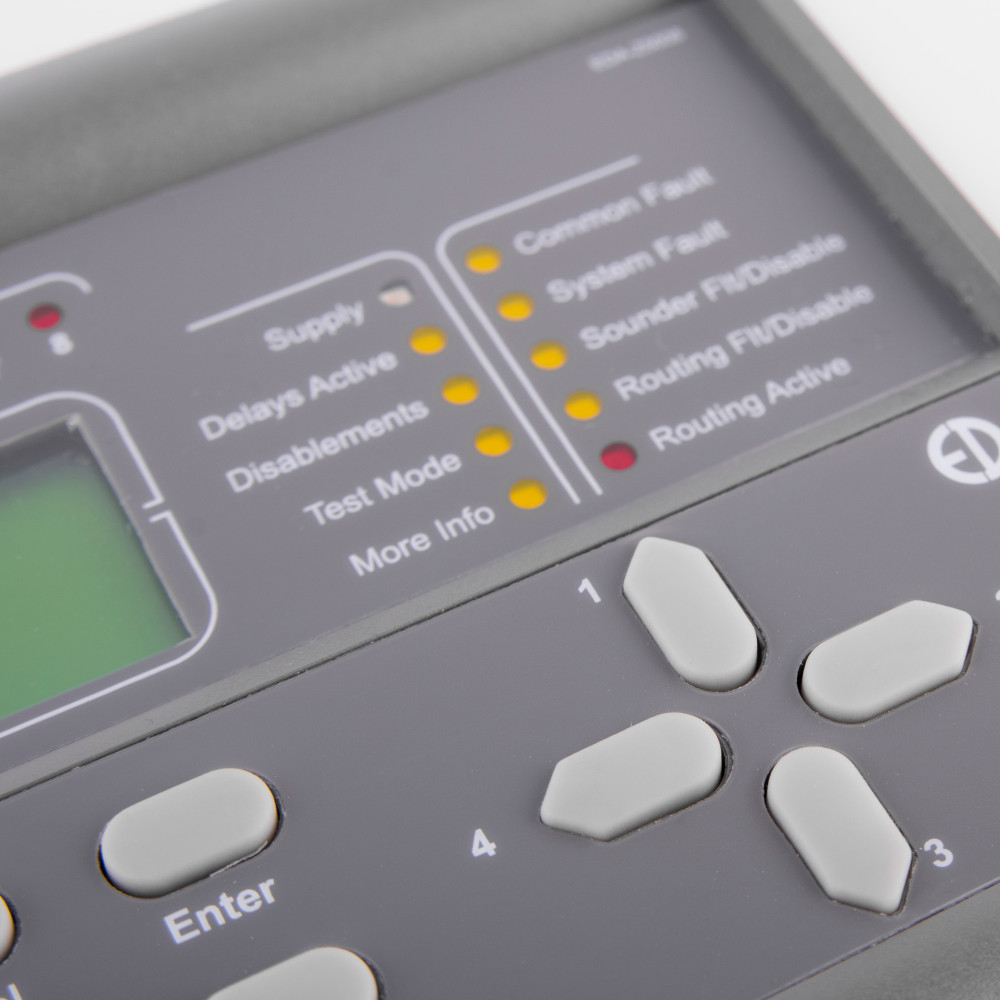

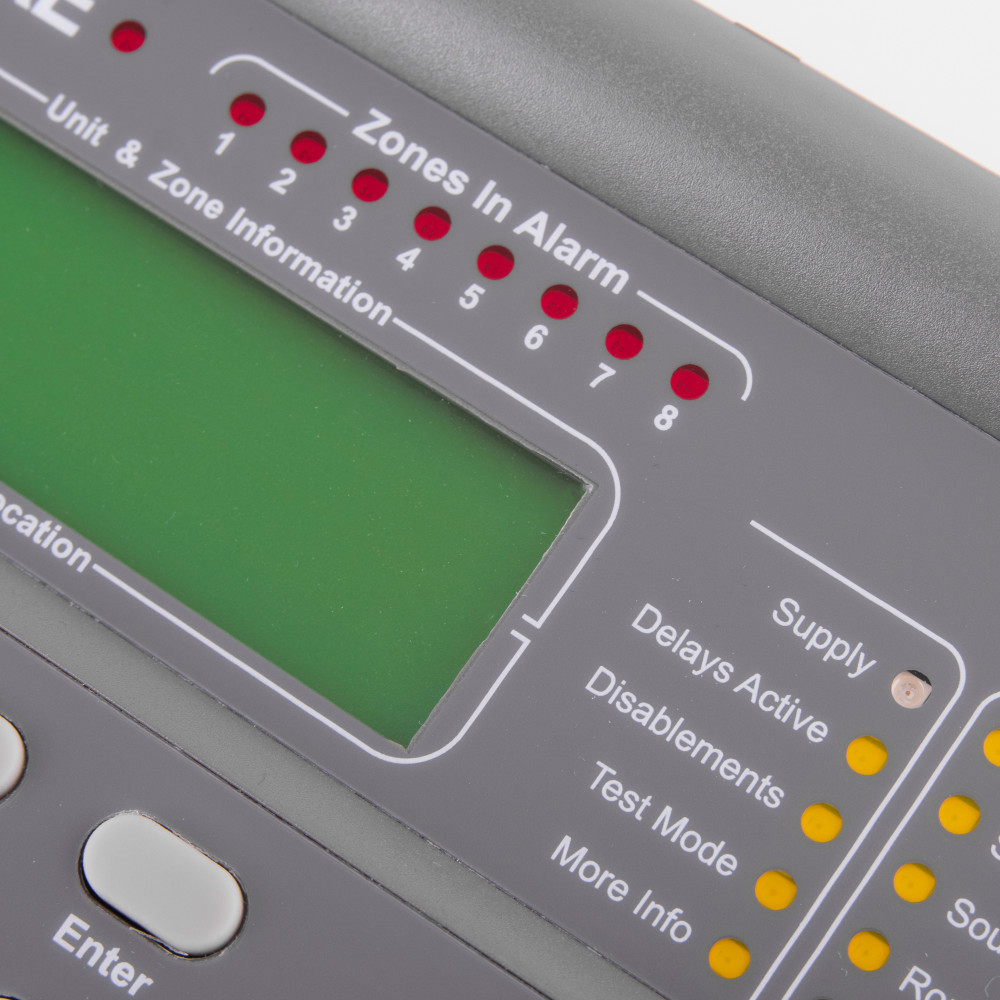

• System and zone event LEDs show overall status at a glance
• High-quality LCD screen with 4 lines of text and an LED backlight

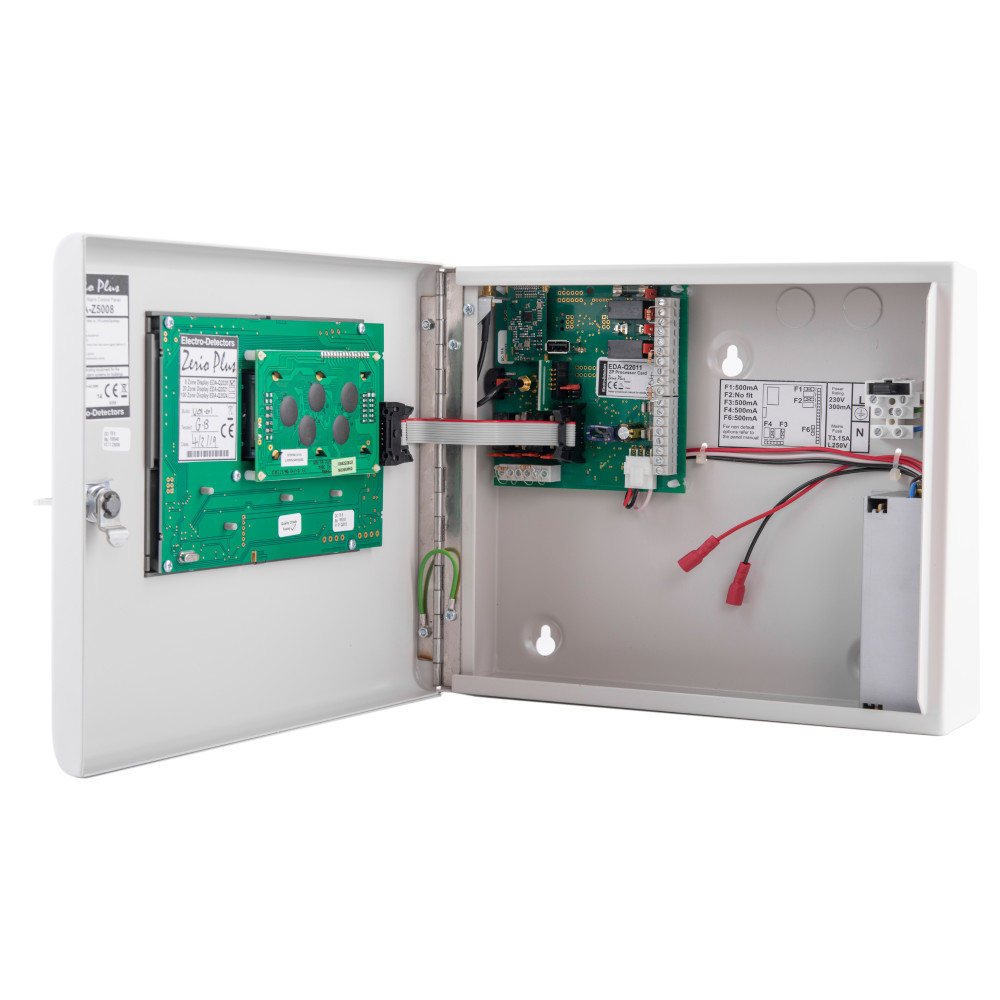

• Backup battery charger included
• Intelligent "learn" mode to assist with device setup
• Programmable test modes, sounder circuits and fault relays
• 5 access levels for system configuration and interrogation
• Up to 7 and can be connected to the system
• Separate systems can be linked together, allowing a total of 960 devices
• Also available as a 20-zone panel
• Certified to EN 54 Parts 2, 4, & 25 and BS 5839 Part 1

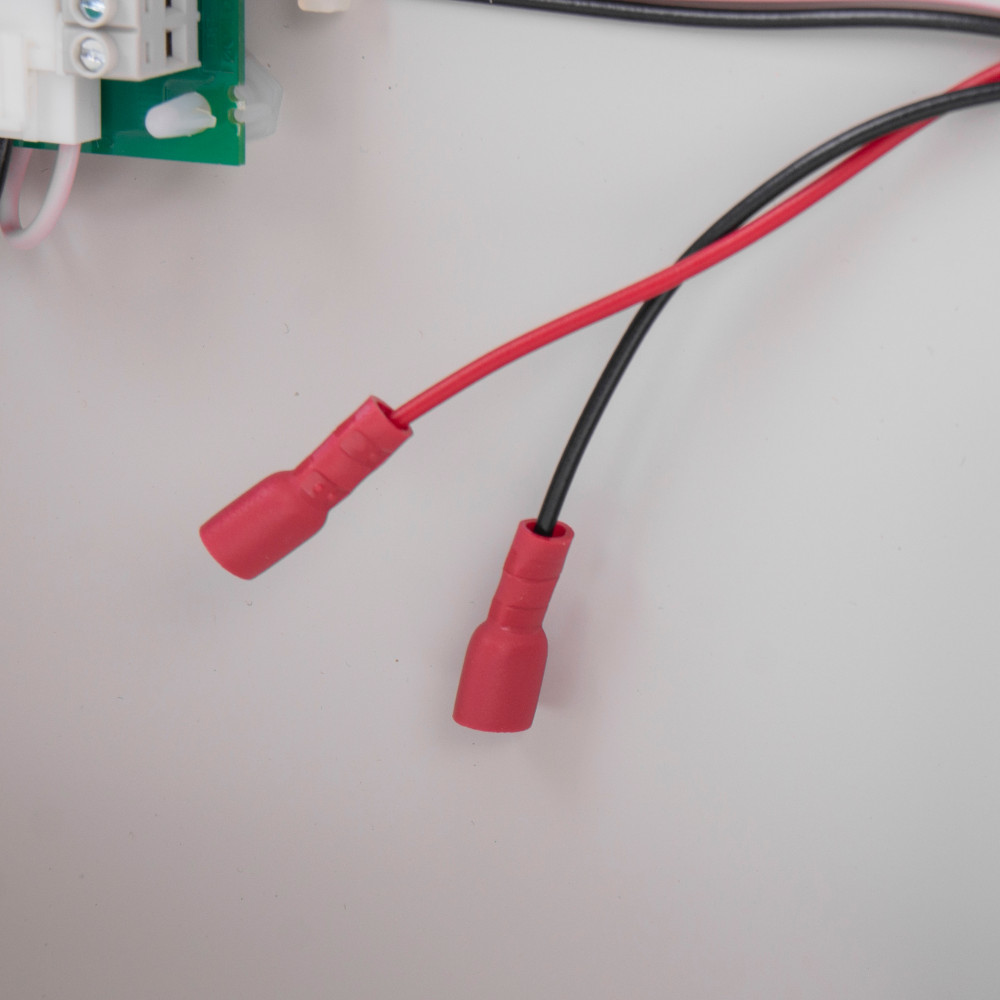

Please note: Backup batteries are not included with the Zerio Plus control panel but are a legal requirement for fire alarm systems. Suitable 3.2Ah (48h standby) and 7.0Ah (72h standby) batteries are available for purchase separately.
