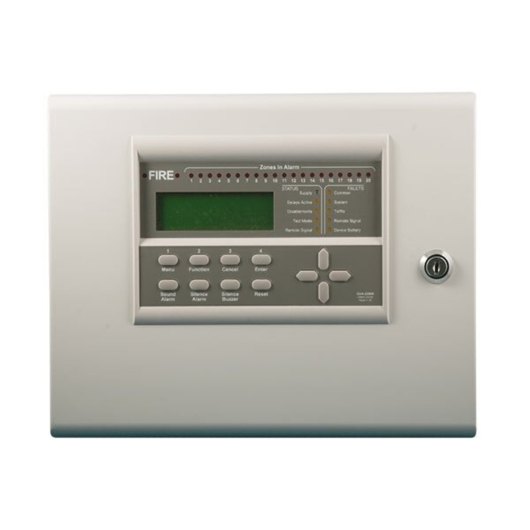

Zerio Plus 20-Zone Wireless Control Panel

The 20-zone control panel for Zerio Plus systems is host to an extensive range of features for both engineers and users, and the wireless nature of Zerio Plus products means that installation requires no more than connecting the panel to mains power. With support for up to 72 hours of backup power, the ability to control up to 240 fully addressable wireless devices, and a variety of monitored inputs and relays the EDA-Z5020 can be used in almost any situation. The intelligent learn mode and battery-powered wireless components mean that Zerio Plus systems are not only easy to install, but also greatly reduce expensive and disruptive cabling works. Support for USB keyboards and configuration by importing data from the built-in memory card reader mean that engineers can get a full system ready in a fraction of the time of traditional, wired fire alarm systems.

• Easy to install – only a mains connection required
• Programmable test modes, sounder circuits and fault relays
• 255 event log memory
• 4-line LCD screen with an LED backlight
• 5 access levels for system configuration and interrogation
• Intelligent "learn" mode to assist with device setup
• Programming can be done in 2 ways:
  • Using the easy-to-navigate built-in keypad
  • Connecting a standard USB keyboard
• System and zone event LEDs show overall status at a glance
• Supports up to 240 addressed devices across 20 "virtual" zones
• Up to 7 and can be connected to the system
• Separate systems can be linked together, allowing a total of 960 devices
• Also available as an 8-zone panel
• Backup battery charging system included
• Certified to EN 54 Parts 2, 4, & 25 and BS 5839 Part 1

Please note: Backup batteries are not included with the Zerio Plus control panel but are a legal requirement for fire alarm systems. Suitable 3.2Ah (48h standby) and 7.0Ah (72h standby) batteries are available for purchase separately.
