Union CE3F Overhead Door Closer - Power Size EN 3

Free Delivery

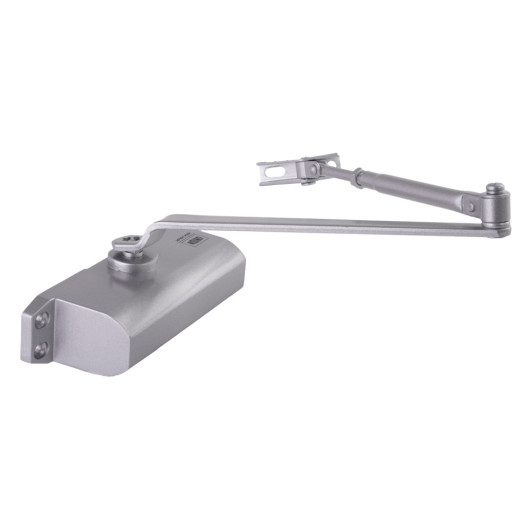

union ce3f overhead door closer shown from the front with an extended arm in a silver finish

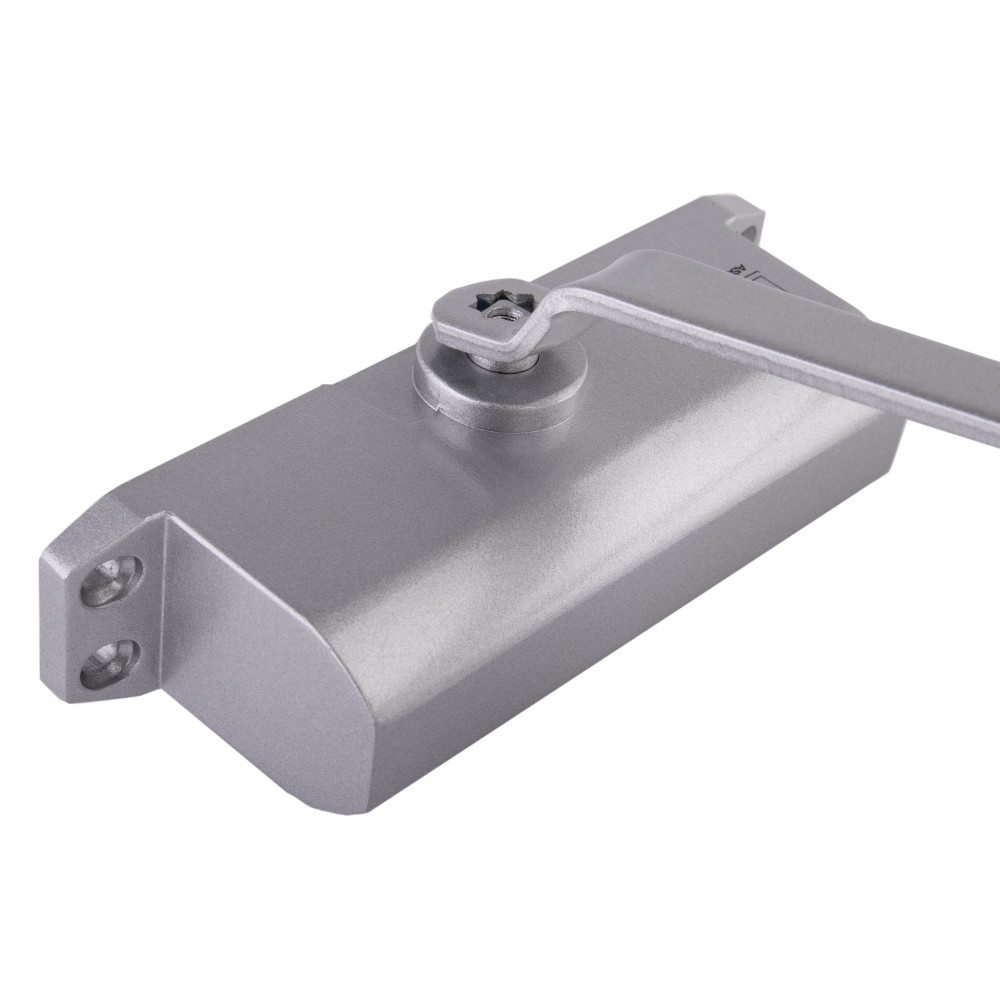

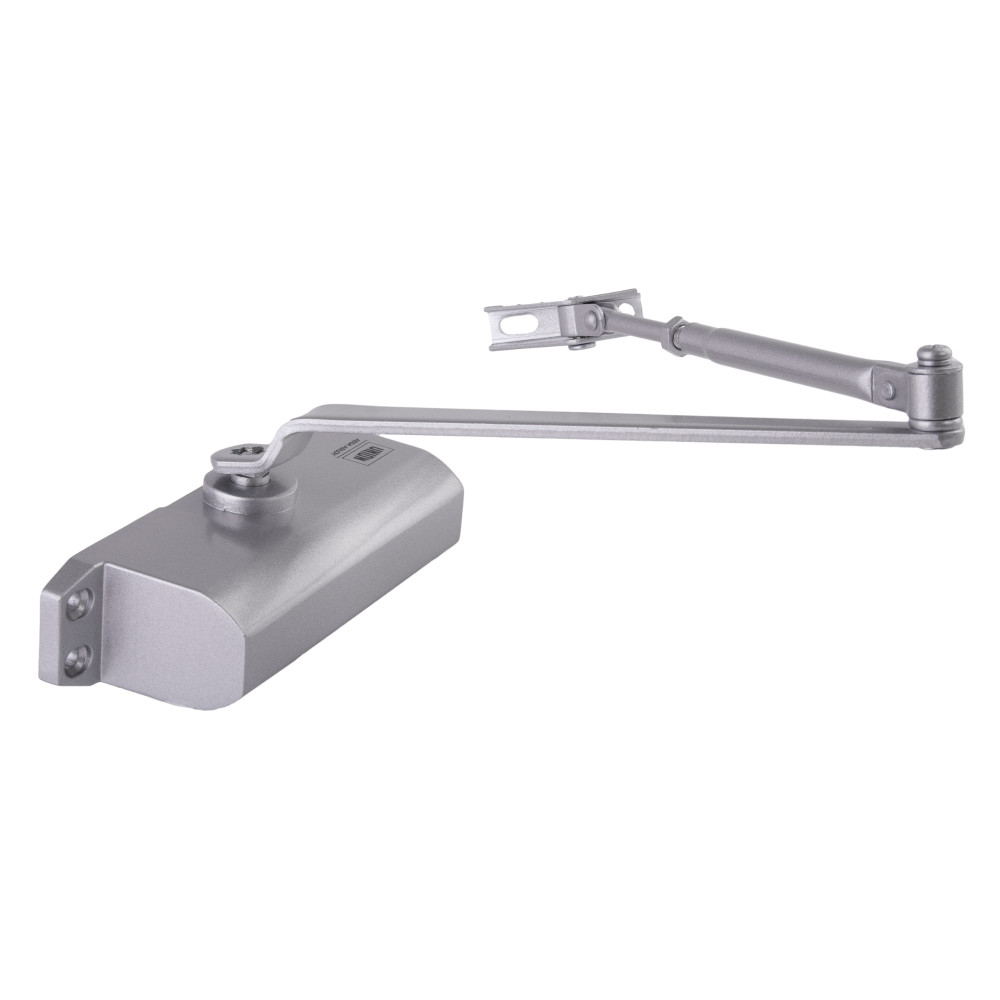

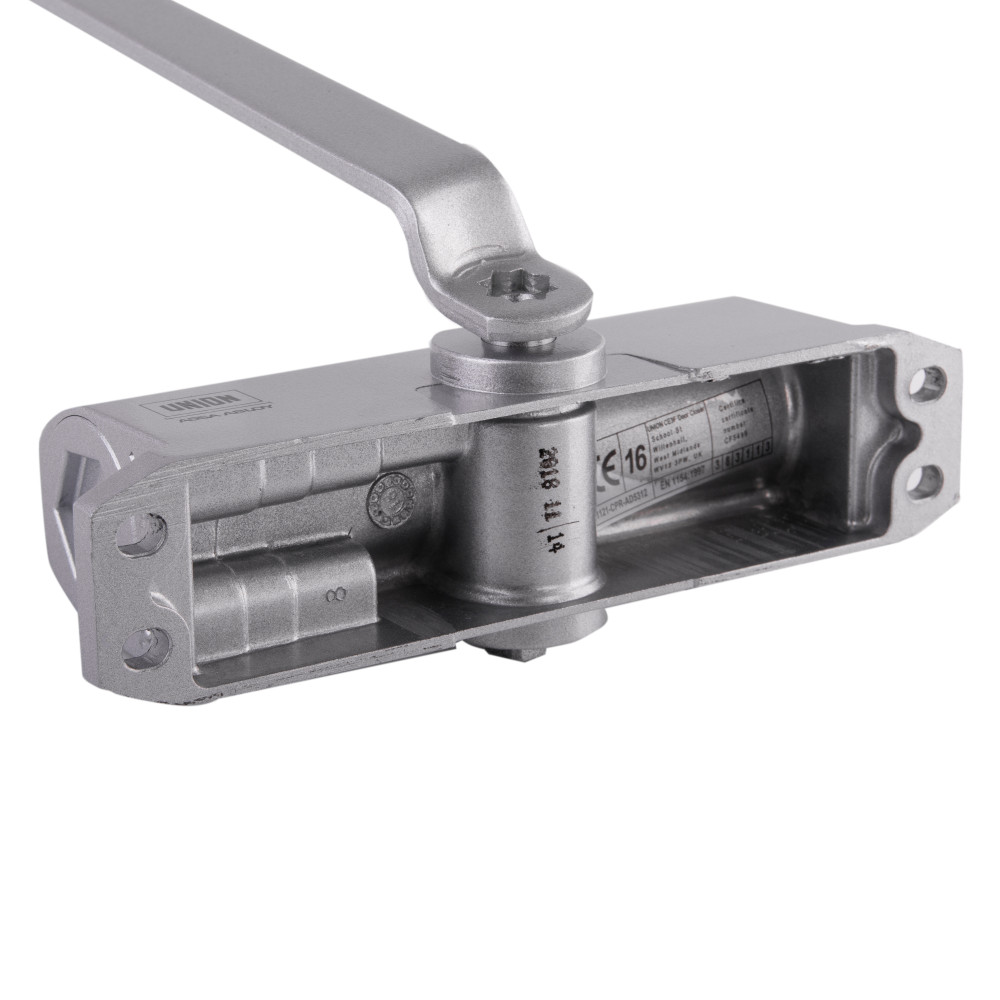

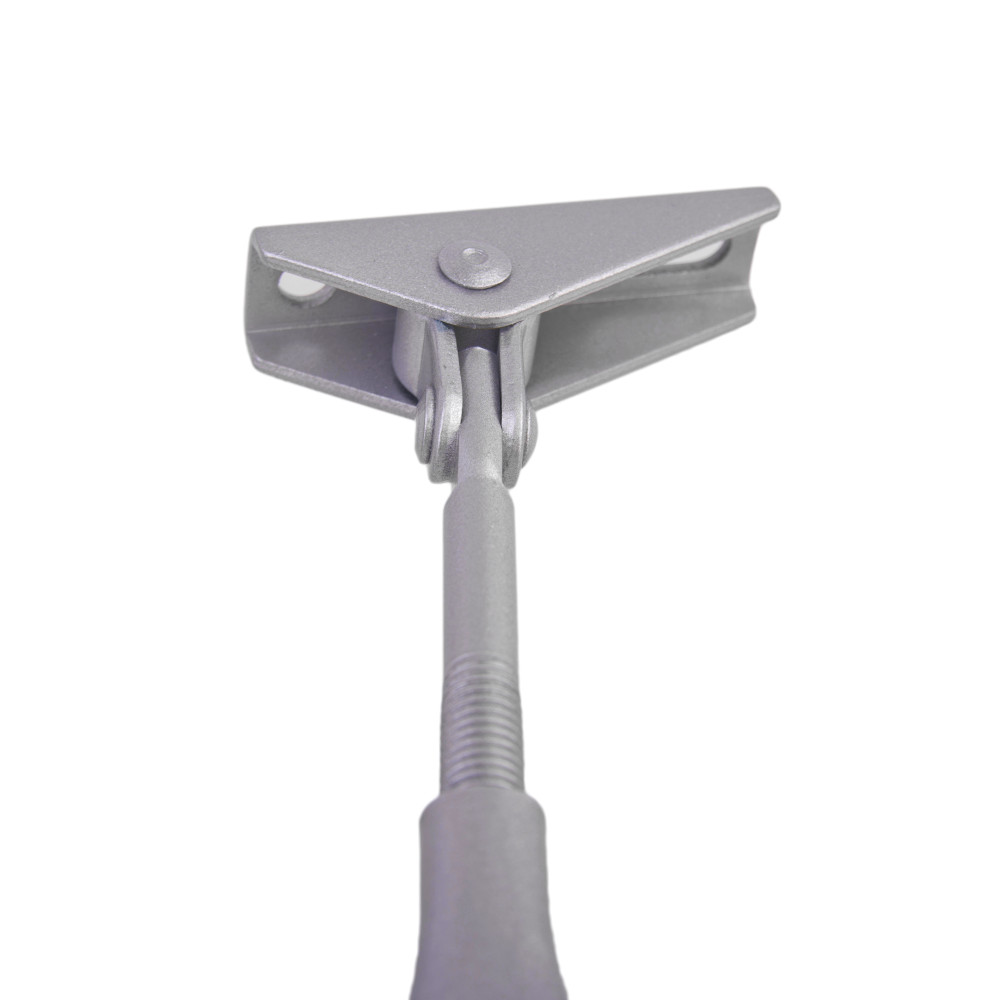

union ce3f overhead door closer shown from the front with an extended arm in a silver finish Close up of the metal body of the union ce3f overhead door closer showing mounting screws and arm attachment Back view of union ce3f overhead door closer showing the mechanism and mounting plate Close-up of the bracket part of a union ce3f overhead door closer in silver metal finish
5 out of 5 stars

20+ In Stock

For dispatch today order within
13 Hrs 56 Mins
Qty: 1

£17.99 inc VAT

£14.99 ex VAT
Qty: 5

£17.51 inc VAT

£14.59 ex VAT
Qty: 10

£16.79 inc VAT

£13.99 ex VAT

Economy Delivery

Will usually be delivered in 5-7 working days

£0.00 (FREE)

Standard Delivery

Will usually be delivered in 2-3 working days

£5.40 inc VAT

More Options (1)

The CE3F fixed size EN 3 rack and pinion overhead door closer is quick and easy to install with specific templates provided for each mounting position. The closer provides flexibility to the installer and the door as it can be installed in all three mounting configurations, Fig 1 (Regular), 61 (Transom), and 66 (Parallel), supplied with all fixings.

  • This product qualifies for FREE shipping!
  • Suitable for:
    • Internal doors
    • Doors up to 950mm wide and weighing up to 60kg –
    • Installation in all three configurations –
    • Non-handed installation – suitable for left and right handed doors
  • CE marked and approved to EN 1154
  • Certifire approved for use on FD120 (Timber) and FD240 (Steel) fire rated doors – CF 5495 Certificate
  • Convenient side mounted door for easy access to adjustable features
    • Closing speed controls how quickly the door closes between maximum opening angle 130° and 15°
    • Latching action governs the speed of the final 15° of the cycle
  • Durable hardened ground steel rack and pinion mechanism
  • Fixing pack supplied for timber fire doorsets
  • Supplied with additional bracket for parallel arm mounting
  • 10 Year Warranty
  • Full classification: 3 | 8 | 3 | 1 | 1 | 3
Customer Reviews

Customer Reviews (1)

5 out of 5 stars

Reviews by Real Customers

All of our product reviews are written by real customers that have purchased this product from us and are published without modification.

Rating: 5 / 5

Reviewed by

A A

Published on

2nd July 2022

Does the job its ment to

FAQs

There are no FAQs to display for the selected item.

Technical Data

Technical Data

Product Code AAJCE3FSIL
Brand Union
Compliance BS EN 1154: 1997
Certifire - CF5495
Approvals & Markings CE Marked
Closing Speed Adjustable
Door Type Single Door
EN Classification 3 | 8 | 3 | 1 | 1 | 3
Finish Silver
Fire Rating 120 Minutes
Fixing Options Wooden Door Fixings (Included)
Installation Position Fig 1
Fig 61
Fig 66
Top Of Door
Latching Action Adjustable
Maximum Door Width 950mm
Maximum Door Weight 60kg
Material Metal
Opening Angle 130°
Power Size EN 3
Warranty 10 Years
Dimensions (Unit)
  • Height: 82mm
  • Width: 250mm
  • Depth: 84mm
Weight 1.60kg
