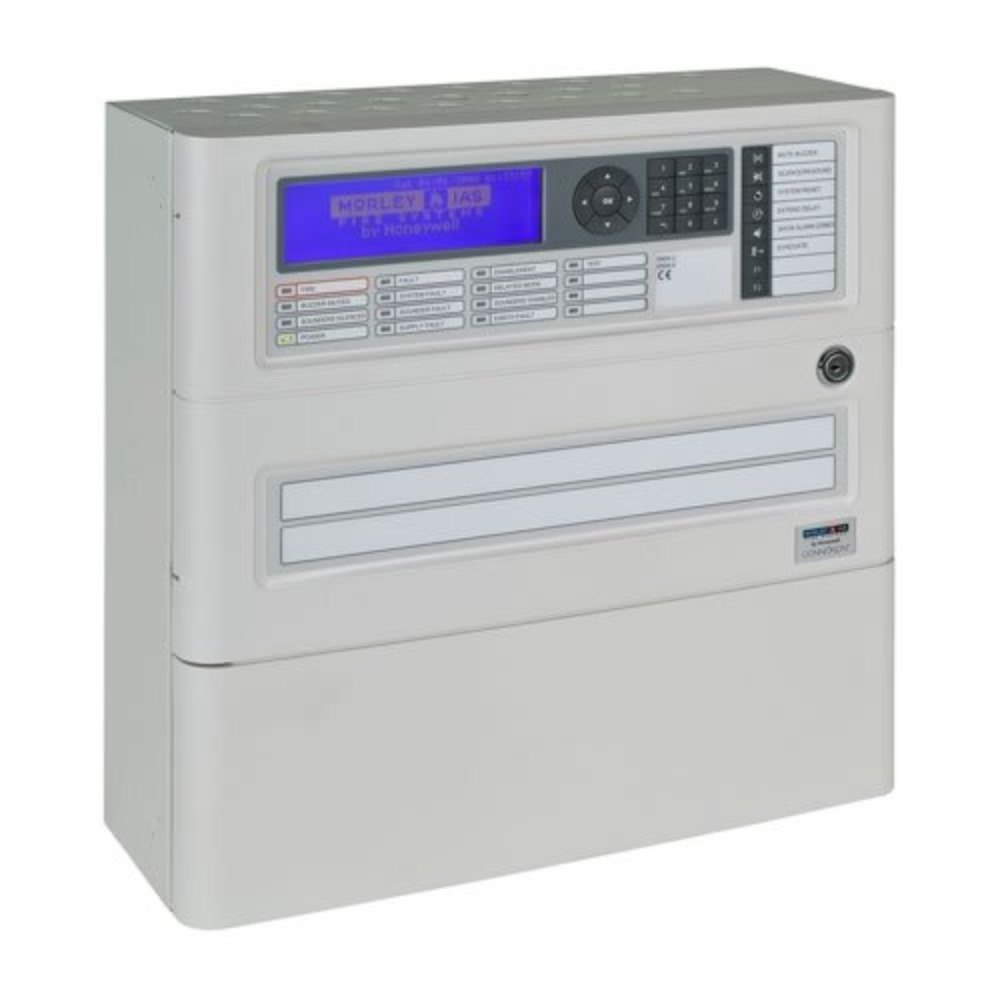

Morley DXc2 Addressable Two Loop Panel

The Morley DXc2 is a two loop addressable fire alarm panel, capable of supporting Apollo, Hochiki and System Sensor protocol devices. The DXc2 addressable panel is supplied with Microsoft Windows® compatible configuration software for easy to follow programming. Suitable for small to medium sized premises', the Morley DXc2 can be networked with up to 7 additional two loop panels for larger applications.

• Compliant with EN 54-2 and EN 54-4 standards
• LPCB certified
• A maximum of 126 devices can be connected to each loop
• Supports Apollo (Xplorer, XP95 & Discovery), Hochiki (ESP) and System Sensor protocol
• Identifies the exact detector or device that activates the system
• Can be networked with up to 7 additional DXc2 two loop panels for large applications
• User friendly 5 button set-up process
• Large LCD display provides clear text and graphics for programming and daily use
• Supplied with Microsoft Windows® compatible programming software for complex configurations
• Configuration software allows device text messages to be imported directly from an Excel spread sheet
• Features indicators for various panel status' e.g. fire, fault, sounders disabled, etc.
• Supplied without zone LEDs – 40 or 80 zone LED cards available separately
• Supports USB upload/download
• Offers two independent sounder circuits
• Includes fire, fault and auxiliary output relays

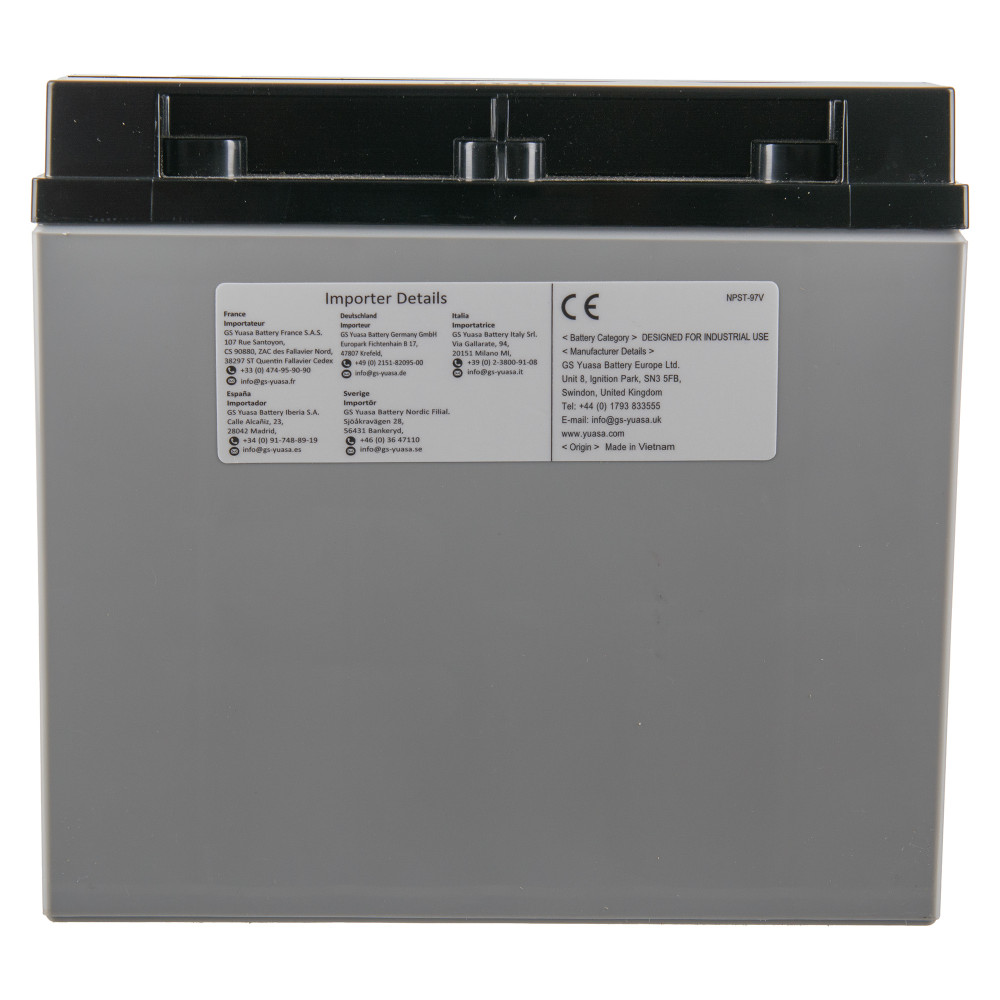

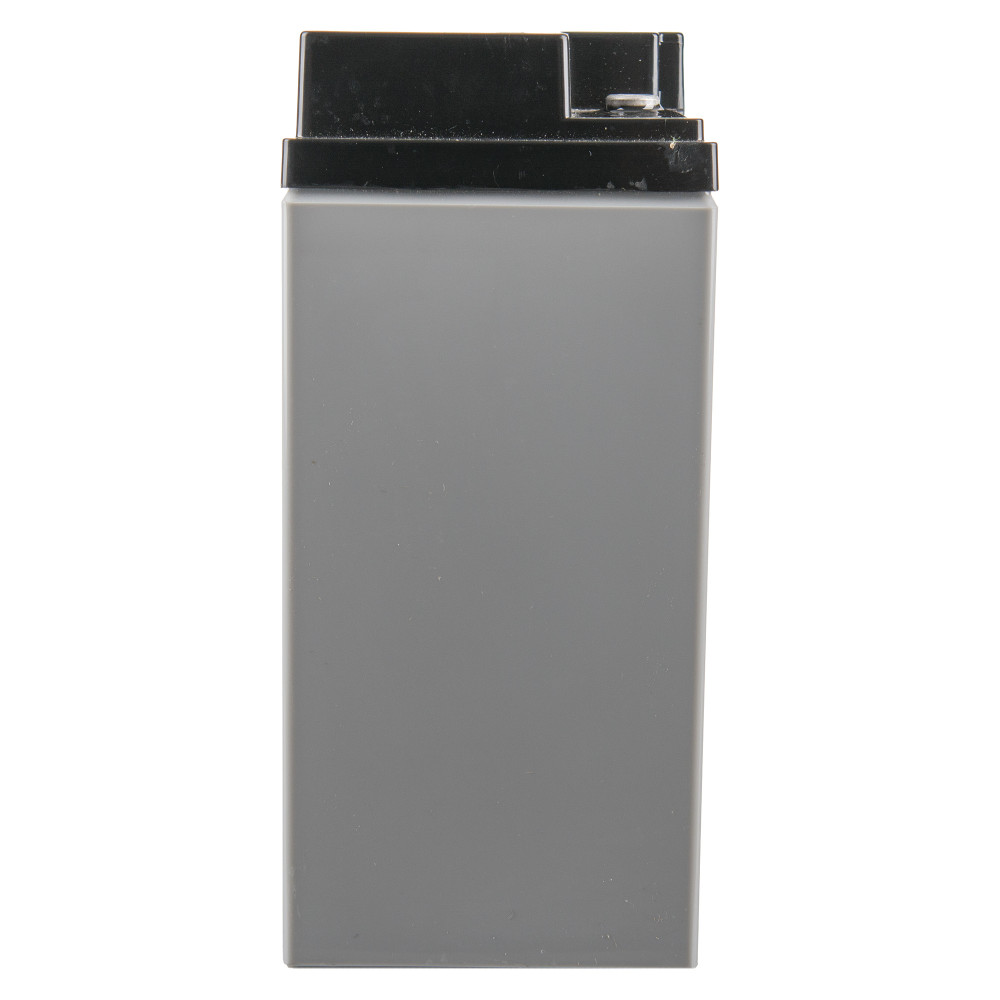

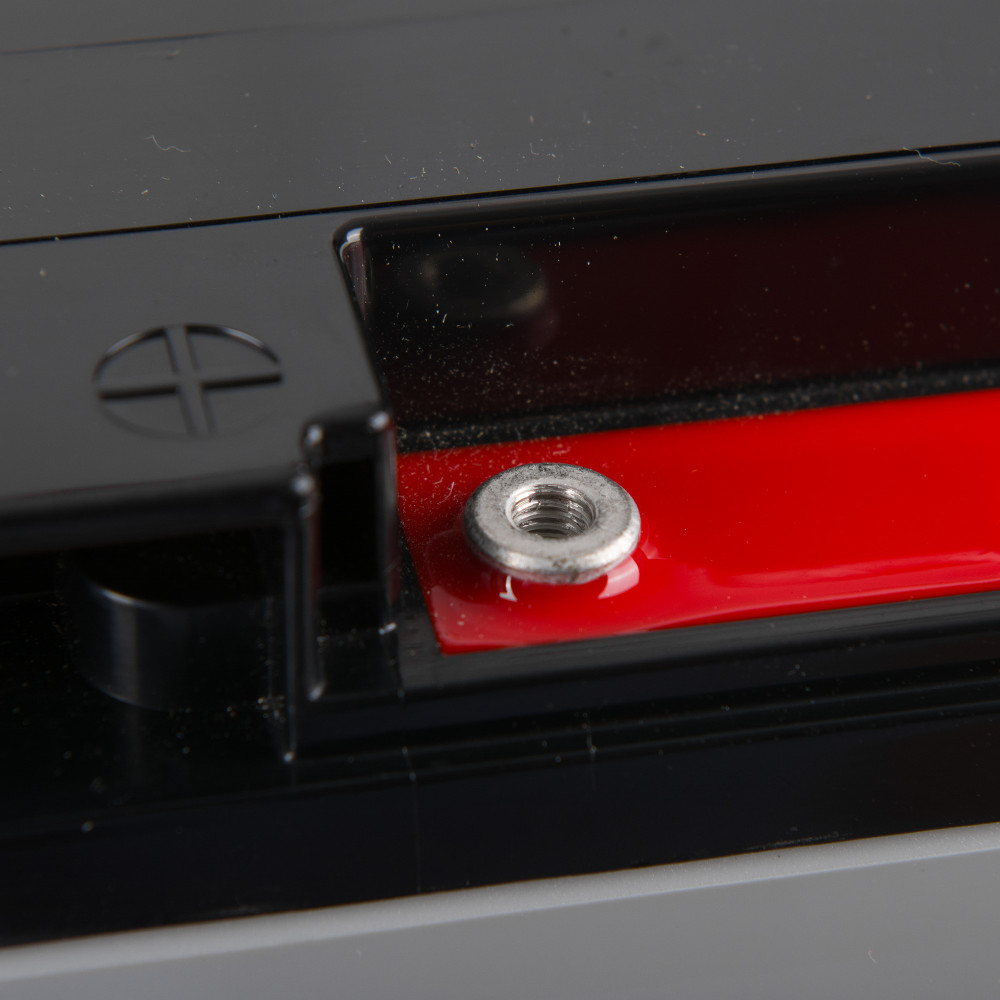

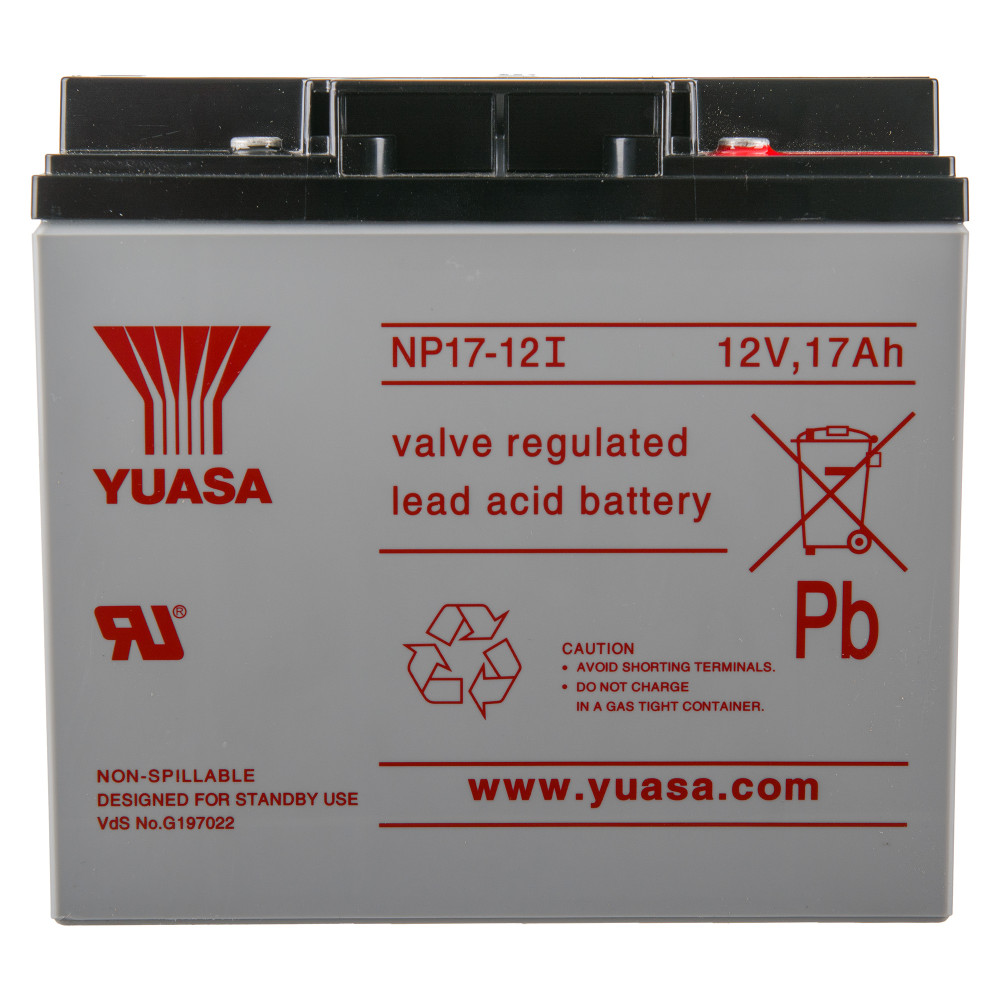

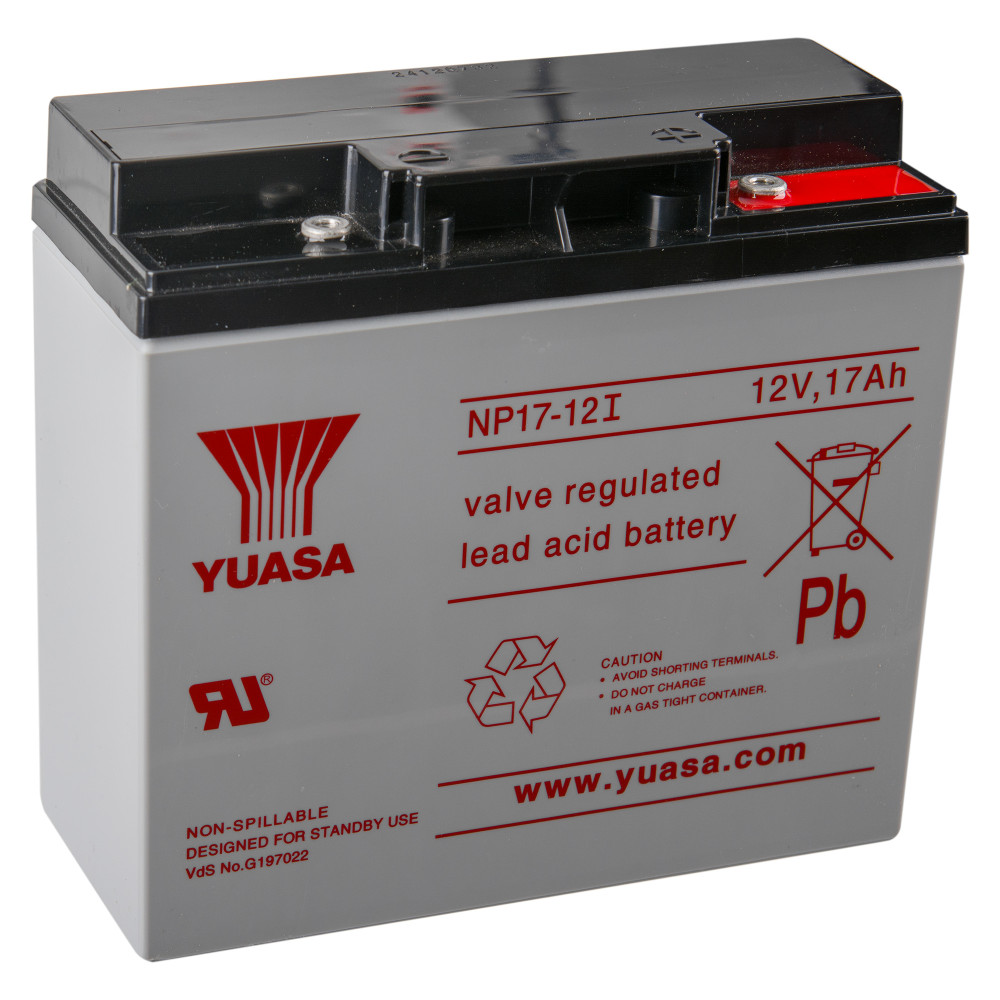

• Available with or without 2 x 12V, 17Ah stand-by batteries. Panel requires stand-by batteries to operate

Please note: The panel is supplied without zone LEDs. If you require a panel suitable for BS 5839 Part 1 compliant installation, 40 or 80 zone LED cards are available separately
