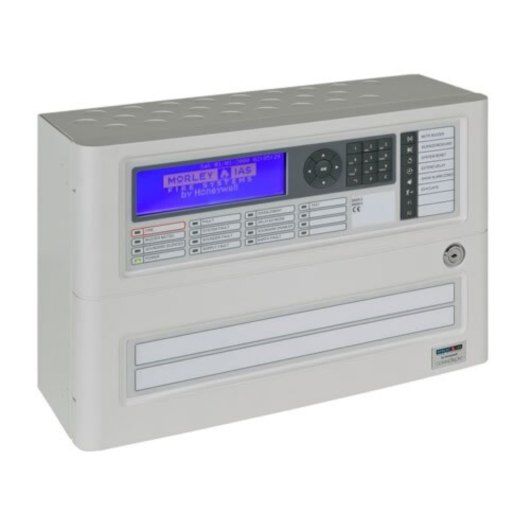

Morley DXc1 Addressable Single Loop Panel

Ideal for small to medium sized buildings, the DXc1 single loop addressable fire alarm panel from Morley IAS allows up to 126 devices to be connected to the single loop. Designed with ease of installation in mind for both installers and end users, after the wired connection has been completed, the DXc panel has a simple 5 button set-up process for the system to start working. The single loop addressable panel features a large graphical display for clear and efficient programming.

• Compliant with EN54-2 and EN54-4 standards
• LPCB certified
• Supplied with Microsoft Windows® compatible configuration software for panel programming
• Simple 5 button set-up process
• Large, blue LCD display with backlight illumination
• Up to 126 devices can be connected to the single loop
• Features two independent sounder circuits
• Supports Apollo (Xplorer, XP95 & Discovery), Hochiki (ESP) and System Sensor protocol devices
• Supplied without zone LEDs – 40 or 80 zone LED cards available separately
• Integrated software for optional sensitivity adjustment e.g. day and night
• Supports USB upload / download
• Features indicators for a range of panel modes e.g. fire, fault, test, power, etc.
• Includes fire, fault and auxiliary output relays
• Up to 16 x single loop panels can be networked for large applications
• Ideal for small to medium sized buildings
• Available with or without 2 x 12V, 7Ah stand-by batteries. Panel requires stand-by batteries to operate

Please note: The panel is supplied without zone LEDs. If you require a panel suitable for BS 5839 Part 1 compliant installation, 40 or 80 zone LED cards are available separately
