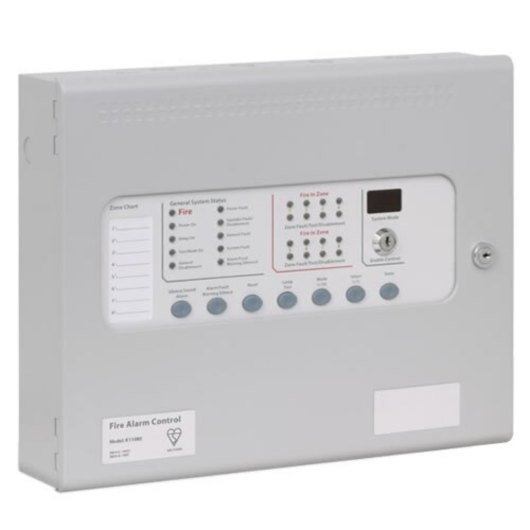

Kentec Sigma K11 Fire Alarm Panel with LCMU - 8 Zone
The Kentec Sigma K11 conventional fire alarm panel provides 8 detection zone circuits as well as 2 separate dedicated sounder circuits, making it ideal for medium to large commercial applications. Allowing a fire alarm system to cover a broad area, the Kentec 8 zone panel features LED indicators, helping the user to identify when and where a fire alarm or device has been activated. The conventional panel features a host of configuration options that are accessed using a simple programmable interface.
- Certified to BS EN 54 Parts 2 and 4
- Suitable for BS 5839 Part 1 compliant installations
- Supports a range of and devices
- Features two separate outputs for installation of sounders
- Four wire conventional fire alarm panel
- Clear and intuitive programming interface
- Easy installation with user friendly configuration process
- Configurable options include zone input and sounder delays, short circuit options, etc.
- Line Continuity Monitoring Unit (LCMU) included for monitoring detector head removal
- Integral three amp power supply and mains powered battery charger
- The panels status and fire alarm zone activation is identified through LED indicators
- Runs a maximum of 32 devices per zone (depending on the devices' power consumption)
- Up to 7 repeater panels can be connected
- Ideal for medium to large sized commercial applications e.g. hotels, restaurants, schools, etc.
- Available with or without 2 x 12V, 7Ah stand-by batteries. Panel requires stand-by batteries to operate
Customer Reviews (0)
Reviews by Real Customers
To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.
No Reviews Available
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data
| Product Code | FLSK118 |
|---|---|
| Brand | Kentec |
| Colour | Grey |
| Compliance | BS 5839-1 |
| BS EN 54-2 | |
| BS EN 54-4 | |
| Connection | Wired |
| Display | LED Indicators |
| Equipment Type | Alarm Panel |
| Material | Mild Steel |
| Maximum Number of Linked Devices | 32 Devices |
| Number of Repeater Panels | 7 |
| Number of Zones | 8 Zones |
| Operating Temperature | -5°C To +40°C |
| Power Type | Mains Powered (230V) |
| Recyclable | Partially Recyclable |
| Relative Humidity | Less Than 95% |
| Dimensions (Unit) |
|
| Weight | 6.00kg |
| Datasheets |
