Apollo Series 65 Optical Smoke Detector

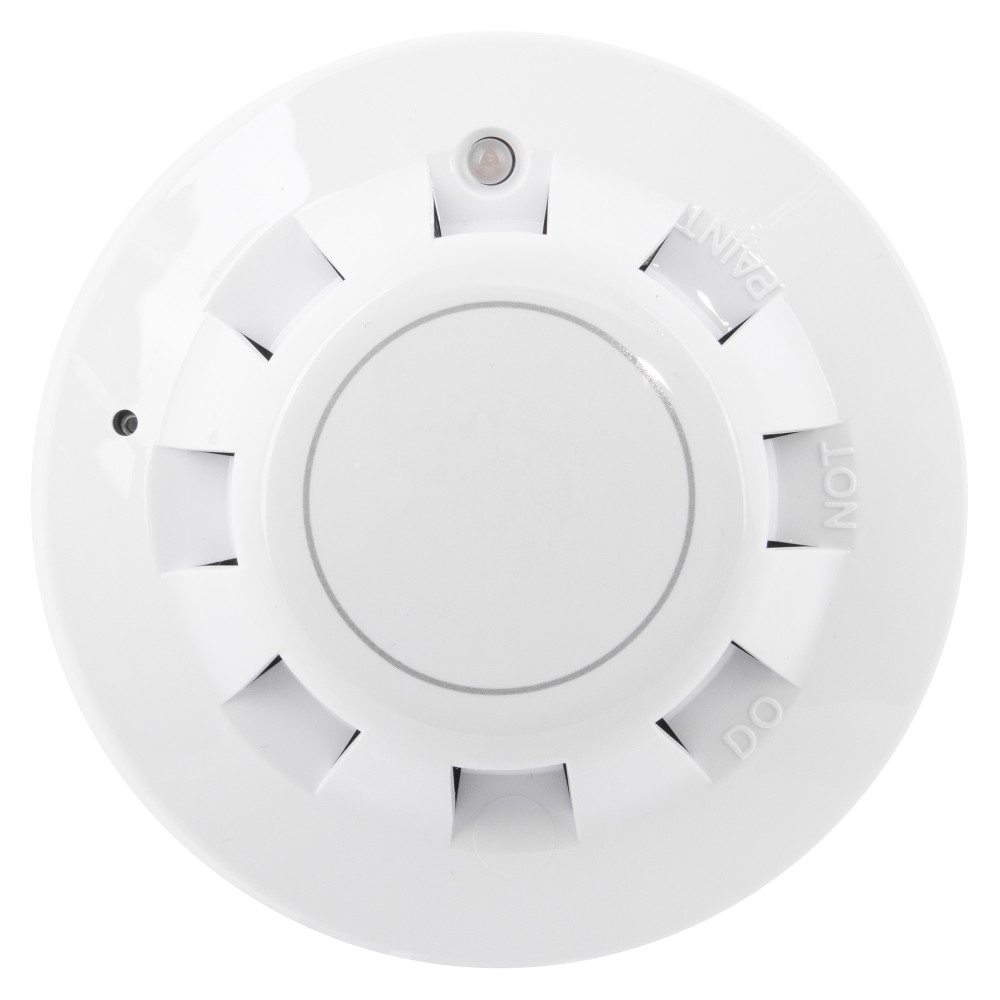

Front view of the apollo series 65 optical smoke alarm showing circular design with vents and central button

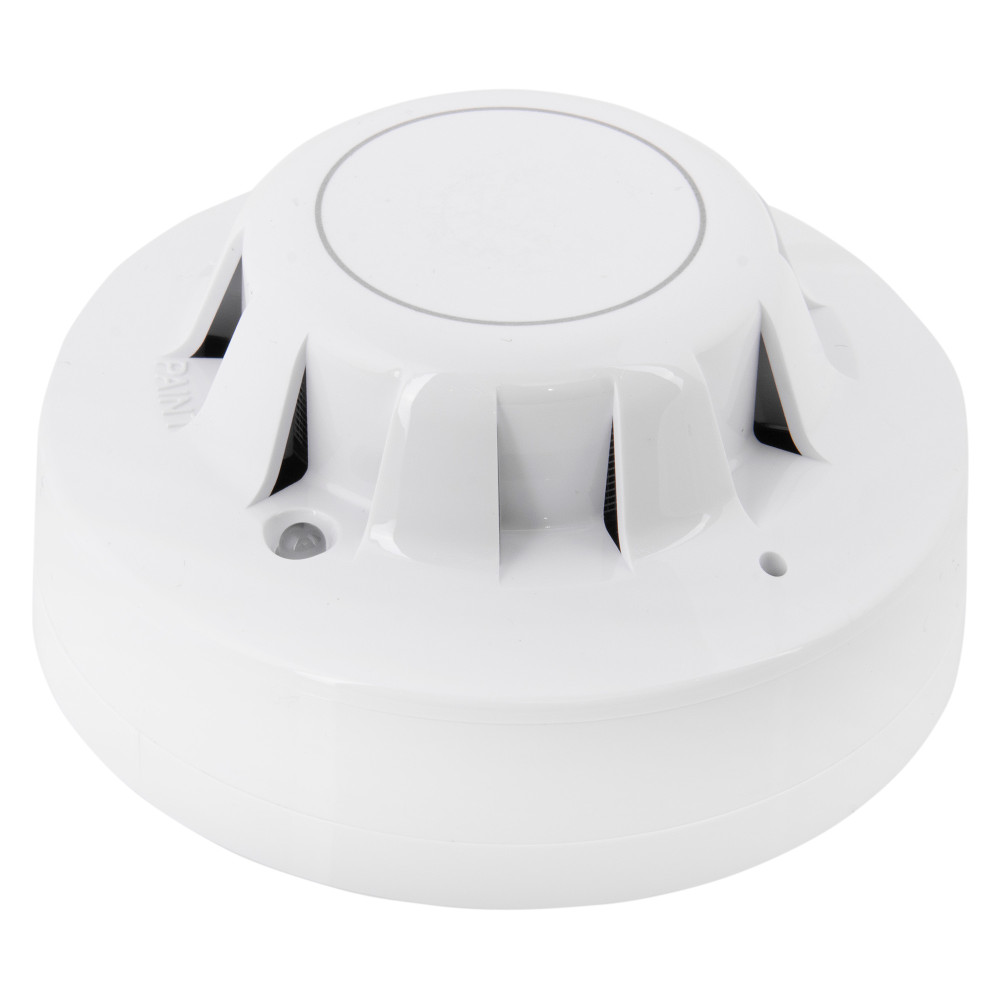

apollo series 65 optical smoke alarm with flap65b base shown from an angled front view in white plastic design

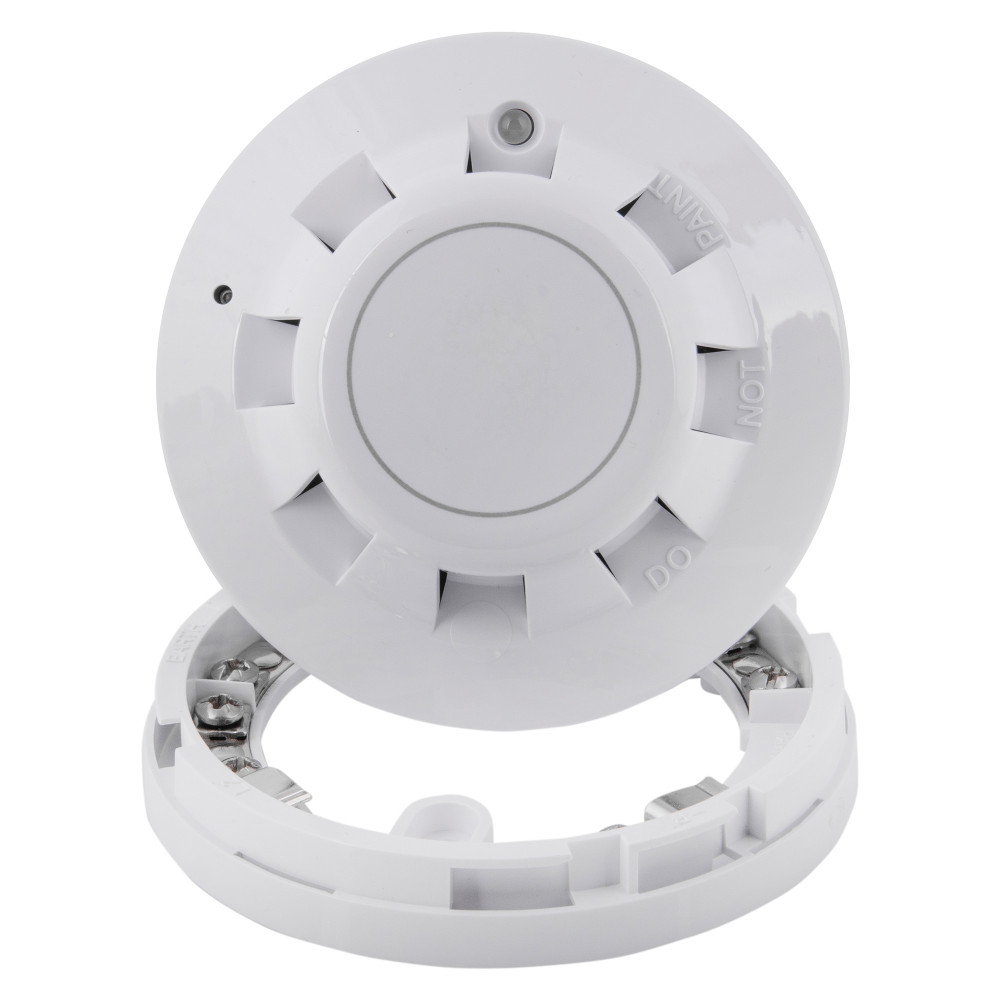

Front view of the apollo series 65 optical smoke alarm with flap65b base showing the open base and alarm unit visible

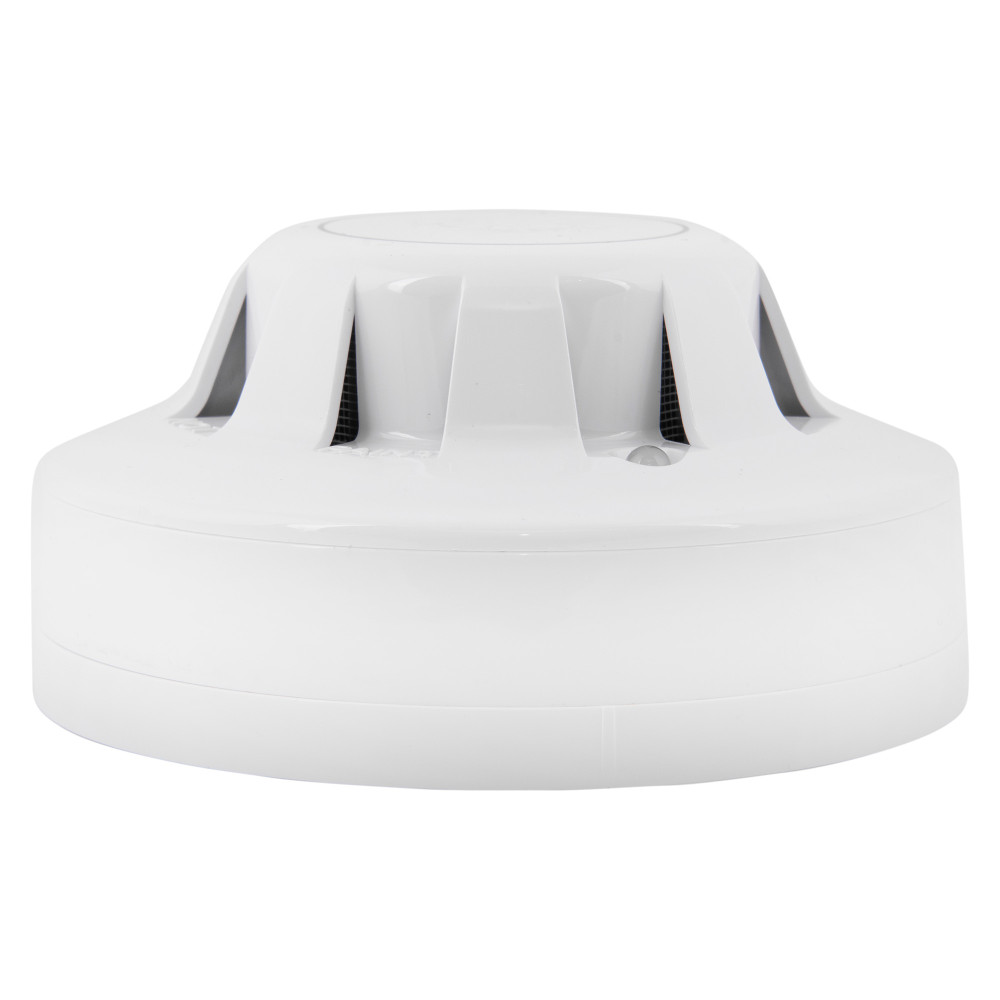

Side view of the apollo series 65 optical smoke alarm with flap65b base showing its white rounded design

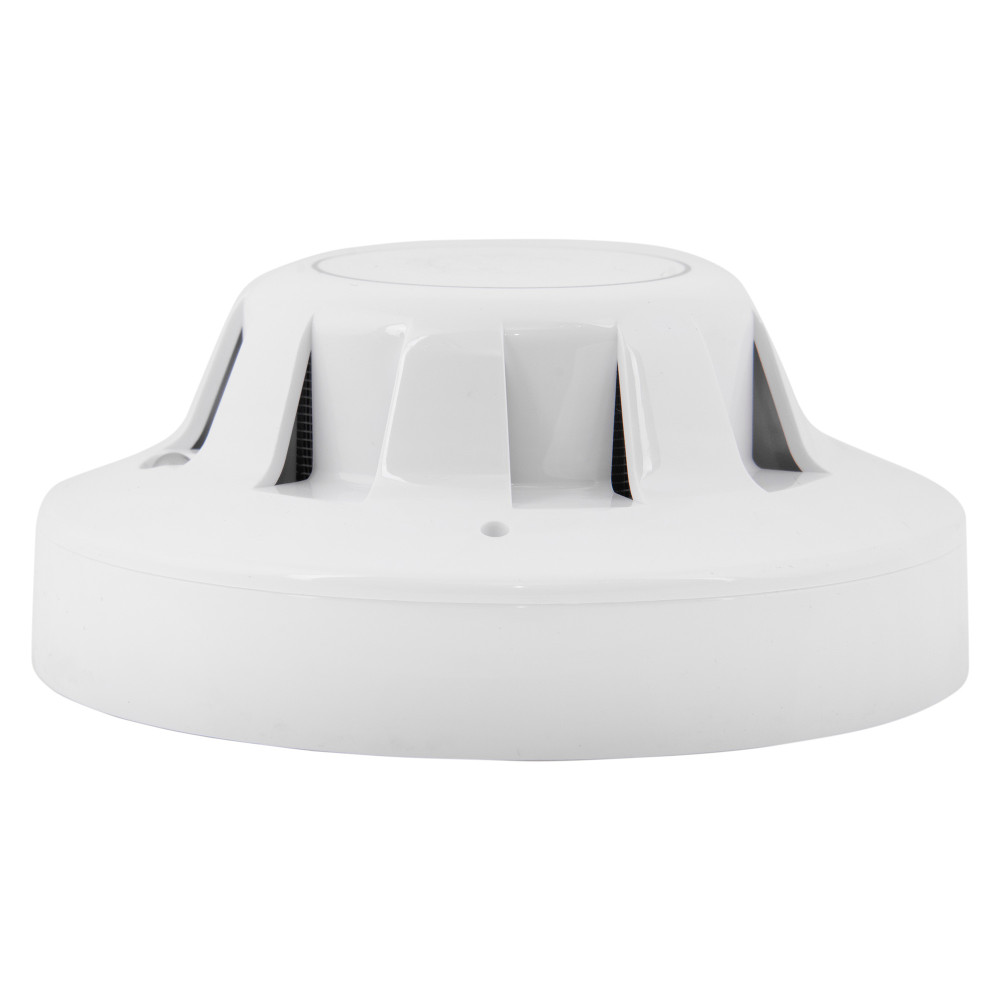

Side view of the apollo series 65 optical smoke alarm showing its white circular design and ventilation slots

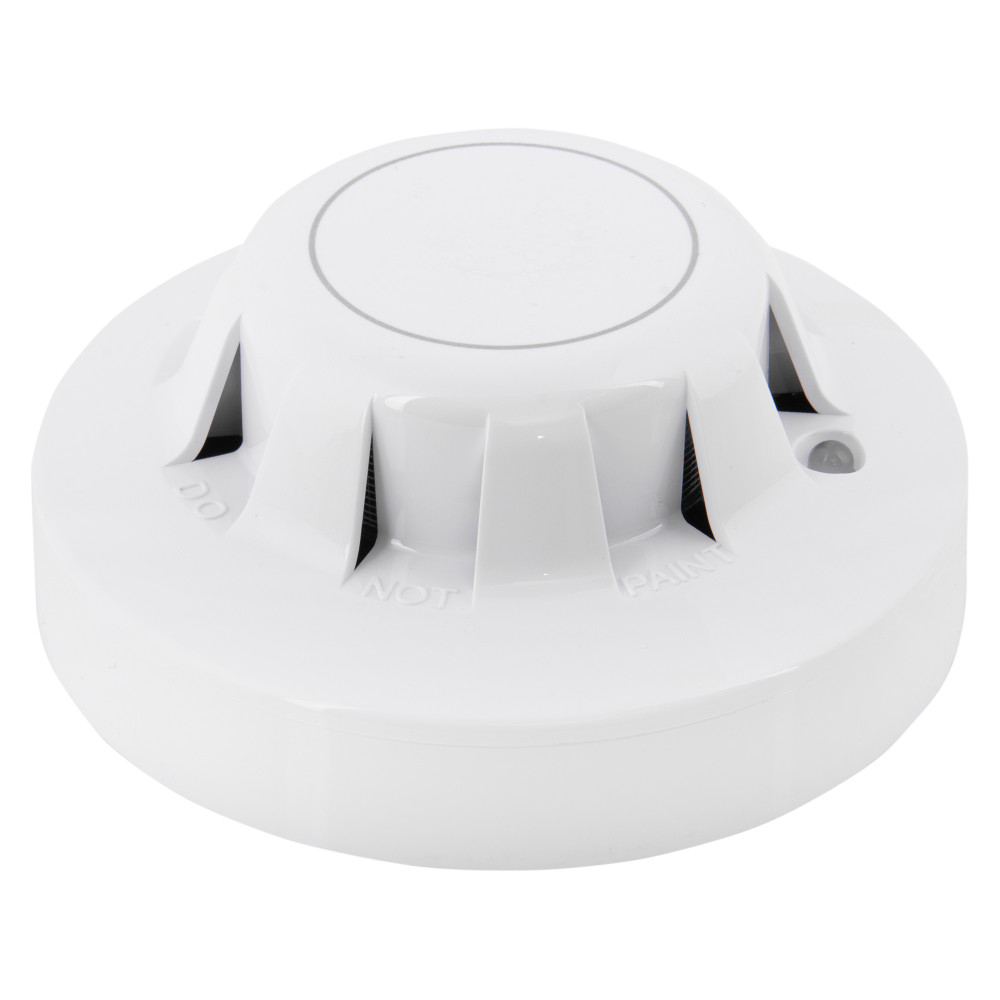

angled view of the white apollo series 65 optical smoke alarm showing vents and circular centre

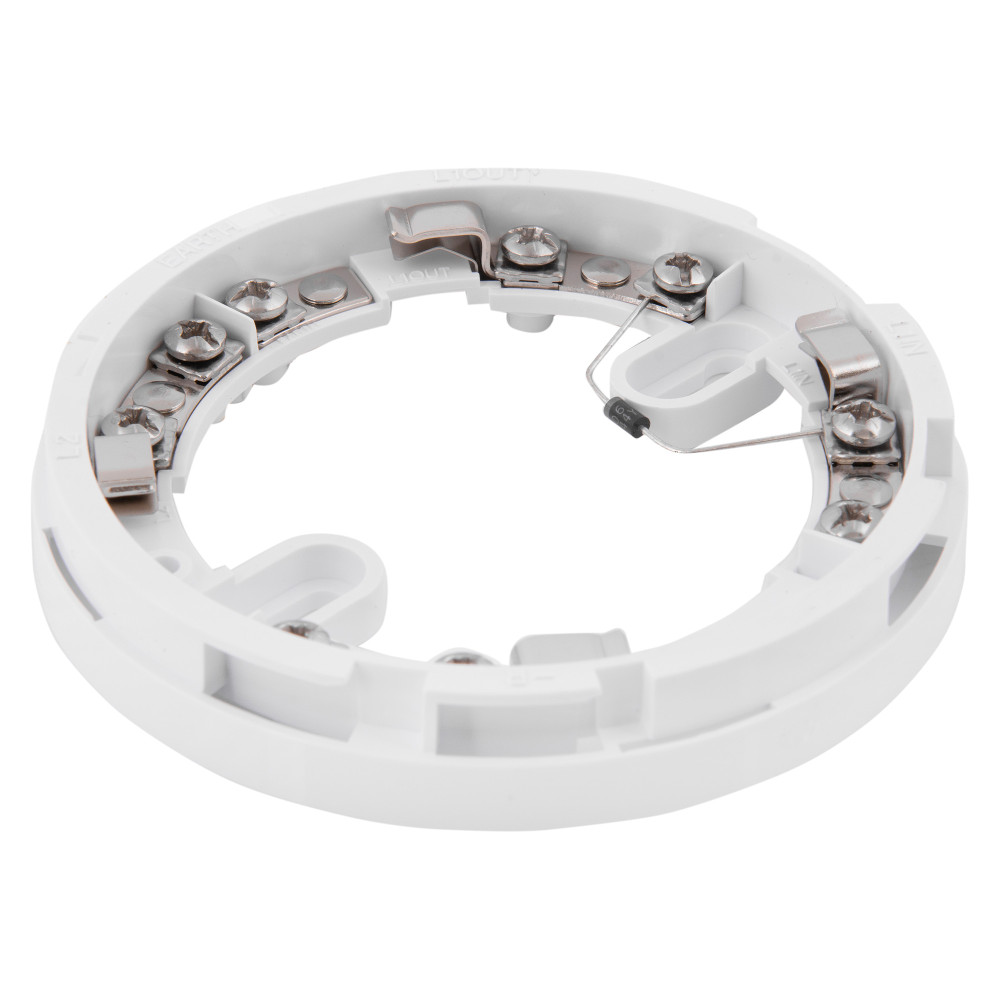

angled view of the apollo alarm base showing its circular white frame and internal metal components

Front view of an apollo alarm base showing its white circular frame with metal connectors

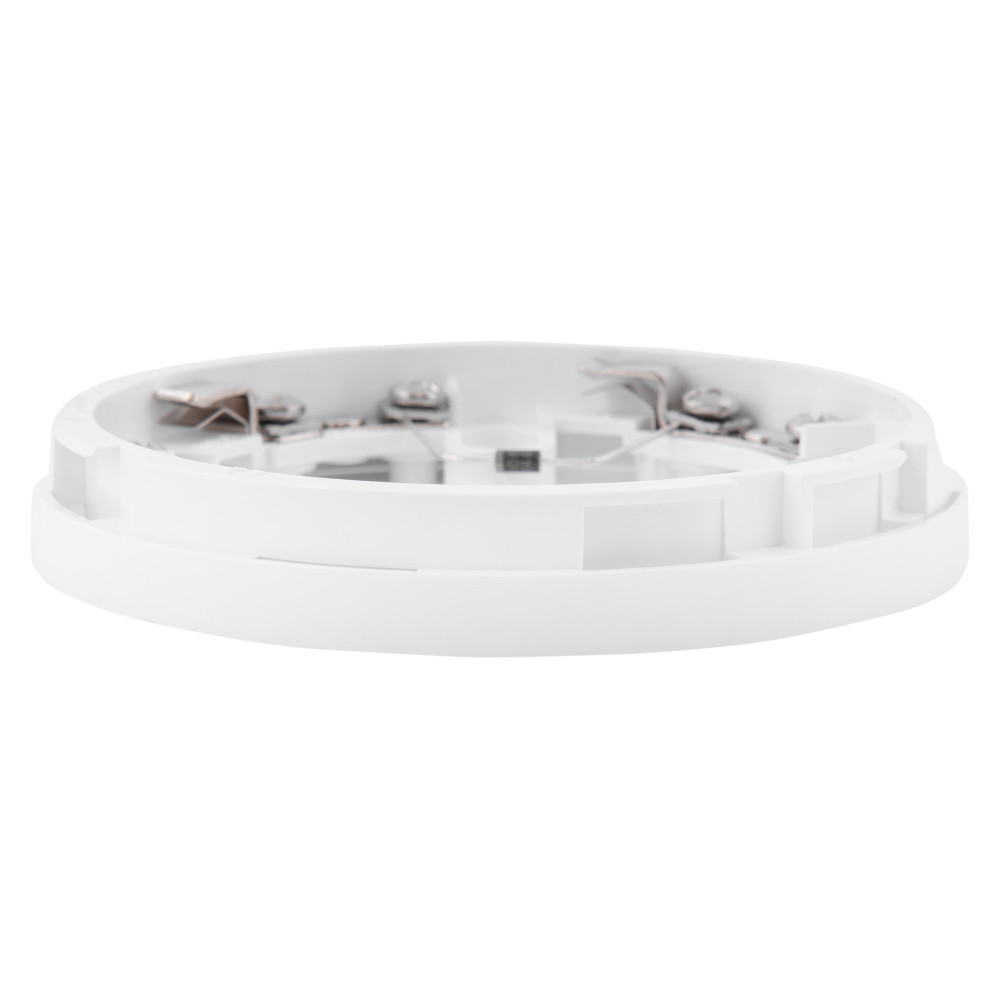

Side view of the apollo alarm base showing its round shape and internal components

angled view of the apollo series 65 diode detector base showing its white circular frame and metal connectors

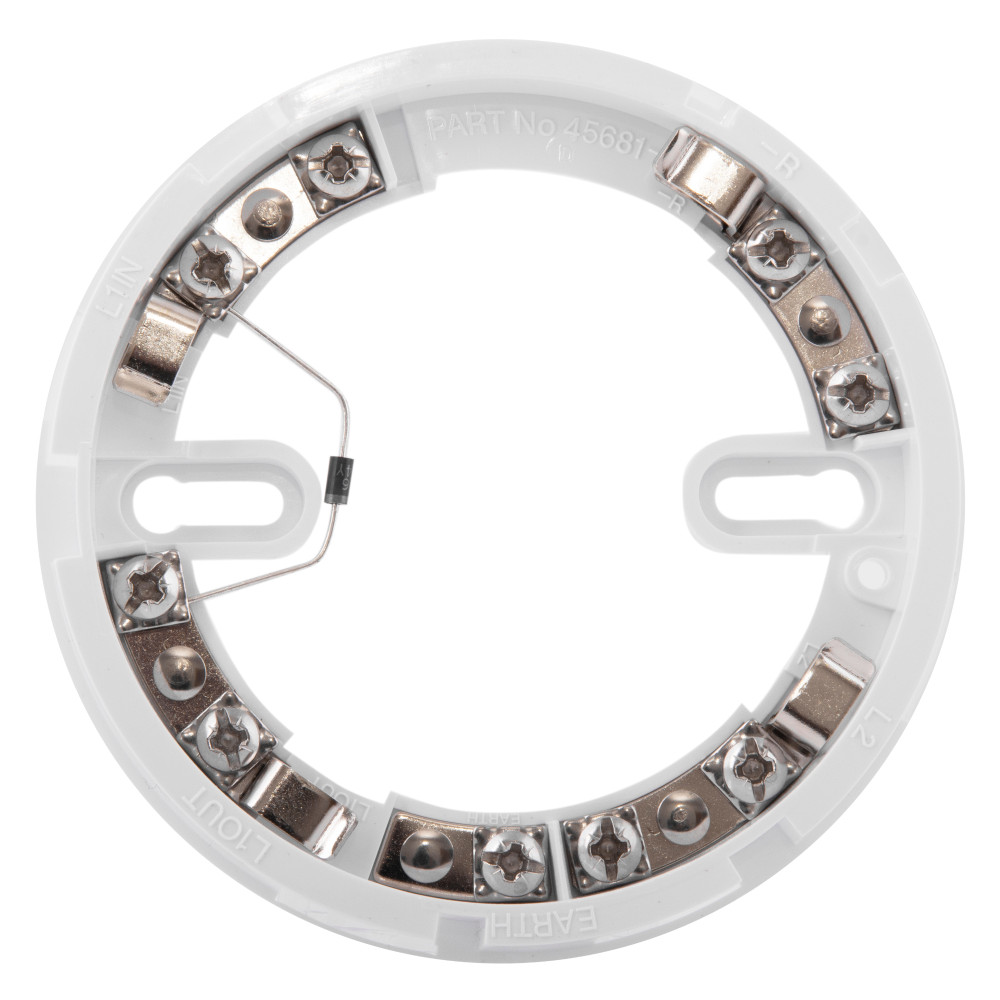

Front view of apollo series 65 diode detector base showing circular white plastic base and metal connectors

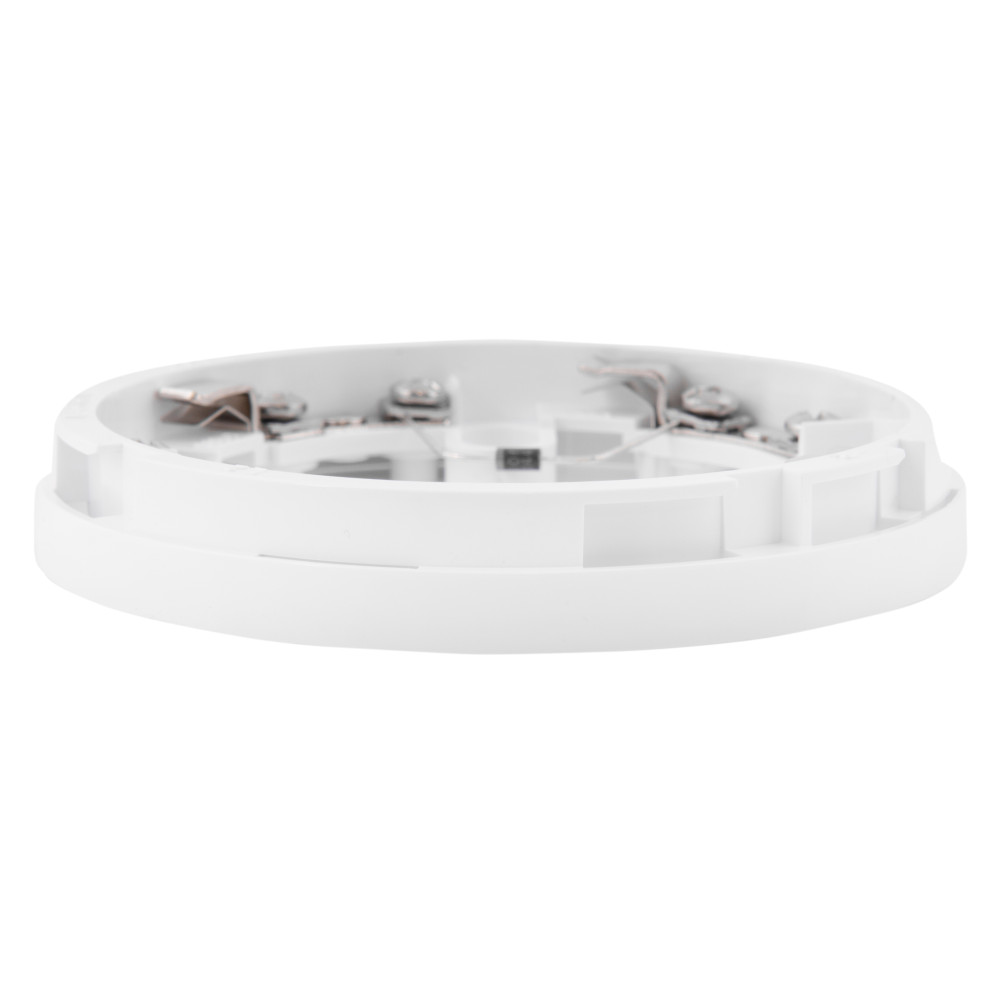

side view of the apollo series 65 diode detector base showing circular white plastic construction with internal metal components

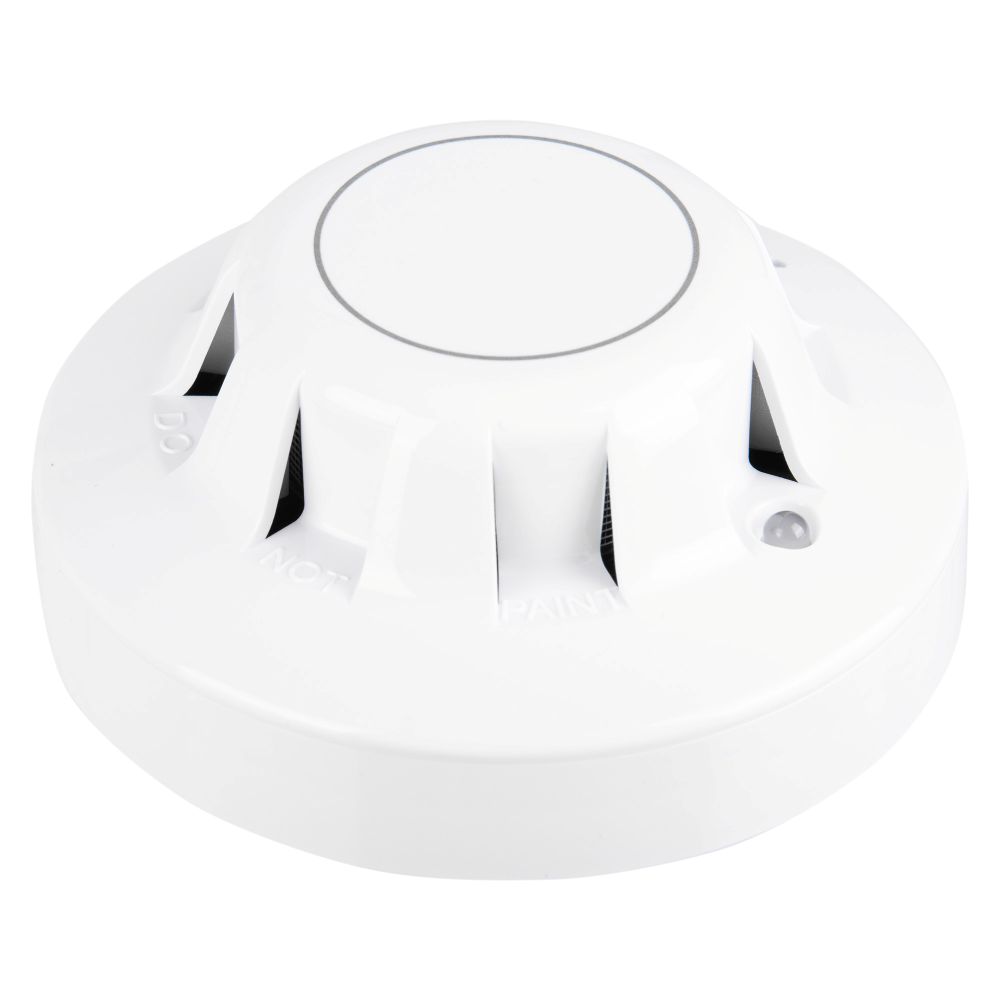

White Flap65Opt Apollo Series 65 Optical Smoke Detector shown at an angled view on a white background

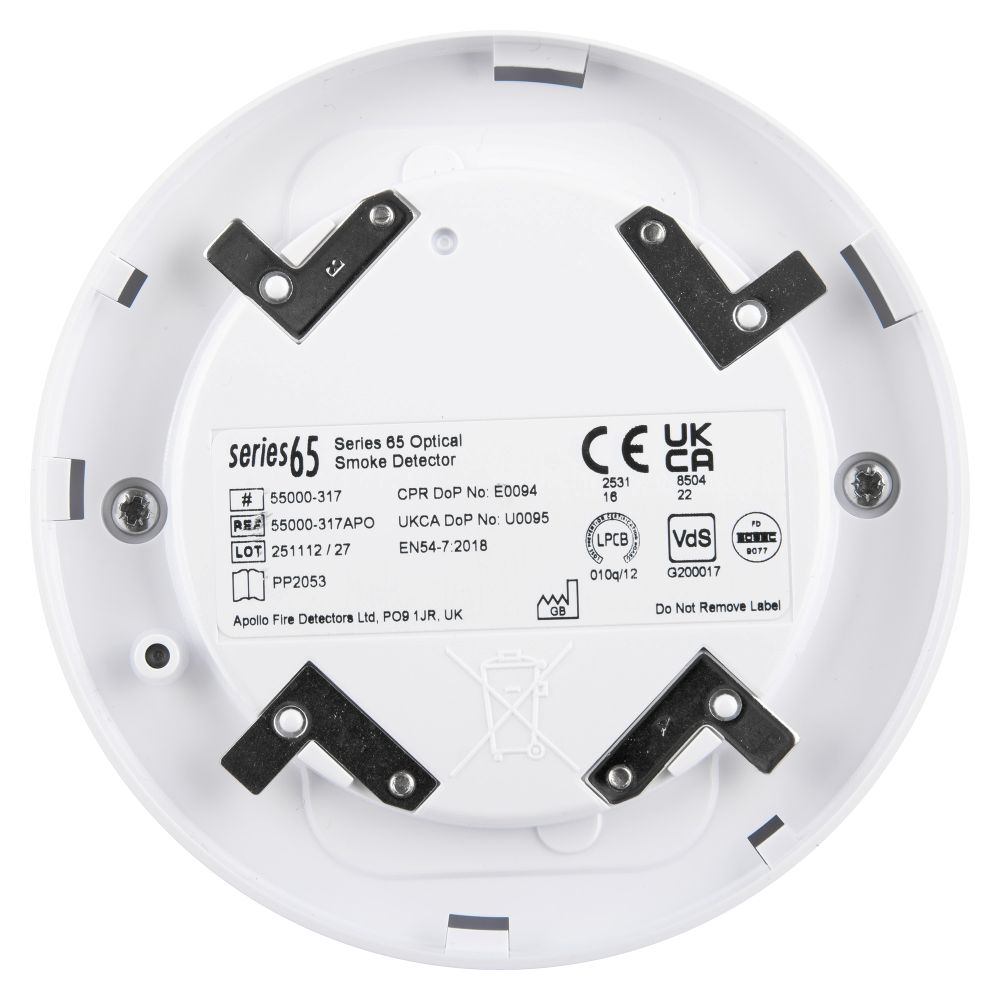

Back view of the Flap65Opt Apollo Series 65 Optical Smoke Detector showing label and mounting points

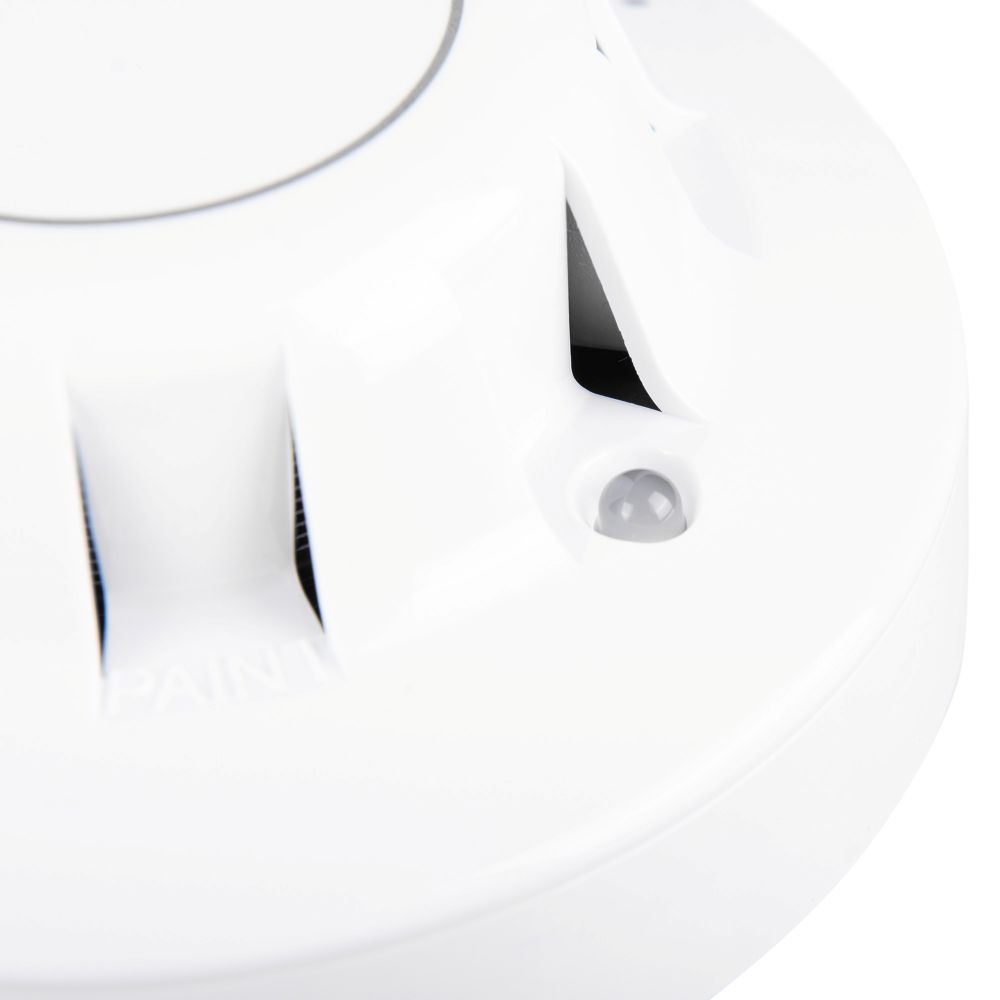

Closeup image of Flap65Opt Apollo Series 65 Optical Smoke Detector showing the sensor and vents

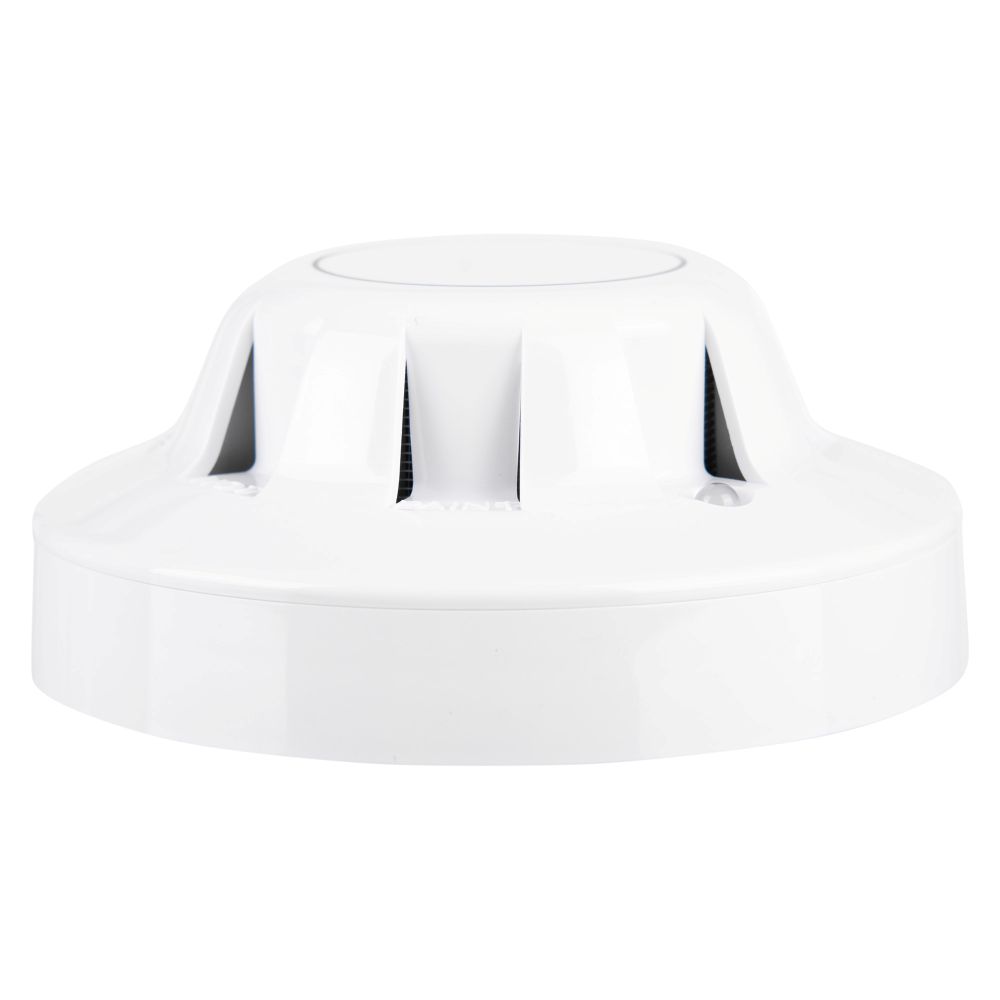

Flap65Opt Apollo Series 65 optical smoke detector shown from the side on a white background

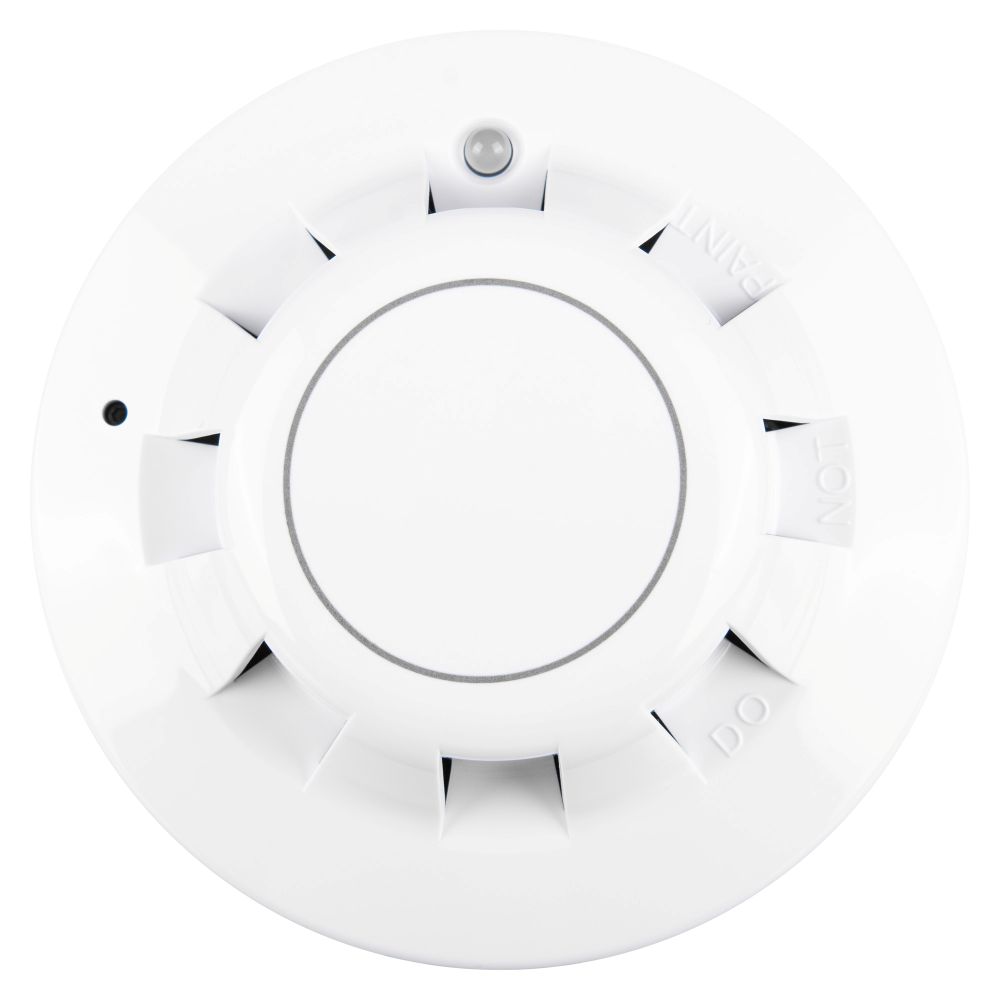

Flap65Opt Apollo Series 65 Optical Smoke Detector front view showing white circular device with vents and central round area

4 out of 5 stars

5 In Stock

For dispatch today order within

5 Hrs 19 Mins

£25.97 inc VAT

£21.64 ex VAT

Standard Delivery

Will usually be delivered in 2-3 working days

£4.20 inc VAT

Next Day Delivery

Will usually be delivered the next working day

£7.00 inc VAT

This optical smoke detector for CFP and Kentec Sigma fire alarm systems is part of the Apollo Series 65 range. The detector is activated when smoke enters the chamber and causes an LED light pulse to scatter. At this point, the optical smoke detector changes in to the alarm state.

Optical smoke sensing technology
Conforms to EN54:2000
CE Marked
Wide operating voltage of 9-33V
Supplied complete with lockable base
White polycarbonate construction
Designed for use with the following conventional fire alarm panels:
- CFP Fire Alarm Panel - 2 Zone
- CFP Fire Alarm Panel - 4 Zone
- CFP Fire Alarm Panel - 8 Zone
- Kentec Sigma K11 Fire Alarm Panel - 2 Zone
- Kentec Sigma K11 Fire Alarm Panel - 4 Zone
- Kentec Sigma K11 Fire Alarm Panel - 8 Zone
Can also be fitted on the Synergy RF smoke detector and heat detector units
The Apollo 65 series has replaced the Apollo 60 detector range
Suitable for use as part of a two wire conventional panel system when used with the Apollo Series 65 Sav-Wire detector base

Customer Reviews

Customer Reviews (2)

Rating: 4 / 5

Reviewer

C M

Good

Published on

24th October 2024

Rating: 4 / 5

Reviewer

Anonymous

IT TOOK 4 WEEK TO COME

HAD TO PHONE A CHASE 4 TIMES

Published on

16th August 2015

FAQs Technical Data

Technical Data

Apollo Series 65 Diode Detector Base (45681-201APO)

Product Code	FLAP65B
Alternative Product Codes	45681-201
Brand	Apollo
Manufacturer's Part Number	SD-1006
Colour	White
Equipment Type	Base
Material	Plastic
Recyclable	Partially Recyclable
Dimensions (Unit)	Height: 8mm Diameter: 100mm
Weight	51g

Apollo Series 65 Optical Smoke Detector (55000-317APO)

Product Code	FLAP65OPT
Alternative Product Codes	55000-317
Brand	Apollo
Manufacturer's Part Number	SD-1000
Approvals & Markings	CE Marked
Colour	White
Compatibility	Conventional
Compatible Products	CFP Fire Alarm Panels
Compatible Products	Kentec Sigma K11 Fire Alarm Panels
Compliance	EN 54: 2000
Equipment Type	Detector
IP Rating	IP23D
Material	Polycarbonate
Operating Temperature	-20°C To +60°C
Recyclable	Partially Recyclable
Relative Humidity	0% To 95%
Sensor Type	Optical
Dimensions (Unit)	Height: 42mm Diameter: 100mm
Weight	99g
