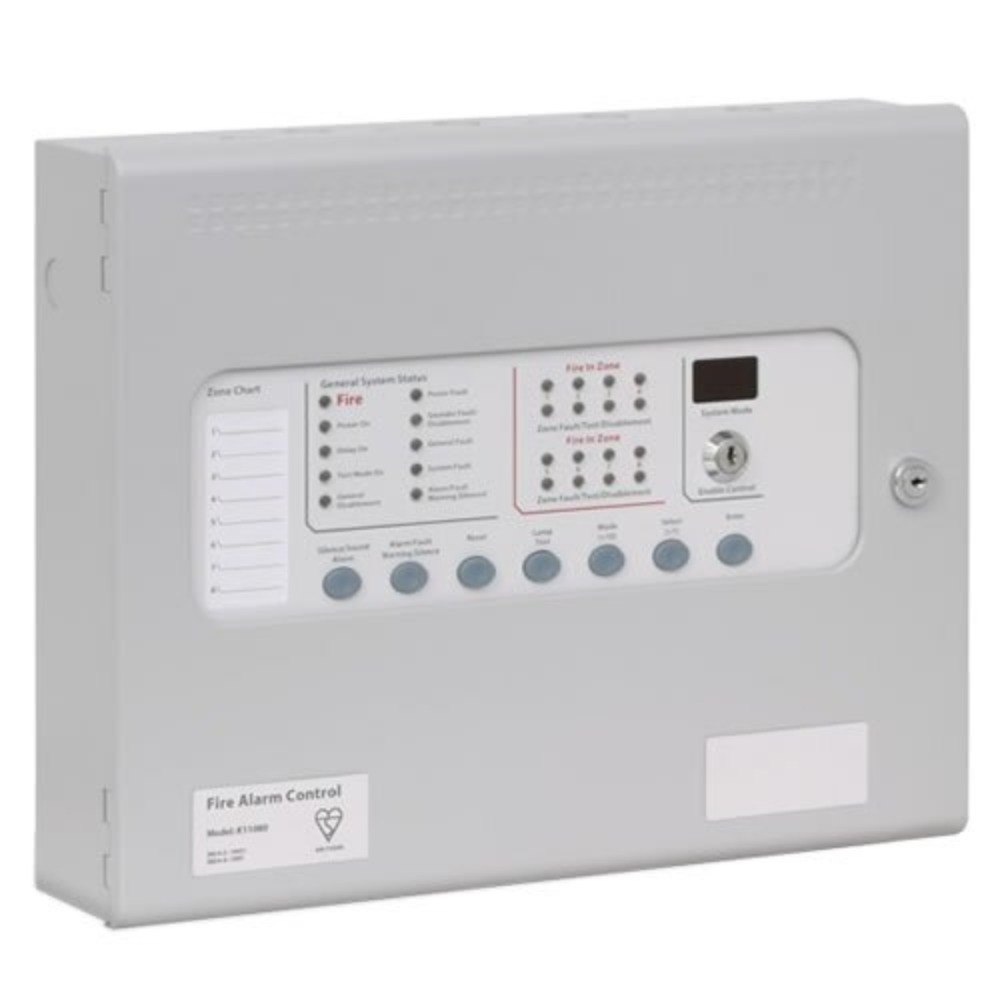

Kentec Sigma K11 Fire Alarm Panel with LCMU - 8 Zone

The Kentec Sigma K11 conventional fire alarm panel provides 8 detection zone circuits as well as 2 separate dedicated sounder circuits, making it ideal for medium to large commercial applications. Allowing a fire alarm system to cover a broad area, the Kentec 8 zone panel features LED indicators, helping the user to identify when and where a fire alarm or device has been activated. The conventional panel features a host of configuration options that are accessed using a simple programmable interface.

• Certified to BS EN 54 Parts 2 and 4
• Suitable for BS 5839 Part 1 compliant installations
• Supports a range of Apollo (Series 60, 65 & 30) and Hochiki detectors and devices
• Features two separate outputs for installation of sounders
• Four wire conventional fire alarm panel
• Clear and intuitive programming interface
• Easy installation with user friendly configuration process
• Configurable options include zone input and sounder delays, short circuit options, etc.
• Line Continuity Monitoring Unit (LCMU) included for monitoring detector head removal
• Integral three amp power supply and mains powered battery charger
• The panels status and fire alarm zone activation is identified through LED indicators
• Runs a maximum of 32 devices per zone (depending on the devices' power consumption)
• Up to 7 repeater panels can be connected
• Ideal for medium to large sized commercial applications e.g. hotels, restaurants, schools, etc.

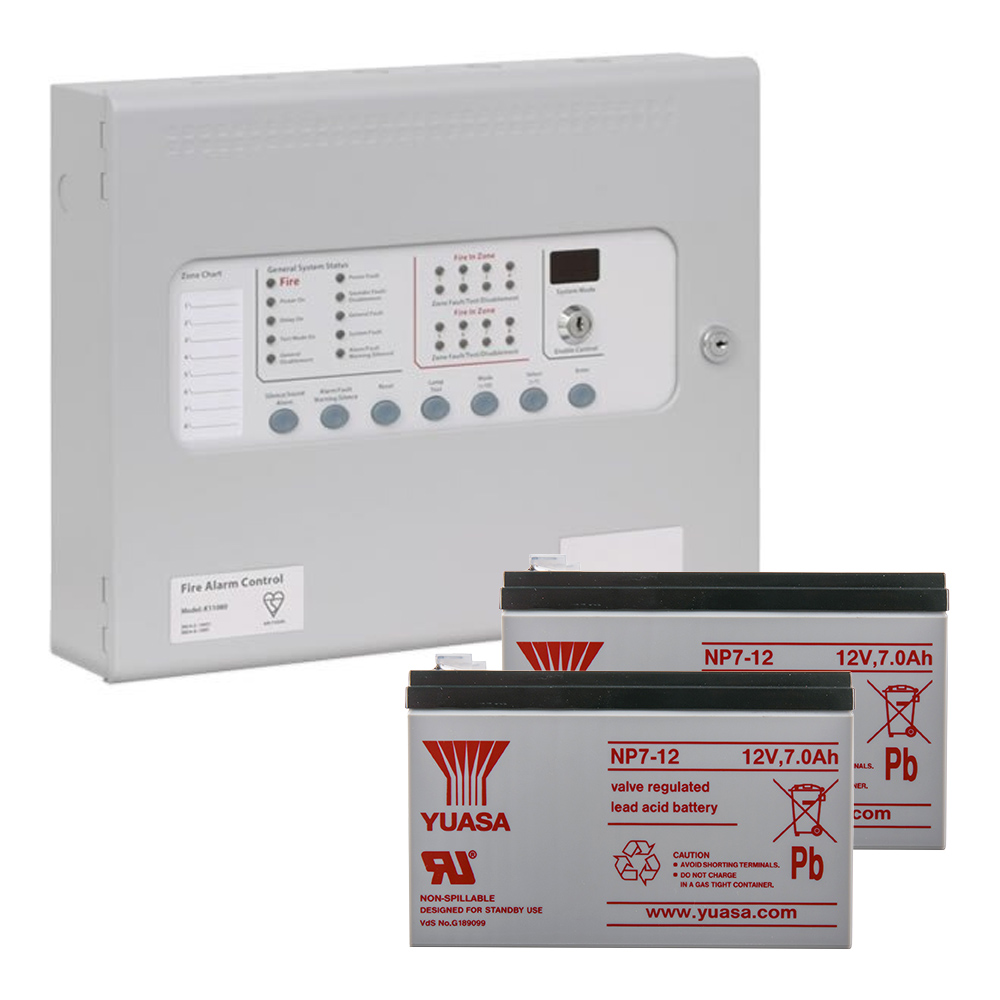

• Available with or without 2 x 12V, 7Ah stand-by batteries. Panel requires stand-by batteries to operate
