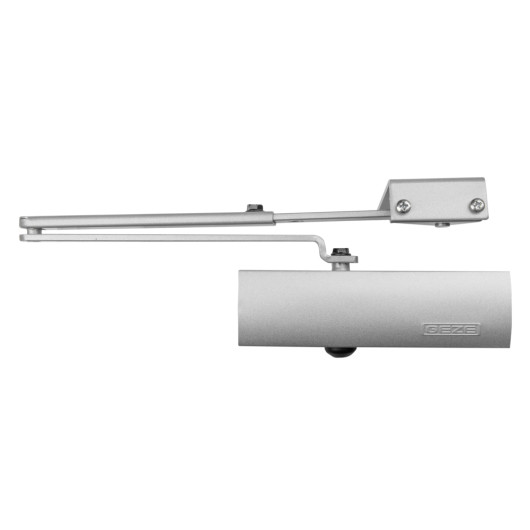

GEZE TS1500 Overhead Door Closer - Power Size EN 3 - 4
The GEZE TS1500 is an overhead door closer suitable for doors up to 1100mm wide and weighing up to 80kg, which can be mounted in Fig 1, 61, and 66 configurations to suit your premises. The TS1500 door closer comes with a direct fitting template which eliminates the need for a back plate, making installation quicker and easier. Adjustable features, such as closing speed and latching action, allow the closer to be altered to suit any application.
- Suitable for:
- Single Action internal doors
- Doors up to 1100mm wide and weighing up to 80kg –
- Installation in
- Certifire approved for FD120 fire rated doors - CF144 certificate
- CE marked to EN 1154
- BWF Certified
- Quick and easy installation with a direct fitting template – no need for a backing plate
- Supplied with universal fixings for push and pull side mounting
- Adjustable features to suit any premises
- Closing speed controls how quickly the door closes
- Latching action governs the speed of the door in the last 15° of the cycle
- Manufactured in Germany
- 12 Month Warranty
- Full classification
- Fig 1 & 61 installation: 4 | 8 | 4-3 | 1 | 1 | 3
- Fig 66 installation: 4 | 8 | 3 | 1 | 1 | 3
Customer Reviews (1)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
Anonymous
Published on
16th March 2018
Technical Data
| Product Code | GZTS1500 |
|---|---|
| Brand | Geze |
| Closing Speed | Adjustable |
| Compliance | BS EN 1154: 1997 |
| BWF Certified | |
| Certifire - CF144 | |
| Approvals & Markings | CE Marked |
| Door Type | Single Door |
| EN Classification | 4 | 8 | 3 | 1 | 1 | 3 |
| 4 | 8 | 3-4 | 1 | 1 | 3 | |
| Finish | Silver |
| Fire Rating | 120 Minutes |
| Fixing Options | Wooden Door Fixings (Included) |
| Installation Position | Fig 1 |
| Fig 61 | |
| Fig 66 | |
| Top Of Door | |
| Latching Action | Adjustable |
| Material | Metal |
| Maximum Door Width | 1100mm |
| Maximum Door Weight | 80kg |
| Warranty | 1 Year |
| Dimensions (Unit) |
|
| Weight | 1.65kg |
| Datasheets |
