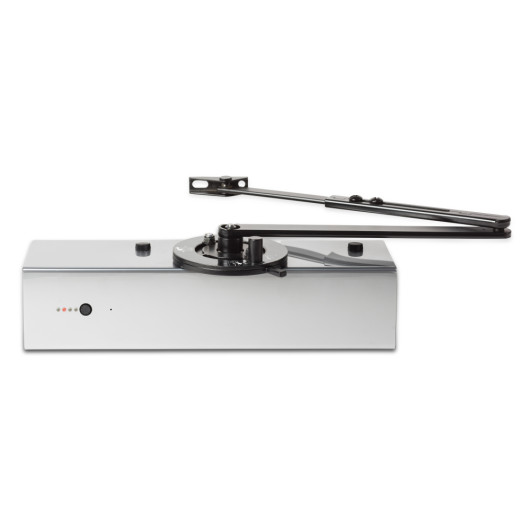

Freedor SmartSound Wireless Hold Open Free-Swing Door Closer
00:01:49
The Freedor SmartSound is a completely wireless and battery operated free-swing fire door closer. The door is allowed to swing freely and into any position in normal operation but will close when the fire alarm sounds. Both the free swing motion and the ability for the door to remain open improves access for disabled users whilst no additional wall or floor fittings need to be installed like with other units on the market. The door closer function is triggered by the sound level being above 65dBA for over 14 seconds. This new model features SmartSound technology which filters out common background noises and reducing false activations while still ensuring the door closes in the event of an alarm.
- Suitable for use on Single Action doors
- Improves access within a building for disabled users
- Can be installed on the internal or external side of the door leaf
- Operates doors up to 60kg and width 950mm ()
- Adjustable
- Free-swing door closer
- Night time release option
- SmartSound listening technology
- Expected battery life 3 years
- 3 year warranty
- Certified to and
- Complies with category A and B
- CE Marked
Please Note: The Freedor is unsuitable for assembly halls and other environments where the noise level is frequently higher than the maximum release threshold of 80dB
Customer Reviews (4)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
J J
Published on
11th August 2025
Reviewed by
Anonymous
Published on
16th May 2018
Excellent Product
Bit on the expensive side, hence 4 stars, however, very good product
Reviewed by
Anonymous
Published on
15th September 2013
Works well on our door.
4x installed in the block. One,in blind lady's flat, installed last, too rapidly, has caused problems: activated when 'phone rings.
Reviewed by
Anonymous
Published on
13th May 2013
Excellent
Technical Data
| Product Code | FCFD01SS |
|---|---|
| Brand | Fireco |
| Activation | Acoustic |
| Compliance | BS 7273-4 - Category A and B |
| BS EN 1154: 1997 | |
| BS EN 1155 | |
| Approvals & Markings | CE Marked |
| Closing Speed | Adjustable |
| Connection | Wireless |
| Door Type | Single Door |
| Equipment Type | Free-Swing Closer |
| Hold-Open Door Closer | |
| Finish | Silver |
| Fixing Options | Wooden Door Fixings (Included) |
| Hold Open Angle | Any Angle |
| Installation Position | Fig 1 |
| Fig 61 | |
| Top Of Door | |
| Material | Metal |
| Maximum Door Width | 950mm |
| Maximum Door Weight | 60kg |
| Opening Angle | 105° |
| 135° (Push Side Mount) | |
| Power Size | EN 3 |
| Power Type | Battery Powered |
| Warranty | 3 Years |
| Dimensions (Unit) |
|
| Weight | 4.50kg |
| Datasheets |
Great item , great instruction.
Applies to option(s): Satin Stainless Steel
