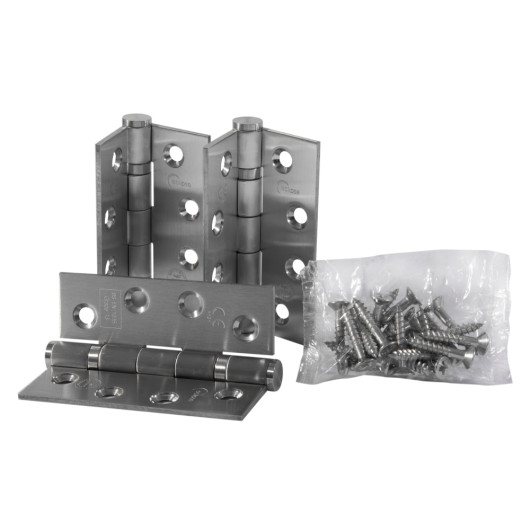

Heavy Duty Fire Door Hinges - Set of 3
These sets of three ball bearing fire rated hinges are designed for use on internal and external fire doors, tested to BS EN 1634-1 for FD60 Timber and FD240 Steel. With exceptional durability and strength, these fire door hinges are supplied as a set of 3, are CE marked and comply with BS EN 1935 standard.
- CE marked and Certifire rated
- Grade 13 overall hinge rating under BS EN 1935
- Grade 4 heavy / severe duty category of use
- Ball bearing hinges give strength and exceptional durability
- Grade 7 durability and Grade 6 door mass (120kg)
- Available in Stainless Steel and Brass
- Grade 4 corrosion resistance per EN 1670
- Full classification: 4 | 7 | 6 | 1 | 1 | 4 | 0 | 13
Please note: Fire rated door hinges are important to achieve integrity of a fire door and should be fitted in conjunction with . In most cases, 3 hinges are sufficient for fire doors.
Customer Reviews (7)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
R A
Published on
26th October 2024
Reviewed by
D B
Published on
21st May 2021
Great hinges
Good heavy duty hinges for my new front door. Just the job!
Reviewed by
Anonymous
Published on
31st March 2018
Just right for the size and weight of the door being fitted
Reviewed by
Anonymous
Published on
16th March 2018
Excellent product, great service
Reviewed by
Anonymous
Published on
11th September 2017
These are made to last a long time.
Technical Data
| Product Code | FRIBB7660SS |
|---|---|
| Brand | Eclipse |
| Category | Grade 4 (Heavy / Severe Duty) |
| Compliance | Certifire - CF336 |
| BS EN 1634 | |
| BS EN 1935 | |
| Approvals & Markings | CE Marked |
| EN Classification | 4 | 7 | 6 | 1 | 1 | 4 | 0 | 13 |
| Equipment Type | Fire Door Hinges |
| Finish | Stainless Steel |
| Fire Rating | 240 Minutes |
| 60 Minutes | |
| Fixing Options | Screws (included) |
| Material | Stainless Steel |
| Maximum Door Weight | 120kg |
| Number of Pieces | 3 Pieces |
| Suitability | Steel Doors |
| Timber Doors | |
| Dimensions (Unit) |
|
| Weight | 860g |
| Datasheets |
