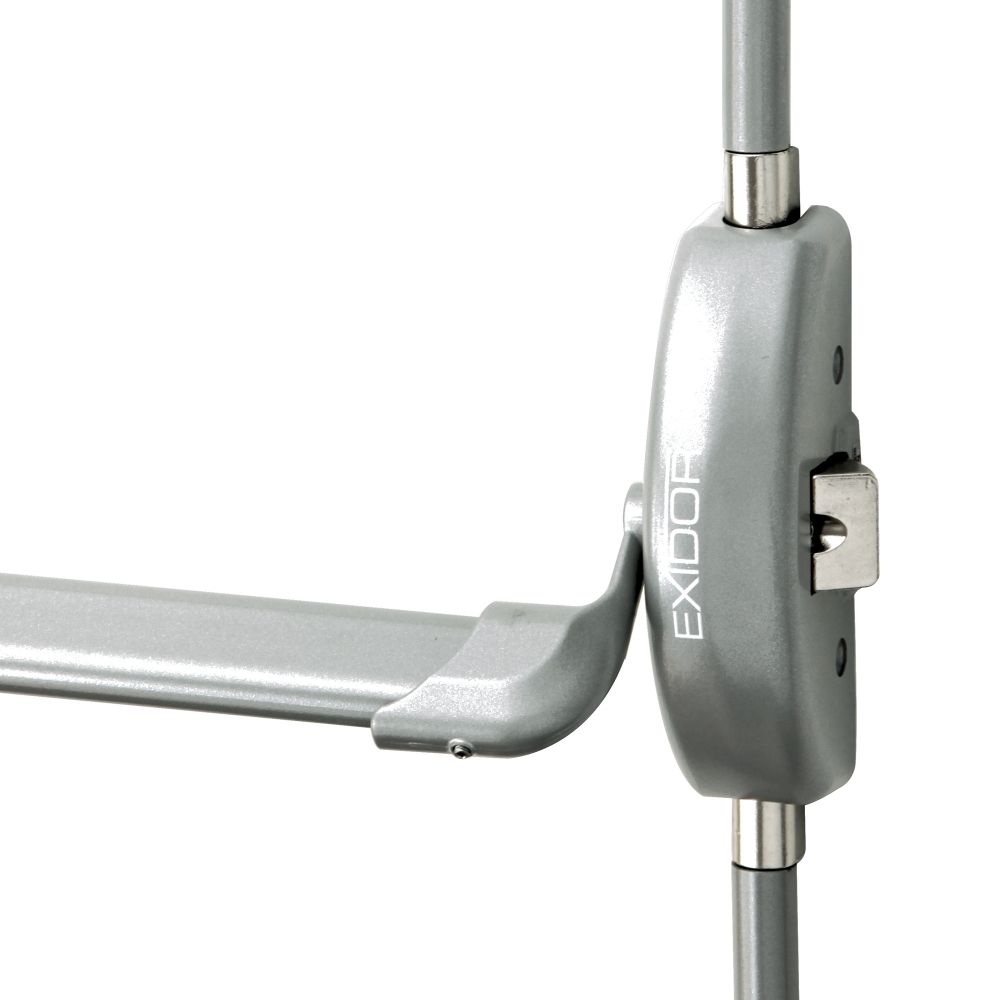

Exidor 503A-B Single Door Panic Bar with Latch and Bolt

Exidor 503A B Single Door Panic Bar With Latch And Bolt Front Main
Customer Reviews

3 In Stock

Estimated dispatch: Tomorrow

£160.00 inc VAT

£133.33 ex VAT

Next Day Delivery

Will usually be delivered the next working day

£9.59 inc VAT

Manufactured in the UK and supplied with a 10 year warranty as standard, the surface mounted Exidor 503A-B is a slimline three-point panic bar with bolt and latch. Available with fixing kits for wooden, aluminium and uPVC doors, the 503A-B is designed with security in mind due to its three locking points and anti-thrust device which is designed to prevent the leverage of top and bottom shoot bolts from their sockets.

  • Single bolt and latch for 3 point locking
  • Non-handed - can be used with left & right-handed doors
  • Suitable for single doors
  • CE marked and Certifire Approved
  • Built-in anti-thrust mechanism for increased security
  • Compatible with the CL1 and CL2 code lock outside access devices
  • Suitable for doors up to 1220mm wide and 2440mm high
  • Surface mounted and approved for use on fire and smoke door assemblies in accordance with EN 1634-1
  • Manufactured in the UK
  • Suitable for doors with narrow stiles
  • Category of use: Class 3 = high frequency of use by public and others with little incentive to exercise care
  • Supplied as standard in silver - other colours are available on request
  • 10 year manufacturer's warranty
  • Classification number: 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | A | A

Please note: For double door applications, we would recommend using 2 502A-B sets.

Customer Reviews

Customer Reviews (0)

No reviews have been written for this product yet.

If you have purchased this product from us and would like to write a review about it please complete the product review form. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.

Review this product now
FAQs

FAQs (0)

There are no FAQs to display for the selected item.

Technical Data

Technical Data

Product Code EXD503AB
Brand Exidor
Manufacturer's Part Number 18115032
Approvals & Markings CE Marked
Category Class 3 (High Frequency Of Use)
Colour Silver
Compatible Products Exidor CL1 Mechanical Code Lock
Exidor CL2 Mechanical Code Lock
Compliance BS EN 1125: 2008
Certifire
BS EN 1634
Device Type Push Bar
Door Type Single Door
Final Exit Doors
Outward Opening Single Doors
Environmental Suitability Public Settings
Offices
Public Buildings
Finish Silver
Fixing Options Wooden Door Fixings (Included)
Handing Non-Handed (Site Reversible)
Locking Points 3
Manufactured in the UK Yes
Material Metal
Maximum Door Height 2440mm
Maximum Door Weight 200kg
Maximum Door Width 1220mm
Suitability Timber Doors
Indoor
Warranty 10 Years
Dimensions (Unit)
  • Height: 2440mm
  • Width: 1220mm
Weight 5.00kg
Datasheets Outside Access Devices

Outside Access Devices

Where required, it is possible to enable controlled access from the outside into your property through an emergency exit. Exidor's 500 slimline series of products allow for this as they are compatible with the five devices linked to below. All devices offer the versatility of a secure means of entry without compromising the functionality of the emergency exit equipment.

Exidor 526 Outside Access Device with Knob

This device features a knob style handle and is supplied with a euro profile cylinder and three keys as standard. It is also certified for use on fire doors in conjunction with Exidor fire escape hardware.

Exidor 525 Outside Access Device with Lever

This device features a lever style handle which some find easier to operate. It is also supplied with a euro profile cylinder and three keys as standard. Certified for use on fire doors in conjunction with Exidor fire escape hardware.

Exidor CL1 Mechanical Code Lock

This device features a lever style handle and 12 stainless steel mechanical buttons allowing 1,584 different lock combinations. This code lock is suitable for use on fire exit doors when used in conjunction with Exidor panic hardware.
