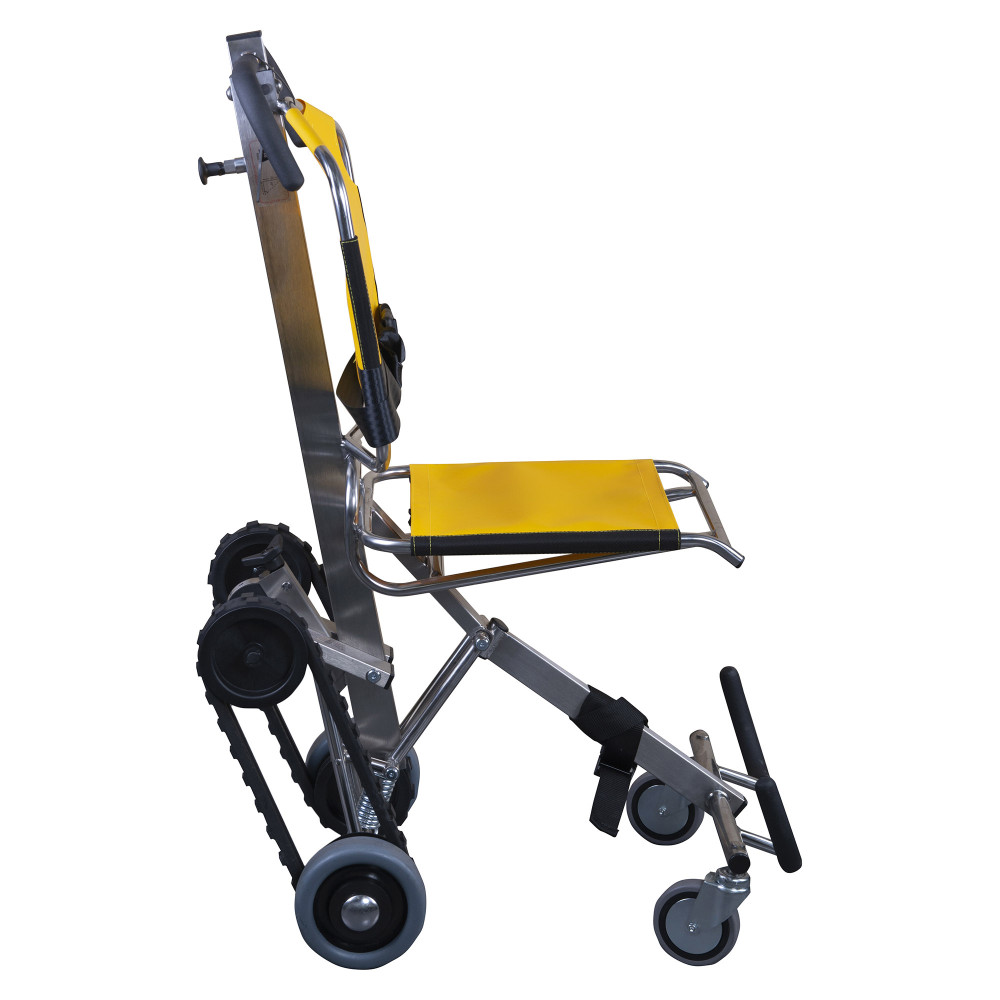

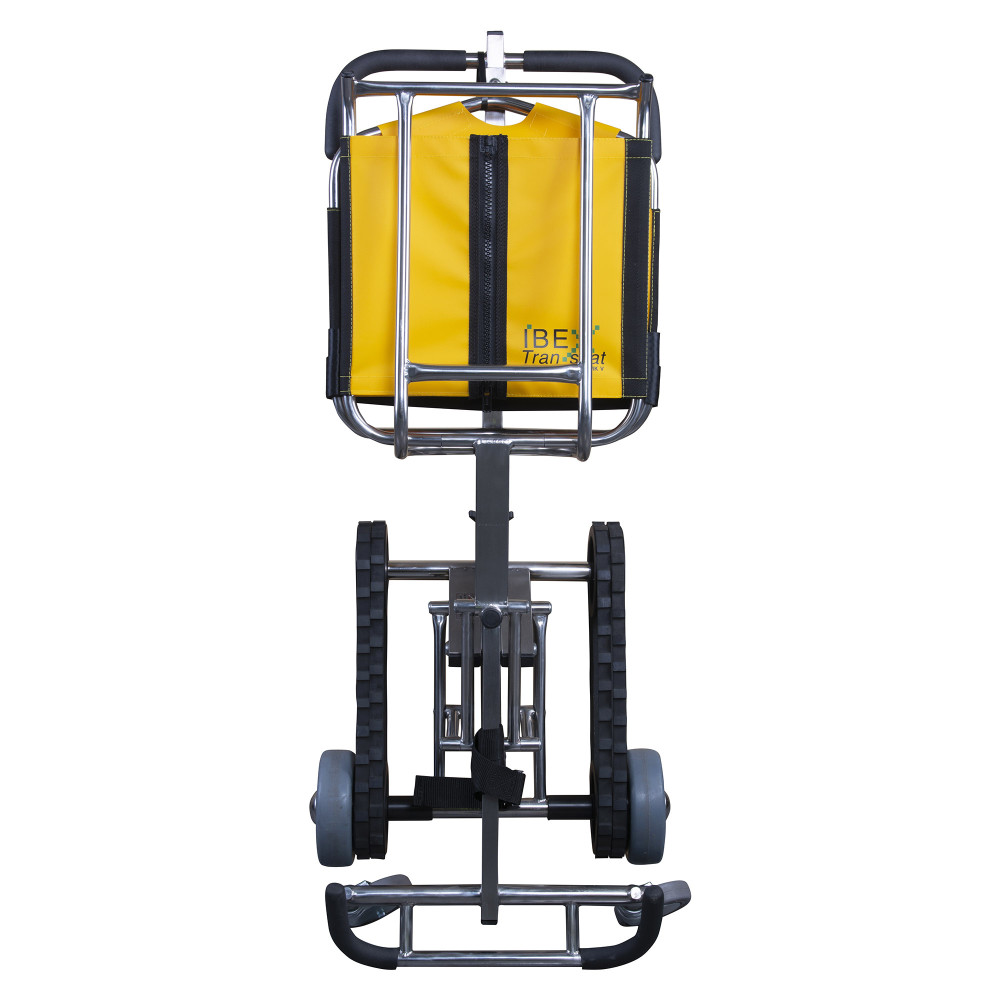

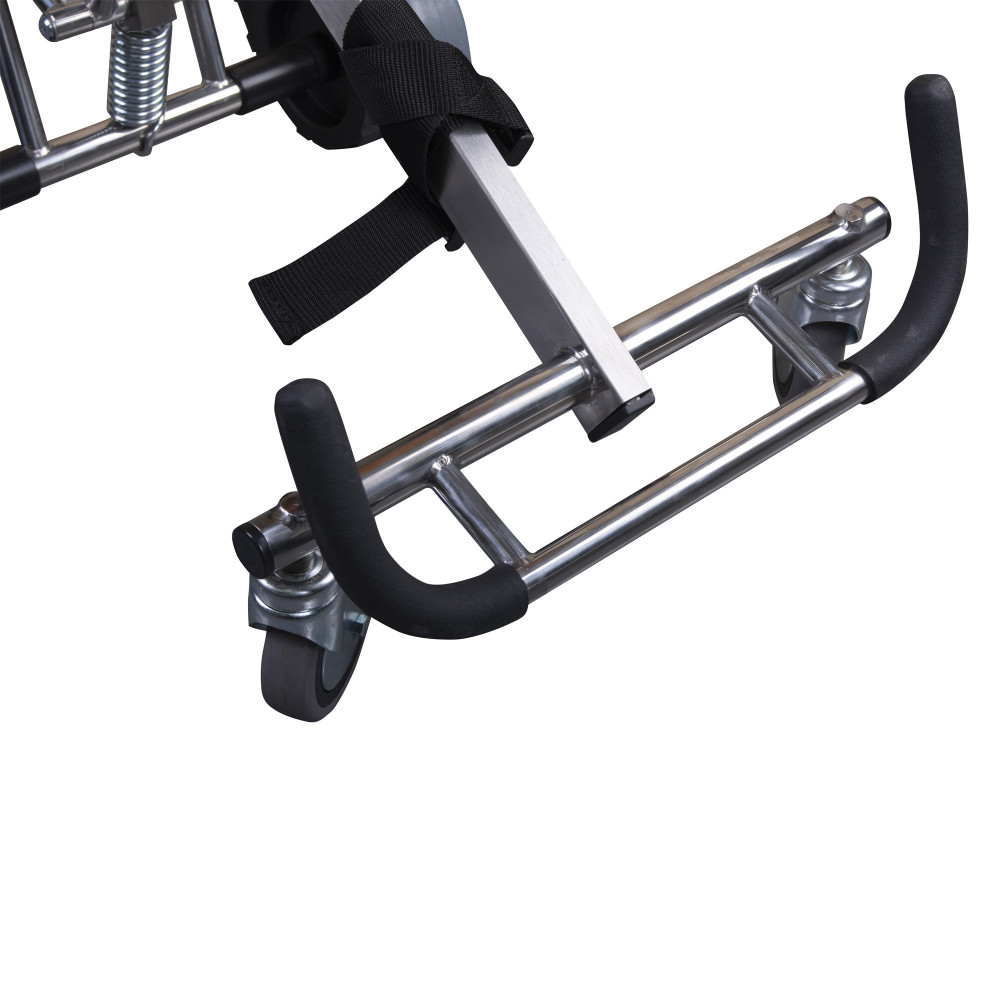

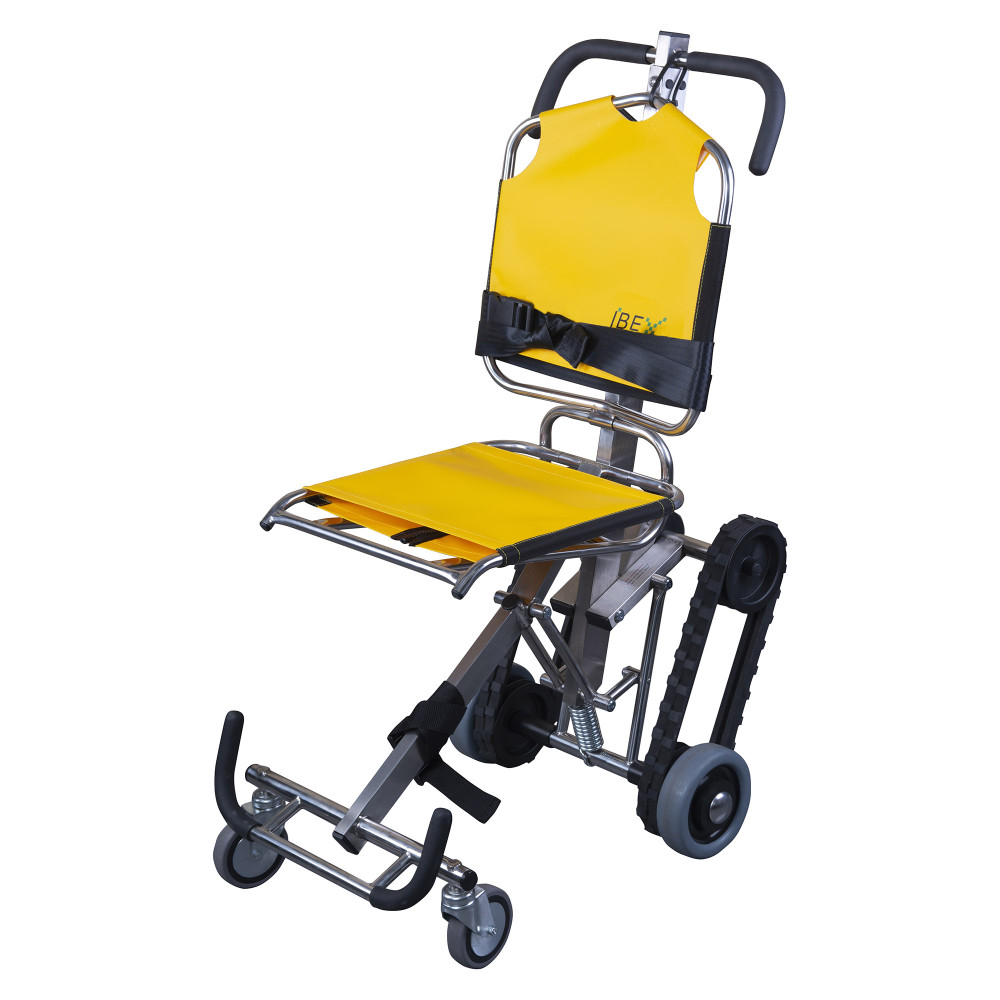

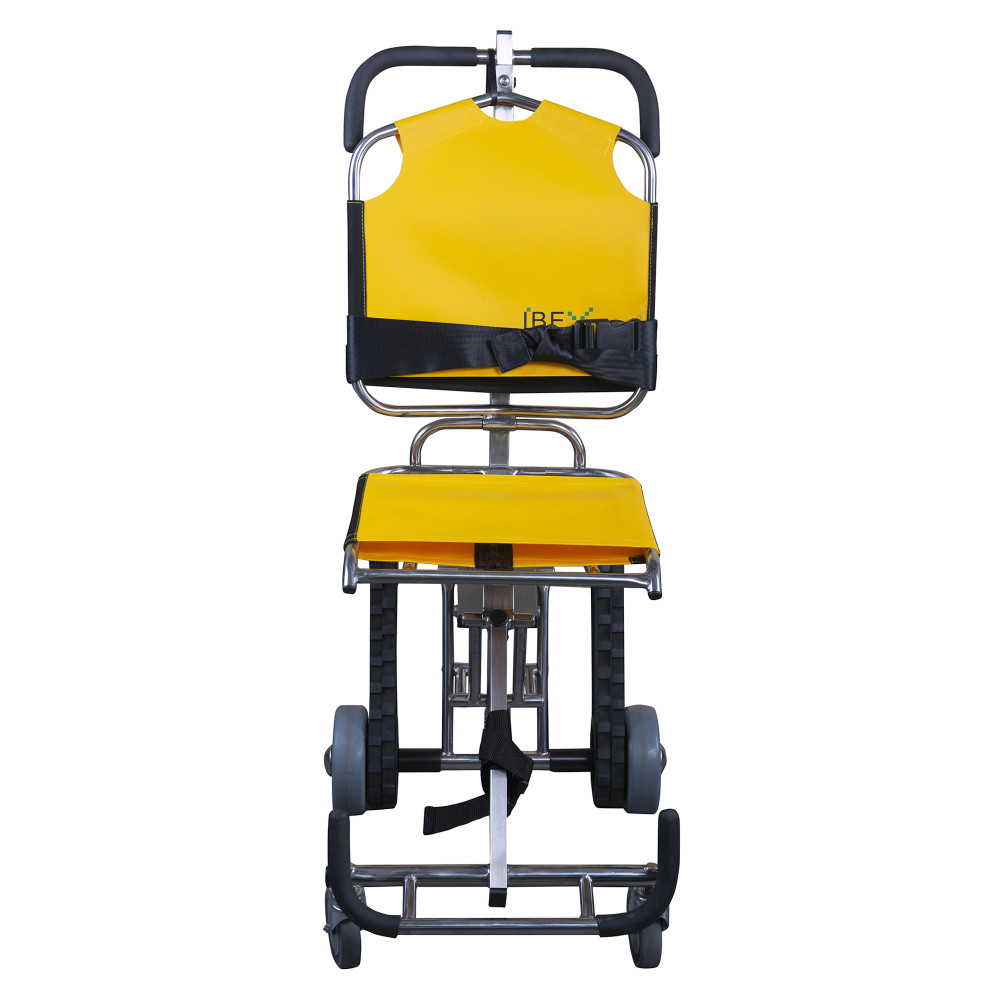

Evac+Chair IBEX TranSeat 700H Evacuation Chair
The IBEX Transeat has the ability to both descend and ascend stairways with ease during an emergency escape situation. Many commercial and residential applications have stairs which lead to the escape access of a building (i.e. from basement level). The IBEX Transeat is the perfect solution for the evacuation of mobility impaired persons. Specially designed "tracks" allow the chair to ascend stairs without the need for the operators to lift. By coordinating movements, operators guide the TranSeat over stair nosing.
- Strong, durable stainless steel frame construction

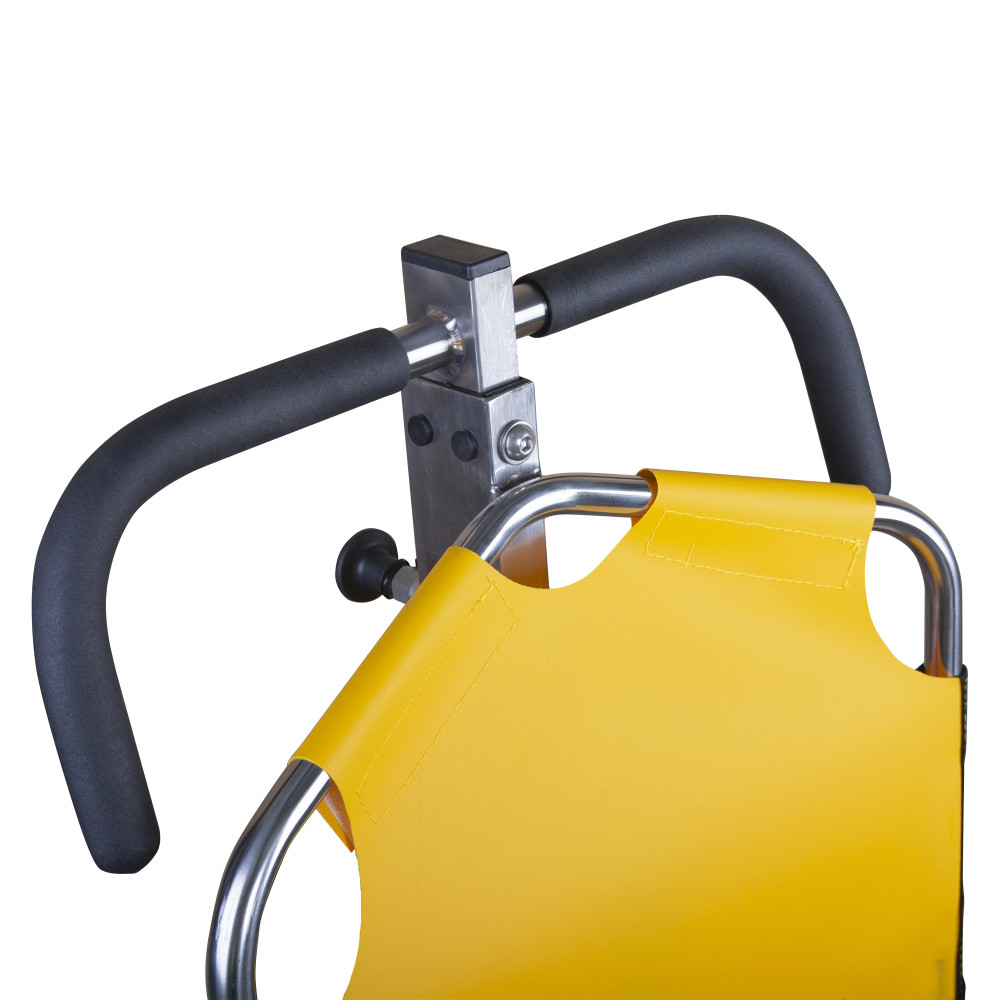

- The top extendible handle can be adjusted to meet the operator's needs

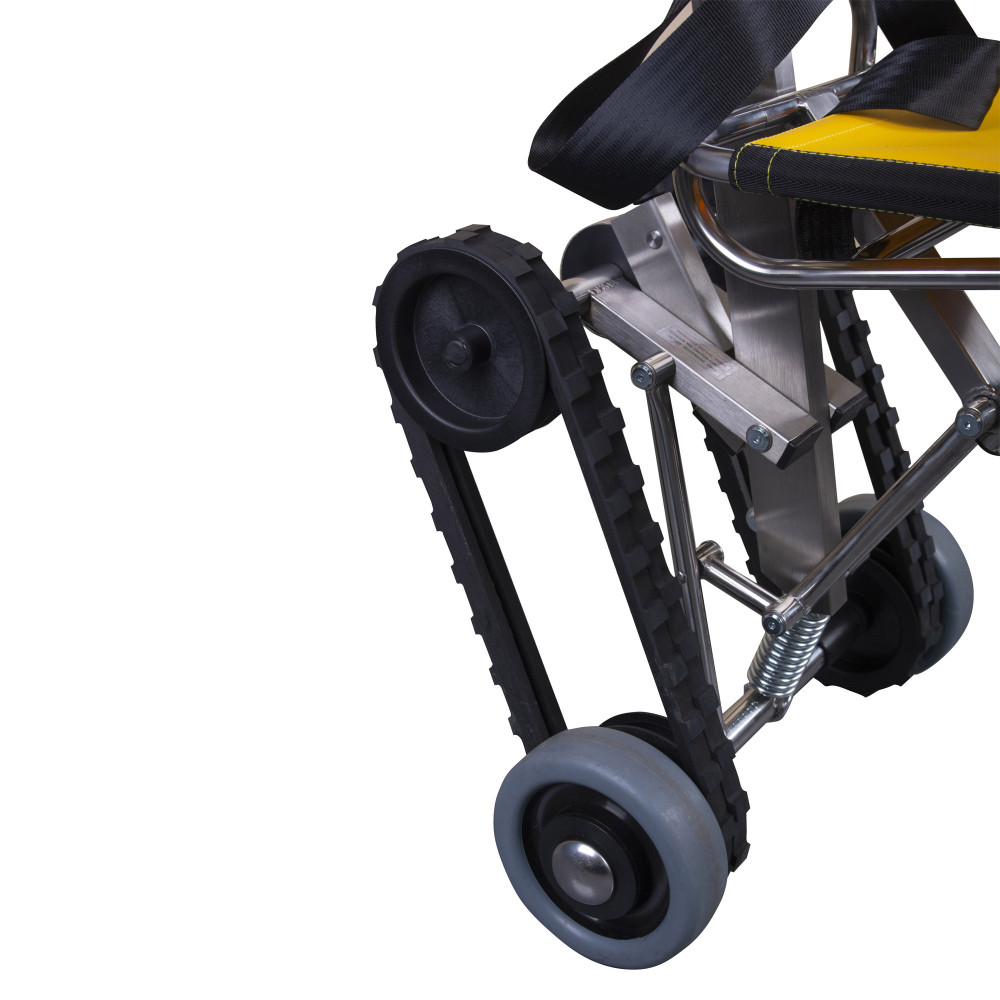

- Pulley belts ("tracks") assist during stair evacuation
- Safety belts help to secure the passenger in place
- Can be used on level ground and on ascending and descending stairs
- Also suitable for use on spiral staircases where space is restricted
- The tracks can be brake controlled ready for ascent and descent. The brake is applied on descent to control chair movement and then released on ascent to minimise resistance
- Two person operation to control chair movement
- Easy to open for quick emergency access

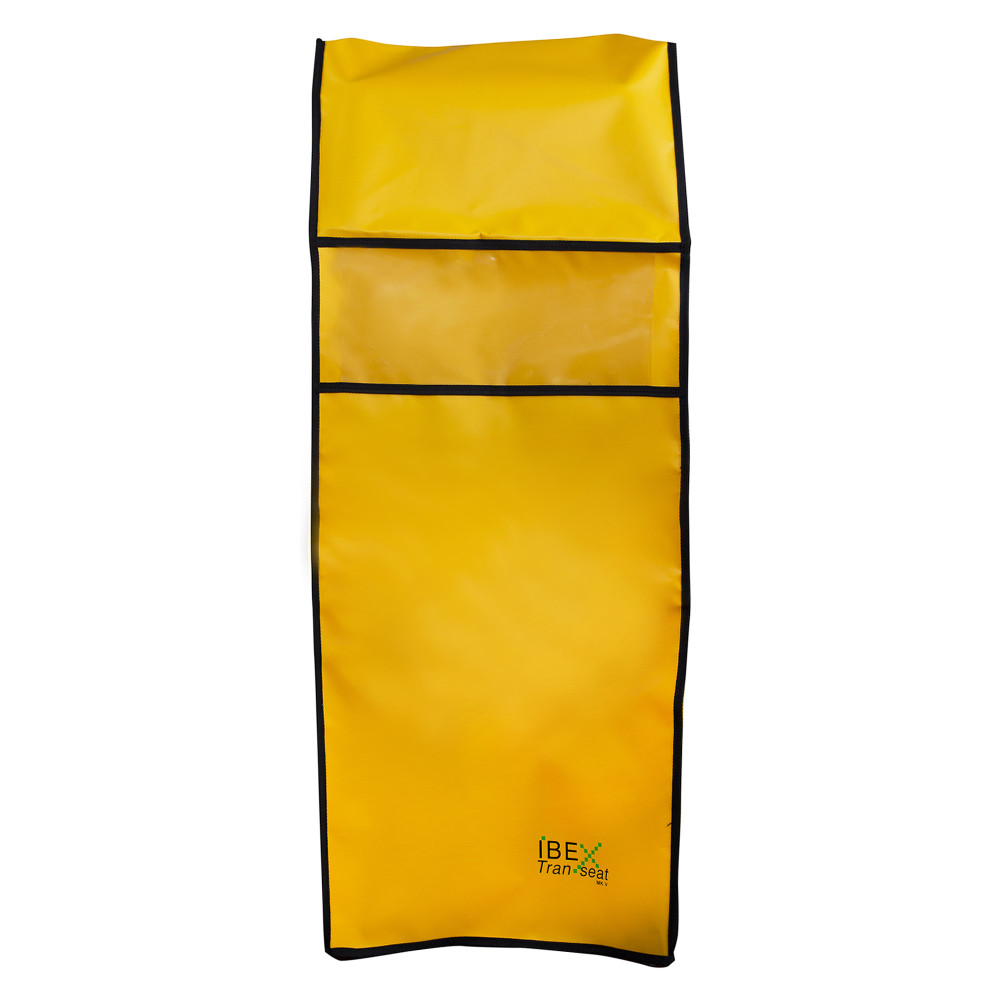

- Wall securing brackets and dust cover supplied as standard
- Maximum passenger load: 159kg
- Manufactured in the UK
- Compact storage to avoid obstruction
- DDA compliant product
- Class I Medical Device and regulated under
- Initial siting and installation available
- Annual EVAC+CHAIR servicing available
Customer Reviews (1)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
Anonymous
Published on
11th August 2015
Technical Data
| Product Code | ECCHAIRIBEX |
|---|---|
| Brand | Evac+Chair |
| Colour | Yellow |
| Compliance | Class 1 (MDR) |
| Direction of Travel | Ascent |
| Descent | |
| Maximum Load | 159kg |
| Mode of Descent | Friction Belt System |
| Number of Operators | 2 Persons |
| Stair Suitability | Narrow |
| Spiral | |
| Dimensions (Packaged) |
|
| Dimensions (Unit) |
|
| Weight | 14.50kg |
| Datasheets |
Legislation Requirements
The IBEX Transeat 700H helps businesses to comply with current health and safety legislation requirements. This includes:
- Regulatory Reform (Fire Safety) Order 2005 - Means of escape
- Building Regulations Parts B and M - Building use and access
- BS5588-8:1999 - Providing disabled people with measures to be assisted in an emergency
- Equality Act 2009 - Ensuring that disabled people are not at a disadvantage compared to those that are not disabled
- DDA (Disability Discrimination Act) - Providing adequate access and facilities for any disabled person who may enter a building
Evac+Chairs are Class I Medical Devices with their installation and use regulated under the Provision and Use of Work Equipment Regulations 1998 (PUWER). Employers, self-employed people, and those employed to supervise or manage equipment are responsible for ensuring that a reasonable amount of staff are adequately trained to use Evac+Chairs safely, that the chairs are annually serviced by a qualified engineer, and that they are regularly inspected by a competent worker.
