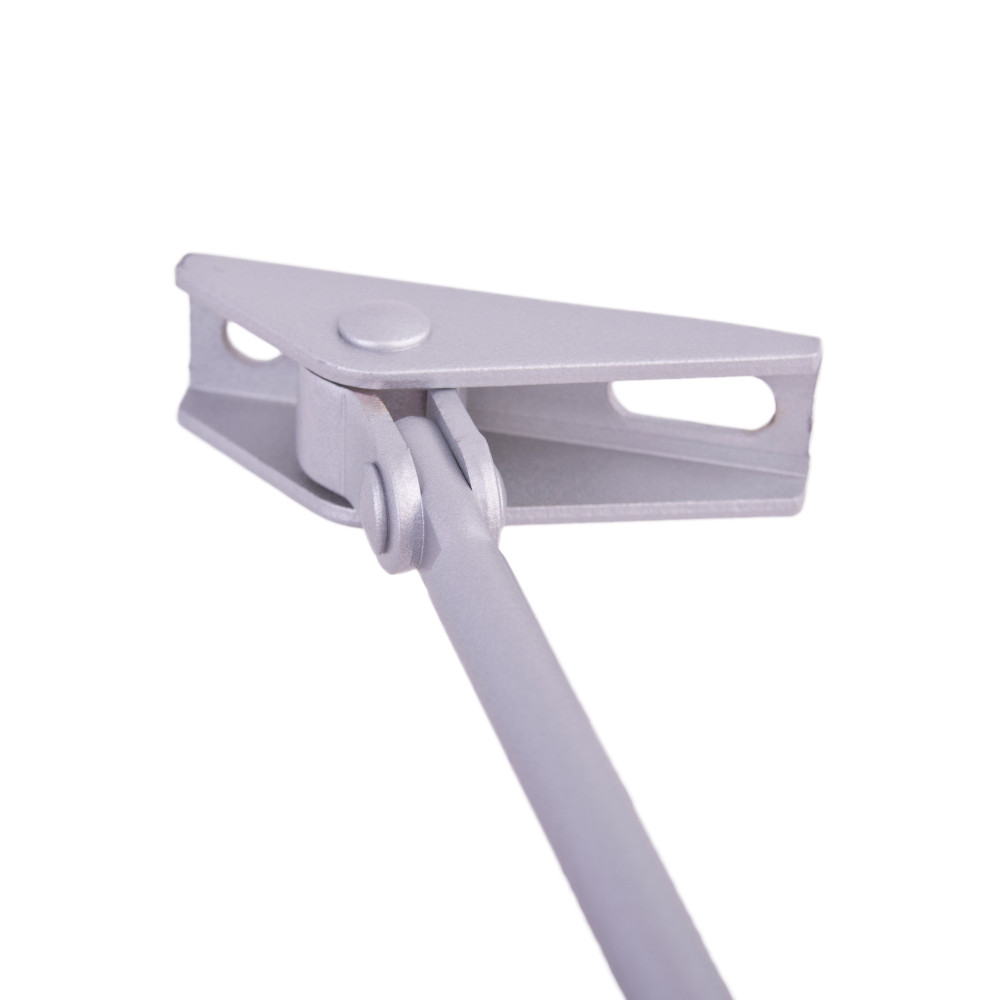

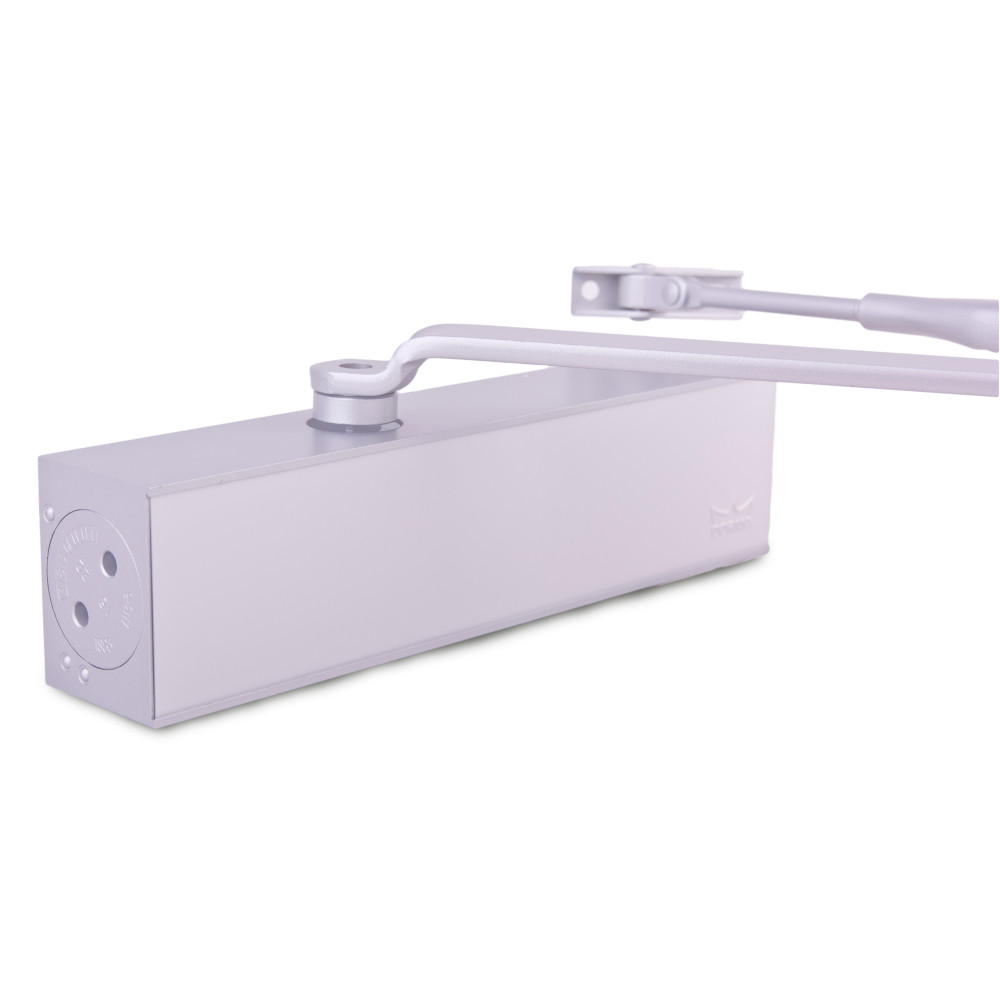

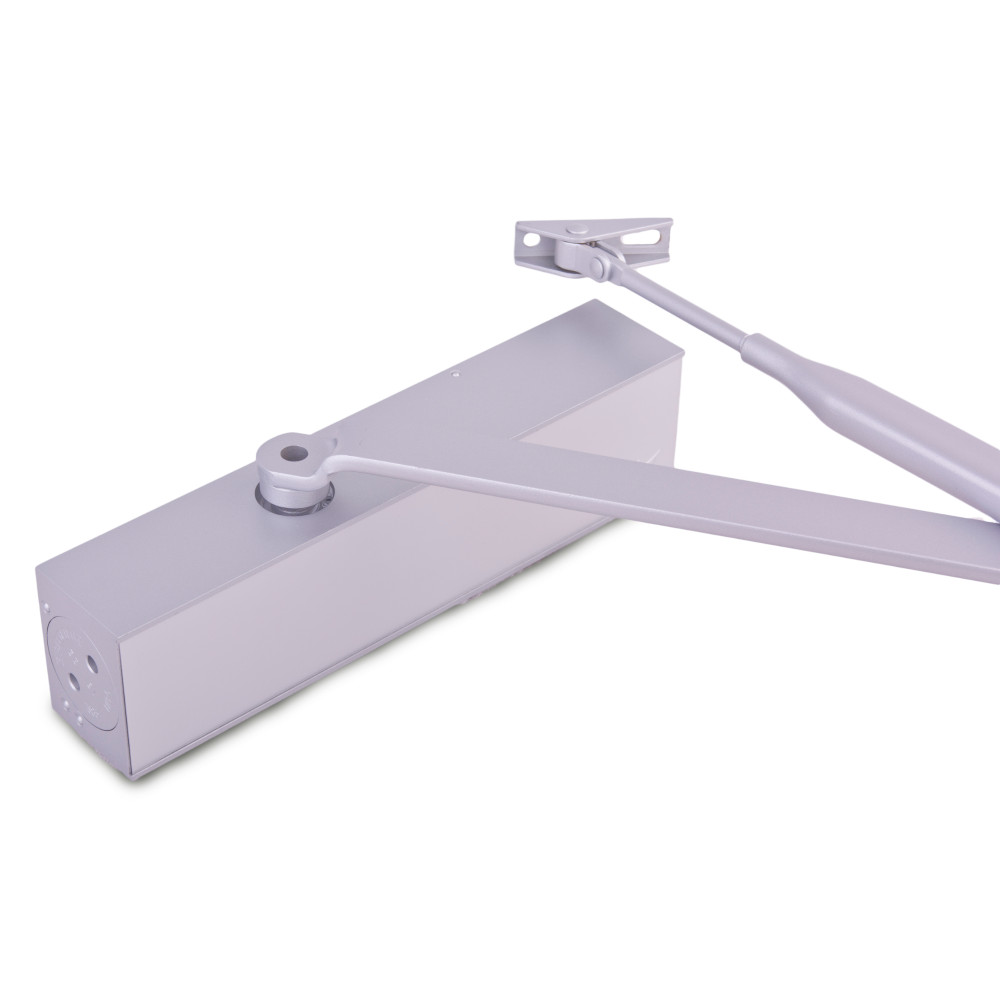

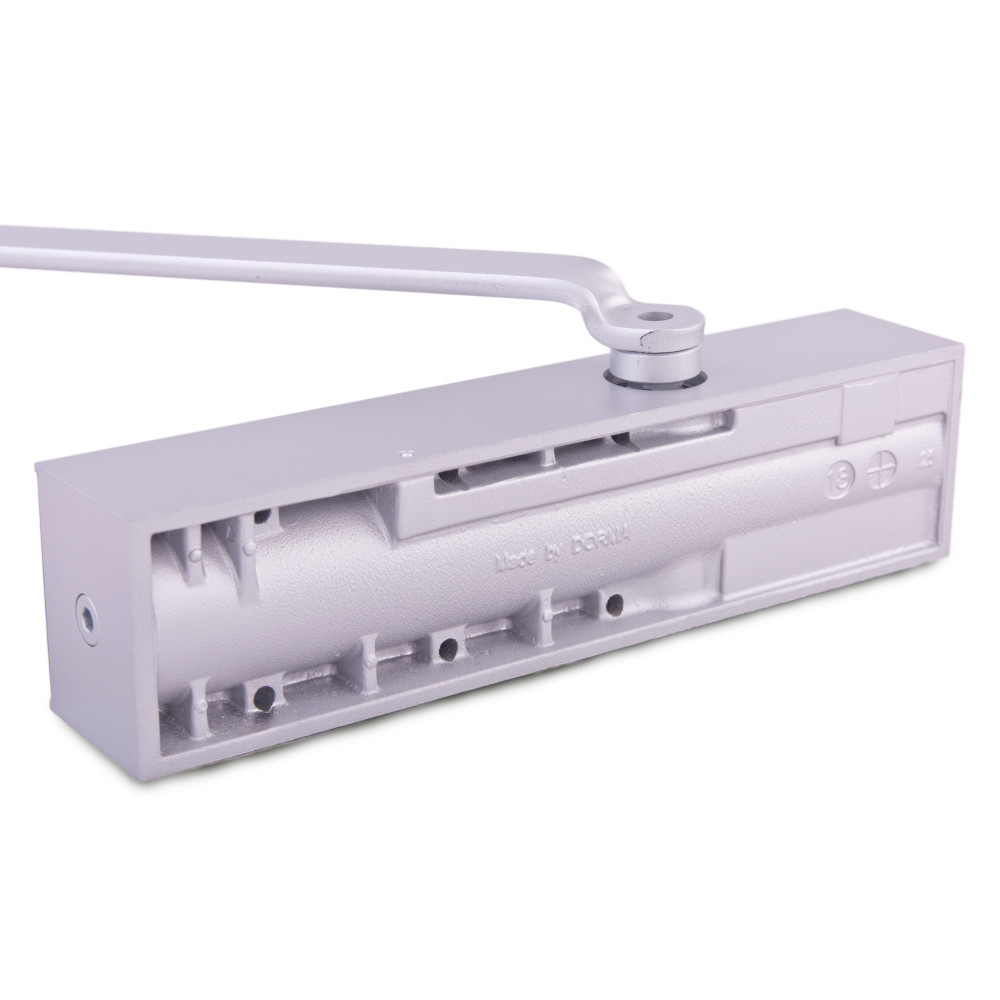

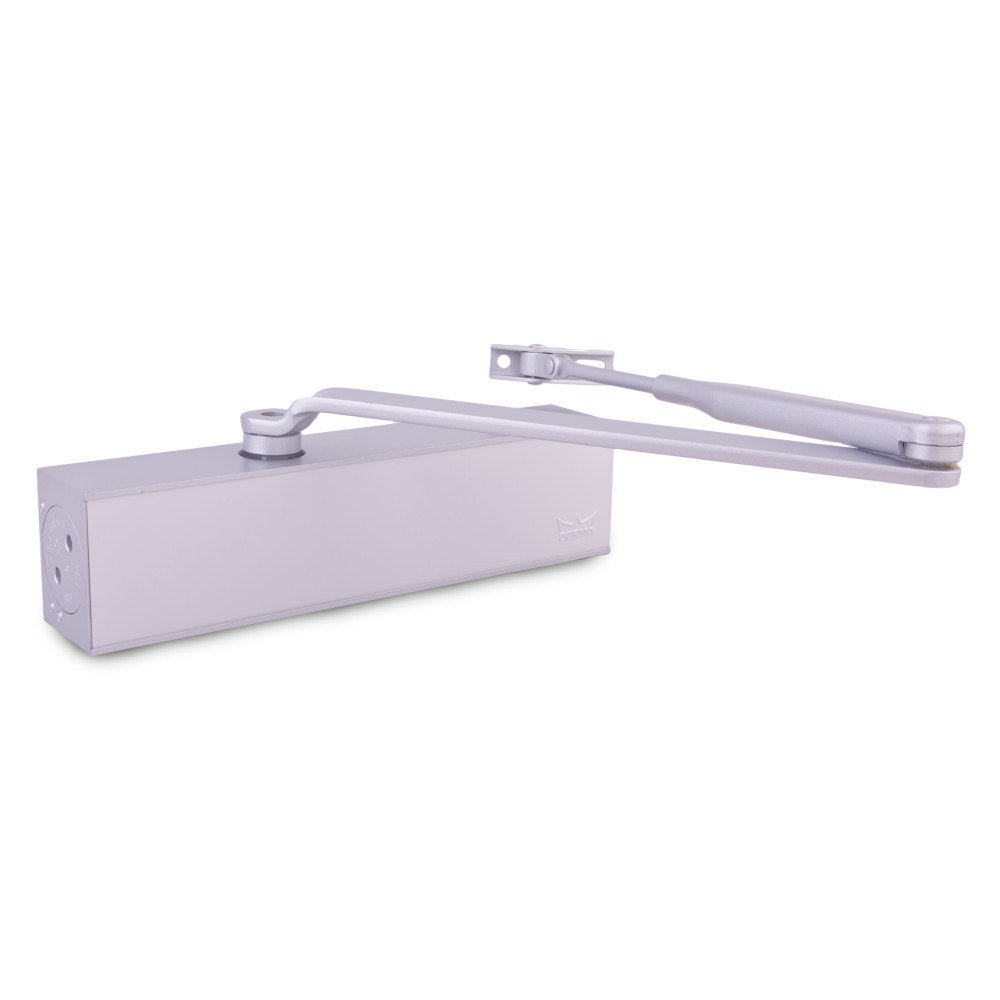

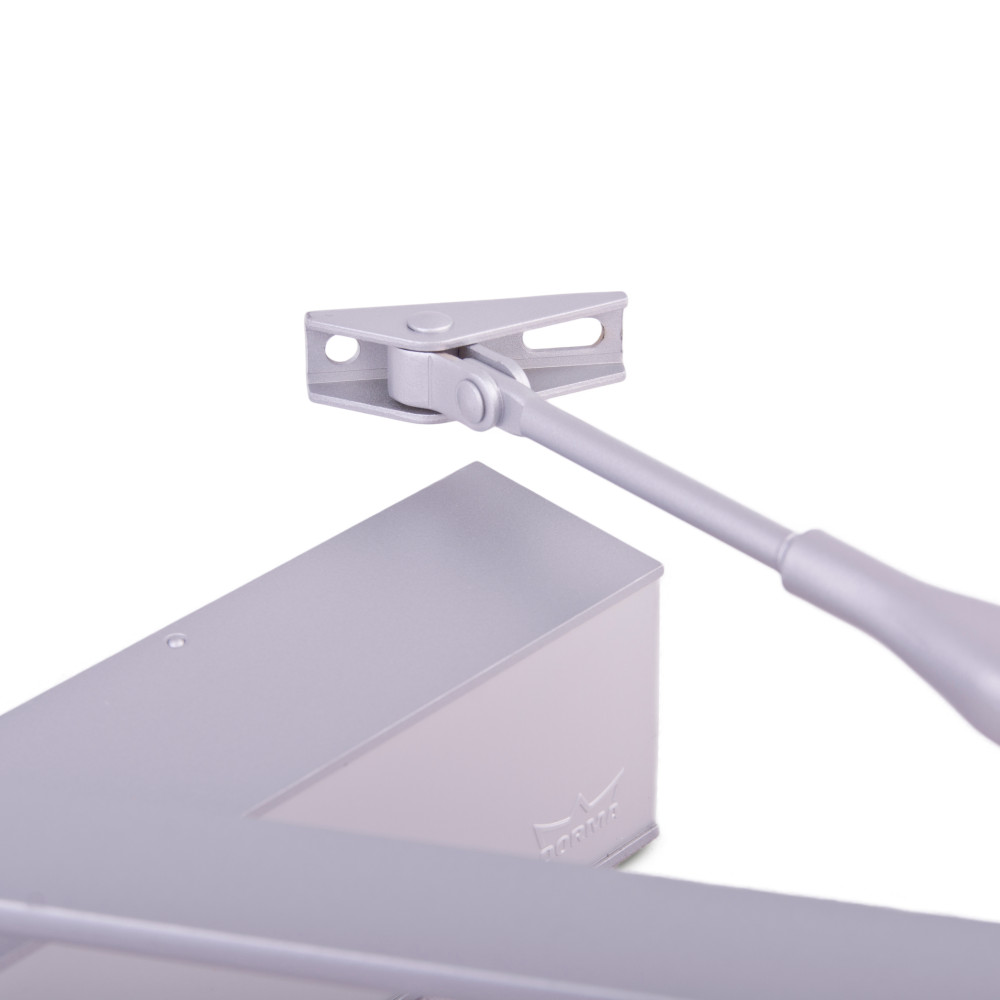

Dorma TS83 Overhead Door Closer - Power Size EN 3-6

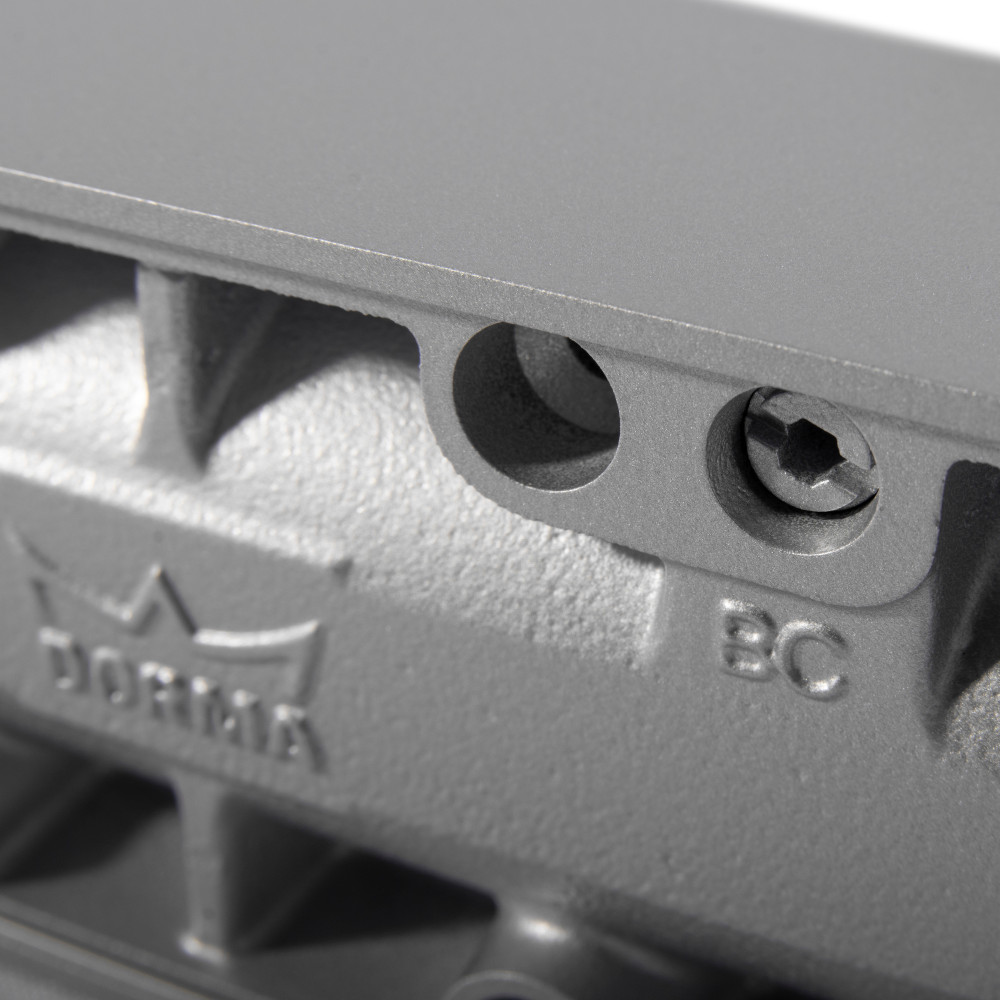

The Dorma TS83 overhead door closer has an adjustable power size of EN 3-6 making it suitable for a maximum door width of 1400mm. The TS83 has back check functionality as standard providing protection when the door is opened at speed. These door closers are also available with delayed closing action, which slows down the closing speed of the door and helps people to pass through without difficulty. Independently tested to BS EN 1154, the Dorma TS83 is Certifire approved for fire doors (120 minute fire rating) and carries the CE marked.

• Suitable for:
  • Single action doors
  • Doors up to 1400mm wide and weighing up to 120kg – EN size 3-6
  • Left and right handed doors (non-handed)
  • Installation in Fig 1, 61 and 66 configurations
• CE marked and independently tested to BS EN 1154
• Certifire approved for use on 120 minute fire rated doors – CF 117 Certificate
• Available in two options:
  • TS83BC – Standard overhead door closer with adjustable closing speed, latching action, & back check

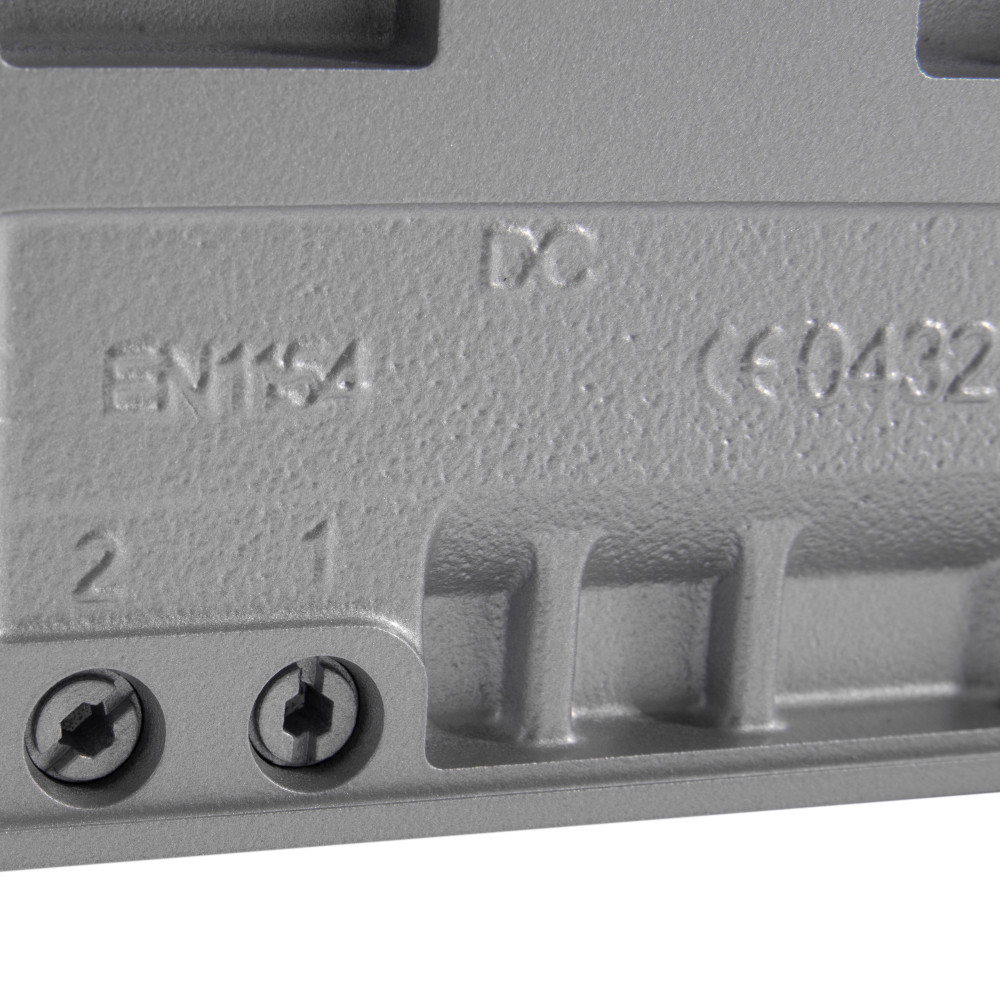

  • TS83BCDC – Overhead door closer with adjustable closing speed, latching action, back check, & delayed closing action
• 5 year warranty
• Silver finish as standard
• Full classifications:
  • Fig 1/61 installation: 4 | 8 | 3-6 | 1 | 1 | 4
  • Fig 66 installation: 4 | 8 | 3-5 | 1 | 1 | 4
