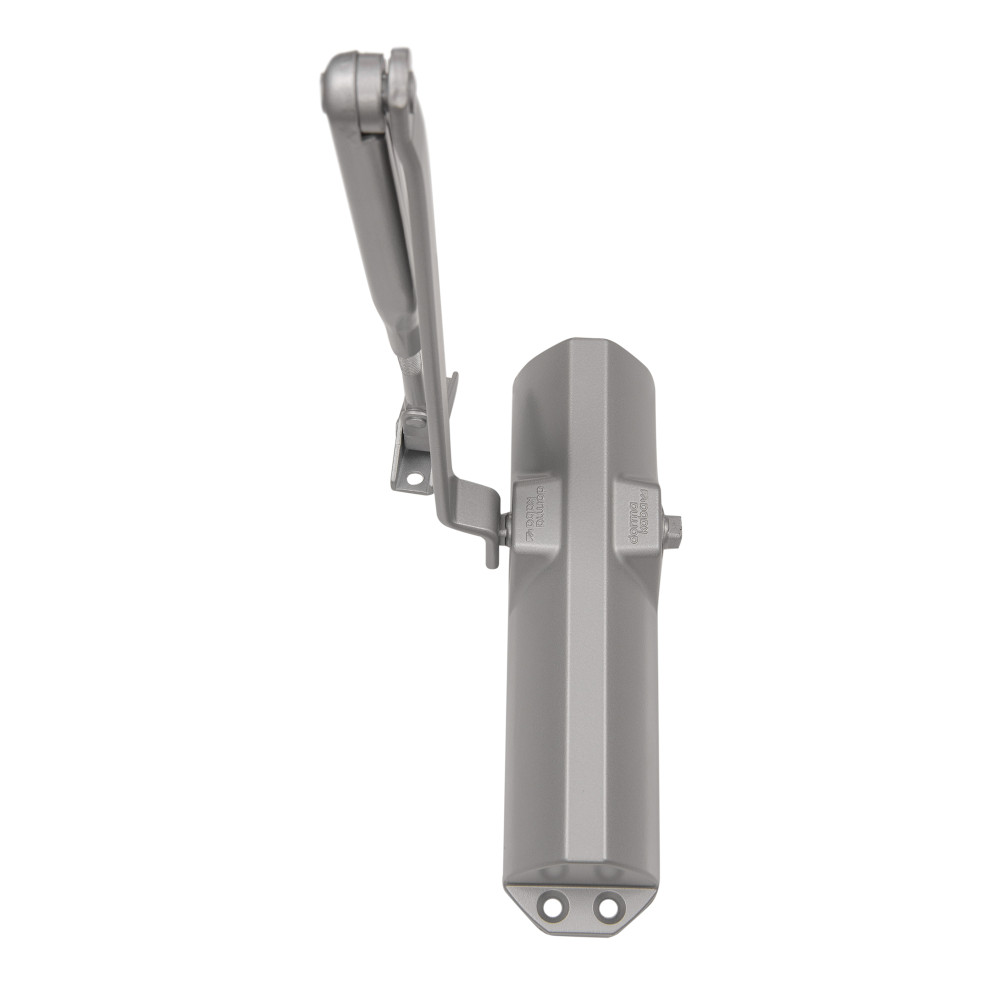

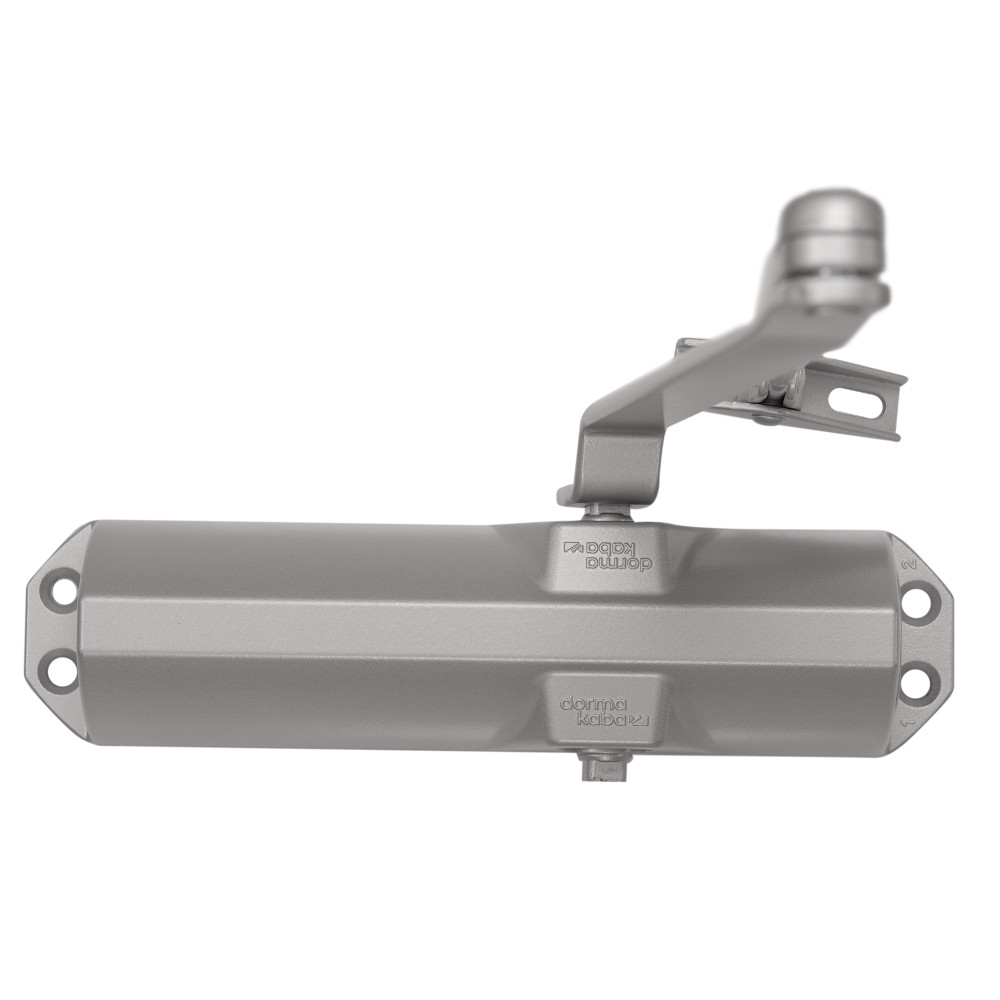

Dorma TS68 Overhead Door Closer - Power Size EN 2-4

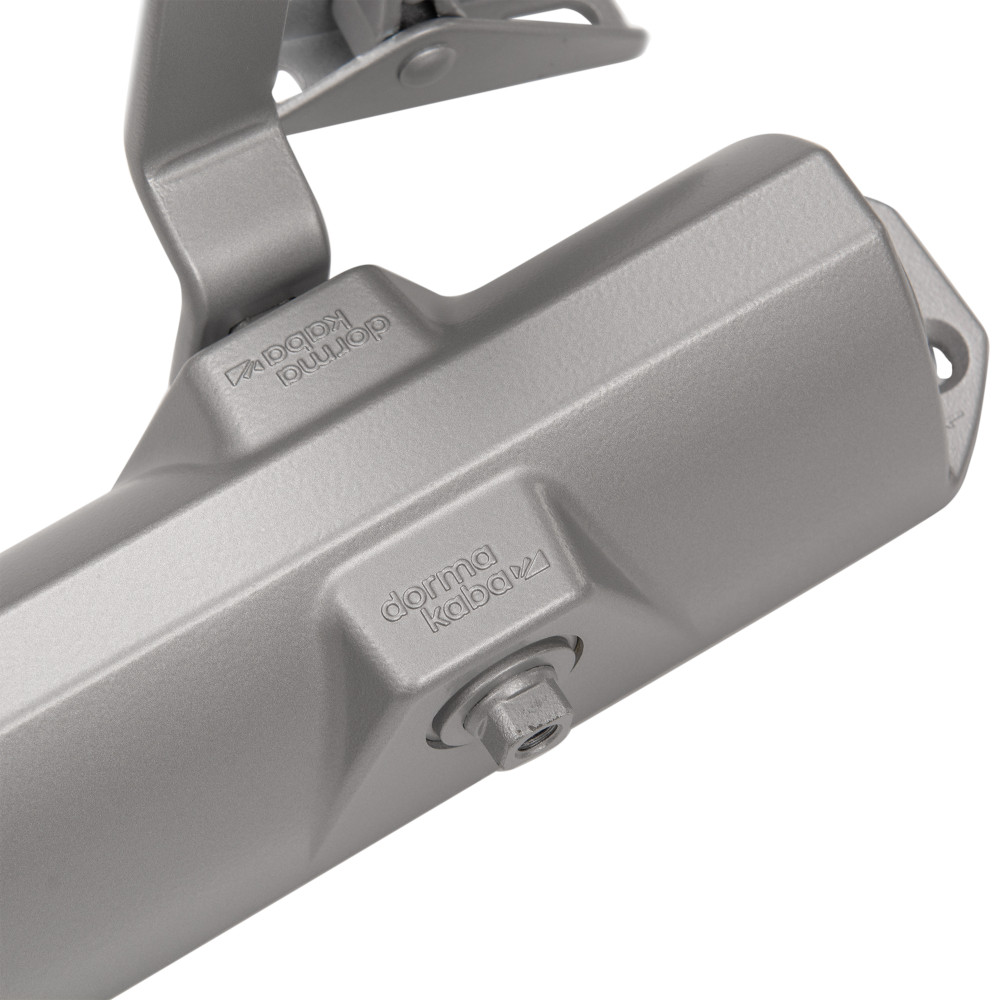

Suitable for a maximum door width of 1100mm, the Dorma TS68 overhead door closer has a selectable power size EN 2-4 and is Certifire approved with a 120 minute fire rating. The TS68 has an adjustable closing speed and latching action that can be altered by turning two valves located on the door closer body. Simple to install, the Dorma TS68 overhead closer is a low cost solution for standard internal doors.
- Suitable for:
- Internal single action doors
- Doors up to 1100mm wide and weighing up to 80kg –
- Non-handed – can be used on left and right handed doors
- Installations in
- Kitemarked to EN 1154
- CE marked
- Certifire approved for use on FD120 fire rated doors – CF 289 Certificate
- Adjustable features to accommodate your premises
- Closing speed controls how quickly the door closes
- Latching action governs the speed of the door in the last 15° of the cycle
- Simple installation with no need for a mounting back plate
- Supplied in silver finish as standard
- 5 year warranty
- Full classification: 3 | 8 | 3-4 | 1 | 1 | 2 (EN 3 and EN 4 only)
Customer Reviews (6)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
Anonymous
Published on
17th April 2018
Reviewed by
Anonymous
Published on
27th November 2017
Good product, did what it said it would do.
Just required a little help on You Tube.
Reviewed by
Anonymous
Published on
7th August 2015
Great value and easy to install - will probably be buying more of the same in the future!
Reviewed by
Anonymous
Published on
23rd June 2014
Meet the expectations.
With a little skill very easy to install.
Well built and long-term guarantees are a plus. Peter - Caretaker.
Reviewed by
Anonymous
Published on
17th December 2013
easy to fit and does the job
Technical Data
| Product Code | DMTS68S |
|---|---|
| Brand | Dorma |
| Compliance | BS EN 1154: 1997 |
| Certifire - CF268 | |
| Approvals & Markings | CE Marked |
| Closing Speed | Adjustable |
| Door Type | Single Door |
| EN Classification | 3 | 8 | 3-4 | 1 | 1 | 2 (EN 3 And EN 4 Only) |
| Finish | Silver |
| Fire Rating | 120 Minutes |
| Fixing Options | Wooden Door Fixings (Included) |
| Installation Position | Fig 1 |
| Fig 61 | |
| Fig 66 | |
| Top Of Door | |
| Latching Action | Adjustable |
| Maximum Door Width | 1100mm |
| Maximum Door Weight | 80kg |
| Material | Metal |
| Opening Angle | 180° |
| Power Size | EN 2 - 4 |
| Warranty | 5 Years |
| Dimensions (Unit) |
|
| Weight | 1.40kg |
| Datasheets |
A good price and does the job!
I found the fitting instructions difficult to decipher. It was not that easy to adjust the closer satisfactorily, just from the diagrams provided. It would be good to have more precise written instructions. Other than that a good product.
