C-Tec CFP Fire Alarm Panel - 2 Zone

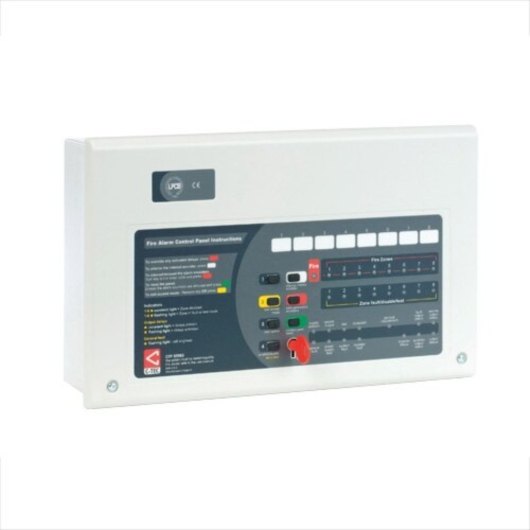

angled view of the c tec cfp fire alarm panel showing buttons and indicator lights on the front panel

The C-Tec CFP conventional 2 zone fire alarm panel is cost effective and user friendly for a range of installation requirements. Featuring a wide range of user and engineer controls, the CFP conventional fire alarm panel can have a maximum of 25 devices fitted per zone and has 4 separate conventional sounder circuits.

Four wire conventional fire alarm panel
Fully complies with EN54 Parts 2 and 4
Panel can be flush or surface-mounted as standard
Up to 25 devices per zone
Compatible with Apollo protocol
Features Auxiliary and Fault Outputs
Non-latching input to trigger the sounders only
Supplied with an integral 1.5A switch mode power supply unit
Zones and sounder circuits are monitored for faults
Monitoring device supplied as standard
Key switch access to the controls
One man test facility
Four sounder circuits
User friendly
Wide range of user and engineer controls e.g. zone test and zone delay

Please Note: The panel requires a 3.2Ah 24V back-up battery. These are sold separately.

Customer Reviews

Customer Reviews (0)

Rating Not Available

Reviews by Real Customers

To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.

No Reviews Available

No reviews have been written for this product yet.

If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.

Review this product now

FAQs Technical Data

Technical Data

Product Code	FLCFP2
Brand	C-Tec
Colour	Grey
Approvals & Markings	CE Marked
Approvals & Markings	UKCA Marked
Compliance	BS EN 54-2
Compliance	BS EN 54-4
Connection	Wired
Display	LED Indicators
Equipment Type	Alarm Panel
Fixing Options	Flush Mounted
Fixing Options	Surface Mounted
Installation Position	Wall
IP Rating	IP30
Manufactured in the UK	Yes
Material	Metal
Maximum Number of Linked Devices	25 Devices Per Zone
Number of Repeater Panels	8
Number of Zones	2 Zones
Operating Temperature	-5°C To +40°C
Power Type	Mains Powered (230V)
Recyclable	Partially Recyclable
Relative Humidity	0% To 95%
Dimensions (Unit)	Height: 235mm Width: 380mm Depth: 96mm
Weight	1.75kg
Datasheets	Flcfp2 Cfp Standard 2 Zone Conventional Fire Alarm Panel Datasheet

Optional Accessories

The accessories below are suitable for use with the CFP fire alarm panels. These items can be bought with the CFP panel in order to create a conventional fire alarm system suitable to your needs.
