Banshee Excel Lite Sounder with LED Beacon - Capsule Horn

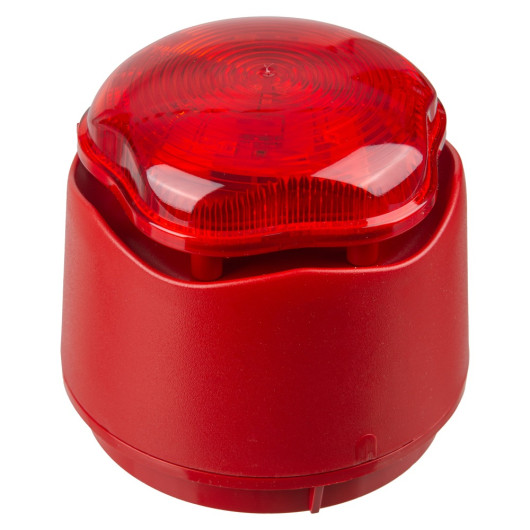

an angled view of a red banshee excel lite capsule horn with beacon
an angled view of a red banshee excel lite capsule horn with beacon a top view of the beacon of the red banshee excel lite capsule horn a close up of the red beacon on the red banshee excel lite capsule horn a side view of the red banshee excel lite capsule horn with beacon a view of the internals to the red banshee excel lite capsule horn with beacon on the bottom kit contents of the red banshee excel lite capsule horn with beacon an angled view of a red banshee excel lite capsule horn with red led beacon on a deep base a side view of the red banshee excel lite capsule horn with red led beacon on a deep base a close up of the beacon for the red banshee excel lite capsule horn with red led beacon on a deep base view of the internals to the red banshee excel lite capsule horn with red led beacon on a deep base kit contents of the red banshee excel lite capsule horn with red led beacon on a deep base Vxbchlrc Banshee Excel Lite Capsule Horn Led Front in red with clear top showing internal components Red Vxbchlrc Banshee Excel Lite Sounder Beacon Led with a clear lens and a separate angled standard base displayed against white background Red and clear Vxbchlrc Banshee Excel Lite Sounder Beacon Led Standard Base Angled Together shown on a white background Red and clear Vxbchlrc Banshee Excel Lite Sounder Beacon Led No Base Angled shown on white background Vxbchlrc Banshee Excel Lite Sounder Beacon Led No Base shown from the side with red base and clear top cover Close-up view of the clear lens on the Vxbchlrc Banshee Excel Lite Led Top with a red base showing concentric circles Close up lens of Vxbchlrc Banshee Excel Lite Sounder Beacon led showing clear plastic top and red body Image of Vxbchlrcd Banshee Excel Lite Capsule Horn Led Front showing a red device with a clear top section Vxbchlrcd Banshee Excel Lite Sounder Beacon led with red deep base and clear angled lens shown disassembled Red and clear Vxbchlrcd Banshee Excel Lite Sounder Beacon Led Deep Base Angled Together shown on white background Vxbchlwr Banshee Excel Lite Sounder Beacon with a red angled lens and white standard base shown on a white background Vxbchlwr Banshee Excel Lite Sounder Beacon Standard Base with red lens and separate white base component on a white background Close-up of the Vxbchlwr Banshee Excel Lite Capsule Horn Led Front showing its white body and red LED top Vxbchlwr Banshee Excel Lite Horn with white base and red LED lens shown from the front Image of the Vxbchlwr Banshee Excel Lite Sounder Beacon No Base Angled showing the white base with a red translucent rounded cover Red and white Vxbchlwr Banshee Excel Lite Sounder Beacon No Base shown from side angle Red lens cover of Vxbchlwr Banshee Excel Lite Sounder Beacon No Base Lens shown from above on white background Close up of Vxbchlwr Banshee Excel Lite Sounder Beacon No Base showing red cover and white body Vxbchlwrd Banshee Excel Lite Sounder Beacon with deep white base and red angled lens on a white background Vxbchlwrd Banshee Excel Lite Sounder Beacon with red dome and white deep base shown separately on white background Vxbchlwrd Banshee Excel Lite Sounder Beacon Deep Base side view with white base and red beacon light on top a close up of the red beacon on a white deep base an internal view of a white banshee excel lite capsule horn with red beacon on a deep base Vxbchlwc Banshee Excel Lite Sounder Beacon with clear angled lens and white standard base against white background White Vxbchlwc Banshee Excel Lite Sounder Beacon with clear top and standard base shown from the front Image of Vxbchlwc Banshee Excel Lite Sounder Beacon Standard Base showing the white base and clear beacon cover side by side Clear and white Vxbchlwc Banshee Excel Lite Sounder Beacon No Base shown from the side angle view of the internals to the white banshee excel lite capsule horn with clear beacon Image of the Vxbchlwc Banshee Excel Lite Sounder Beacon No Base Angled showing a white base with a clear, ridged cover Close-up image of Vxbchlwc Banshee Excel Lite Sounder Beacon No Base Lens showing the clear circular lens design Close up of the Vxbchlwc Banshee Excel Lite Sounder Beacon No Base showing its clear lens and white body Image of Vxbchlwcd Banshee Excel Lite Sounder Beacon with deep base and angled clear lens shown on white background Vxbchlwcd Banshee Excel Lite Sounder Beacon Deep Base showing white base and clear lens beacon side by side Image of Vxbchlwcd Banshee Excel Lite Capsule Horn Led Deep Front showing a white casing with a clear top and round detail on the front
5 out of 5 stars

Available to Order

Estimated dispatch: Monday 22nd June

£57.83 inc VAT

£48.19 ex VAT

Standard Delivery

Will usually be delivered in 5-8 working days

£4.20 inc VAT

Expedited Delivery

Will usually be delivered in 4-6 working days

£7.00 inc VAT

Constructed of a flame retardant polymer, the Banshee Excel Lite range of combined sounder beacon units are fitted with a capsule driven horn and a low-current LED beacon. Available in either a red or white main body colour, the Banshee sounder beacons have a choice of 2 lens colours, and can be purchased with either a standard, or a deep push and twist bayonet base fitting. The Banshee Excel Lite sounder beacons are suitable for use with many conventional fire alarm systems as well as providing compliance with DDA installations.

  • Suitable for use as a fire alarm system indicator
  • Compatible with all major fire panel manufacturers including Kentec, Advanced, C-TEC, CEL and Morley
  • Available in two base variations:
    • Standard Base – rated
    • Deep Base – rated
  • Tested to EN 54 part 3 and VdS approved
  • CE marked
  • Manufactured in flame retardant ABS plastic with side and rear cable entry
  • Combined capsule driven horn sounder and low-current LED beacon
  • Supplied with a push and twist bayonet base fitting with locking screw
  • Customisable with red or white body and red or white / clear lens colours
  • 32 user selectable tones in 3 volume levels
  • Low current consumption
  • "Two in two out" 2.5mm2 terminals
  • DDA (Disability Discrimination Act) compliant
  • 12 month warranty

Please note: The Banshee Excel Wall Fixing Clip is available for use with the deep base sounder beacon units. This helps to retain the weatherproof (IP66) rating during installation.

Customer Reviews

Customer Reviews (1)

5 out of 5 stars

Reviews by Real Customers

All of our product reviews are written by real customers that have purchased this product from us and are published without modification.

Rating: 5 / 5

Reviewed by

Anonymous

Published on

20th February 2017

good

Applies to option(s): Red Body & Red Lens with Standard Base

FAQs

There are no FAQs to display for the selected item.

Technical Data

Technical Data

Product Code VXBCHLRR
Brand Vimpex
Approvals & Markings CE Marked
Colour Red
Compatible Products Advanced Fire Alarm Panels
C-Tec Fire Alarm Panels
CEL Fire Alarm Panels
Kentec Fire Alarm Panels
Morley Fire Alarm Panels
Compliance BS EN 54-3
Equipment Type Sounder / Strobe
Fixing Options Screws (included)
Wall Mounted
IP Rating IP45
Material ABS Plastic
Operating Temperature -20°C To +70°C
Power Type 24V DC
Recyclable Fully Recyclable
Sound Level Up To 110dB
Warning Type Audible - Alarm Sounder
Visual - Beacon
Warranty 1 Year
Dimensions (Unit)
  • Height: 85mm
  • Diameter: 92mm
Weight 260g
