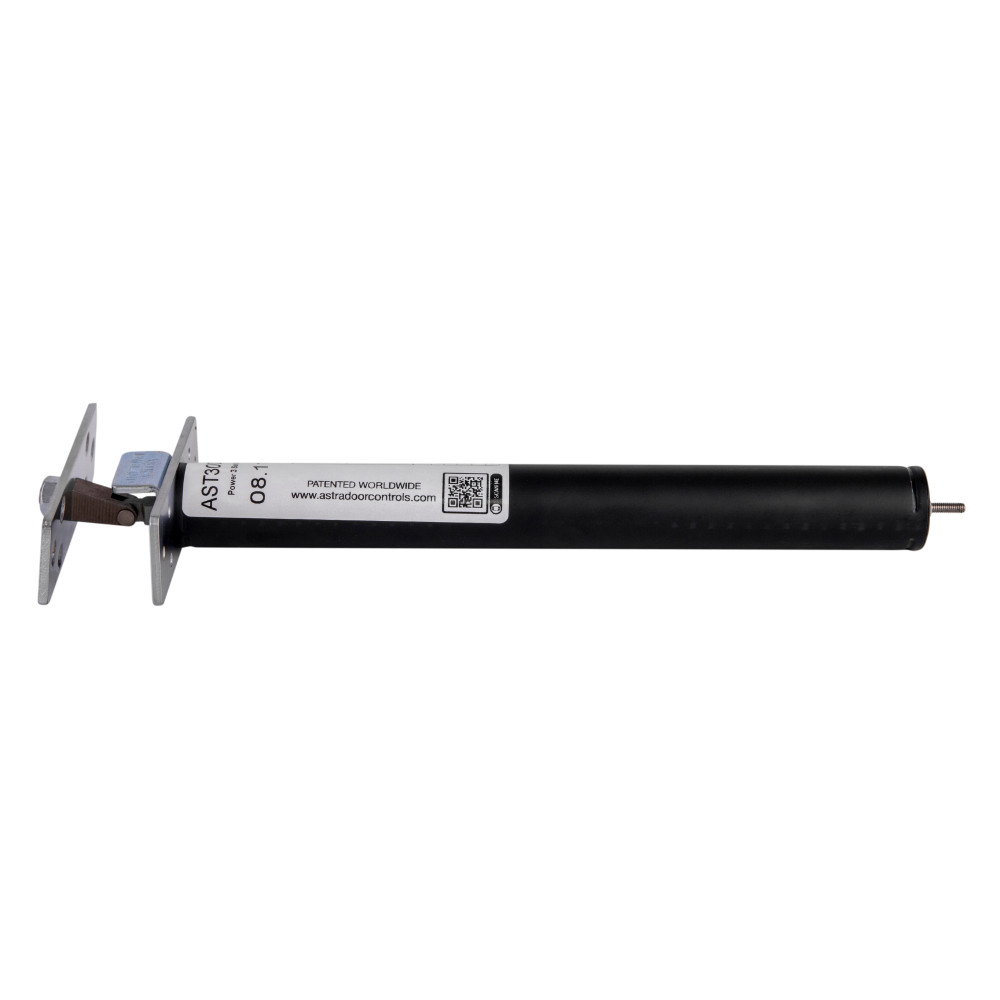

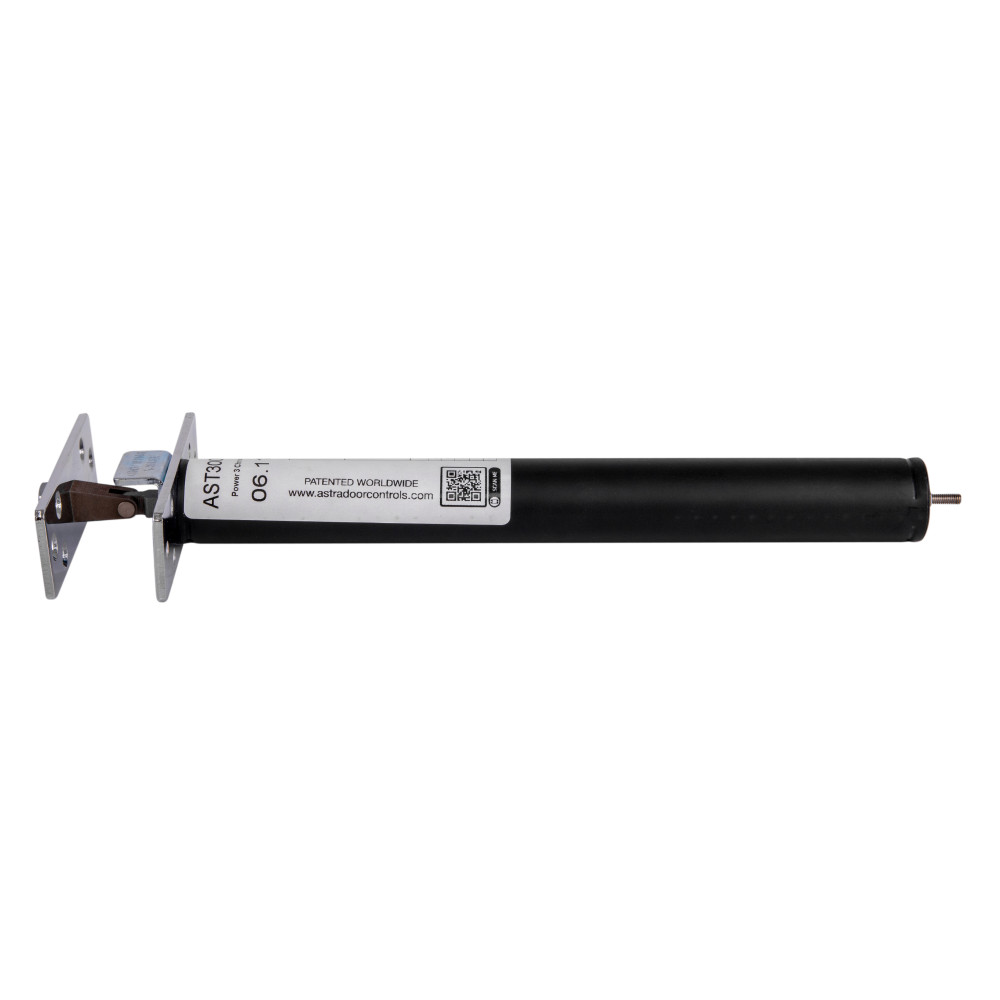

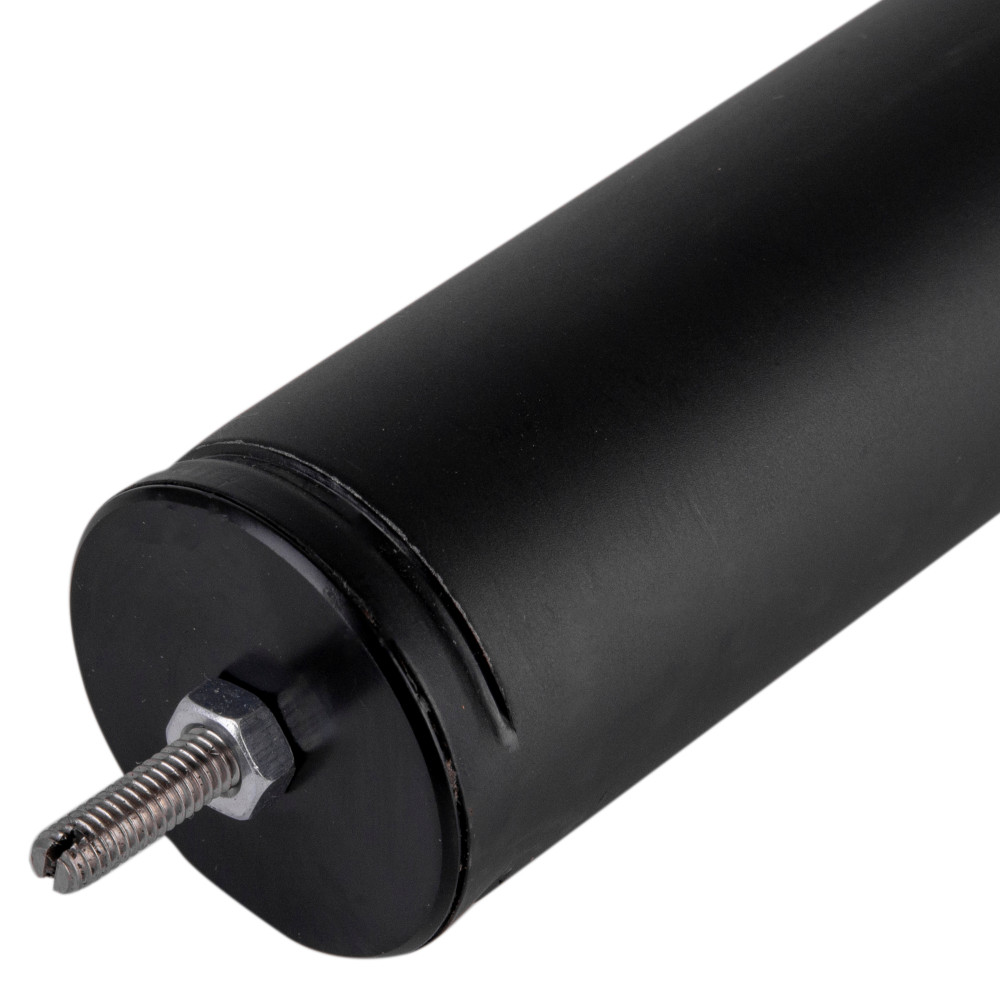

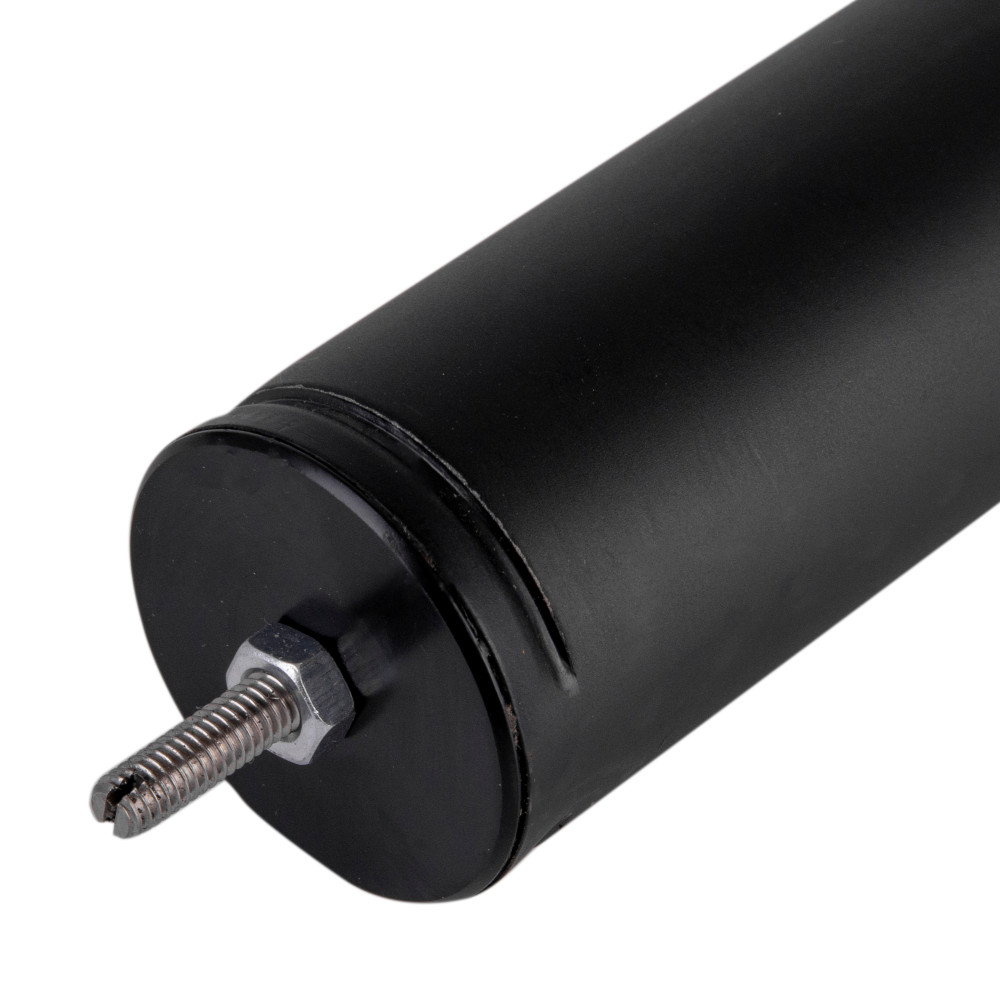

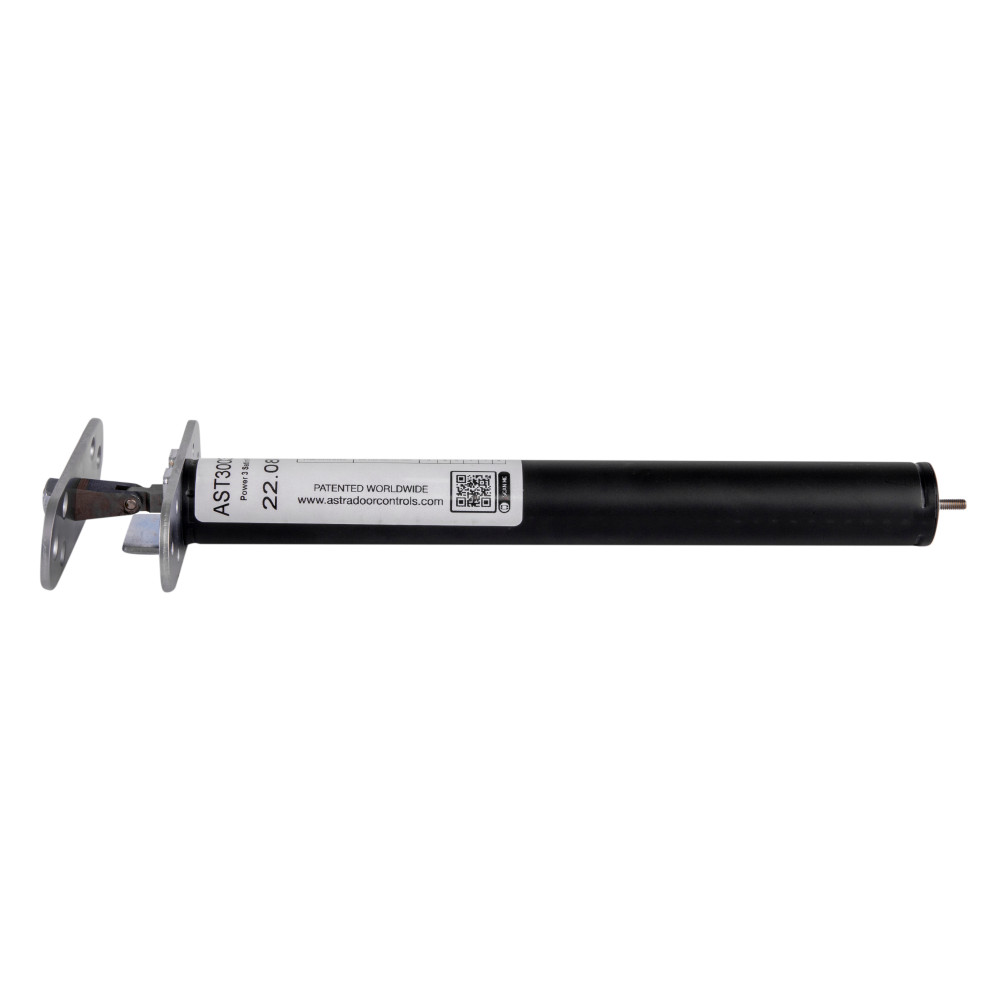

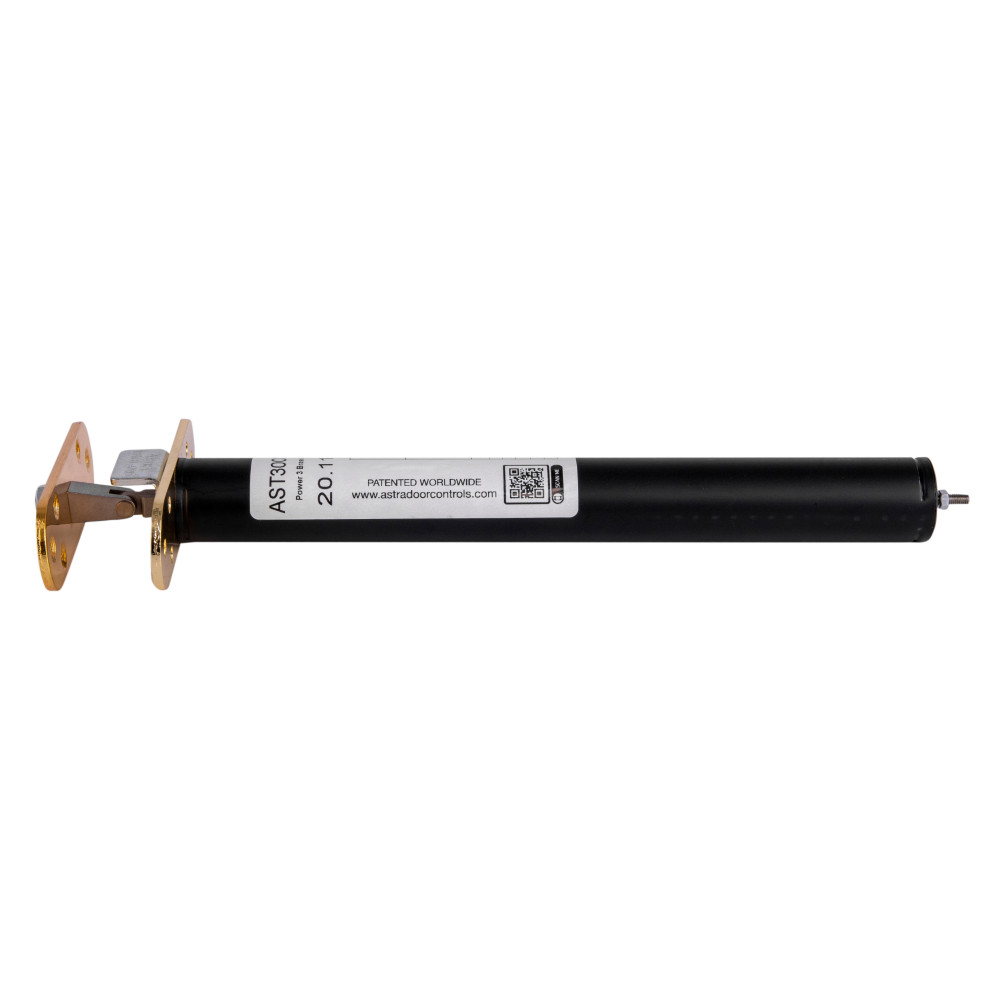

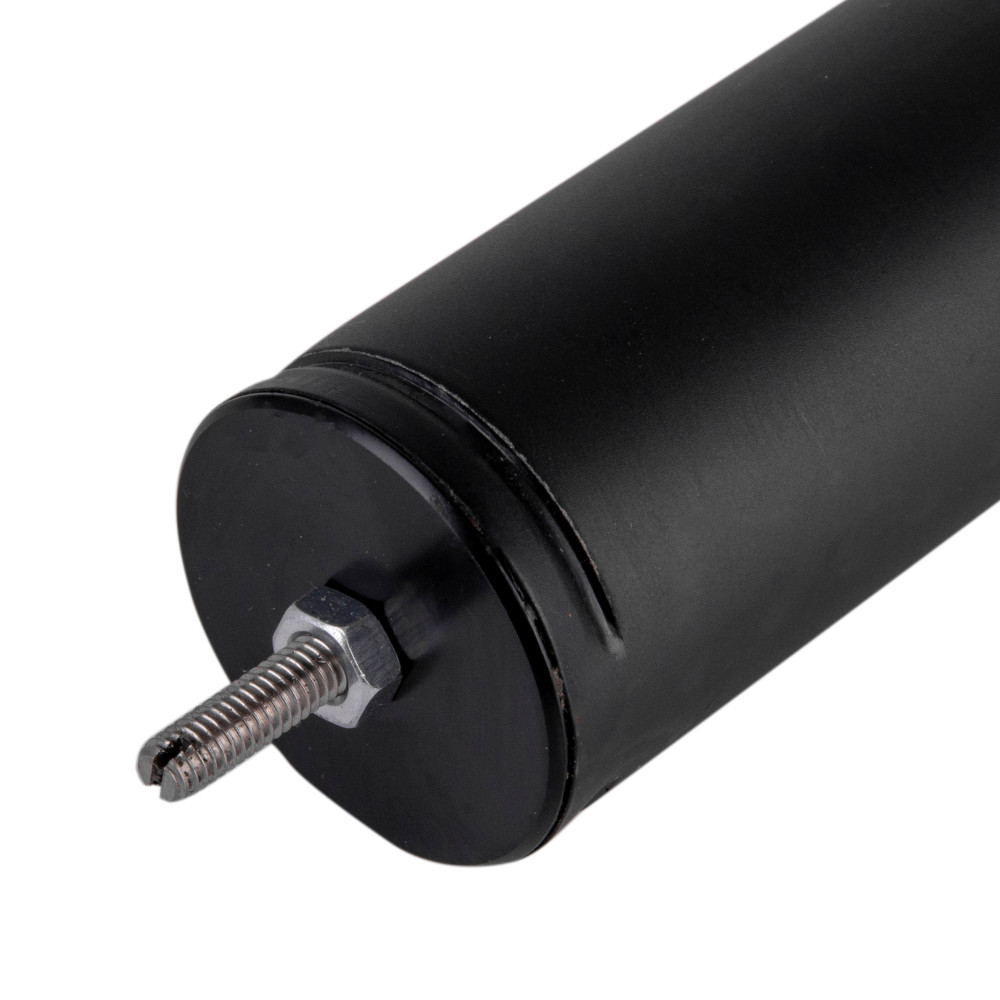

Astra 3003 Concealed Fire Door Closer

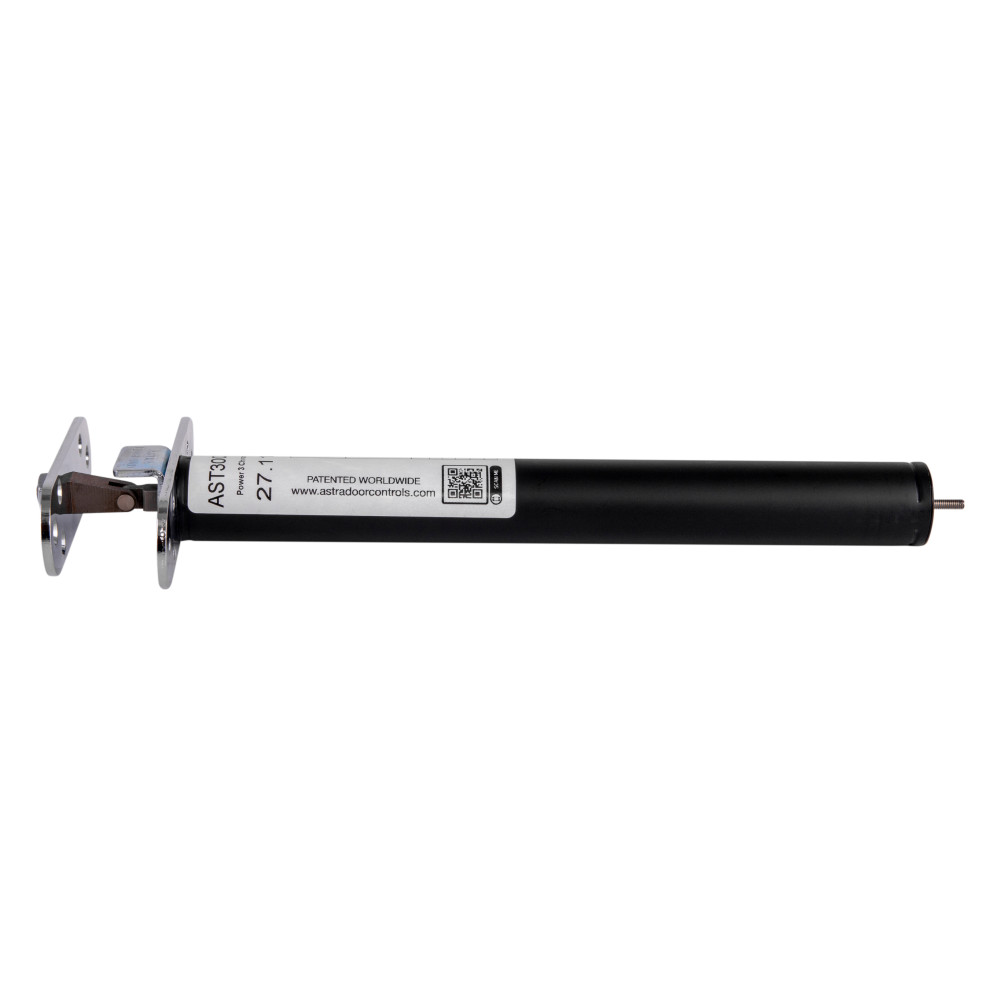

Manufactured in the UK, the Astra 3003 concealed door closer provides an aesthetically pleasing solution to controlled fire door closing. Hidden inside the door leaf, the Astra 3003 reduces the risk of vandalism or disengagement of the closer. Ideal for internal fire doors in social housing, student accommodation or any other commercial application.
- Suitable for:
- 30 minute fire rated door sets
- Internal single action doors
- Doors weighing up to 60kg and measuring up to 950mm wide – EN size 3
- Latched and unlatched doorsets
- Left and right hand opening doors
- Allows the door to open up to 105°
- CE and UKCA marked
- Certified to BS EN 1634-1: 2000 and BS EN 1363-1: 1999
- Complies with EN 1154: 1997 + A1: 2002
- Conforms to DDA standards BS 8300
- Adjustable features to suit your doors
- Closing speed controls how quickly the door closes
- Latching action governs the speed of the door it requires to overcome the latch
- Stringent endurance testing in the UK to 500,000 closing cycles

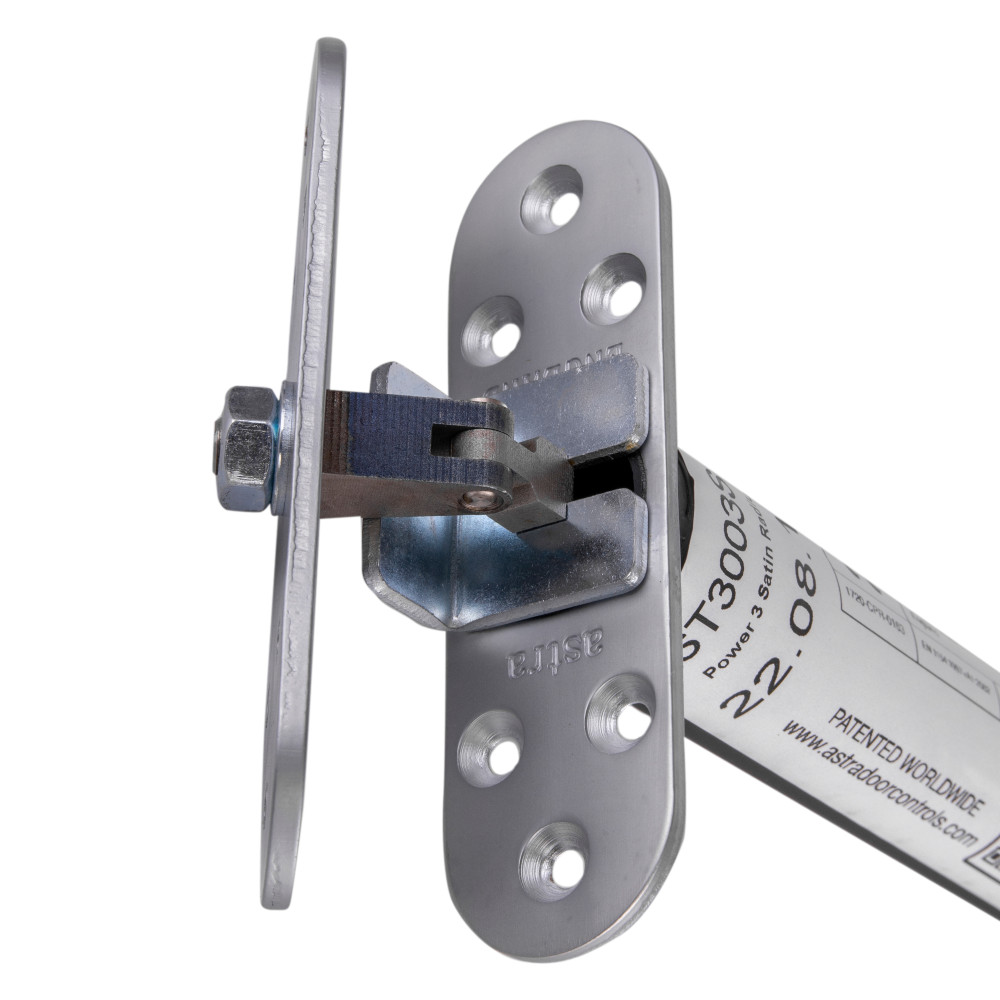

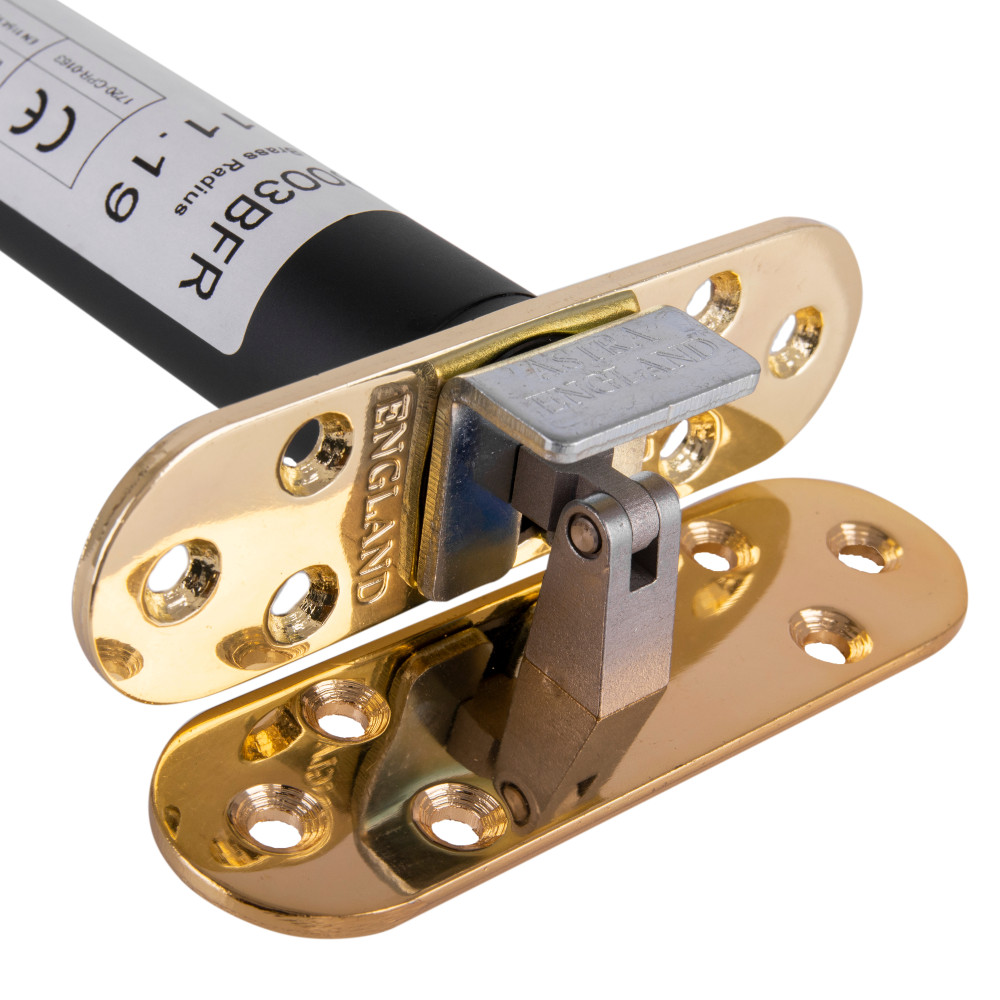

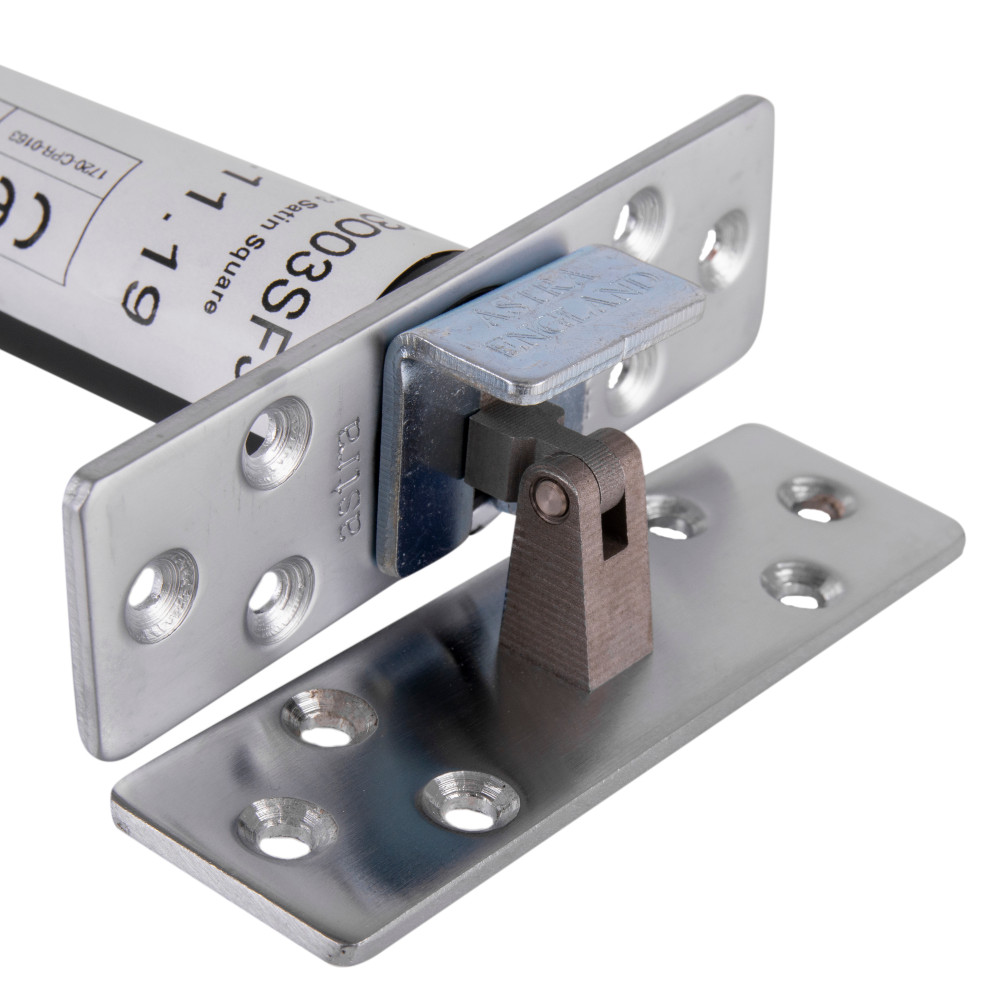

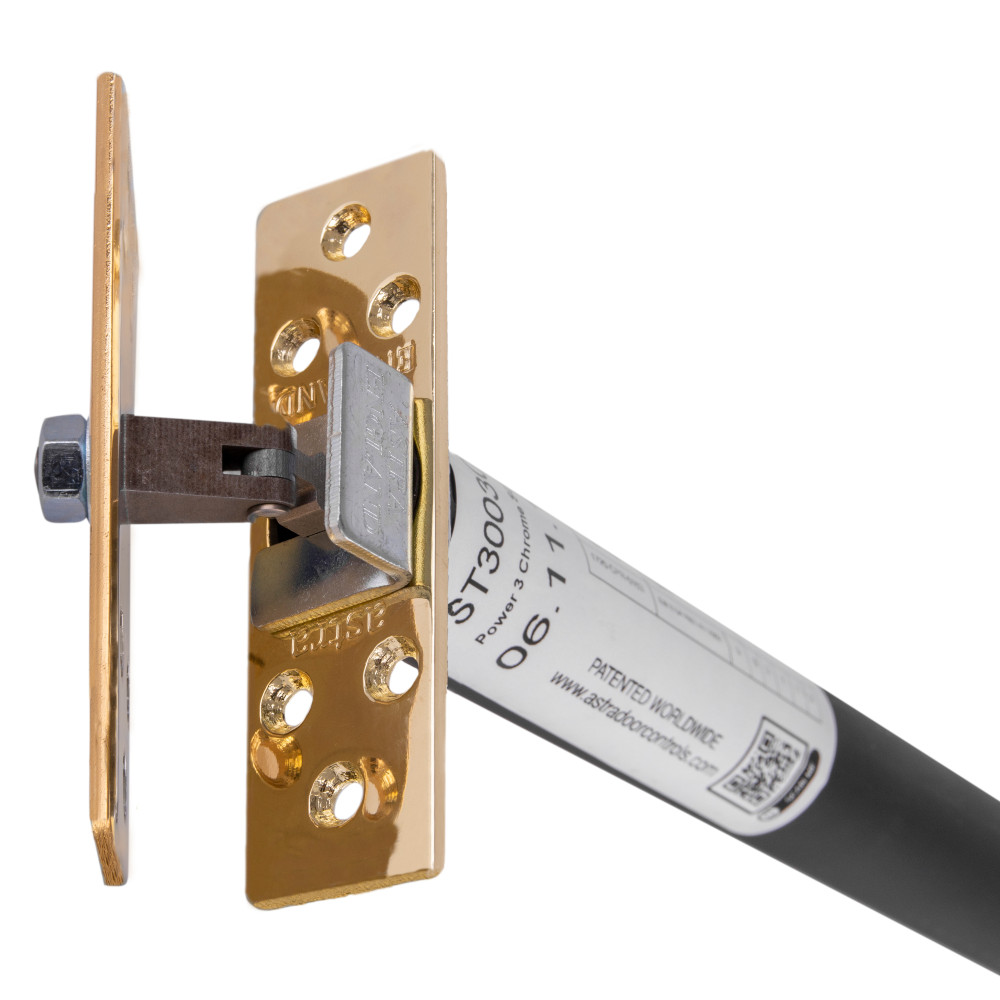

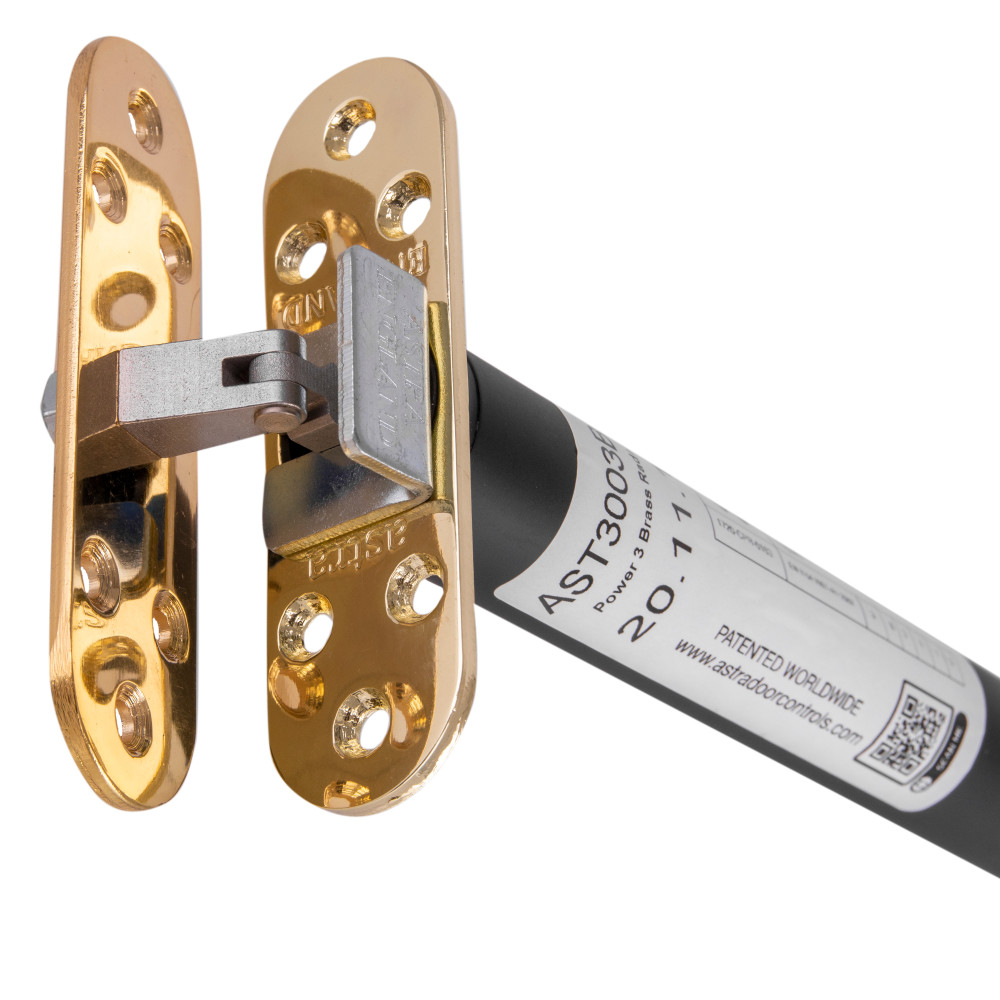

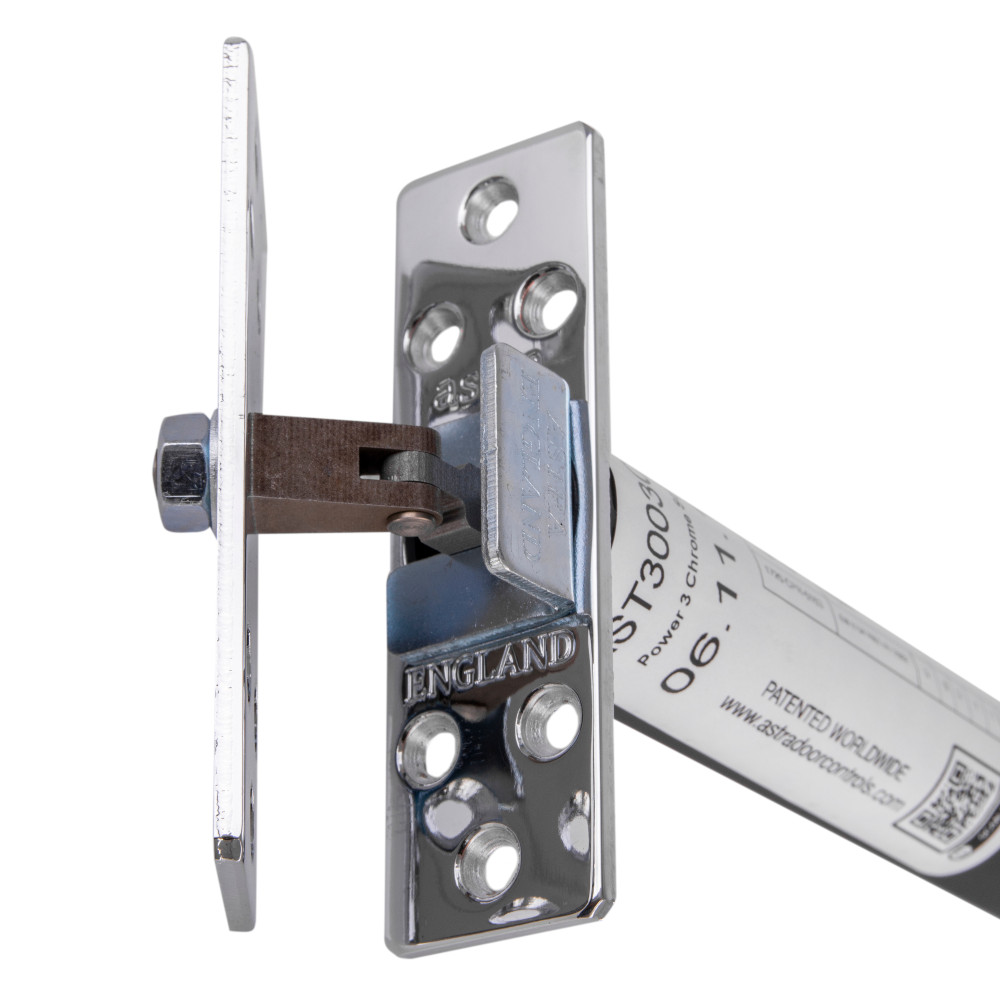

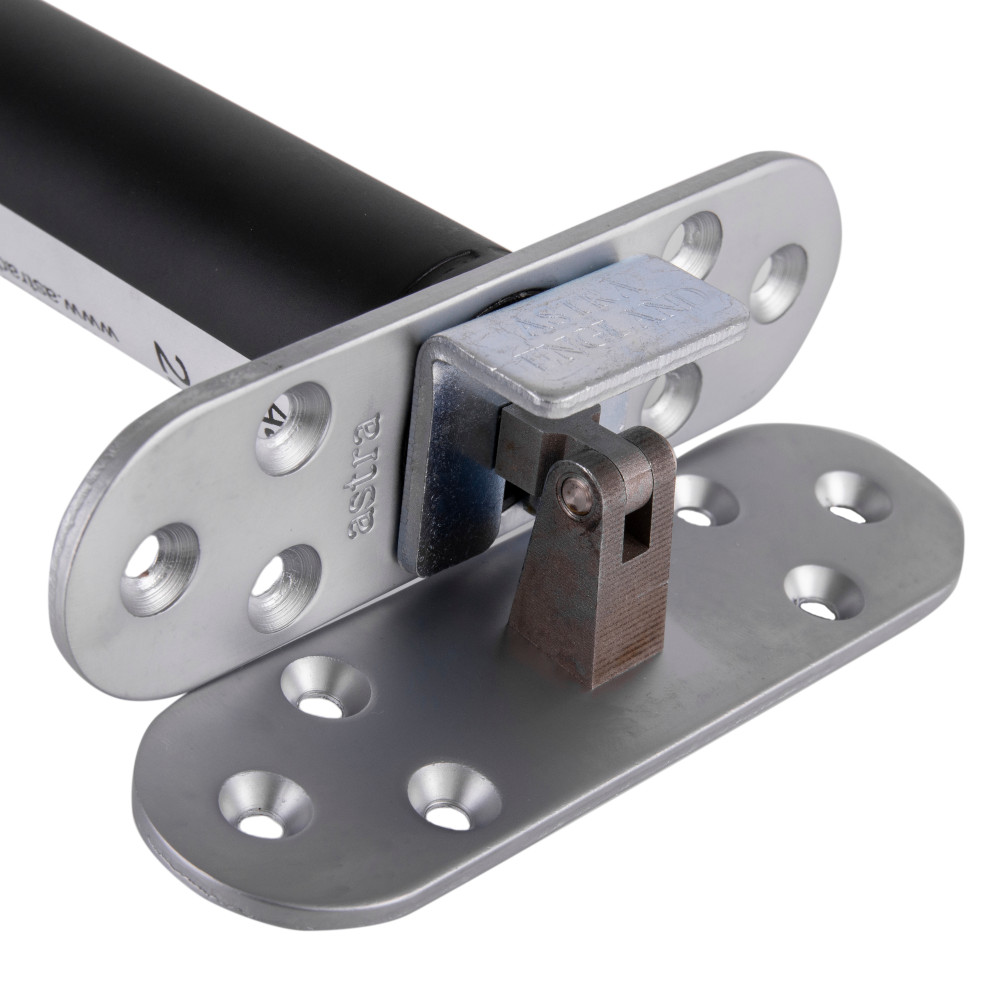

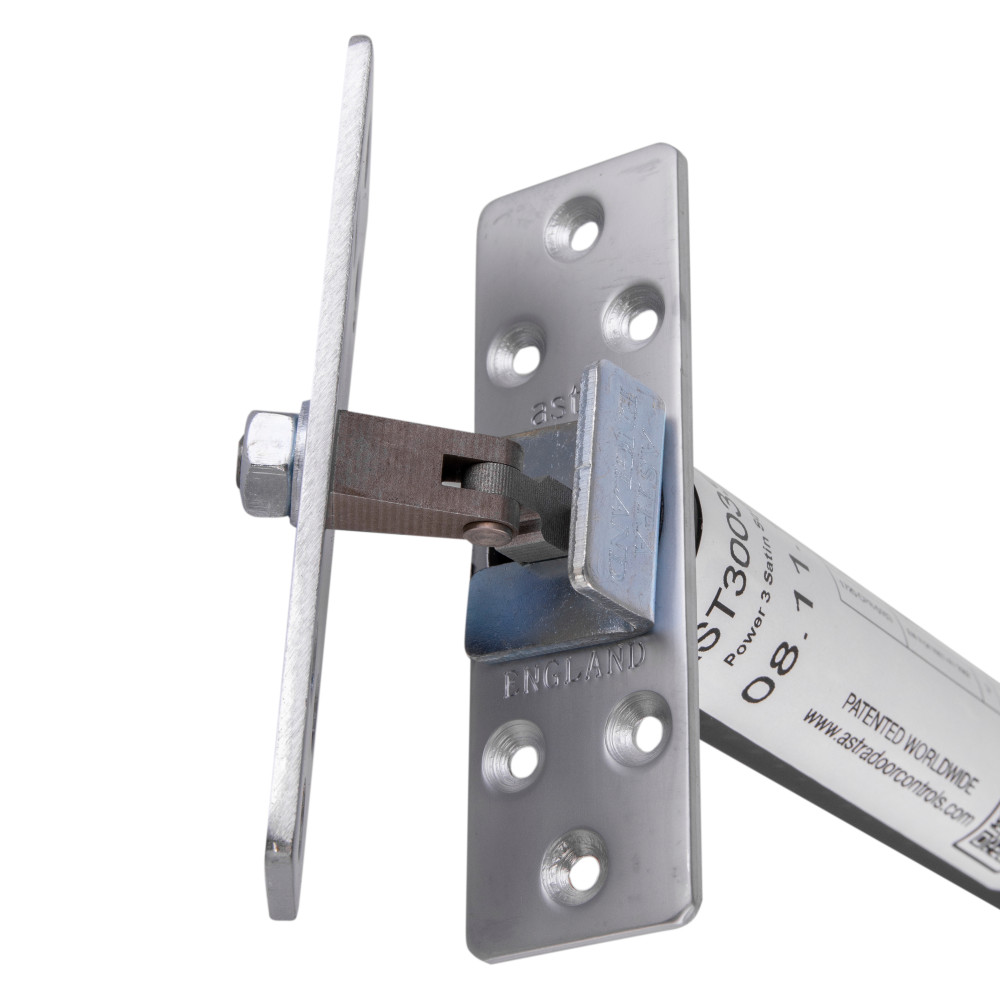

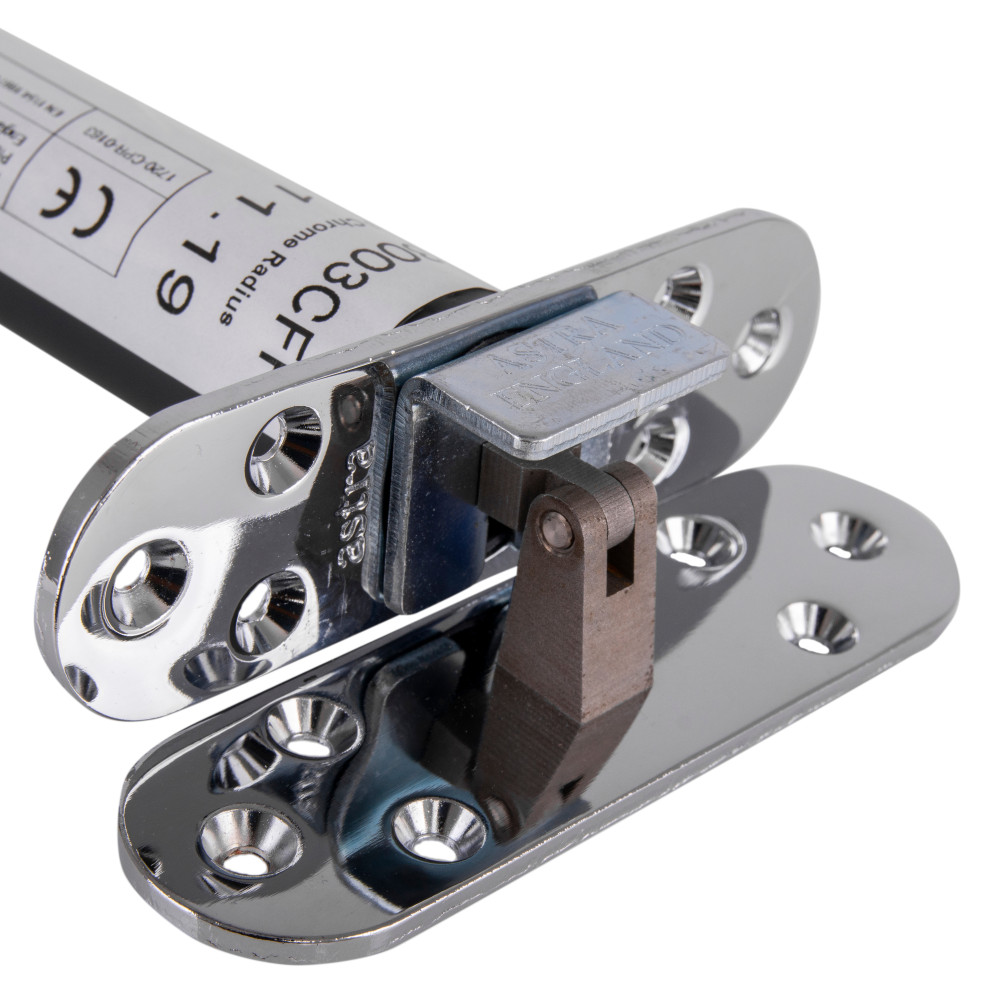

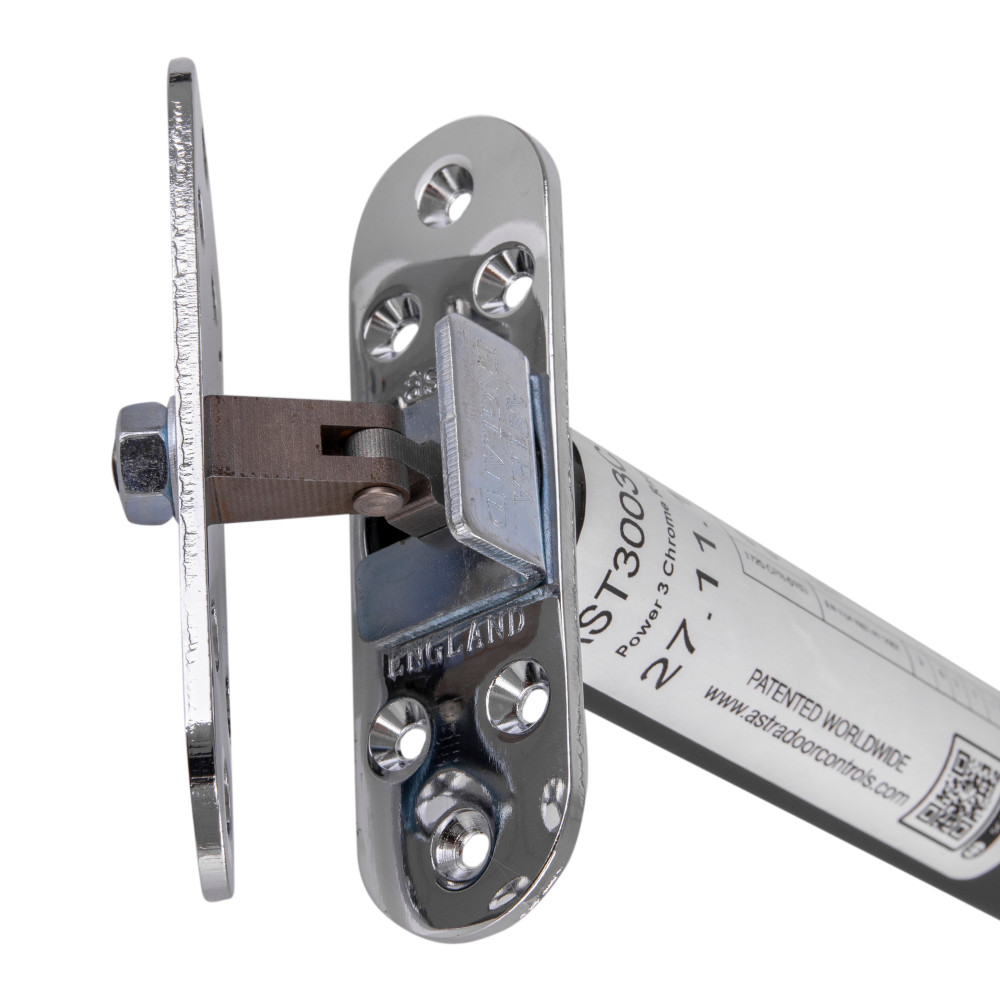

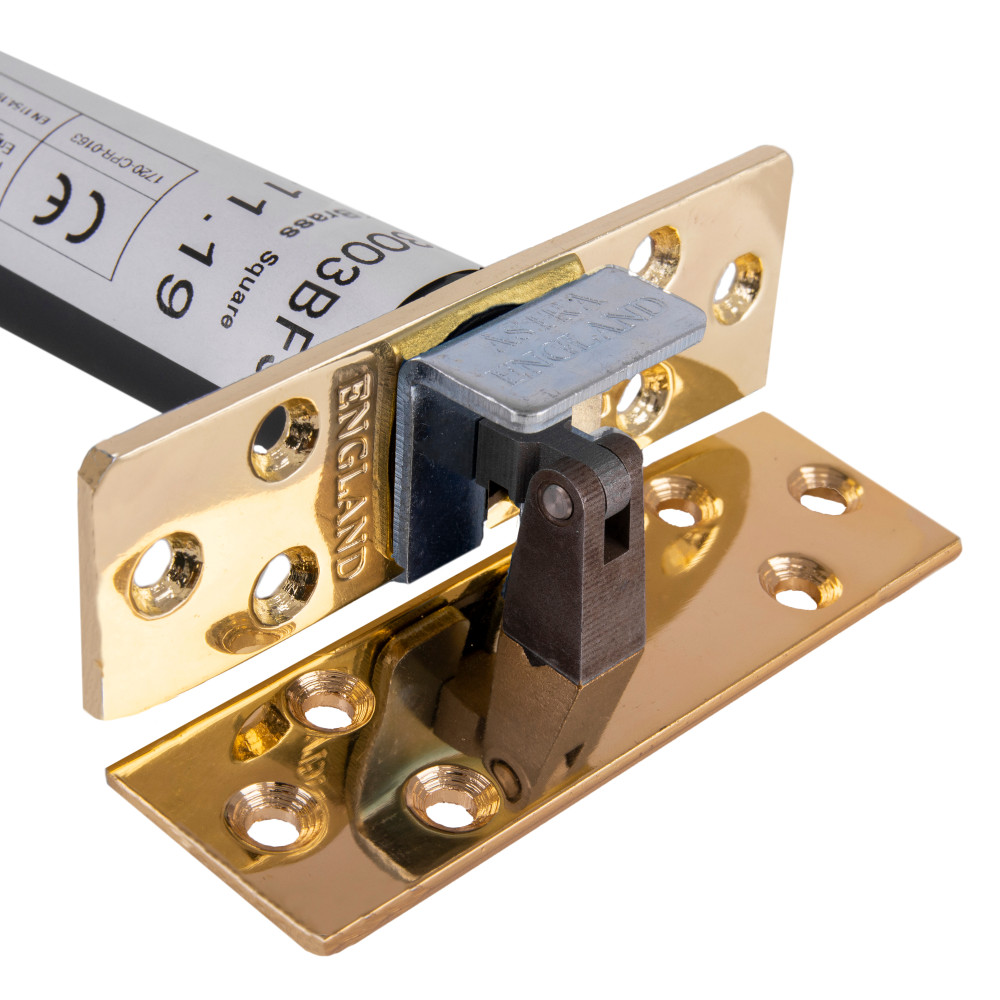

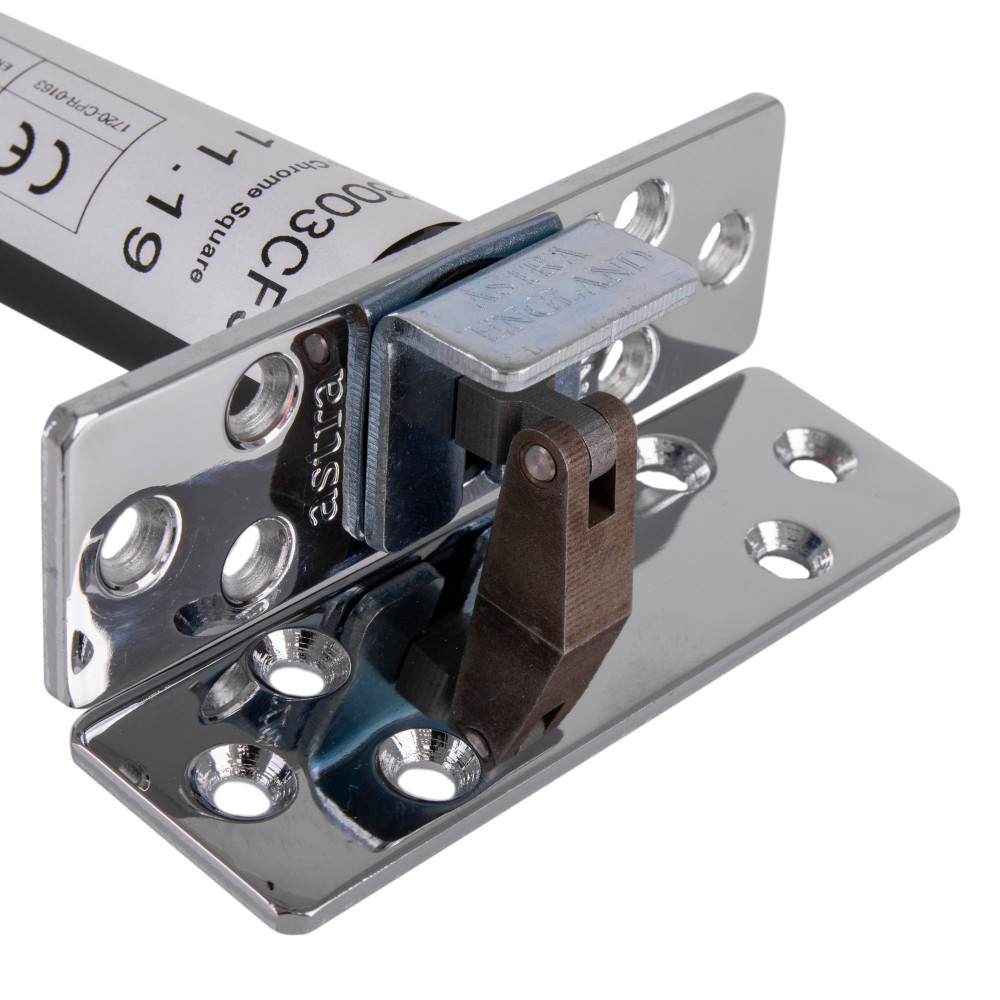

- Available with a rectangular or rounded plate in a choice of finishes
Please note: Astra Concealed Door Closers are unsuitable for doors fitted with projecting or rising butt hinges fitted. An installation kit, comprising of a fitting jig and auger bit is required for installation, and are available to purchase separately.
Worried About Fire Door Compliance?
Our comprehensive fire door inspection package and remedial service provides peace of mind that your fire doors are compliant. We offer nationwide services to suit your budget.
Customer Reviews (13)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewer
D R
Published on
24th June 2026
Reviewer
D R
Very good product quick delivery
Published on
24th June 2026
Reviewer
J L
Solid material and well made
Only problem unaware there was no template included to cut out the hole needed for the door to insert the piston. Should have mentioned this in the description when purchasing to buy one separately.
Published on
17th April 2024
Technical Data
| Product Code | FCAST3BS |
|---|---|
| Brand | Astra |
| Manufacturer's Part Number | AST3003BFS |
| Approvals & Markings | CE Marked |
| UKCA Marked | |
| Closing Speed | Adjustable |
| Compliance | BS EN 1154: 1997 + A1: 2002 |
| BS EN 1363-1 | |
| BS EN 1634-1: 2000 | |
| DDA Standards BS 8300 | |
| Door Type | Single Door |
| EN Classification | 3 | 8 | 3 | 1* | 1 | 0 |
| Equipment Type | Concealed Door Closer |

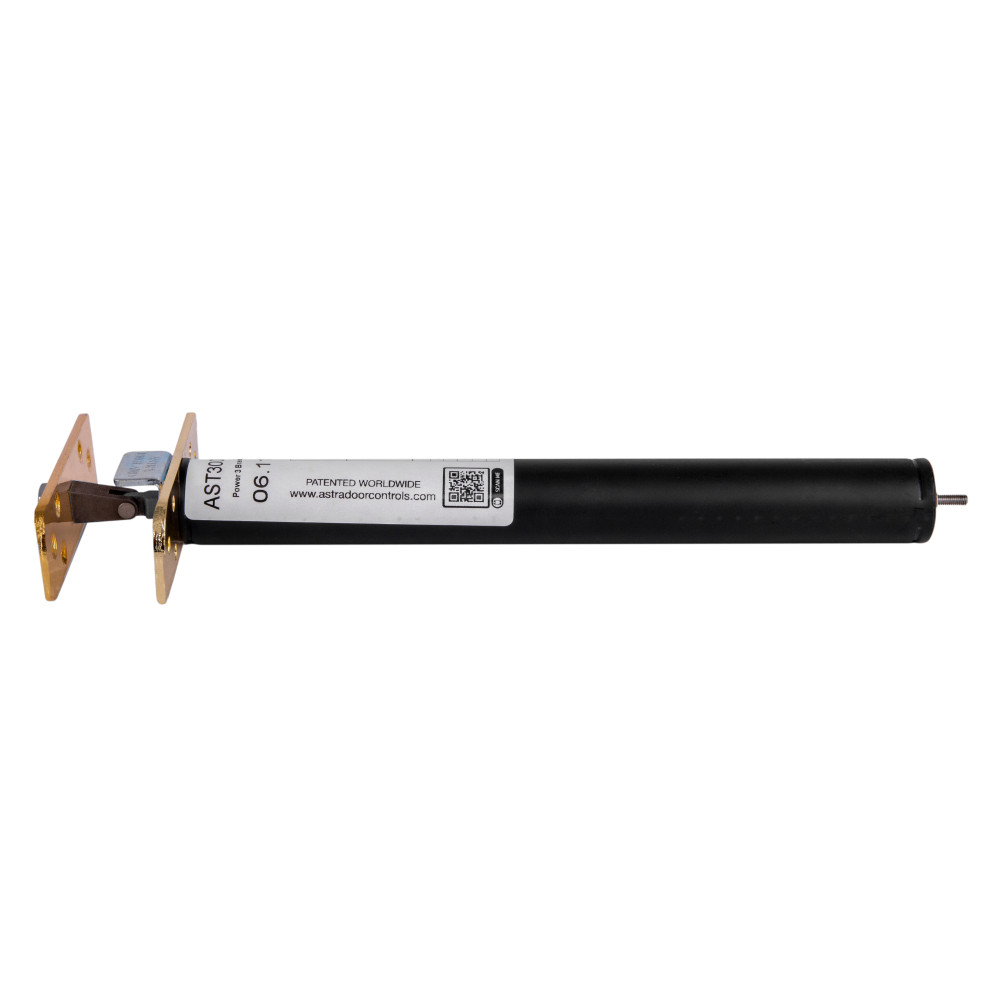

| Finish | Brass |
| Fire Rating | 30 Minutes |
| Fixing Options | Wooden Door Fixings (Included) |
| Installation Position | Inside Door |
| Latching Action | Adjustable |
| Manufactured in the UK | Yes |
| Material | Metal |
| Maximum Door Weight | 60kg |
| Maximum Door Width | 950mm |
| Opening Angle | 105° |
| Power Size | EN 3 |
| Suitability | 30 Minute Fire Doors |
| Dimensions (Unit) |
|
| Weight | 750g |
