Analox Ax60+ Fixed CO2 Monitor, Sensor and Alarm Kit

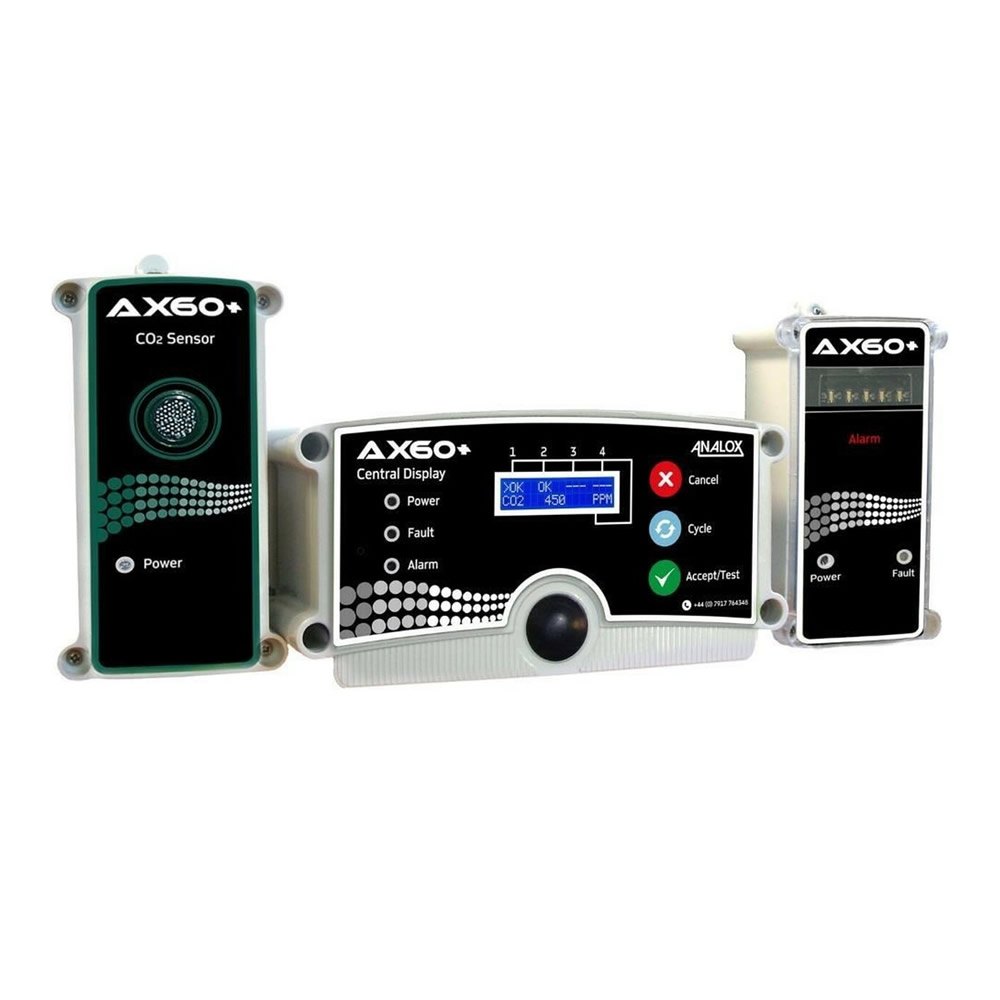

The Analox Ax60+ system is designed to detect CO2 (carbon dioxide) to high levels of accuracy in environments that are at risk of raised concentrations of the deadly gas with HSE allowing exposure no higher than 5,000ppm averaged over an 8-hour working period – just 0.5% in the air. This starter kit consists of a high-resolution central display & monitoring unit, a CO2 monitor, and one alarm unit with a blue strobe. In-built relays can be used to activate extraction fans or close gas valves.
- Warranty: 5 years on electronics and CO2 sensors
- Ideal for restaurants, breweries, pubs, cellars, and any other locations using or producing carbon dioxide
- 2 x in-built relays for additional safety mechanisms
- Easy expansion with additional sensors and alarms ay any time:
- Up to 4 sensors per display unit
- Up to 4 alarms per sensor
- Max total of 8 alarms per display unit

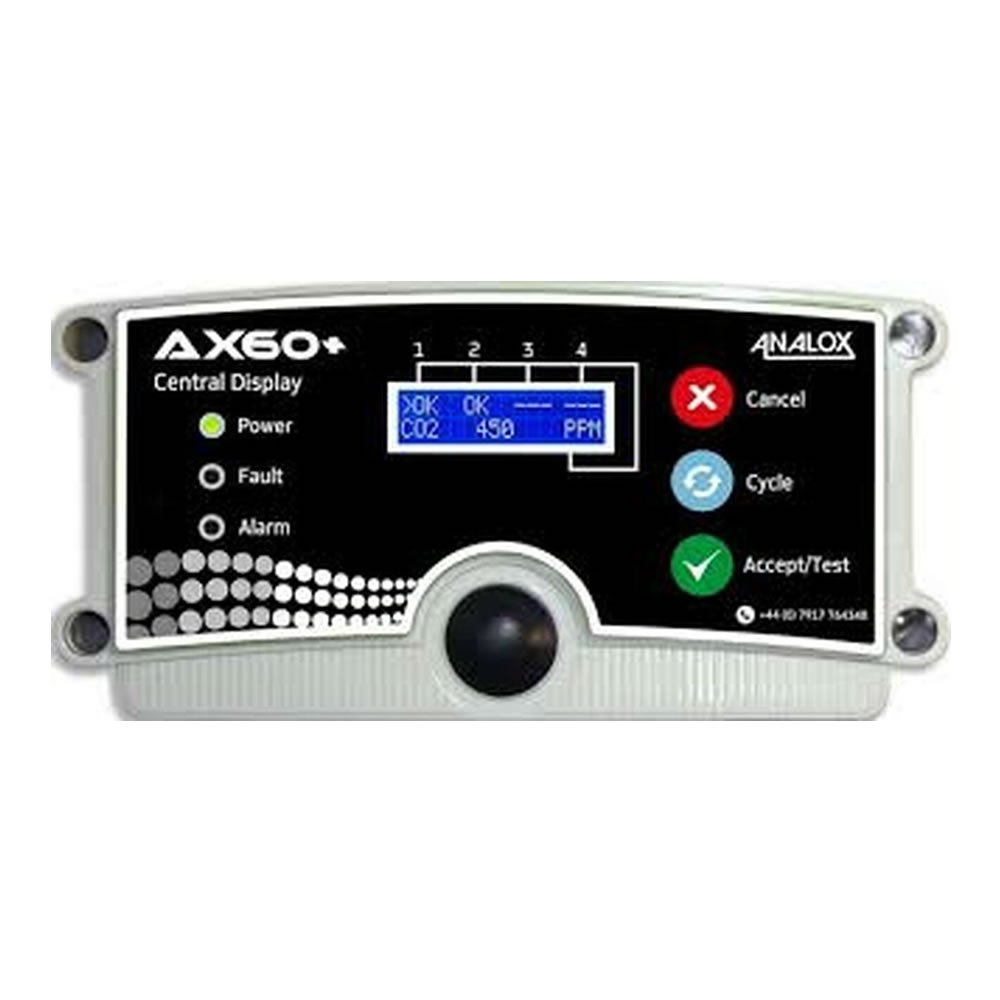

- Central display unit: Hi-res backlit LCD display, variable power options
- Alarm unit: 80dB audible alarm with 100cd blue strobe light
- Sensor unit: NDIR sensor, triggers at 0.5% TWA, response under 30 seconds
- All units are IP Rated - see datasheet for individual ratings
- CE marked, certified by UL and TUV, compliant with EH40 regulations
- Ready to install with a simple
Customer Reviews (0)
Reviews by Real Customers
To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.
No Reviews Available
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data
| Product Code | ANAX60PKIT1B |
|---|---|
| Brand | Analox |
| Colour | Black |
| White | |
| Approvals & Markings | CE Marked |
| Compliance | EH40 Regulations |
| TÜV | |
| UL Classified | |
| Display | LCD Display |
| Fixing Options | Wall Mounted |
| IP Rating | IP54 |
| Material | Plastic |
| Maximum Number of Linked Devices | 8 Devices |
| Operating Temperature | -5°C To +50°C |
| Power Type | 100 - 240V AC |
| 24V DC | |
| Recyclable | Partially Recyclable |
| Sensor Type | Nondispersive Infrared CO2 (NDIR) |
| Sound Level | 80dB |
| Warning Type | Visual - LED Strobe Light |
| Audible - Alarm Sounder | |
| Warranty | 5 Years |
| Equipment Type | CO2 Alarm |
| Dimensions (Unit) |
|
| Weight | 2.34kg |
| Datasheets |
