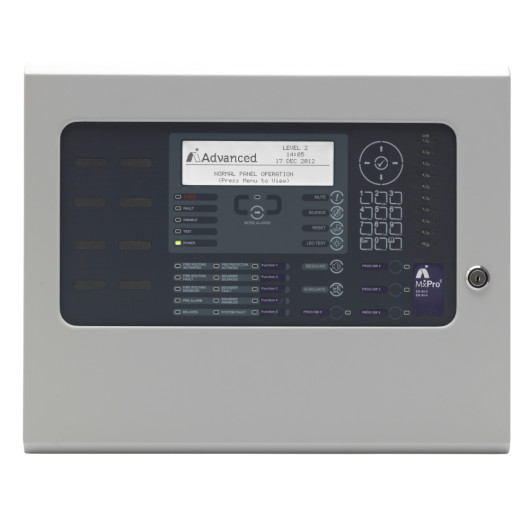

Advanced MxPro 5 MX-5201 Addressable 1 - 2 Loop Panel

Suitable for small / medium sized premises, the MX-5200 panels are expandable from 1 to 2 loops and are compatible with the optional Ad-NeT network cards to expand your Hochiki or Apollo Addressable Fire Alarm System beyond a single control panel. With support for up to 127 devices per loop configured into a maximum of 200 fire zones, the MX-5201's powerful cause-and-effect and enhanced trace diagnostics make it suitable for a wide range of applications. The advanced graphical LCD display and simple 'select and click' keypad interface make it easy for both installers and users to take full advantage of all the features offered by the panel's impressive computing power. Supplied in a medium enclosure by default, large and deep enclosure options are available.

• Can drive one or two loops (via additional MXP-502 Loop Driver card)
• Available in medium, large, and deep enclosures
• Support for Hochiki and Apollo protocols
• Approved to BS EN 54 parts 2, 4, and 13
• Built-in USB and Serial RS232 connections
• Powerful Cause and Effect Programming to match any fire strategy
• 20 programmable and 25 system LEDs
• Compatible with the MXP-503 and MXP-509 Ad-NeT network cards
• Advanced graphical LCD display
• 3 logging levels provide Enhanced Trace Diagnostics
• Simple 'select and click' interface via integrated keypad
• Compatible with internal batteries of up to 45Ah
• 4 programmable function buttons with LED operation indicators
• Dual flash-based microprocessor technology for impressive computing power
• A suite of Windows PC software covers everything from logo design to full configuration
• 3 year manufacturer warranty

Please note: backup batteries (also called a standby power supply) are not included with this panel but are a legal requirement. Suitable batteries are available separately. Additional Loop Driver cards are supplied separately and must be installed on-site.
