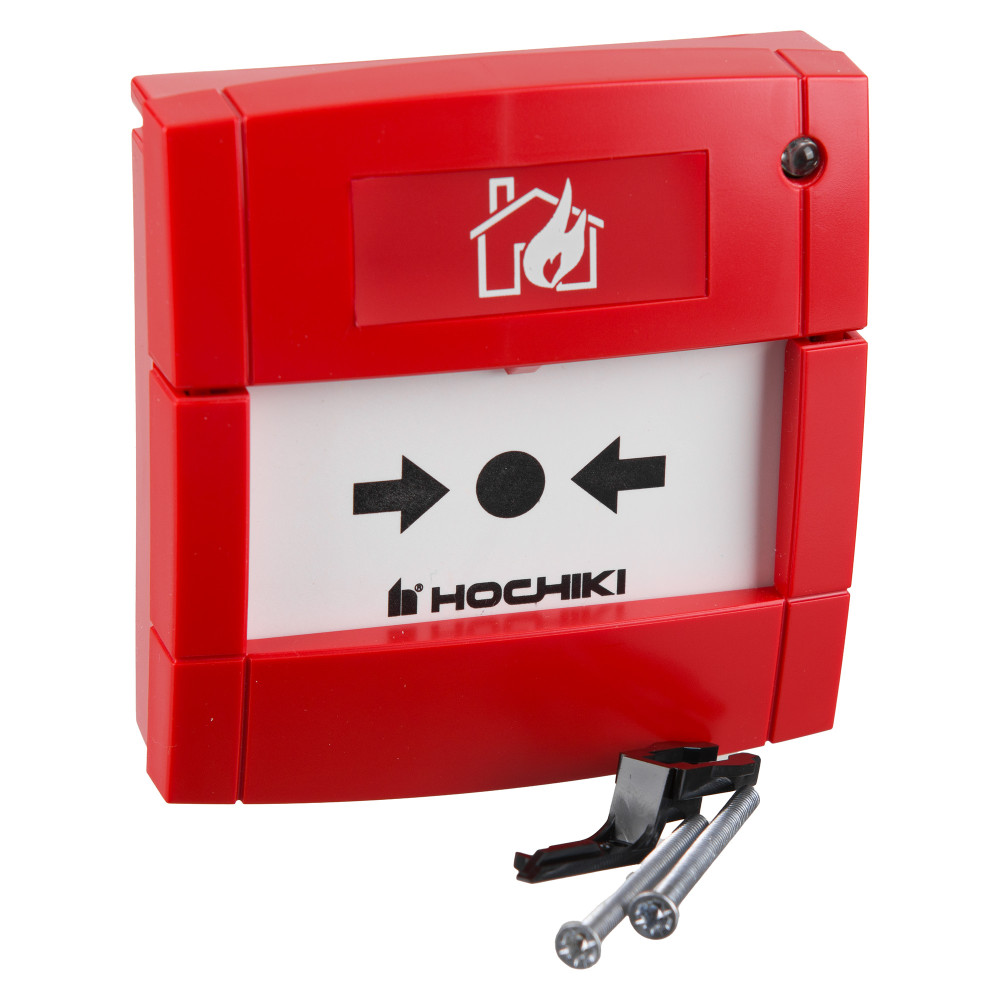

Hochiki ESP Manual Call Point with Isolator for Flush or Surface Mounting

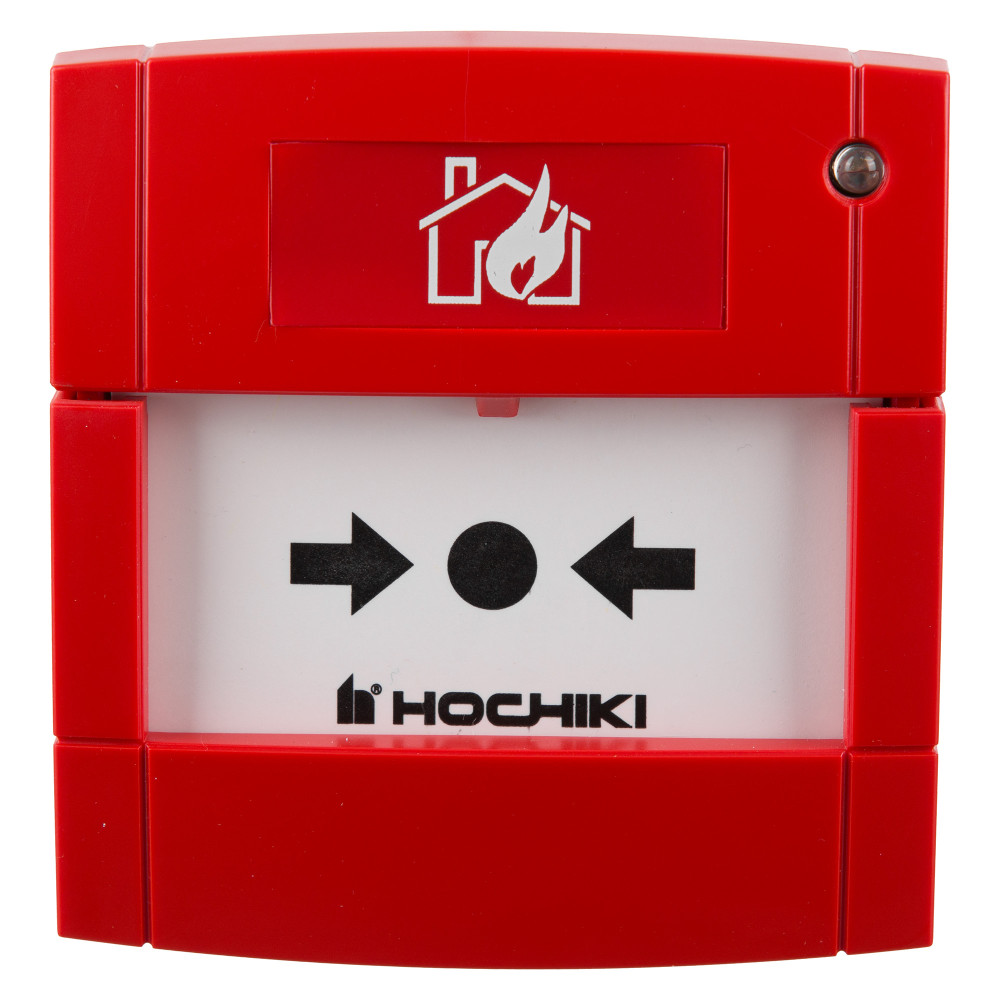

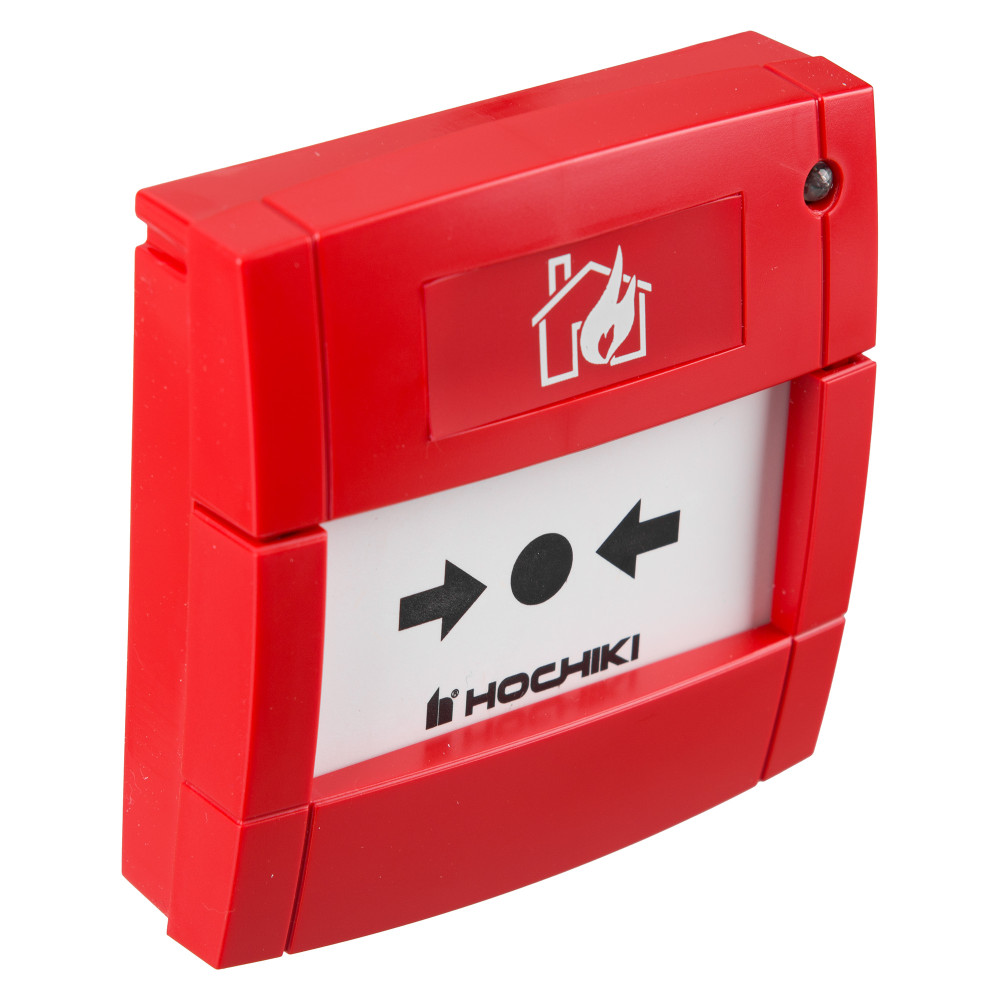

This manual call point from the Hochiki ESP range has a built-in short-circuit isolator to protect the rest of the loop from faults. The status indicator LED which will show an amber light in the event of a short circuit or red when the call point is activated. Operated by pressing the EN 54-compliant resettable plastic element, manual call points allow building occupants to trigger a fire alarm system in the event that a detector fails or when there may be a delay between a fire starting and being noticed by a detector. Compatible with Morely DXc and Advanced MxPro 5 panels, this call point is for addressable fire alarm systems which allow engineers to give each device in the network an "address" and thus provide a much more accurate origin location in the event of a fire. For testing, a special key can be inserted into the underside of the call point and remote testing from a compatible control panel is also supported.

• Integrated short-circuit isolator to protect the loop
• Resettable plastic element fitted as standard

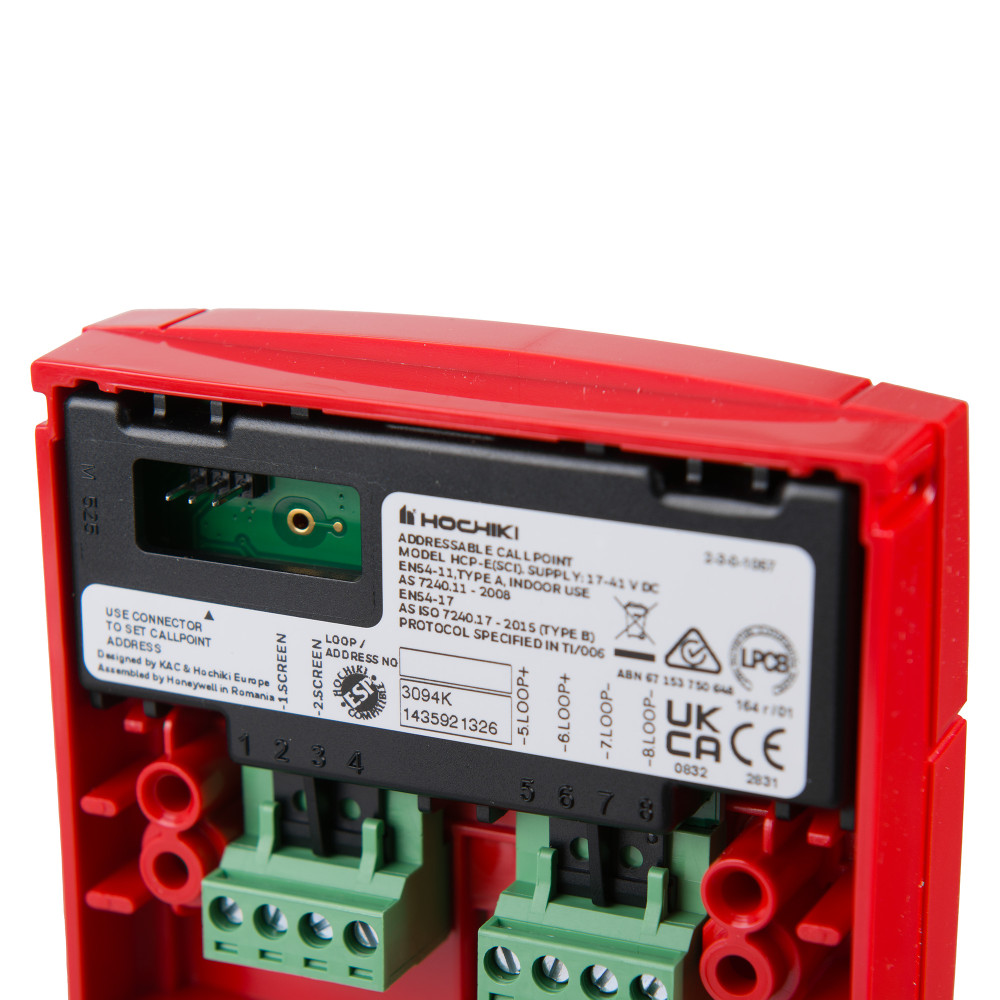

• Addressable via TCH-B200 Address Programmer

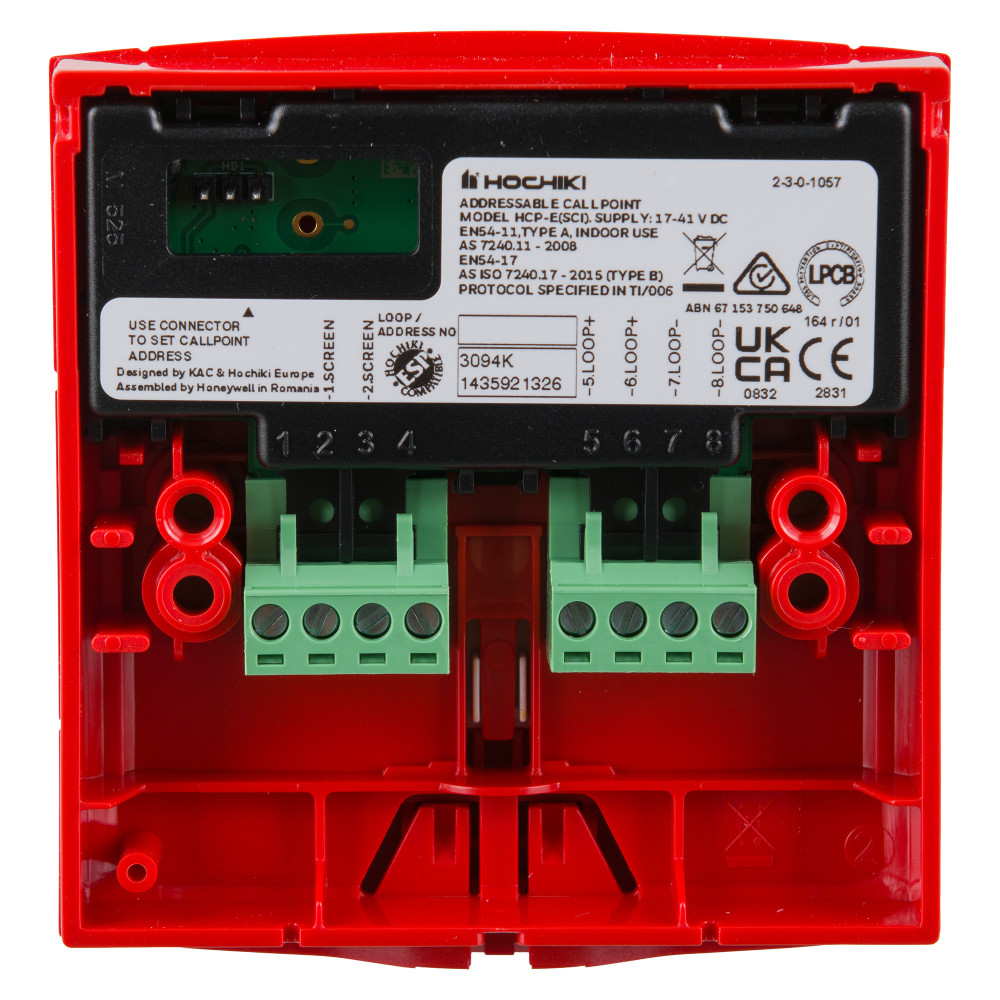

• Supplied with two terminal blocks for easy wiring

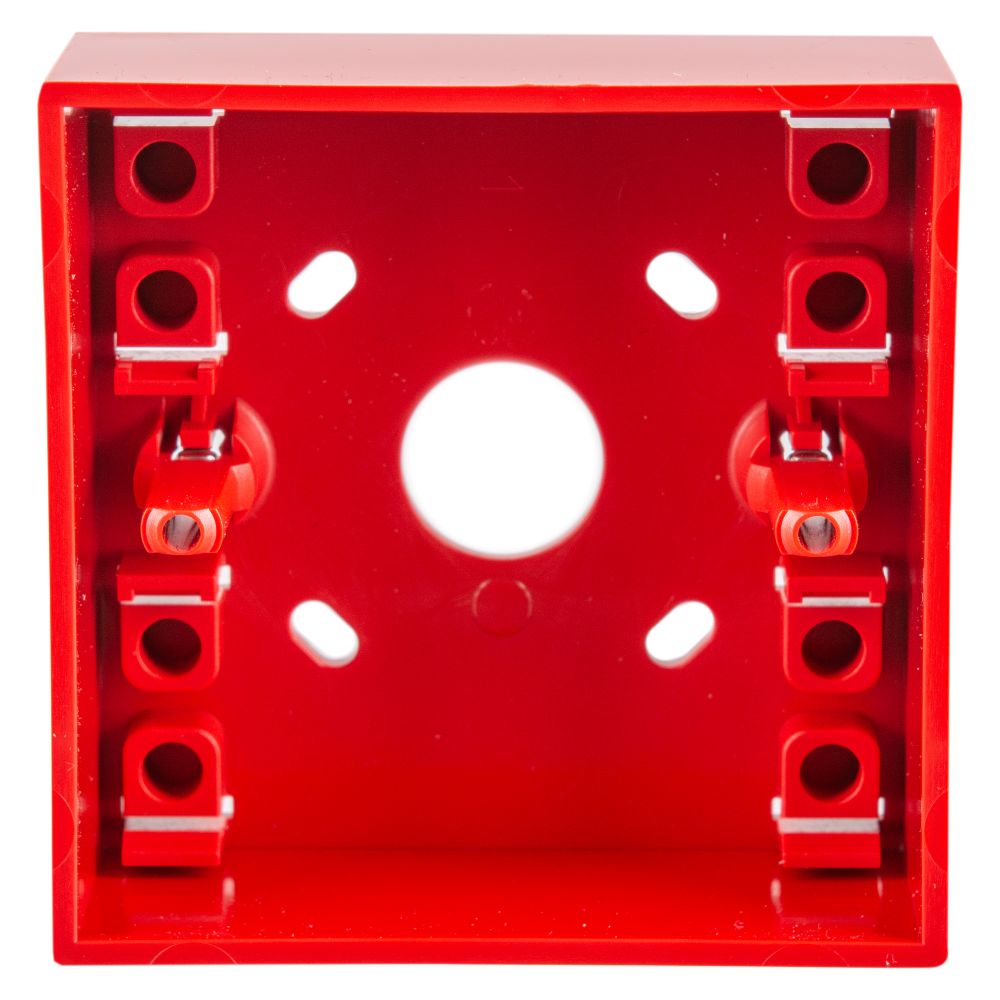

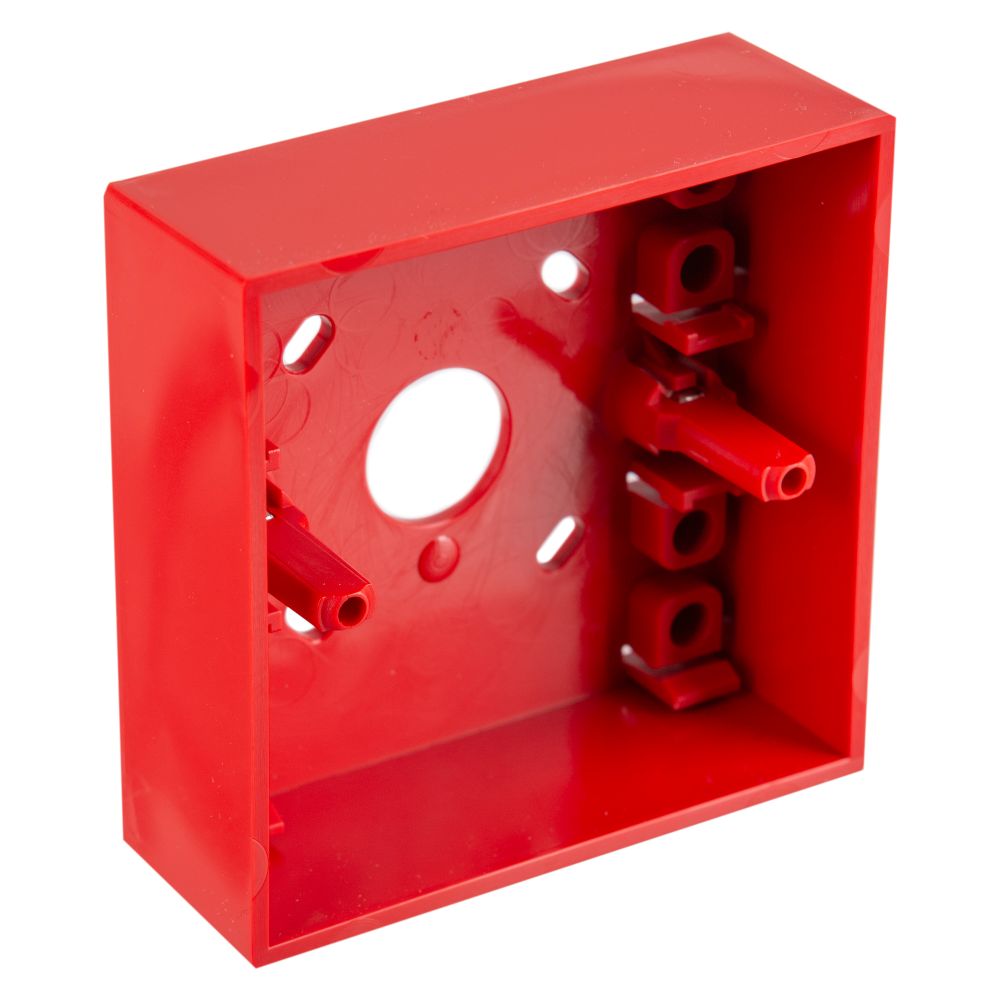

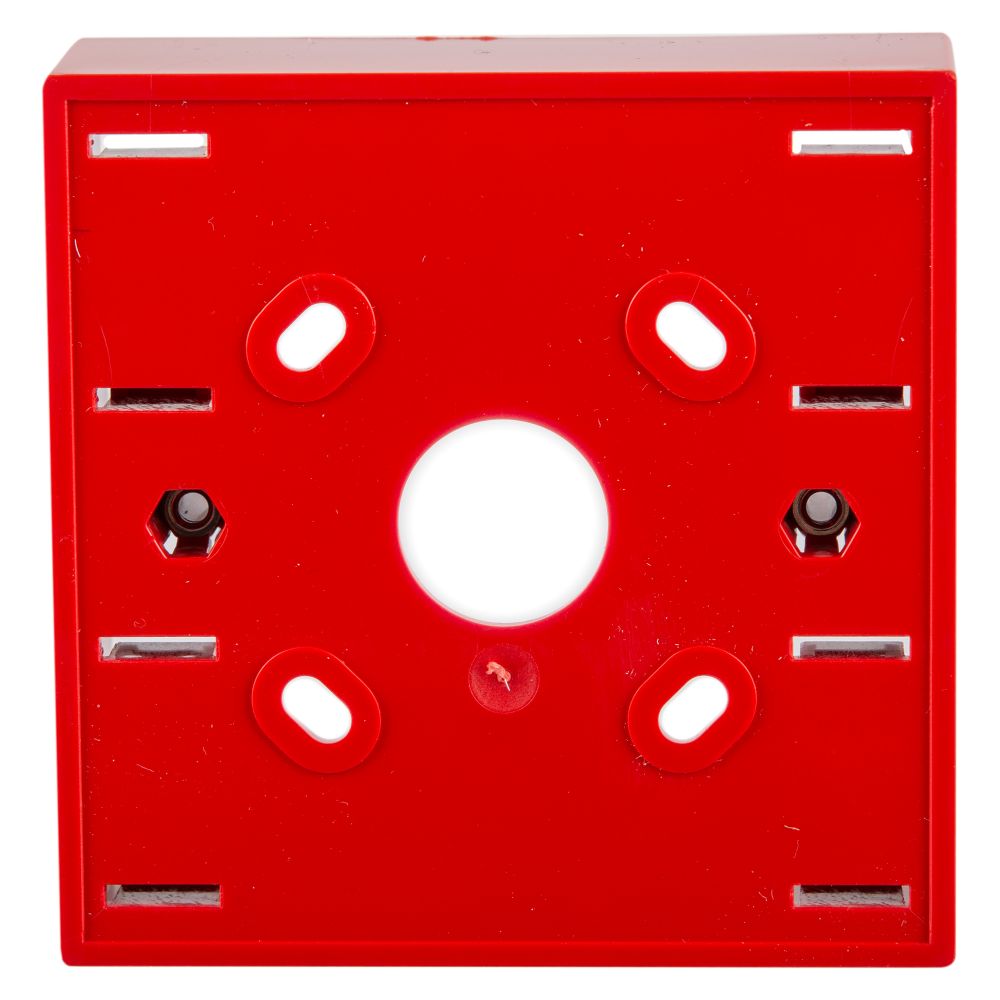

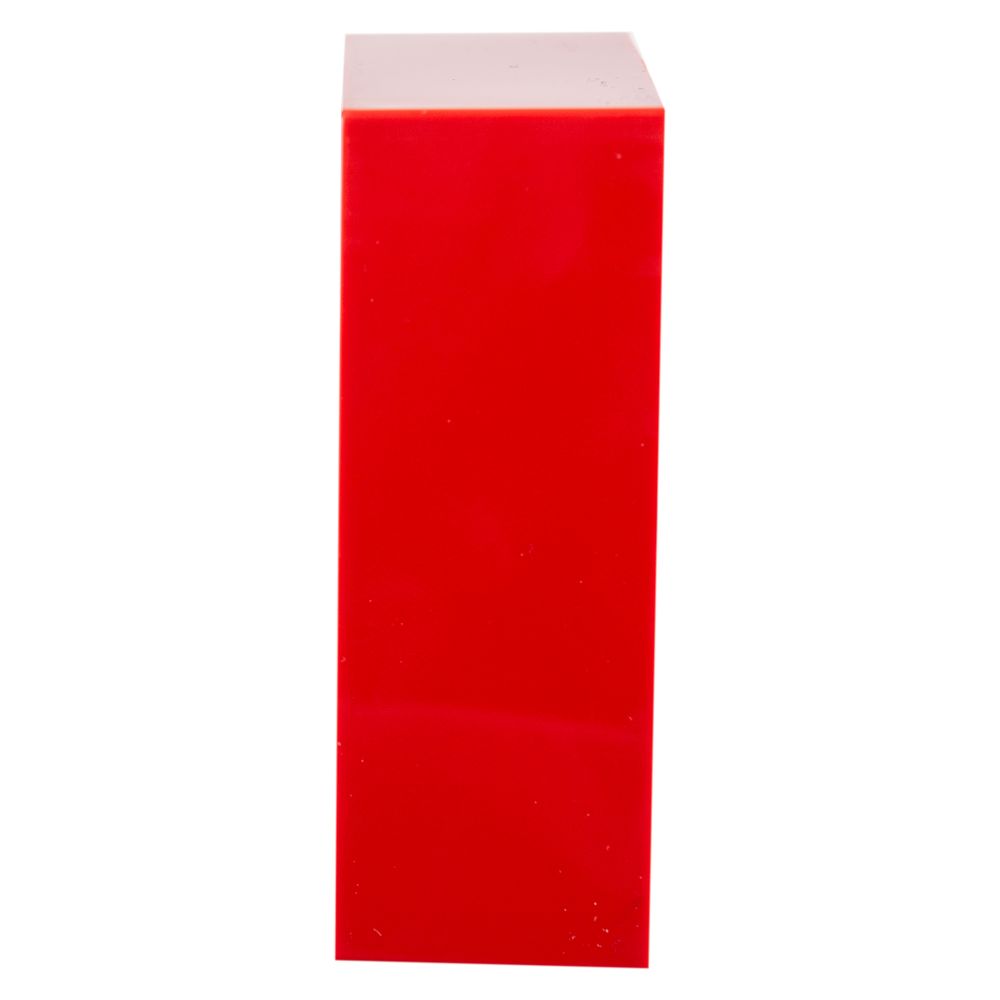

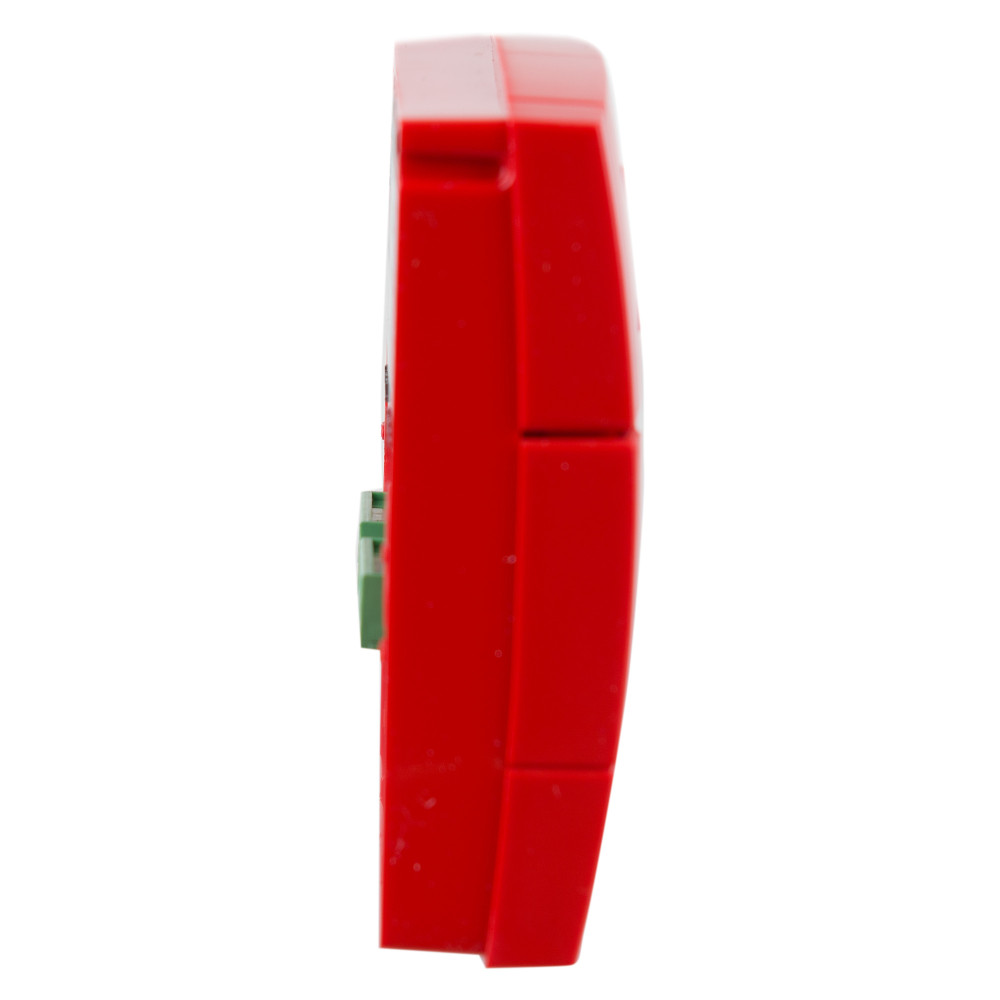

• Designed for flush mounting, but can be surface mounted with the SR Back Box
• Two-colour status LED – amber for short-circuit, red for activation
• Hochiki ESP protocol for loop communication
• Compatible with Morley DXc and Advanced Electronics' MxPro 5 series panels
• LPCB Approved to EN 54
• RoHS compliant
• Free BIM Object available from the NBS National BIM Library
