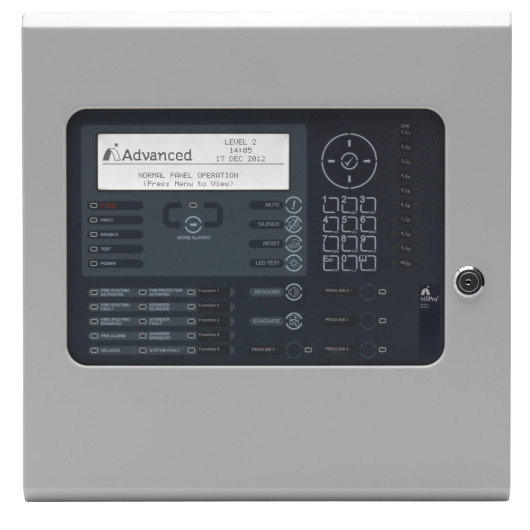

Advanced MxPro 5 MX-5101 Addressable Single Loop Panel

Containing two times as many components per cm² than its predecessor, the MxPro 5 range of fire alarm system control panels have a notable increase in computing power. This allows them to offer more features while also improving on the reliability that Advanced Electronics' MxPro 4 range is renowned for. The MX-5101 addressable fire alarm panel is a single-loop model suitable for smaller applications, such as a single office or an extension added to existing premises, and provides support for up to 127 devices. The MX-5101's advanced LCD user interface can support up to 200 fire zones as standard, giving you the confidence of full EN54 compliance straight out of the box. Featuring dedicated USB and Serial RS232 connections for your computer or modem, integrated P-Bus for optional expansion cards, and support for both Hochiki and Apollo protocols, the MxPro 5 offers impressive flexibility and control for almost any environment.

• Single loop addressable fire alarm panel
• Available in small, medium, large, and deep enclosures
• Panel can be branded with your own logo
• Designed to work with Hochiki and Apollo protocols
• Approved to BS EN 54 parts 2, 4, and 13
• Built-in USB and Serial RS232 connections
• Supports internal batteries of up to 24Ah (Deep enclosure)
• 20 programmable "zonal" LEDs
• Advanced user interface and high-quality LCD screen
• Auto Learn feature for easy installation
• Compatible with the and Ad-NeT network cards
• 4 programmable function buttons
• Dual microprocessor to increase featureset and reliability
• 3 year manufacturer warranty
• A suite of Windows PC software covers everything from logo design to full configuration
• Compatible with Advanced's AlarmCalm false alarm management software

Please note: backup batteries (also called a standby power supply) are not included with this panel but are a legal requirement. Suitable batteries are available separately.
