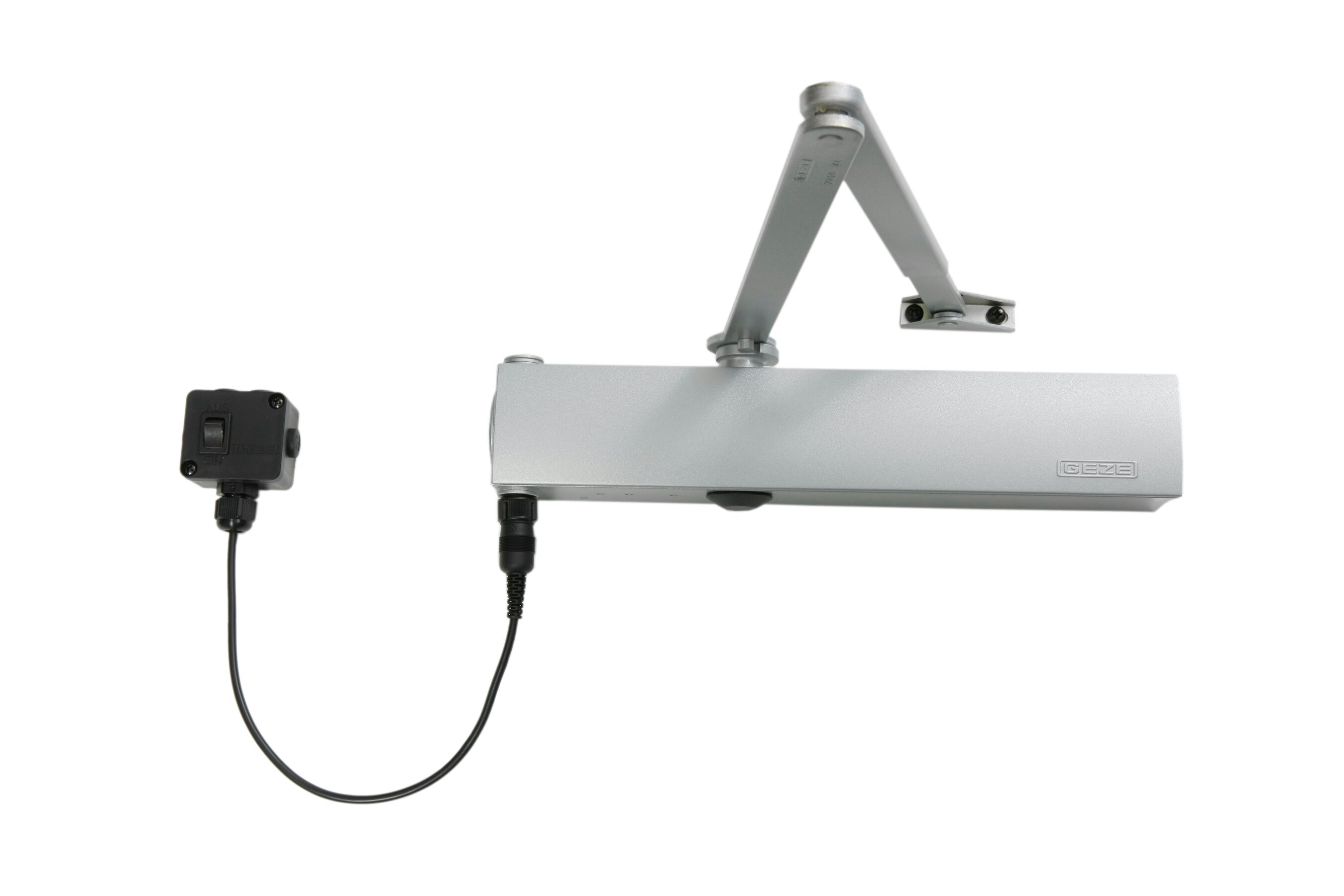

GEZE TS4000EFS Hold Open Free-Swing Door Closer
The GEZE TS4000EFS is an electrohydraulic hold open door closer supplied with a free swing arm. Ideal for use in residential homes, hospitals and schools, the closer's hold open functionality allows the door to stay open and then releases in the event of a fire or power failure, while it's free swing arm enables people to go through the door whilst applying very little force. The TS4000EFS closer has a 120 minute fire rating and is suitable for doors up to 1400mm in width.
- Suitable for use on single action doors
- BWF certified
- Certifire approved - CF252 certificate
- CE marked to EN 1155, EN 1158
- 120 minute fire rating
- Adjustable power size EN 1-6
- Hold open function allows the door to stay open until the fire alarm activates or a power failure
- Free swing arm enables the door to be opened with very little force
- Suitable for maximum 1400mm door with and 120kg weight
- Fixing for push and pull side mounting - can be mounted in Fig 1 and Fig 6 positions
- Adjustable closing speed and latching action
- 12 month manufacturer's warranty
- Designed for internal applications
- Manufactured in Germany
- Ideal for schools, hospitals and residential homes
Customer Reviews (1)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewer
J C
Published on
17th July 2026
Technical Data
| Product Code | GZTS4EFS |
|---|---|
| Brand | Geze |
| Manufacturer's Part Number | 124866 |
| Activation | Fire Alarm Signal |
| Approvals & Markings | CE Marked |
| Closing Speed | Adjustable |
| Colour | Silver |
| Compliance | BS EN 1155 |
| BS EN 1158 | |
| Certifire - CF252 | |
| Connection | Wired |
| Door Type | Single Door |
| EN Classification | 3 | 8 | 3-6 | 1 | 1 | 4 |
| Equipment Type | Free-Swing Closer |
| Hold-Open Door Closer | |
| Fixing Options | Wooden Door Fixings (Included) |
| Hold Open Angle | Fully Open Position Only |
| Installation Position | Fig 1 |
| Fig 61 | |
| Top Of Door | |
| Latching Action | Adjustable |
| Material | Metal |
| Maximum Door Weight | 120kg |
| Maximum Door Width | 1400mm |
| Opening Angle | 180° |
| Power Size | EN 1 - 6 |
| Power Type | 24V DC |
| Warranty | 1 Year |
| Dimensions (Unit) |
|
| Weight | 3.45kg |
| Datasheets |
