GEZE TS4000E Hold Open Door Closer - Closing Force EN 1-6
OPEN 7 DAYS A WEEK 0800 612 6537 Lines open today 8am - 9pm

GEZE TS4000E Hold Open Door Closer - Closing Force EN 1-6

2 in stock Expected dispatch: Tomorrow
1 Customer Reviews
£221.99 inc VAT
£184.99 ex VAT
Product Overview

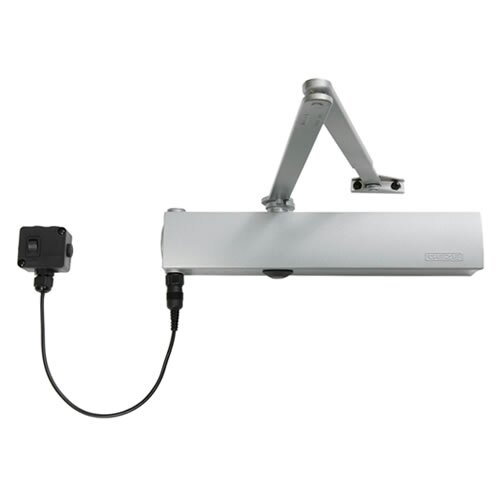

The GEZE TS4000E is an overhead door closer with electro-hydraulic hold open. The hold open function allows a fire door to be held open whilst in normal use but close when the fire alarm is activated.

  • Suitable for use on Single Action doors
  • Suitable for internal applications, although can be used on an external door if mounted in Fig 61
  • Certifire approved - CF252 certificate
  • Facility to adjust the holding angle of the door between 65° - 180°
  • Made in Germany
  • BWF Certified
  • Fire rating: FD120
  • Maximum leaf width 1400mm (EN 1-6)
  • Fixing for push and pull side mounting
  • Adjustable closing force (EN1-6 ) can be adjusted easily from the front of the unit
  • Adjustable closing speed
  • Link arm adjustable latching action
  • Optical size indicator
  • Operating voltage 24 VDC
  • Low power consumption, approx 1W
  • 1 year warranty
  • CE Marked to EN 1155, EN 1158
Technical Data

Technical Data

This is the technical data for the GEZE TS4000E Hold Open Door Closer - Closing Force EN 1-6.

Product Code GZTS4000ESA
Weight 3.45kg
Dimensions (HxWxD) Closer Body: 60x325x46mm
Terminal Box: 45x45x50mm
EN Size 1-6
Adjustable Closing Speed Yes
Adjustable Latching Action Yes

Product Datasheets

The following datasheets are available for this product.

FAQs (2)

Q. How do you set or lock it when in position at 110 degrees?

A. The angle of hold-open is freely selectable between 80° and 180°. There are no settings or adjustments; the door simply has to be opened past 80° and then released at whatever angle you require it to stay open. In the event of a fire or power outage the electro-hydraulic hold-open will release and the door will close. To manually close the door you only have to pull the door and the hold-open will release, allow the door to close automatically.

Q. Can you please explain the closing force rating for door closers?

A. The closing force rating, also called "power size," relates to the maximum width and weights of fire door that the door closer is suitable for. Please click this link to view our EN Size Guide table.

Pricing & Availability

Model Stock Price
Product Code: GZTS4000ESA Stock Level:
2 in stock Expected dispatch: Tomorrow

£221.99 inc VAT

£184.99 ex VAT

Customer Reviews

1 customer has have given this product an overall rating of 5 out of 5

Reviews by real customers

All of our product reviews are written by real customers that have purchased this product from us and are published without modification.

Rating: 5 / 5 Stars

Reviewed by: -

Easy no fuss installation and smooth operation.

Published on: 11th March 2014
