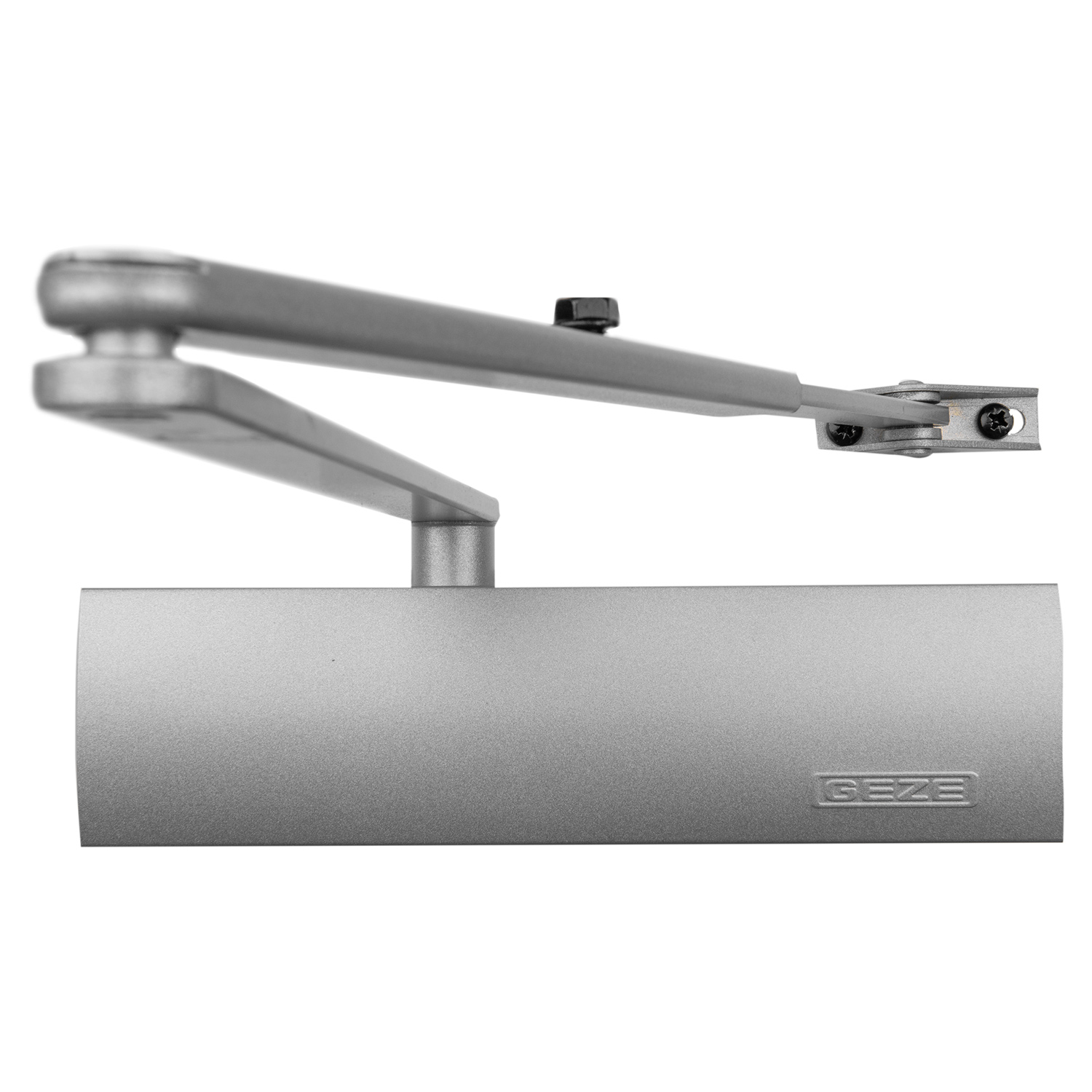

GEZE TS2000 NV Overhead Door Closer - Power Size EN 2-4

The GEZE TS2000 NV overhead door closer has a 120 minute fire rating, with an adjustable power size of EN 2-4, the closer is suitable for use on doors with a maximum leaf size of 1100mm. Featuring an adjustable latching action (TS2000 NV BC version only) allows the closing speed during the last 15° to be tweaked for additional resistance. Its direct fitting template eliminates the need for a backing plate and comes supplied with universal fixing for push and pull side mounting. The GEZE TS2000 NV is suitable for internal applications.

• Suitable for:
  • Use on internal single action doors
  • Doors up to 1100mm wide and weighing up to 80kg – EN size 2-4
  • Installation in Fig 1 and 66 configurations
• Closing force adjustable via a control on the end of the closer body
• Certifire approved for use on FD120 fire rated doors – CF 252 certificate
• Available in two versions:
  • TS2000 NV – Standard overhead door closer
  • TS2000 NV BC – Overhead door closer with adjustable back check
• Adjustable closing speed controls how fast the door closes
• Adjustable latching action controls the final part of the closing arc, to ensure the door latches properly
• Direct fitting template – quick and easy installation, eliminating the need for a backing plate
• Universal fittings for mounting to the push and pull side of the door
• CE Marked to EN 1154
• Made in Germany
• 12 Month Warranty
• Full classification: 4 | 8 | 2-4 | 1 | 1 | 4
