Evac+Chair 500H MK5 Evacuation Chair

Free Delivery

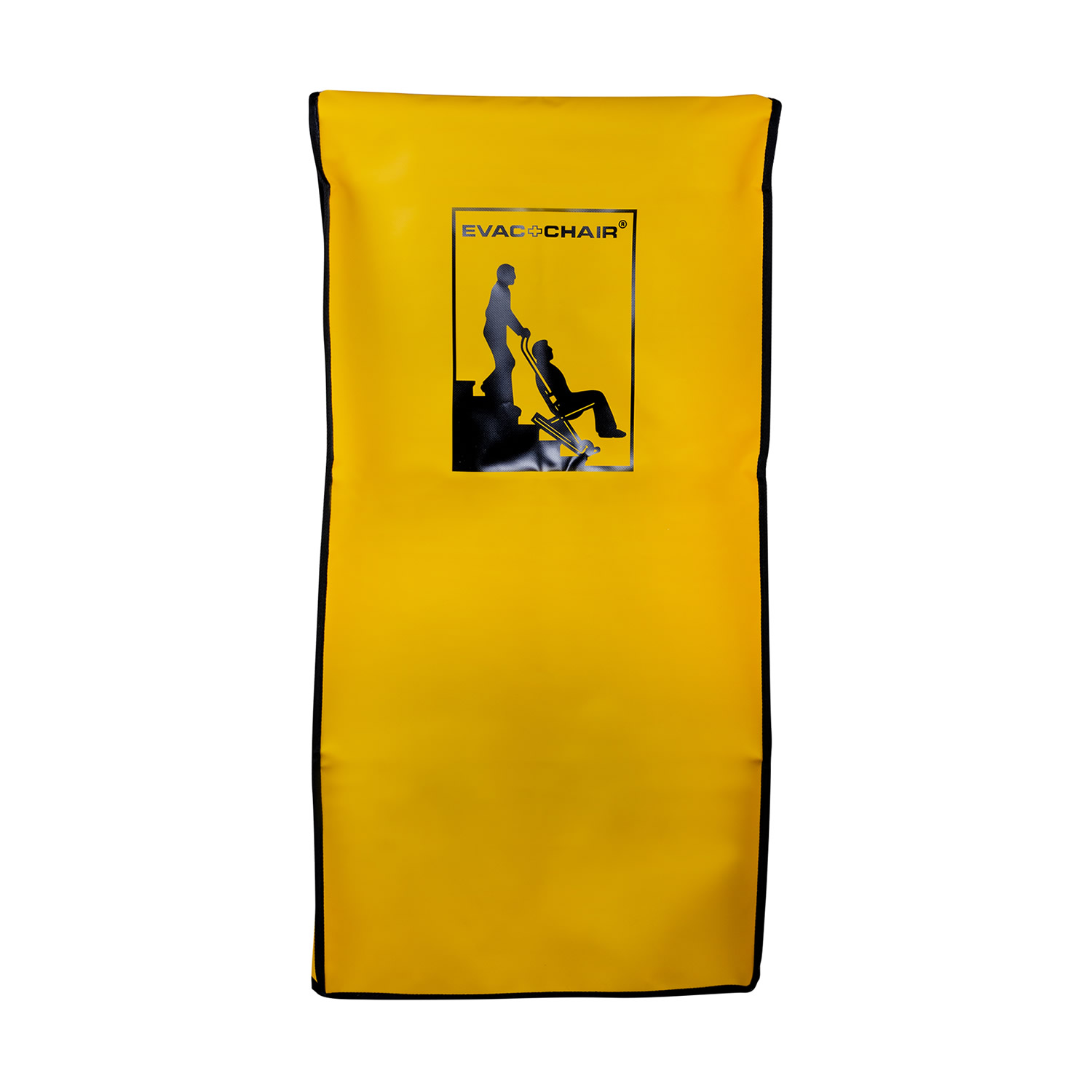

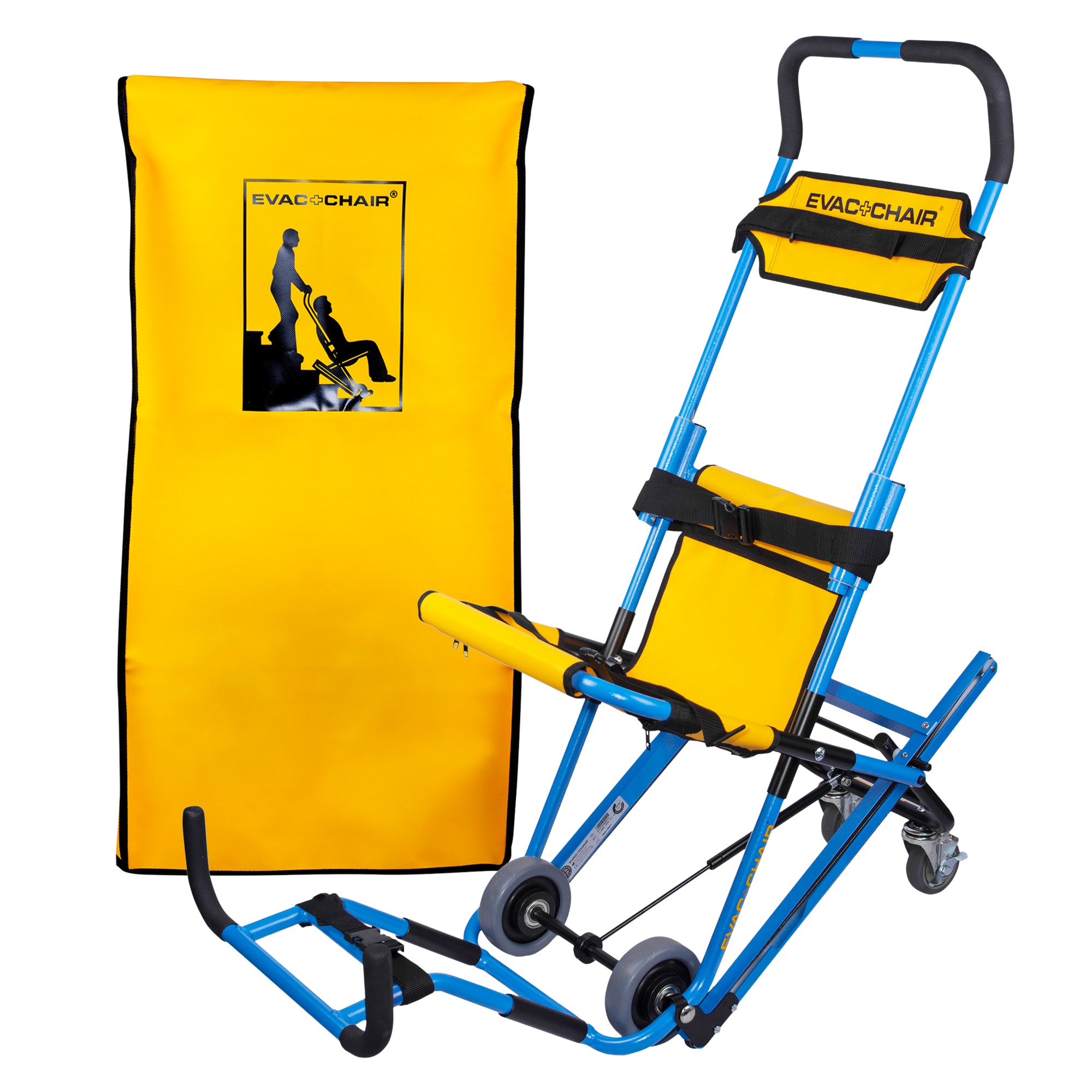

Evac+Chair 500H Evacuation Chair with Matching Yellow Cover

evac chair 500h mk5 evacuation chair angled and extended with blue frame and yellow seat and backrest

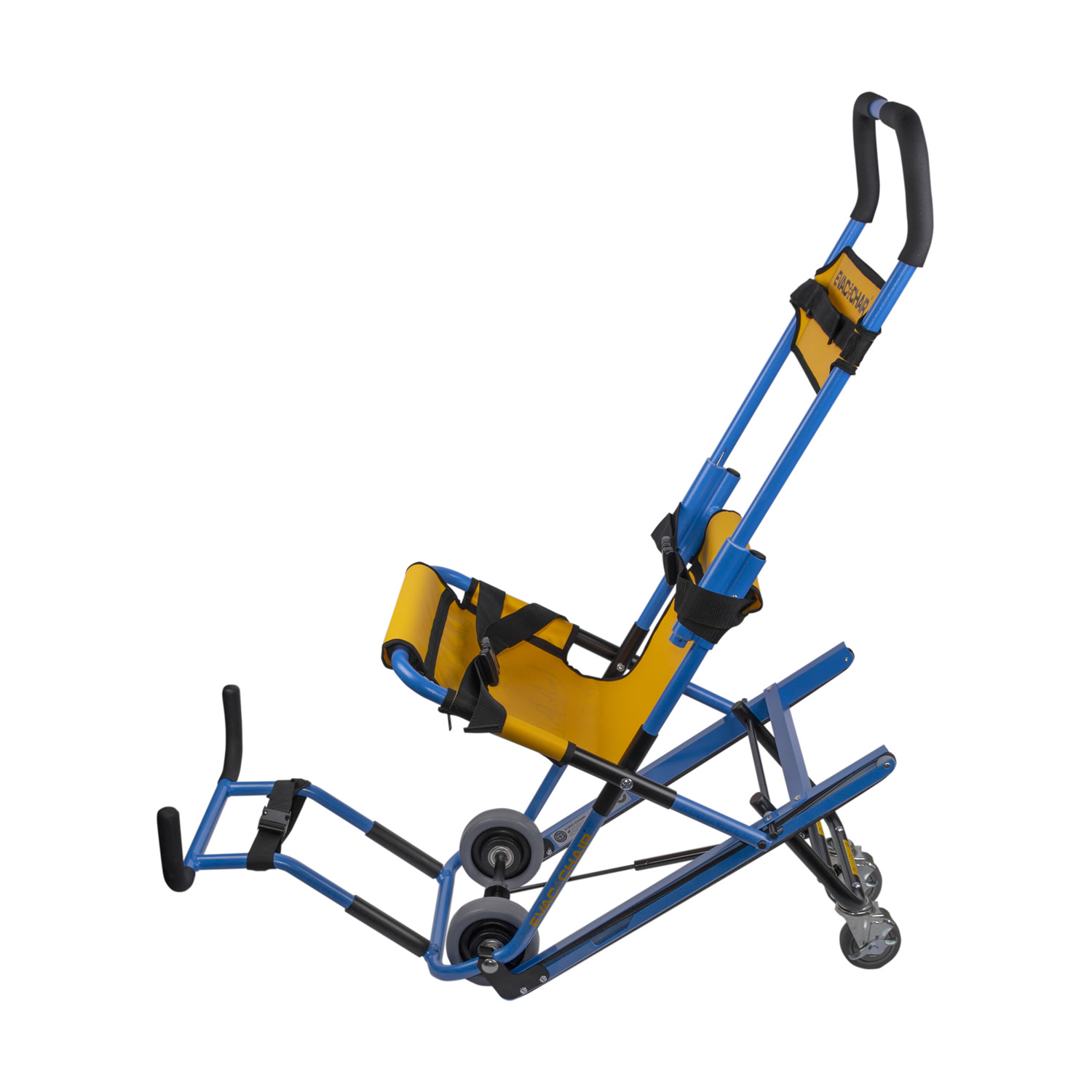

evac chair 500h mk5 evacuation chair shown from the side with frame extended and yellow seat visible

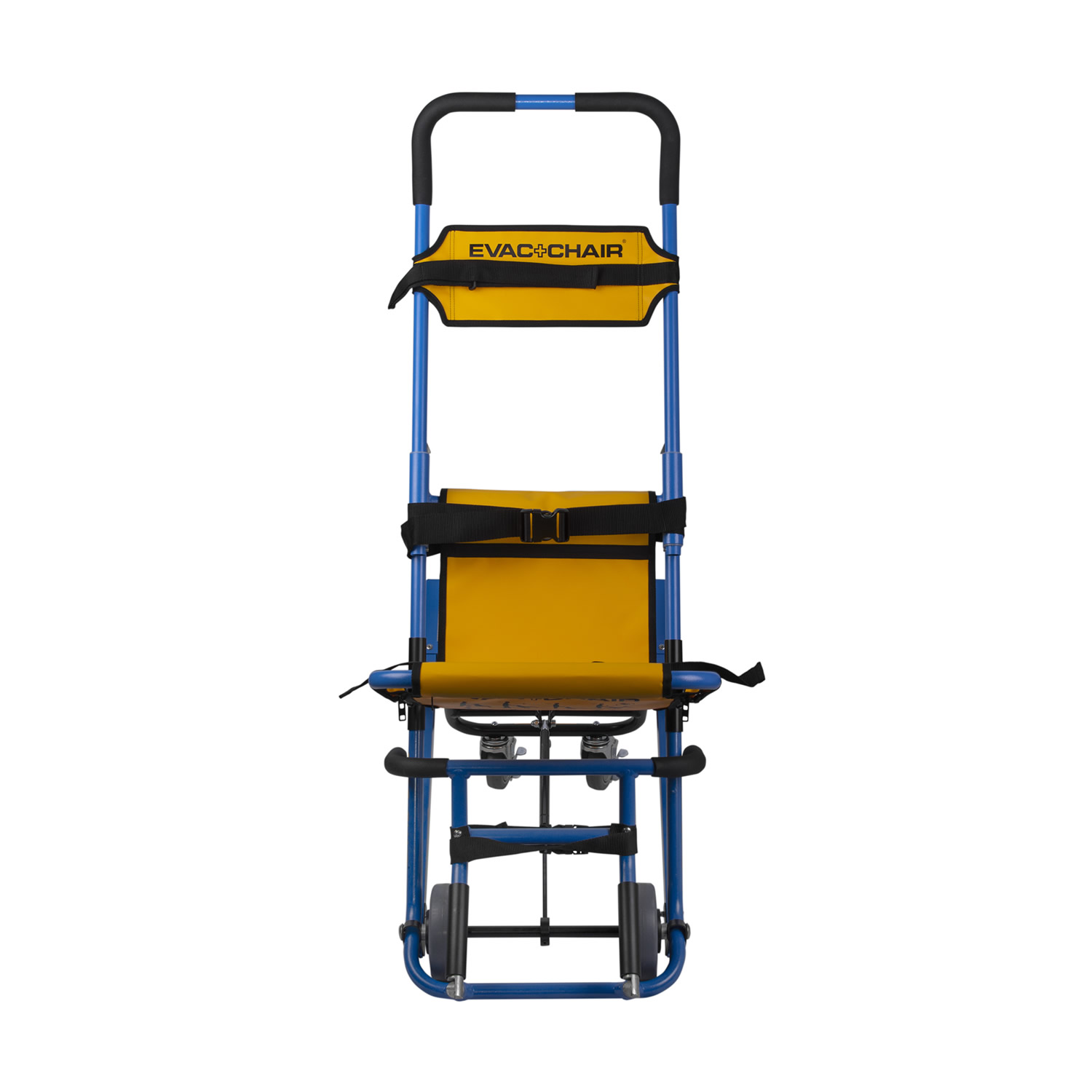

Front view of evac chair 500h mk5 evacuation chair showing blue frame and yellow seat and backrest

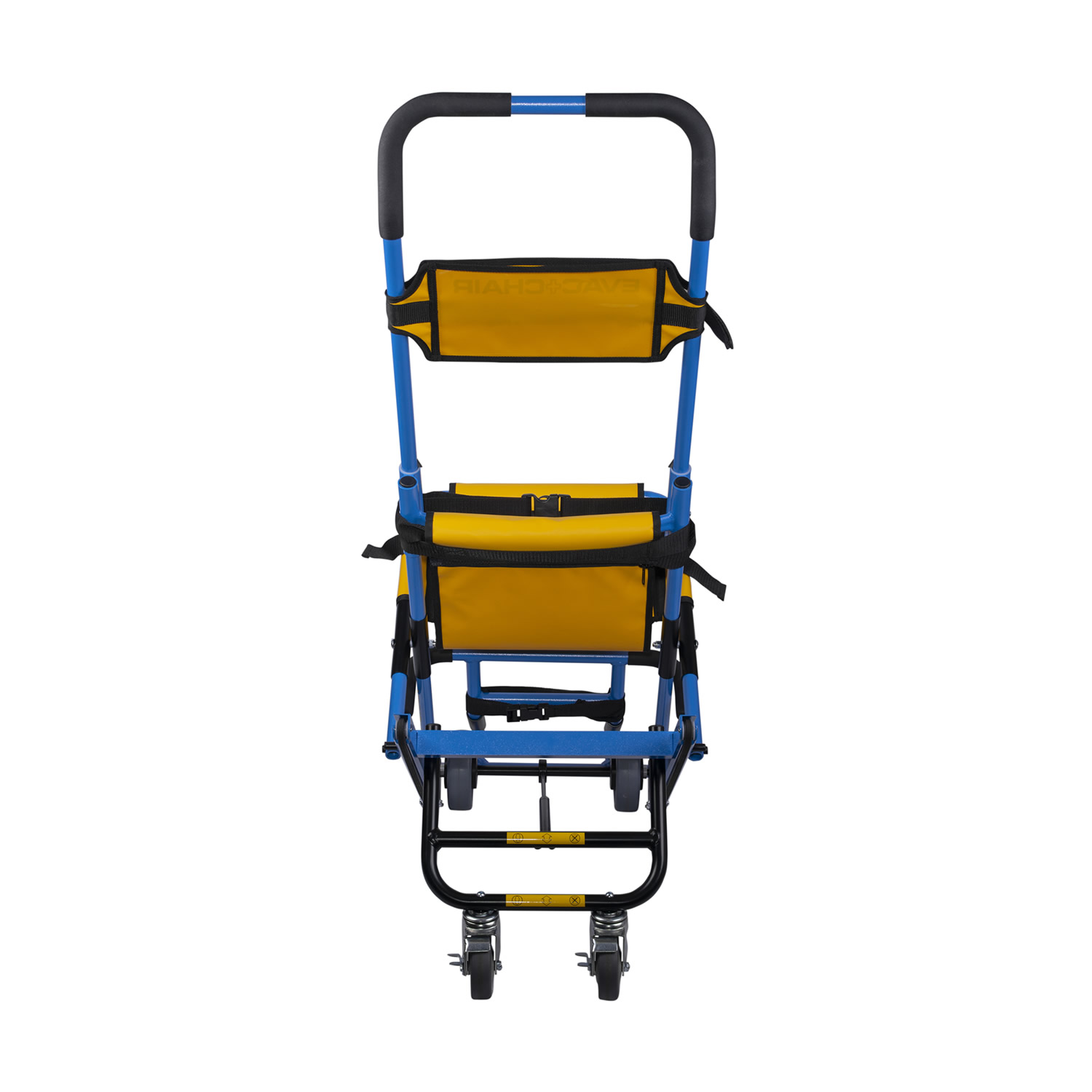

Back view of evac chair 500h mk5 evacuation chair showing blue frame with yellow fabric and wheels

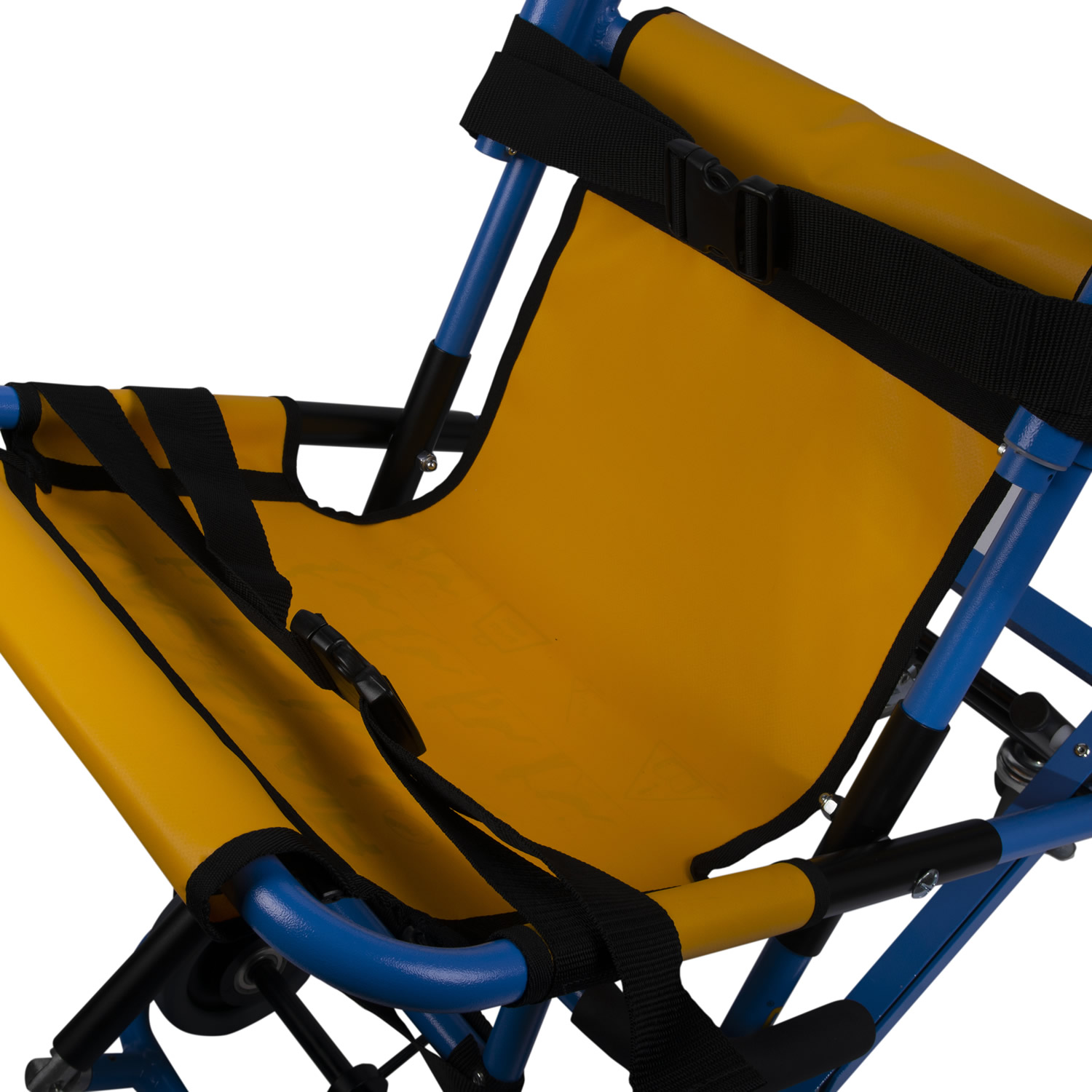

Close up of the yellow seat and black straps on the evac chair 500h mk5 evacuation chair

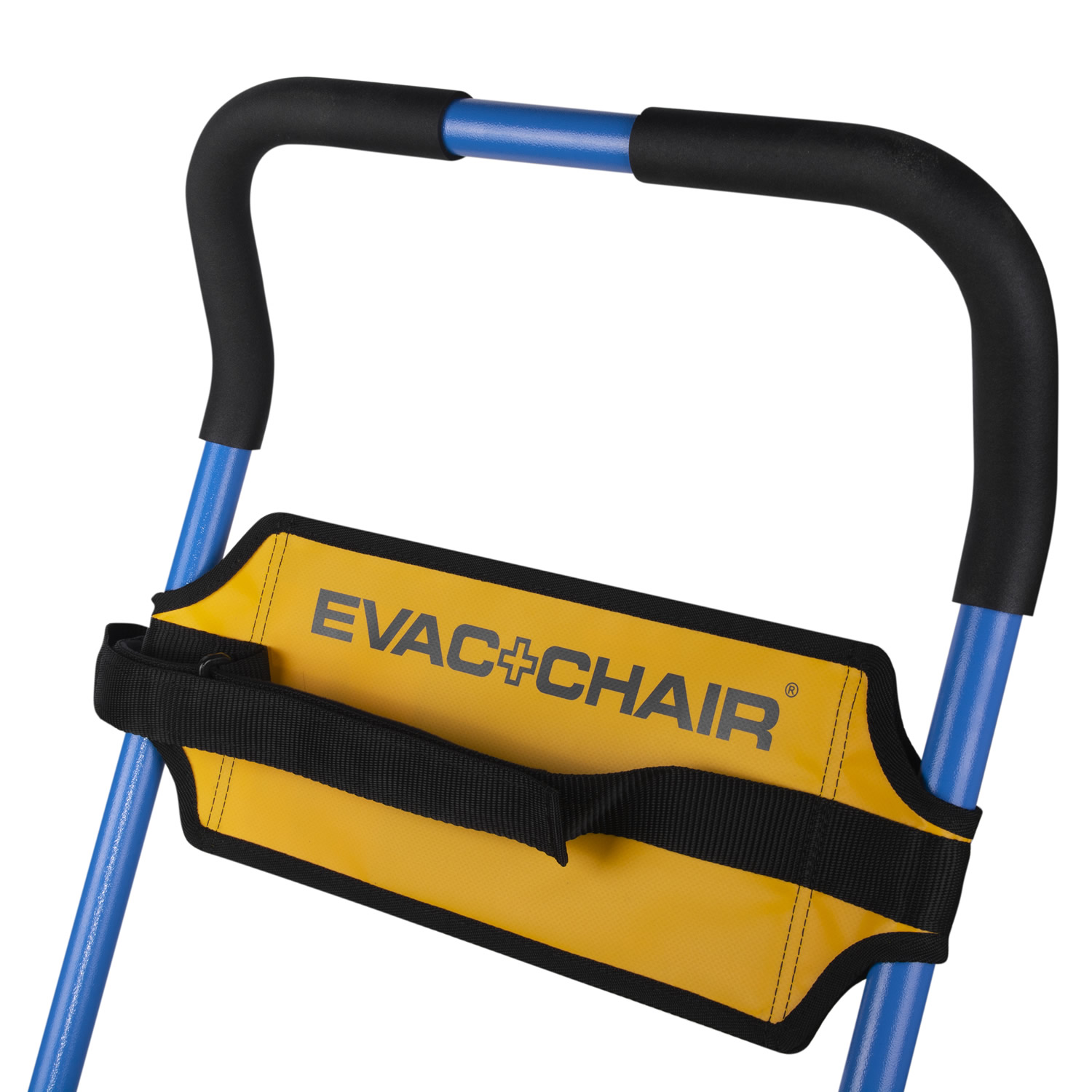

Close up of the head rest on the evac chair 500h mk5 evacuation chair showing black strap and blue handles

Buckle close up on black strap of evac chair 500h mk5 evacuation chair with yellow background

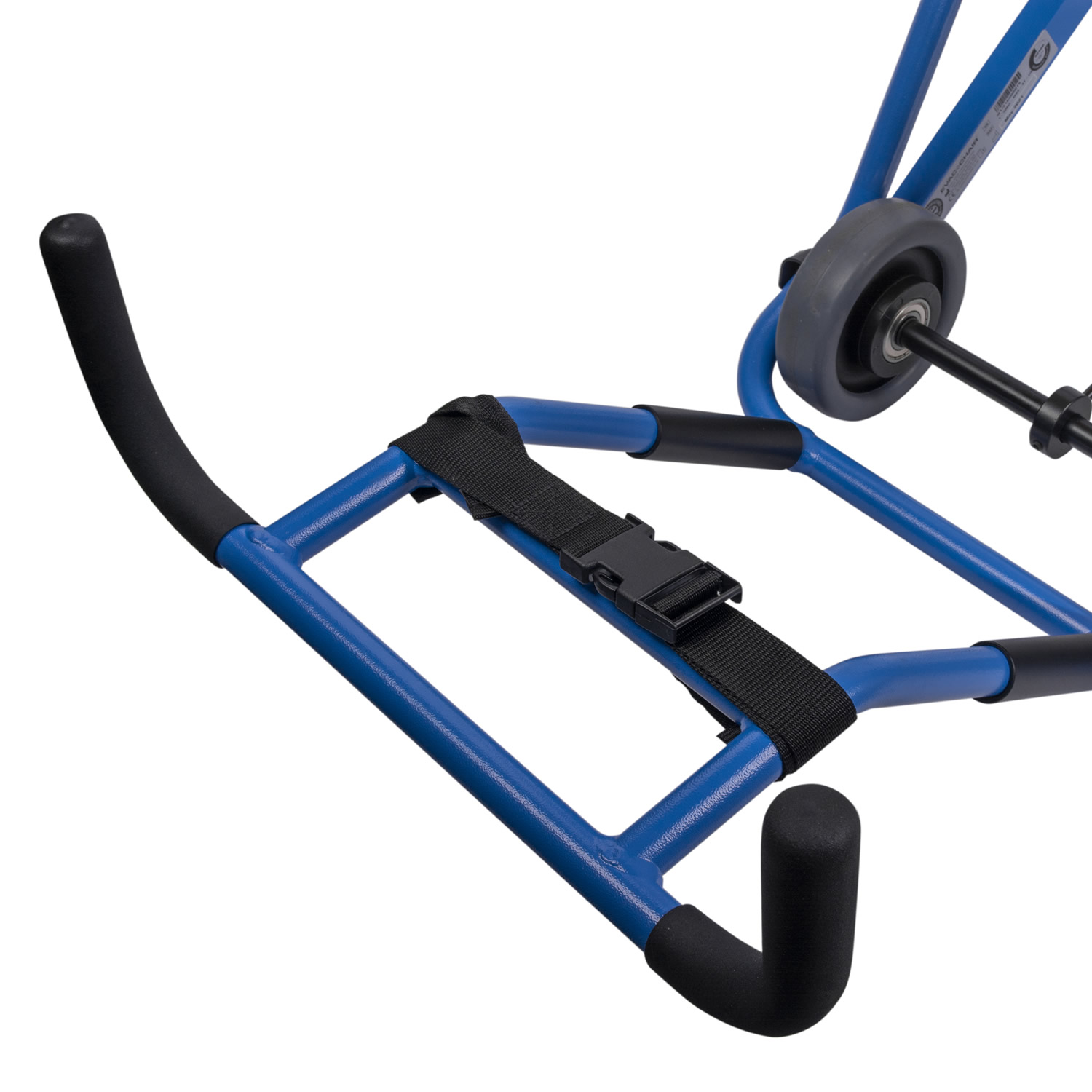

Close up of extra handles and strap on evac chair 500h mk5 evacuation chair frame

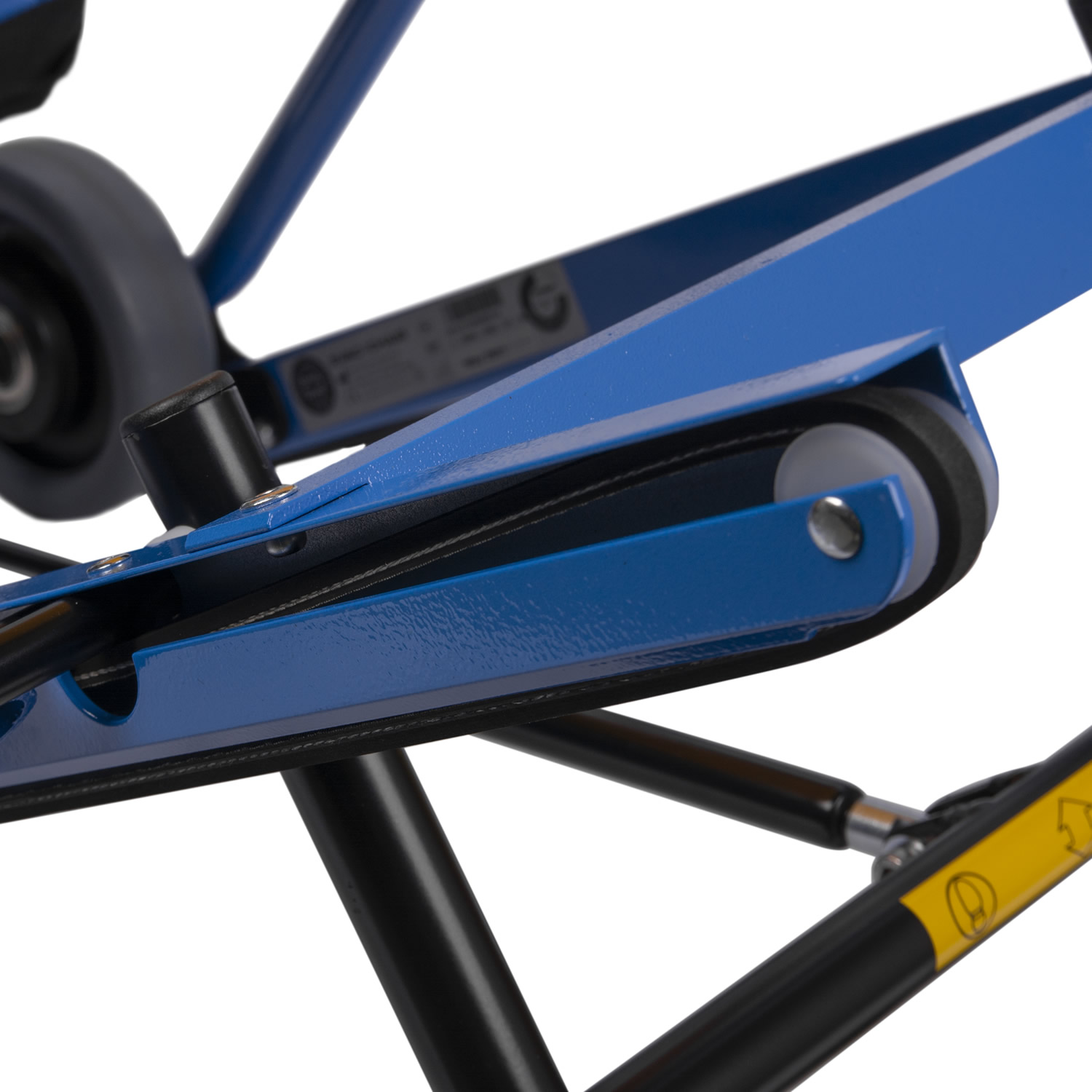

Close up of the tracks on the evac chair 500h mk5 evacuation chair showing blue metal parts and black rubber components

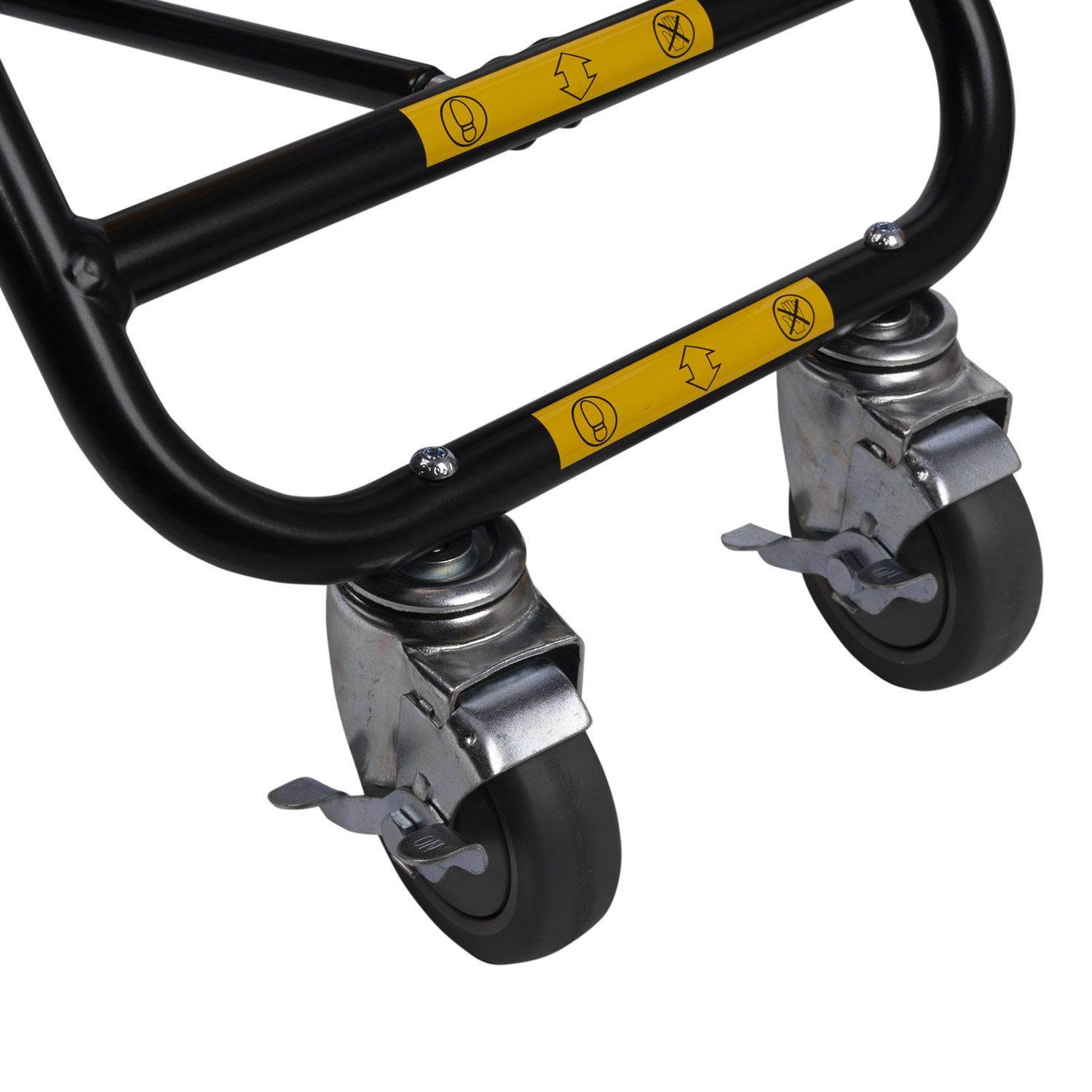

Close up of the rear wheels and frame of the evac chair 500h mk5 evacuation chair with yellow warning labels

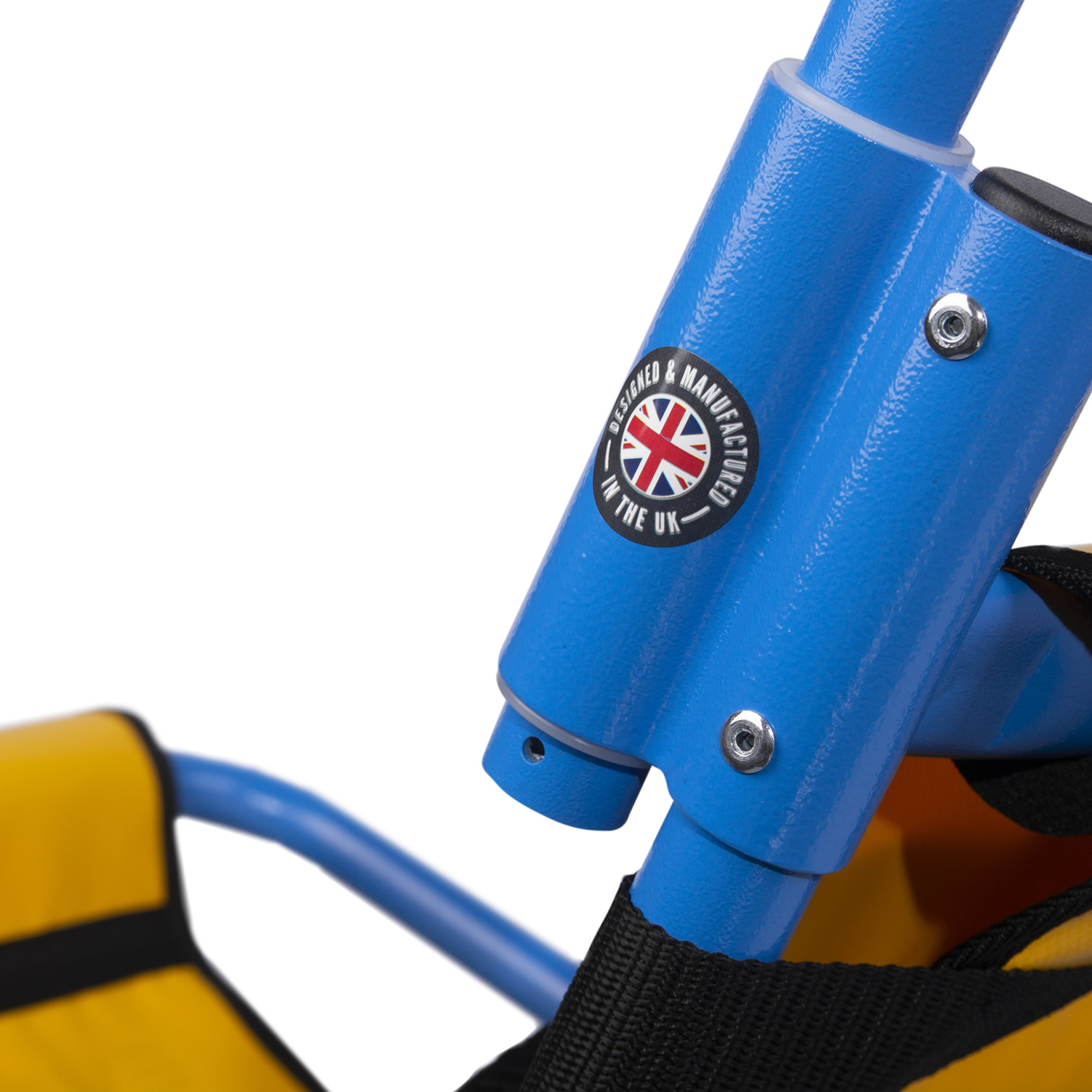

Close up of blue metal part and fabric detail on evac chair 500h mk5 evacuation chair showing UK made badge

Close up of the strap for the evac chair 500h mk5 evacuation chair showing the black buckle and webbing material

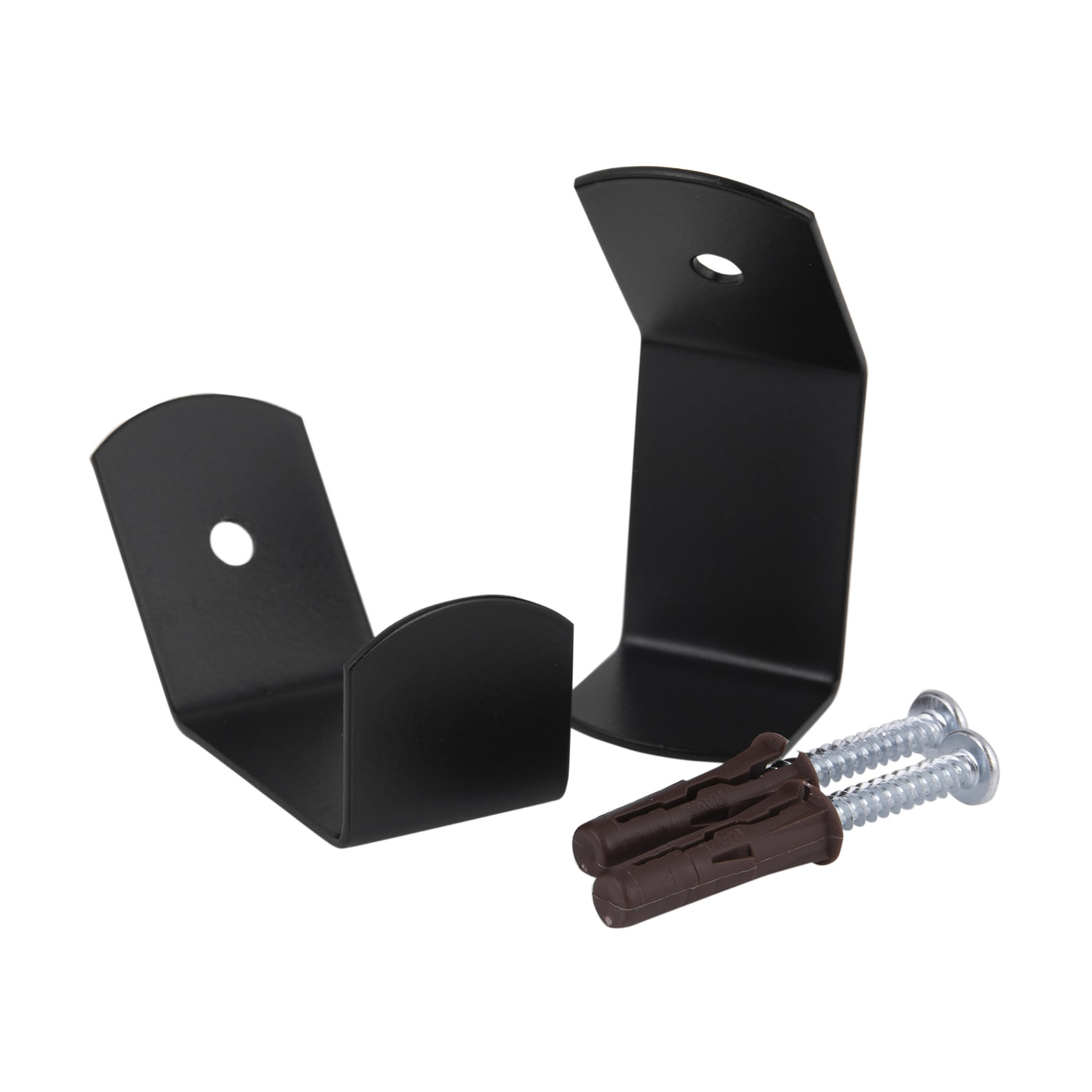

evac chair 500h mk5 evacuation chair metal mounting brackets with screws and wall plugs

Sign showing evac chair 500h mk5 evacuation chair with image of person using it for stairway descent

evac chair 500h mk5 user guide showing cover and information pages with image of the chair on the cover

evacuation chair being used down a flight of stairs

Instructor demonstrating an evacuation chair during an evacuation chair operator training session with seated participants watching

Person in chair going down stairs as part of evacuation chair operator training with instructors nearby

People practising with an evacuation chair during evacuation chair operator training practical session

Students watching evacuation chair operator training with a blue and yellow evacuation chair in the foreground

Trainer demonstrating evacuation chair operator training with a person seated in the chair on a staircase

Person demonstrating evacuation chair operator training while others watch in classroom setting with instructor

5 out of 5 stars

3 In Stock

For dispatch today order within

13 Hrs 51 Mins

Qty: 1	£1,115.99 inc VAT £929.99 ex VAT
Qty: 2	£1,097.99 inc VAT £914.99 ex VAT
Qty: 5	£1,079.99 inc VAT £899.99 ex VAT

Next Day Delivery

Will usually be delivered the next working day

£0.00 (FREE)

The Evac+Chair 500H Evacuation Chair is lightweight, easy to use and provides an ideal solution to evacuate people (up to 227kg) with mobility impairments down stairways (from 28° - 40°) in an emergency. This chair allows for single person or two-person operation and features specially designed friction tracks that help to control the speed of descent to ensure a comfortable and stress-free evacuation. The MK5 features improved anti-slip hand grips to assist with user operation, and an upgraded kickstand which allows weight to be distributed more evenly to enhance passenger comfort. The safety belt has also been redesigned with durability in mind, and to provide a secure transit during evacuations.

Suitable for installations in care settings, hotels, entertainment venues, offices and hospitals
Single person or two-person operation (with additional handles supplied)
Bariatric evacuation - maximum passenger load: 500lbs / 227kg
For use on stairs (from 28° - 40°)
Allows evacuation of people with mobility impairments during emergency situations
Foot rest and redesigned patient restraints for comfort and safety during use
Specially designed friction tracks with anti-slip hand grips ensure a smooth descent
Supplied with photoluminescent sign, dust cover and wall mounting hooks
Helps organisations to meet their health and safety responsibilities
Lightweight and compact design – requires no heavy lifting
5 Year Warranty (based on service and maintenance)
CE marked and
DDA compliant product and manufactured in the UK by Evac+Chair
Class I Medical Device and regulated under
Initial siting and installation available
AnnualEVAC+CHAIR servicing available
Also available to purchase with on site Evacuation Chair Training

Customer Reviews

Customer Reviews (1)

5 out of 5 stars

Reviews by Real Customers

All of our product reviews are written by real customers that have purchased this product from us and are published without modification.

Rating: 5 / 5

Reviewed by

Anonymous

Published on

20th February 2015

Brilliant Product. A great solution to a common problem

Applies to option(s): Evacuation Chair Only

FAQs Technical Data

Technical Data

Product Code	ECCHAIR500
Brand	Evac+Chair
Colour	Yellow / Blue
Compliance	Class 1 (MDR)
Approvals & Markings	CE Marked
Direction of Travel	Descent
Material	Fabric
Material	Metal
Maximum Load	227kg
Mode of Descent	Friction Belt System
Number of Operators	1 Person
Number of Operators	2 Persons
Recyclable	Partially Recyclable
Stair Suitability	28° - 40° Angle
Warranty	5 Years
Dimensions (Packaged)	Height: 1100mm Width: 520mm Depth: 220mm
Dimensions (Unit)	Height: 1370mm Width: 520mm Depth: 1140mm
Weight	14.00kg
Datasheets	Ecchair500 Evac Chair 500H Datasheet

Legislation Requirements

Under current legislation it is the responsibility of the employer and other building operators to provide an adequate means of escape for all occupants of the premises. The Evac+Chair 500 is the ideal solution for the evacuation of people with mobility difficulties who may not be able to use stairs. Current legislation includes:

Regulatory Reform (Fire Safety) Order 2005 - Means of escape
Building Regulations Parts B and M - Building use and access
BS5588-8:1999 - Providing disabled people with measures to be assisted in an emergency
Equality Act 2009 - Ensuring that disabled people are not at a disadvantage compared to those that are not disabled
DDA (Disability Discrimination Act) - Providing adequate access and facilities for any disabled person who may enter a building

Evac+Chairs are Class I Medical Devices with their installation and use regulated under the Provision and Use of Work Equipment Regulations 1998 (PUWER). Employers, self-employed people, and those employed to supervise or manage equipment are responsible for ensuring that a reasonable amount of staff are adequately trained to use Evac+Chairs safely, that the chairs are annually serviced by a qualified engineer, and that they are regularly inspected by a competent worker.
