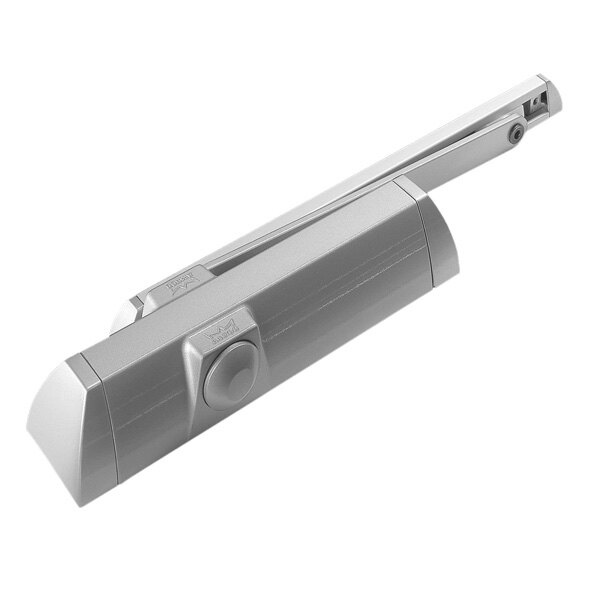

Dorma TS90 Overhead Door Closer with Slide Arm - Power Size EN 3
The Dorma TS90 is an economic cam action overhead door closer with an adjustable closing speed and latching action. Suitable for internal doors, the Certifire approved Dorma TS90 closer is supplied with a standard slide channel arm and is easy to install without the need for a mounting back plate. The fixed power size of EN 3 allows for the closer to be installed on doors with a maximum width of 950mm.
- Suitable for use on single action doors
- Certifire approved – CF119 certificate
- CE marked
- Suitable for use on internal doors – maximum width of 950mm
- Fixed
- 5 year warranty
- 120 minute fire rating
- Cam action overhead door closer with standard slide/track arm
- Independently tested to BS EN 1154
- Adjustable closing speed
- Adjustable latching action
- Suitable for left and right handed doors
- Supplied in a silver finish as standard
- Full classifications:
- Fig 1 installation: 3 | 8 | 3-4 | 1 | 1 | 3
- Fig 61 installation: 3 | 8 | 3 | 1 | 1 | 3
Customer Reviews (0)
Reviews by Real Customers
To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.
No Reviews Available
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data
| Product Code | DMTS90 |
|---|---|
| Brand | Dorma |
| Compliance | BS EN 1154: 1997 |
| Certifire - CF119 | |
| Approvals & Markings | CE Marked |
| Closing Speed | Adjustable |
| Door Type | Single Door |
| EN Classification | 3 | 8 | 3 | 1 | 1 | 3 (Fig 61 Only) |
| 3 | 8 | 3-4 | 1 | 1 | 3 (Fig 1 Only) | |
| Finish | Silver |
| Fire Rating | 120 Minutes |
| Fixing Options | Wooden Door Fixings (Included) |
| Installation Position | Fig 1 |
| Fig 61 | |
| Top Of Door | |
| Latching Action | Adjustable |
| Maximum Door Width | 950mm |
| Maximum Door Weight | 60kg |
| Material | Metal |
| Opening Angle | 160° |
| Power Size | EN 3 |
| Warranty | 5 Years |
| Dimensions (Unit) |
|
| Weight | 2.20kg |
