AstroFlame Blue 60 Fire Rated Frame Packer Strips
OPEN 7 DAYS A WEEK 0800 612 6537 Lines open today 8am - 10pm

AstroFlame Blue 60 Fire Rated Frame Packer Strips

From: £0.10 inc VAT
£0.08 ex VAT
Product Overview

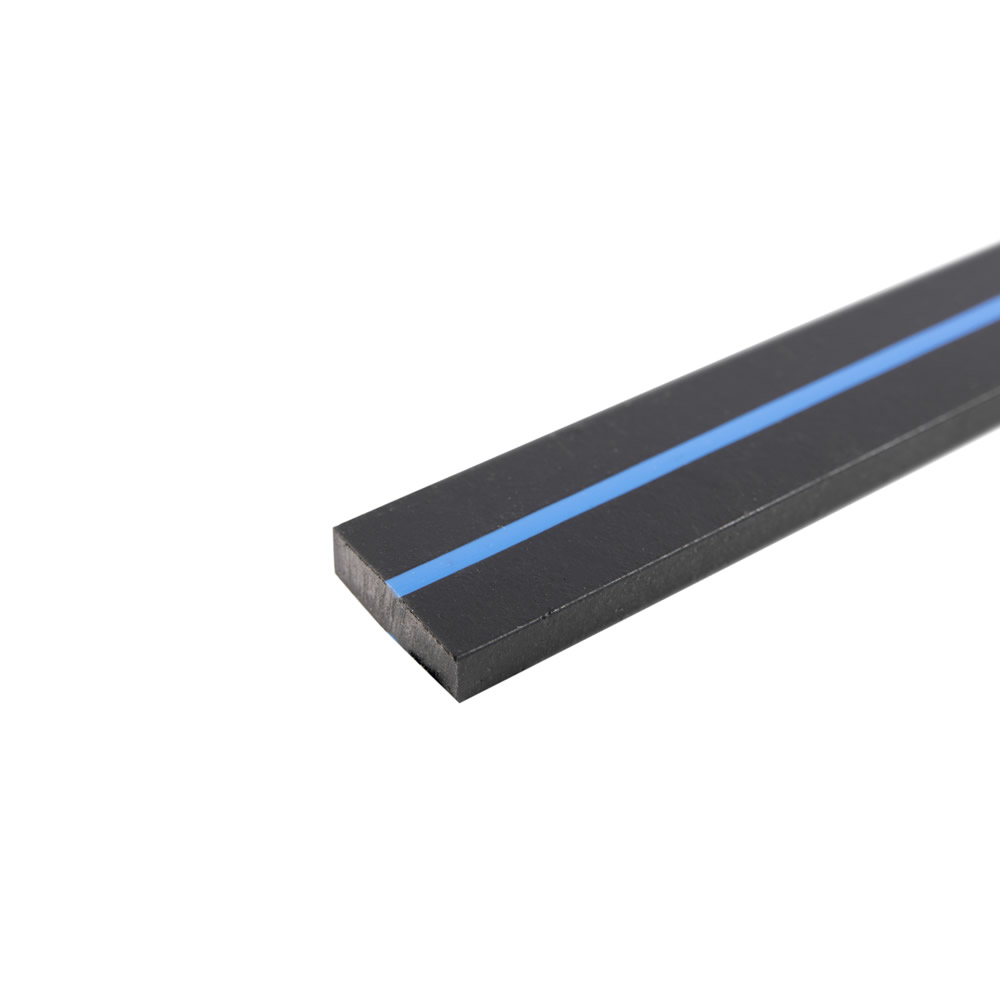

Designed to be used in conjunction with the Blue 60 PU foam, these intumescent strips are inserted around the frame fixings to provide the foam with a uniform surface during expansion and help prevent the foam flowing out onto the floor under its own weight. With a length of 100mm these packer strips are available in 1mm (green), 3mm (white), and 5mm (blue) thicknesses to suit gaps of 7mm to 30mm between the frame and wall. A typical single door set will require around 33 packer strips, depending on the gap width and which thickness of the packer strips was chosen.

  • Provides up to 60 minute fire protection on timber doorsets
  • Suitable for both metal and timber stud partionings
  • Different thicknesses can be combined to achieve a proper fitting
  • Acoustically tested up to 43dB
  • Tested on full-size single and double doorsets
  • Available in three thicknesses to suit gaps between 7mm and 30mm
  • Must be used with Blue 60 PU foam to maintain fire rating certification
Technical Data

Technical Data

This is the technical data for the AstroFlame Blue 60 Fire Rated Frame Packer Strips.

Product Code
5mm (blue) AFB605
3mm (white) AFB603
1mm (green) AFB601
Weight 0.10kg
Colour 1mm: Green
3mm: White
5mm: Blue
Fire Rating 60 Minutes
Door Suitability Doorset: Timber
Partitionings: Metal or Timber Stud
Min / Max Gap 7mm / 30mm
Acoustic Insulation 43dB
Test Results EN 1634-1: 60 Minutes
BS 476-22: 60 Minutes
DIN 4102: B1 Flame-Retardant

Product Datasheets

The following datasheets are available for this product.

Pricing & Availability

Model Stock Price
1mm (green)
Product Code: AFB601
Stock Level:
More than 20 in stock Expected dispatch: Tomorrow
Price:

£0.10 inc VAT

£0.08 ex VAT

3mm (white)
Product Code: AFB603
Stock Level:
More than 20 in stock Expected dispatch: Tomorrow
Price:

£0.16 inc VAT

£0.13 ex VAT

5mm (blue)
Product Code: AFB605
Stock Level:
More than 20 in stock Expected dispatch: Tomorrow
Price:

£0.23 inc VAT

£0.19 ex VAT

Delivery Options

The following delivery options are available on this product.

Economy Delivery

£4.68 inc VAT - Delivered in 2-3 working days by Hermes

Next Working Day Delivery

£7.80 inc VAT - Delivered the next working day by Hermes

For dispatch today order within
