Evac+Chair 600H MK5 Evacuation Chair

Free Delivery

Evac+Chair 600H Evacuation Chair with Matching Yellow Cover

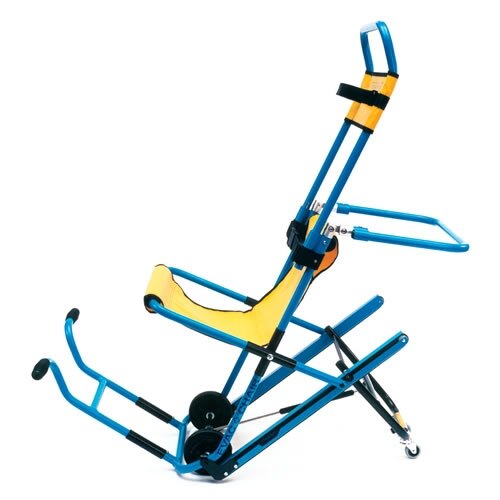

angled view of evac chair 600h mk5 evacuation chair with blue frame and yellow seat and backrest

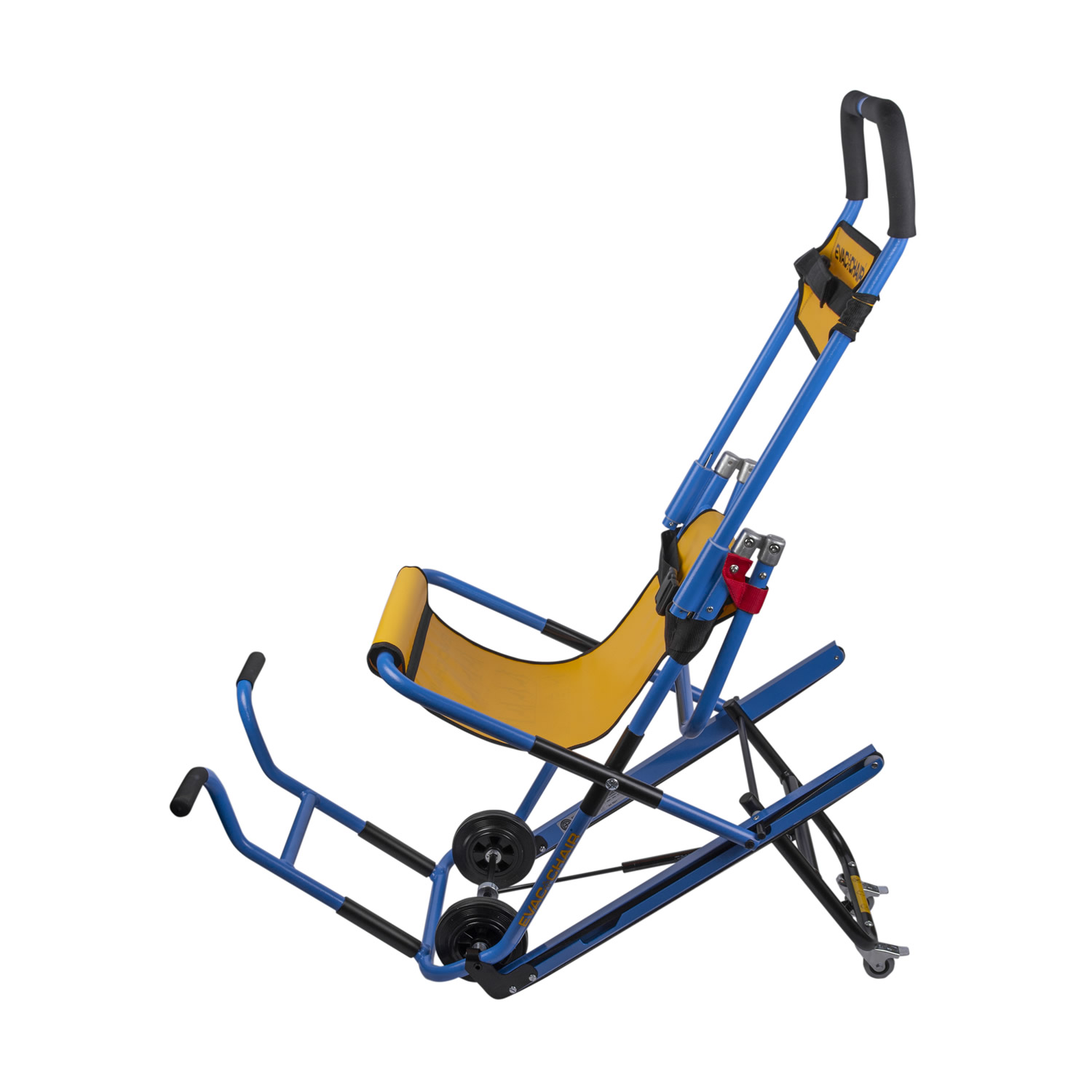

evac chair 600h mk5 evacuation chair shown from the side with frame extended and yellow seat visible

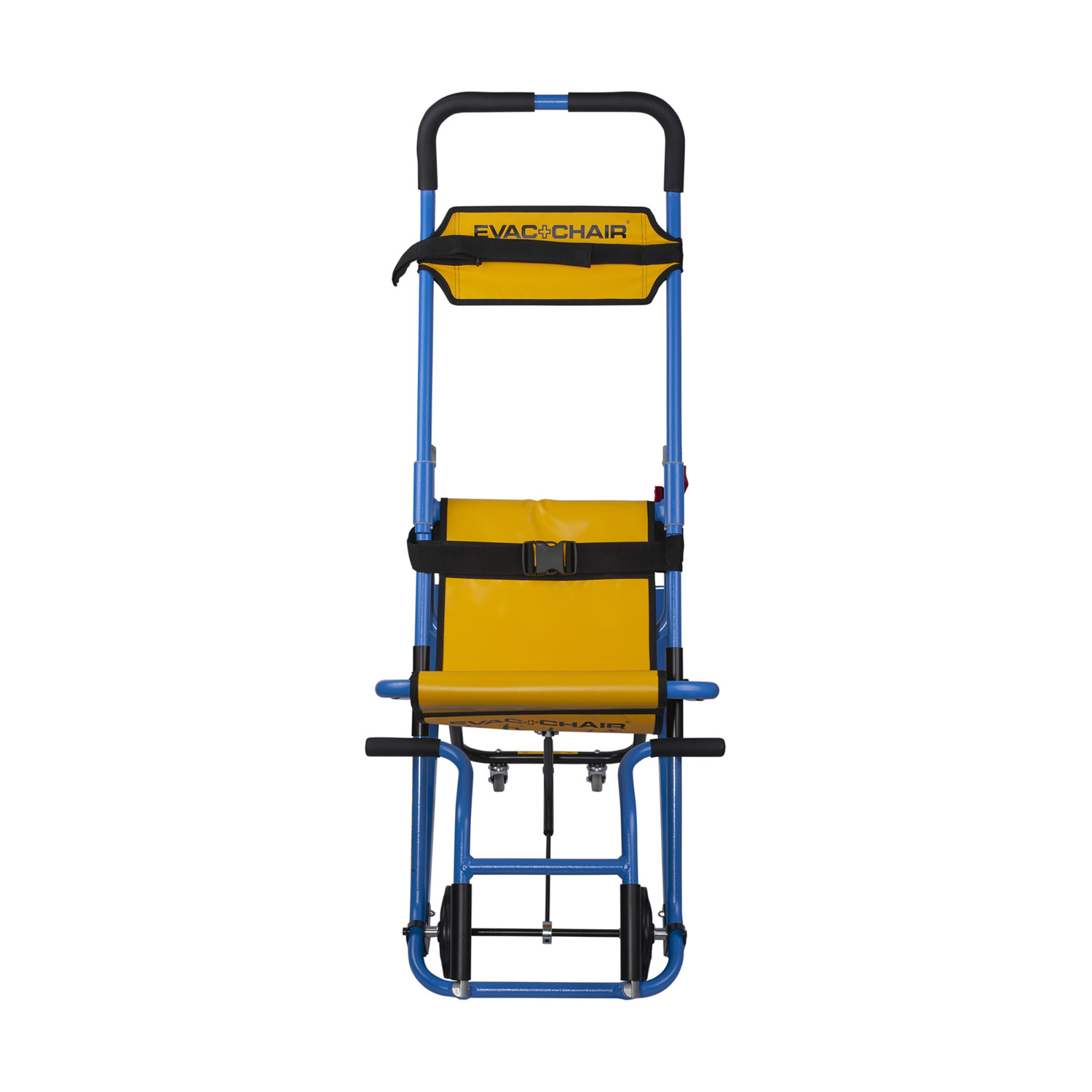

Front view of evac chair 600h mk5 evacuation chair in blue and yellow with black straps and handles

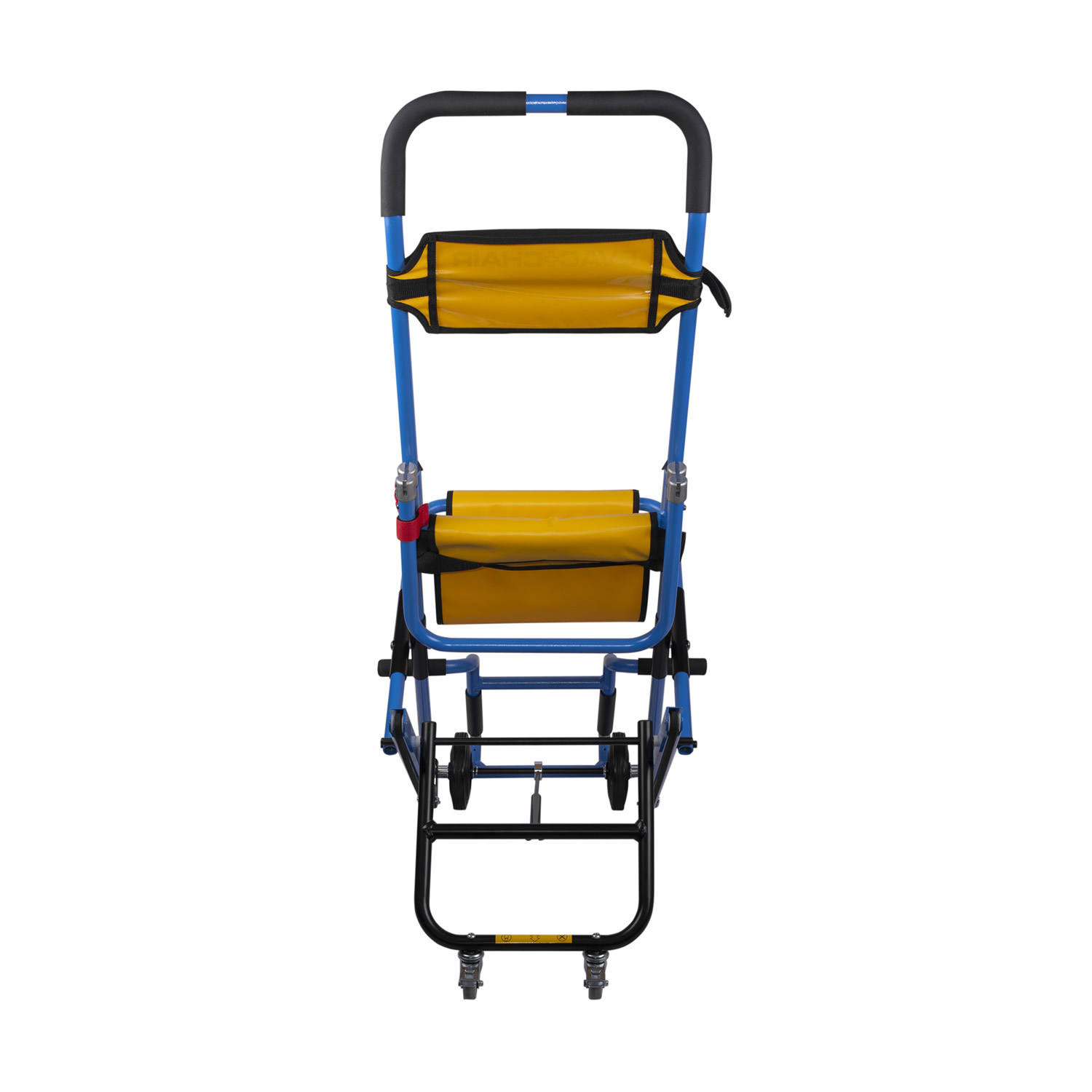

Back view of evac chair 600h mk5 evacuation chair showing blue frame and yellow fabric components

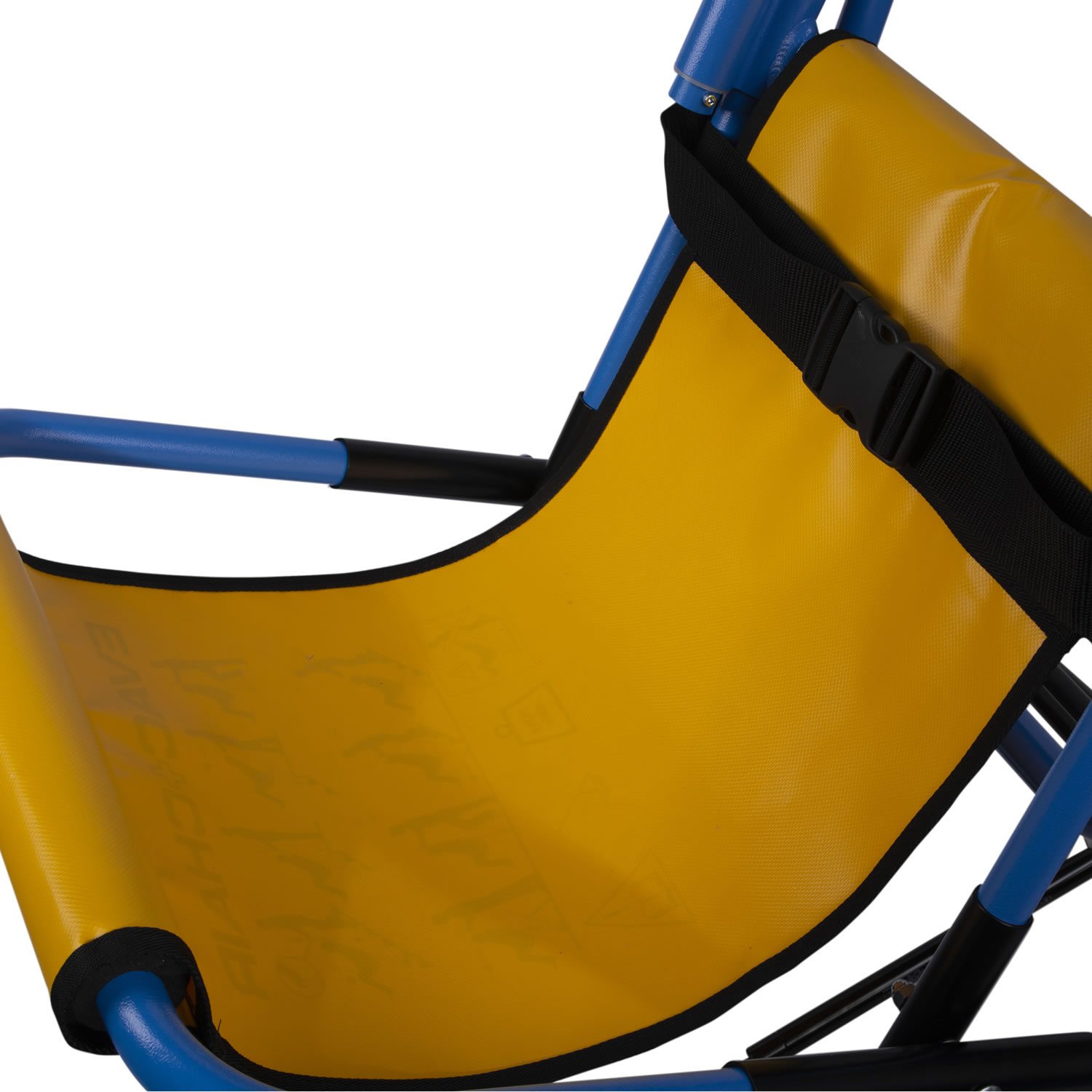

Close up of the yellow seat and black safety strap on an evac chair 600h mk5 evacuation chair seat

Close up of the head rest on the evac chair 600h mk5 evacuation chair showing padded black and blue handles

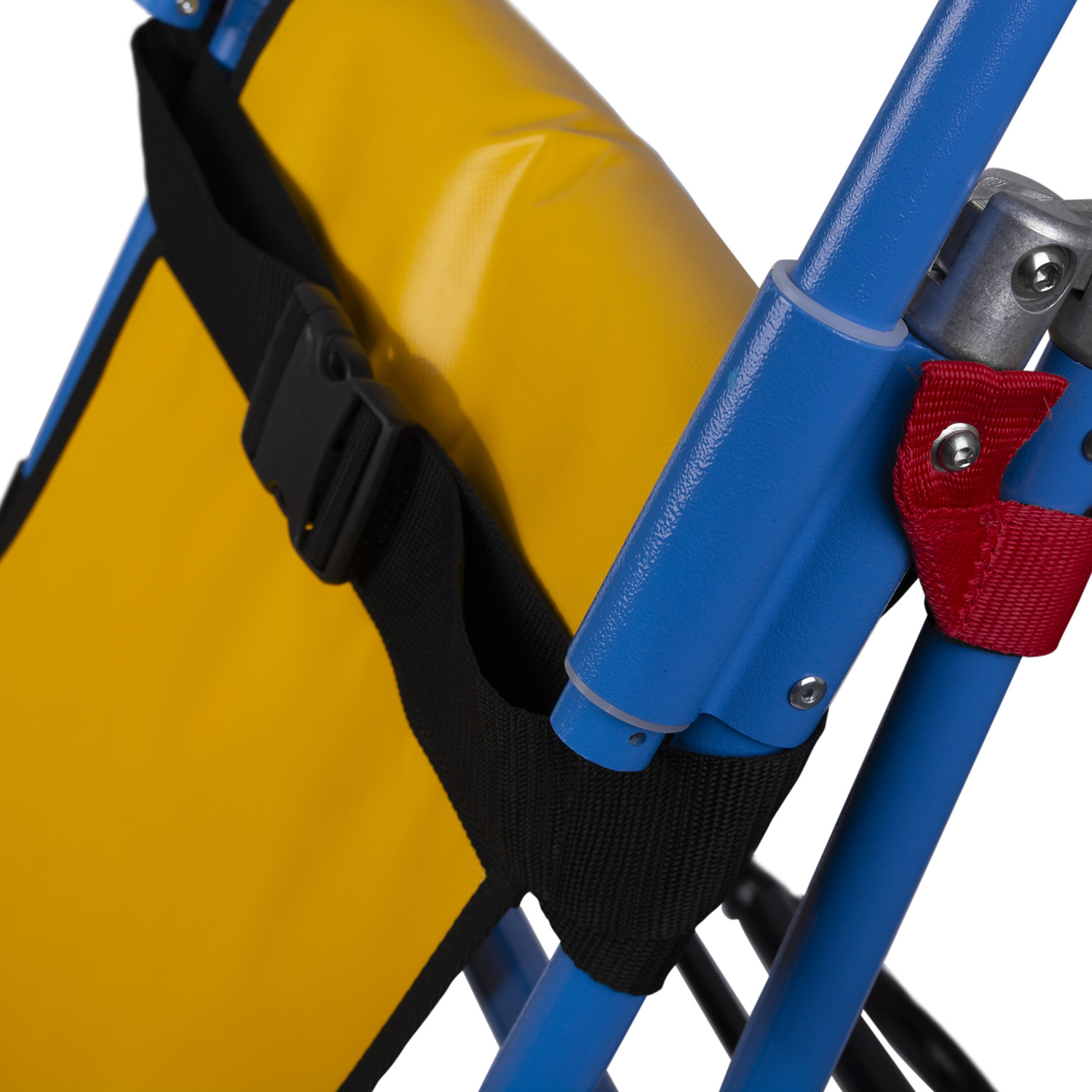

Close up of a black buckle on the evac chair 600h mk5 evacuation chair with yellow background material

Close up of the black strap and fastening on the evac chair 600h mk5 evacuation chair showing part of the blue frame

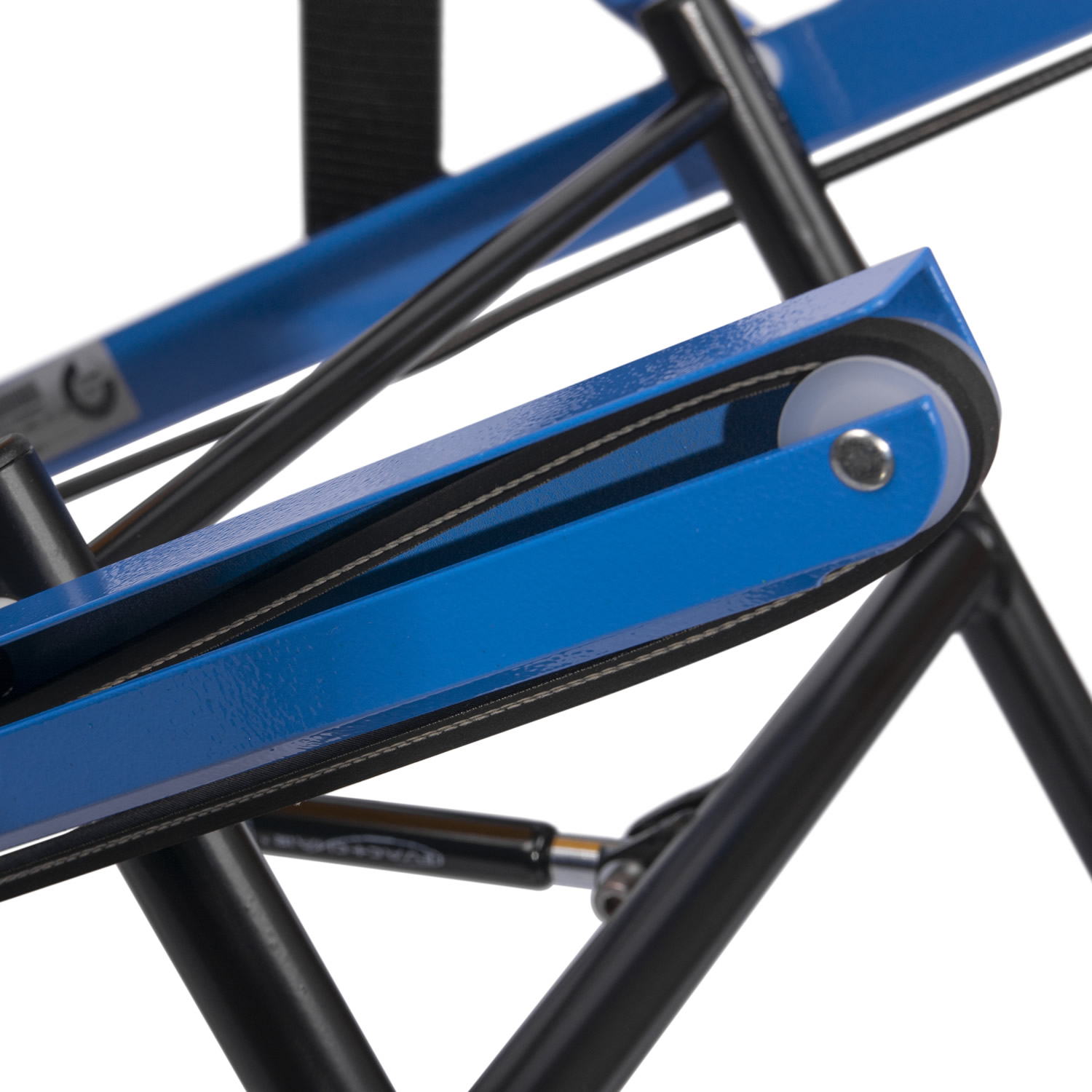

Close up of tracks on evac chair 600h mk5 evacuation chair showing blue and black metal parts

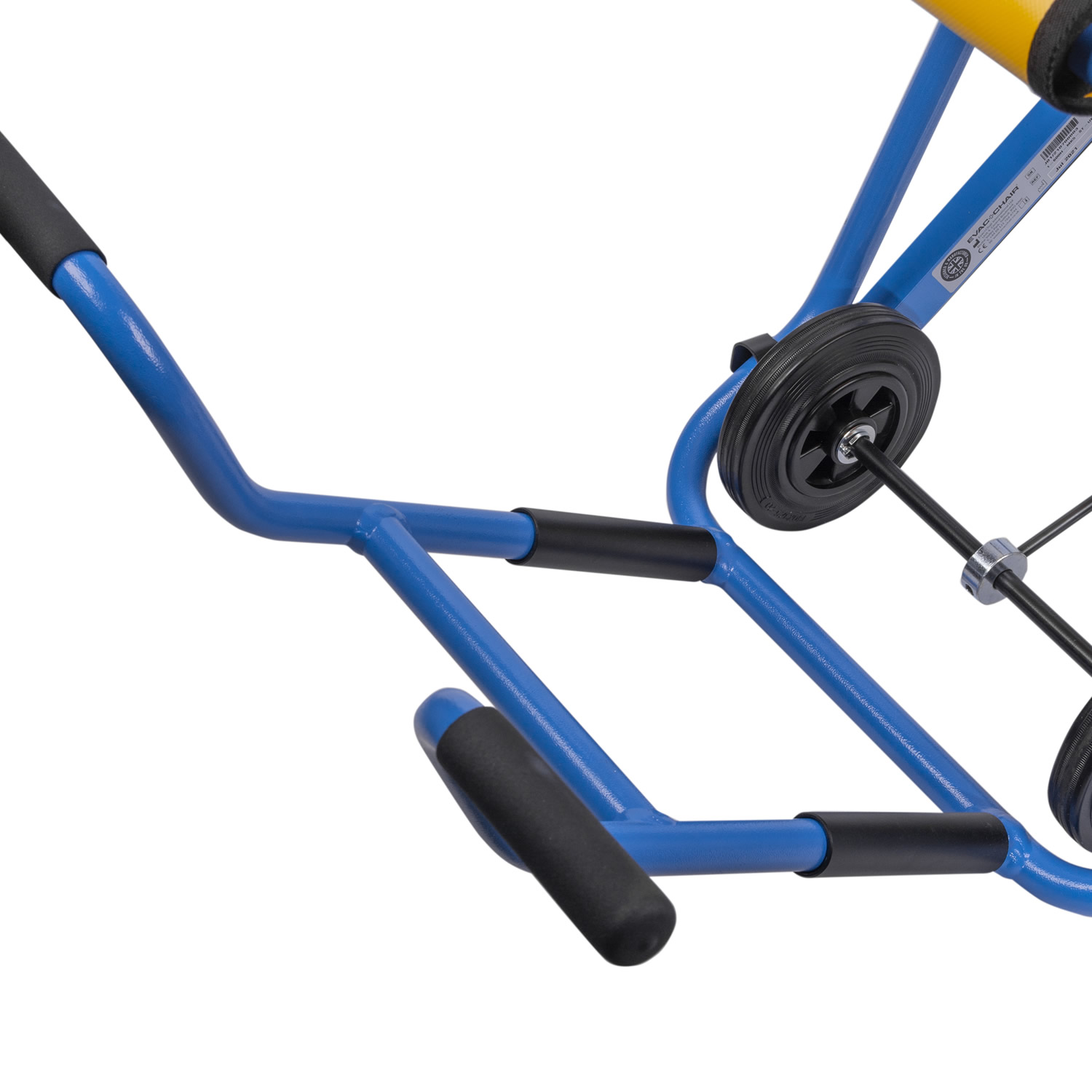

extra handles close up on the evac chair 600h mk5 evacuation chair frame with black grips and blue metal tubes

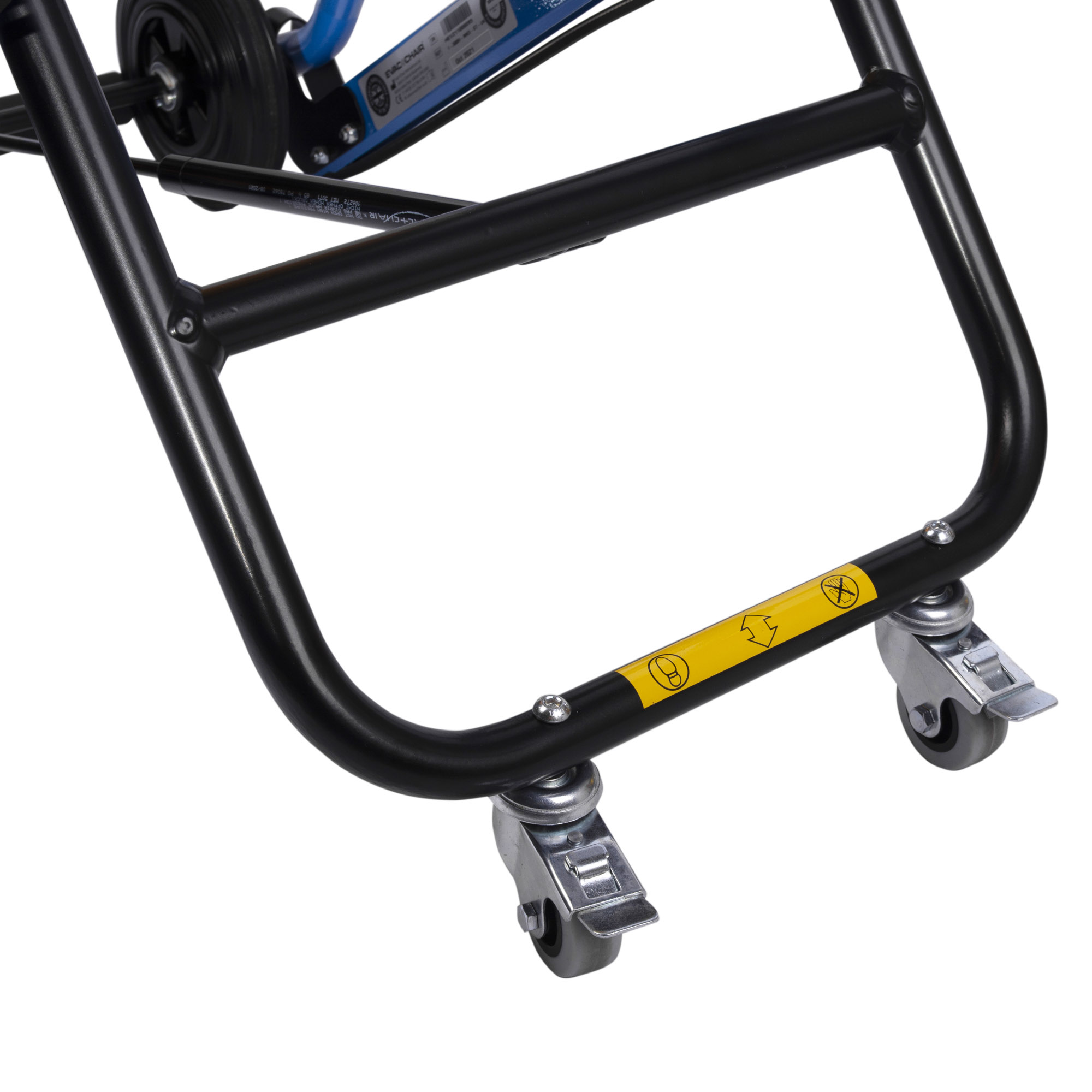

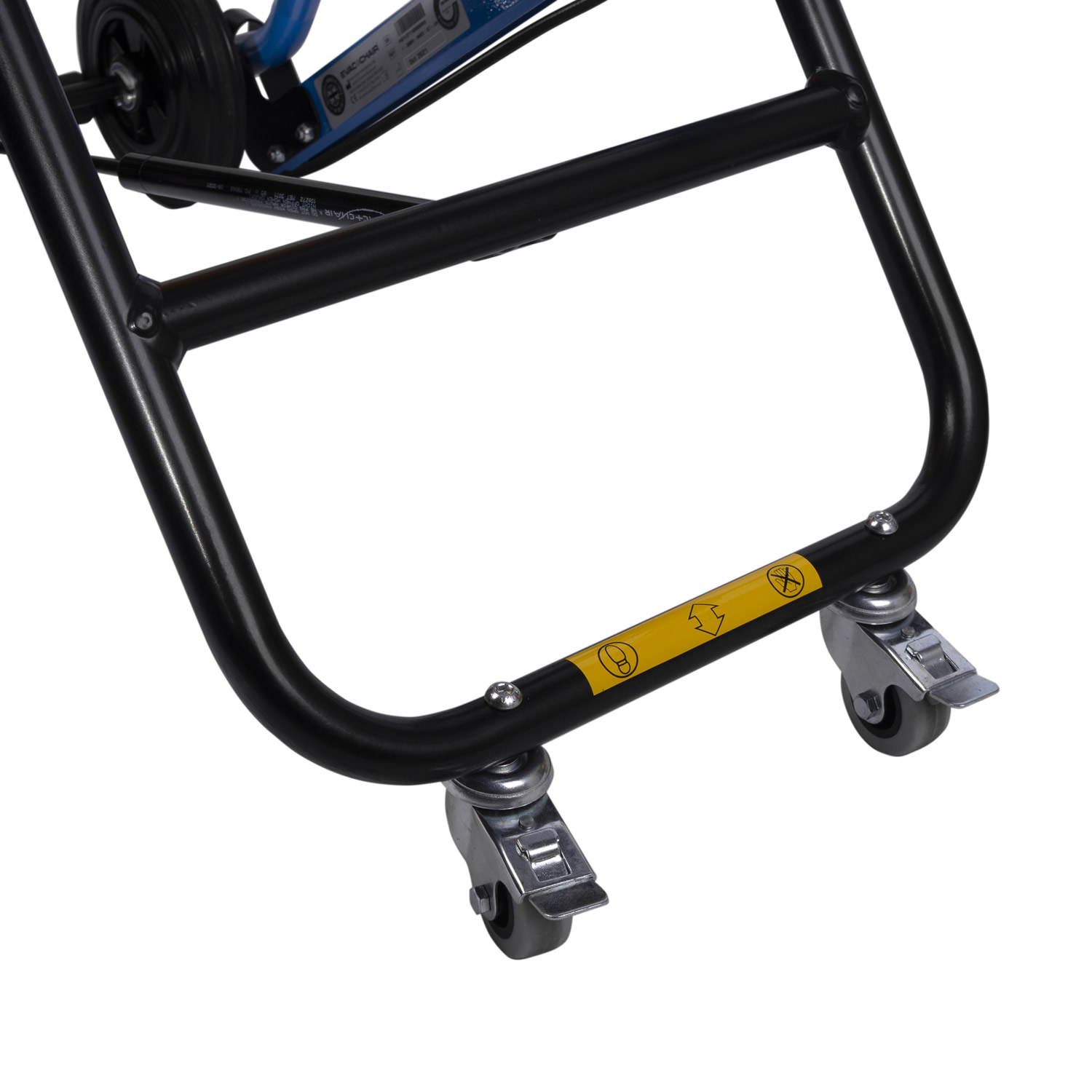

Rear wheels close up of evac chair 600h mk5 evacuation chair showing frame and wheel locks

evac chair 600h mk5 evacuation chair mounting brackets with screws shown against white background

Sign showing a silhouette using the evac chair 600h mk5 evacuation chair for emergency stairway descent for the mobility impaired

evac chair 600h mk5 user guide booklet with instructions and information on a white surface

4 out of 5 stars

6 In Stock

Estimated dispatch: Monday 8th June

Qty: 1	£1,055.99 inc VAT £879.99 ex VAT
Qty: 2	£1,031.99 inc VAT £859.99 ex VAT
Qty: 5	£1,007.99 inc VAT £839.99 ex VAT

Next Day Delivery

Will usually be delivered the next working day

£0.00 (FREE)

The Evac+Chair 600H Emergency Evacuation Chair is ideal for use in locations with difficult access, such as staircases with small half landings, or where it is necessary to ascend (rather than descend) stairs e.g. from a basement. Featuring front and rear foldable grab handles, the 600H can be used with up to 4 operators in the event of an emergency, allowing for the ability to ascend stairs or traverse obstacles. For descending stairs, the specially designed friction belts provide a smooth non-slip descent via a self-braking system which prevents the chair from accelerating too quickly. The redesigned sling style seat provides greater passenger comfort, and also ensures the passenger cannot be tipped forward when the safety belt is secured.

Ideal for locations with difficult access where it is necessary to ascend over stairs or obstacles
Single person operation (for descent) with double handed grip to provide improved stability
Can be used to go up stairs as well as down (2 to 4 operators required to ascend stairs)
For use on standard stairs (28° - 40°) with a maximum passenger load of 400lbs / 182kg
Foldable front and rear grab handles to assist with ascension when used with multiple operators
Unique friction belt system with self-braking track ensures a smooth and comfortable non-slip descent
Supplied with photoluminescent signs, hooks for wall mounting, and dust cover for protection when not in use
Includes simplified graphical instructions and user guide
5 Year Warranty (based on service and maintenance)
CE marked and
DDA compliant product and manufactured in the UK by Evac+Chair
Class I Medical Device and regulated under
Initial siting and installation available
Annual EVAC+CHAIR servicing available
Also available to purchase with on site Evacuation Chair Training

Customer Reviews

Customer Reviews (1)

4 out of 5 stars

Reviews by Real Customers

All of our product reviews are written by real customers that have purchased this product from us and are published without modification.

Rating: 4 / 5

Reviewed by

Anonymous

Published on

27th March 2015

Very good

Applies to option(s): Evacuation Chair Only

FAQs Technical Data

Technical Data

Product Code	ECCHAIR600H
Brand	Evac+Chair
Colour	Yellow / Blue
Compliance	Class 1 (MDR)
Approvals & Markings	CE Marked
Direction of Travel	Descent
Direction of Travel	Ascent
Material	Fabric
Material	Metal
Maximum Load	182kg
Mode of Descent	Friction Belt System
Number of Operators	2 Persons
	4 Persons
	1 Person
Recyclable	Partially Recyclable
Stair Suitability	28° - 40° Angle
Suitability	Indoor
Warranty	5 Years
Dimensions (Packaged)	Height: 1100mm Width: 600mm Depth: 270mm
Dimensions (Unit)	Height: 1350mm Width: 600mm Depth: 1120mm
Weight	11.00kg
Datasheets	Ecchair600H Evac Chair Emergency 600H Datasheet

Legislation Requirements

Equal opportunity and health and safety requirements are guided by a number of current legislations. The 600H chair provides a solution to the evacuation needs of those who are less able, in both commercial and residential applications. Legislation requirements to be met by building operators and employers include:

Regulatory Reform (Fire Safety) Order 2005 - Means of escape
Building Regulations Parts B and M - Building use and access
BS5588-8:1999 - Providing disabled people with measures to be assisted in an emergency
Equality Act 2009 - Ensuring that disabled people are not at a disadvantage compared to those that are not disabled
DDA (Disability Discrimination Act) - Providing adequate access and facilities for any disabled person who may enter a building

Evac+Chairs are Class I Medical Devices with their installation and use regulated under the Provision and Use of Work Equipment Regulations 1998 (PUWER). Employers, self-employed people, and those employed to supervise or manage equipment are responsible for ensuring that a reasonable amount of staff are adequately trained to use Evac+Chairs safely, that the chairs are annually serviced by a qualified engineer, and that they are regularly inspected by a competent worker.
