Union RetroV Overhead Door Closer - Power Size EN 3 - 4
The Union RetroV overhead door closer has been designed to fit the installation footprint of the Briton 2003 series without the requirement to drill new holes and allows you to keep your existing door. Featuring a simple to use variable power adjustment with the supplied allen key, independent latching and closing adjustment valves, the RetroV provides a smooth and precise closing action.
- Suitable for:
- Internal single action doors
- Doors up to 1100mm wide and weighing up to 80kg –
- Left and right handed opening doors
- Mounting in
- CE marked to EN 1154
- Same fixing dimensions and footprint as UK's popular door closer designs such as Briton 2003, 2004, and 2003V
- Designed for retro fit installation but can also be used as a first application door closer

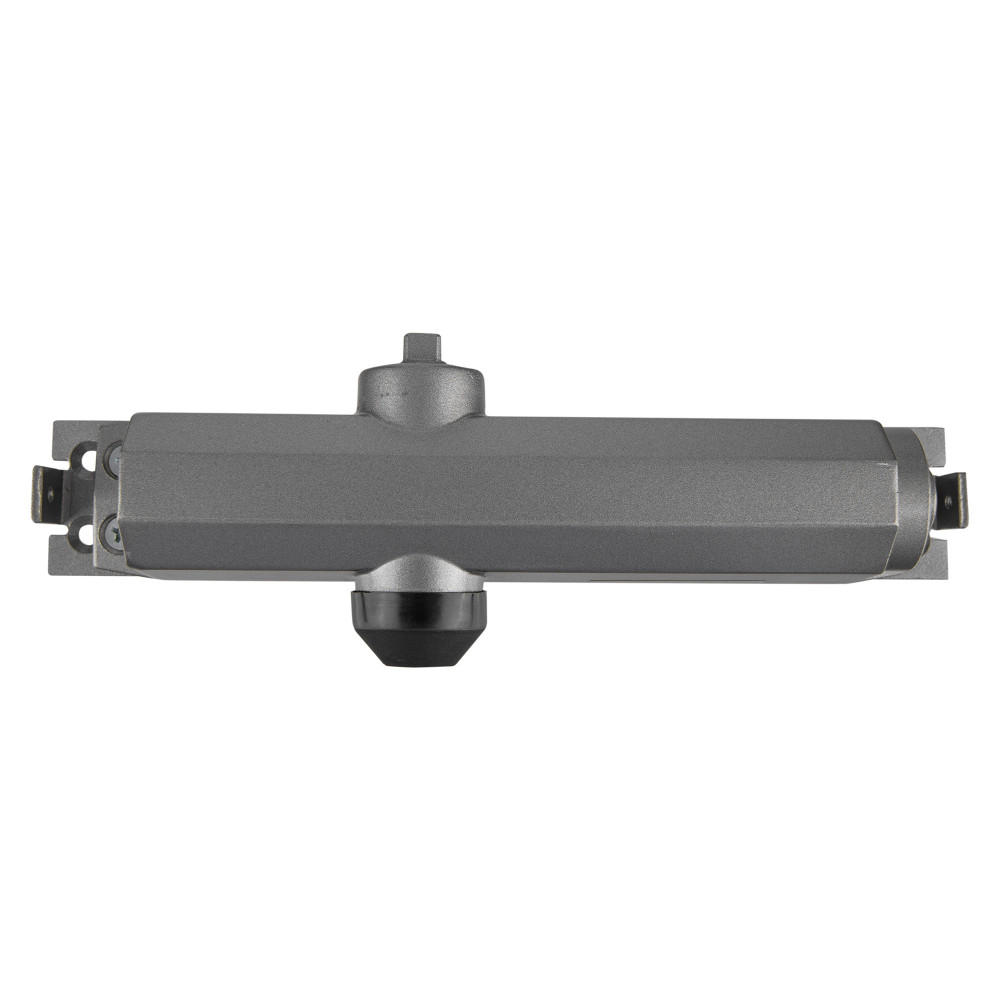

- Adjustable features and fixings concealed behind the cover
- Closing speed controls how quickly the door closes between maximum opening angle 130° and 15°
- Latching action governs the speed of the final 15° of the cycle
- 10 Year Warranty

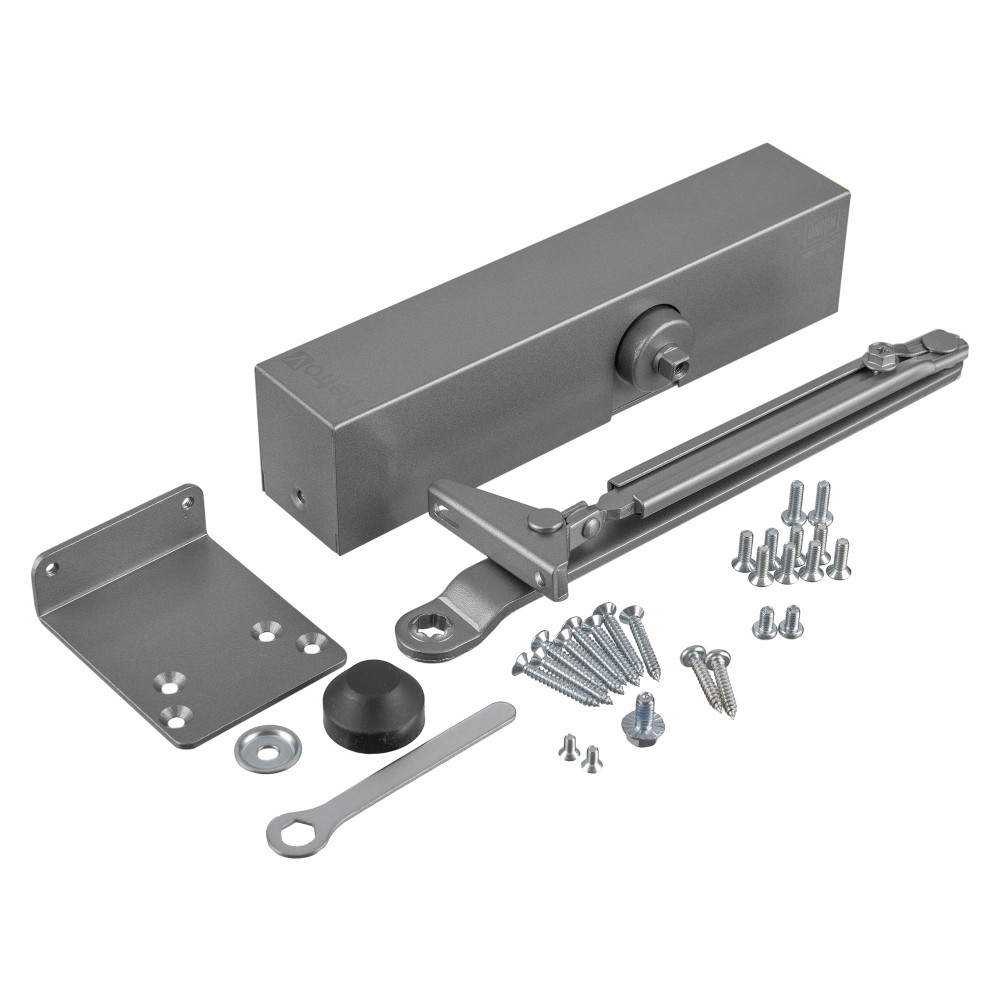

- Template and fixings for all mounting configurations supplied
- Additional parallel mounting bracket included

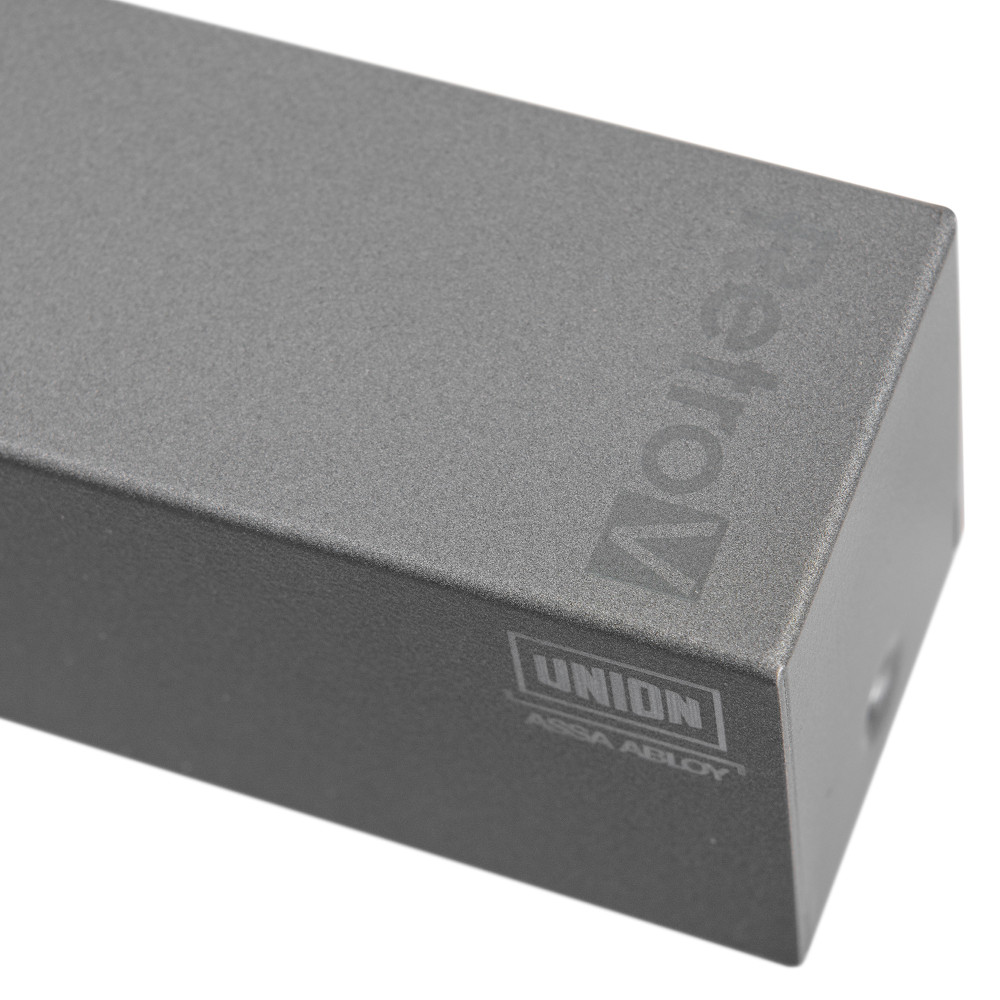

- Stylish, square steel cover in silver as standard
- Full classification:
- Fig 1 installation: 4 | 8 | 4-3 | 1 | 1 | 3
- Fig 61/66 installation: 3 | 8 | 4-3 | 1 | 1 | 3
Customer Reviews (0)
Reviews by Real Customers
To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.
No Reviews Available
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data
| Product Code | AAJRETROVSIL |
|---|---|
| Brand | Union |
| Compliance | BS EN 1154: 1997 |
| Certifire - CF464 | |
| EN 1634-1 | |
| Approvals & Markings | CE Marked |
| UKCA Marked | |
| Closing Speed | Adjustable |
| Door Type | Single Door |
| EN Classification | 3 | 8 | 3-4 | 1 | 1 | 3 |
| 4 | 8 | 3-4 | 1 | 1 | 3 | |
| Finish | Silver |
| Fire Rating | 60 Minutes |
| Fixing Options | Wooden Door Fixings (Included) |
| Installation Position | Fig 1 |
| Fig 61 | |
| Fig 66 | |
| Top Of Door | |
| Latching Action | Adjustable |
| Maximum Door Width | 1100mm |
| Maximum Door Weight | 80kg |
| Material | Metal |
| Opening Angle | 130° |
| Power Size | EN 3 - 4 |
| Warranty | 10 Years |
| Dimensions (Unit) |
|
| Weight | 1.60kg |
| Datasheets |
