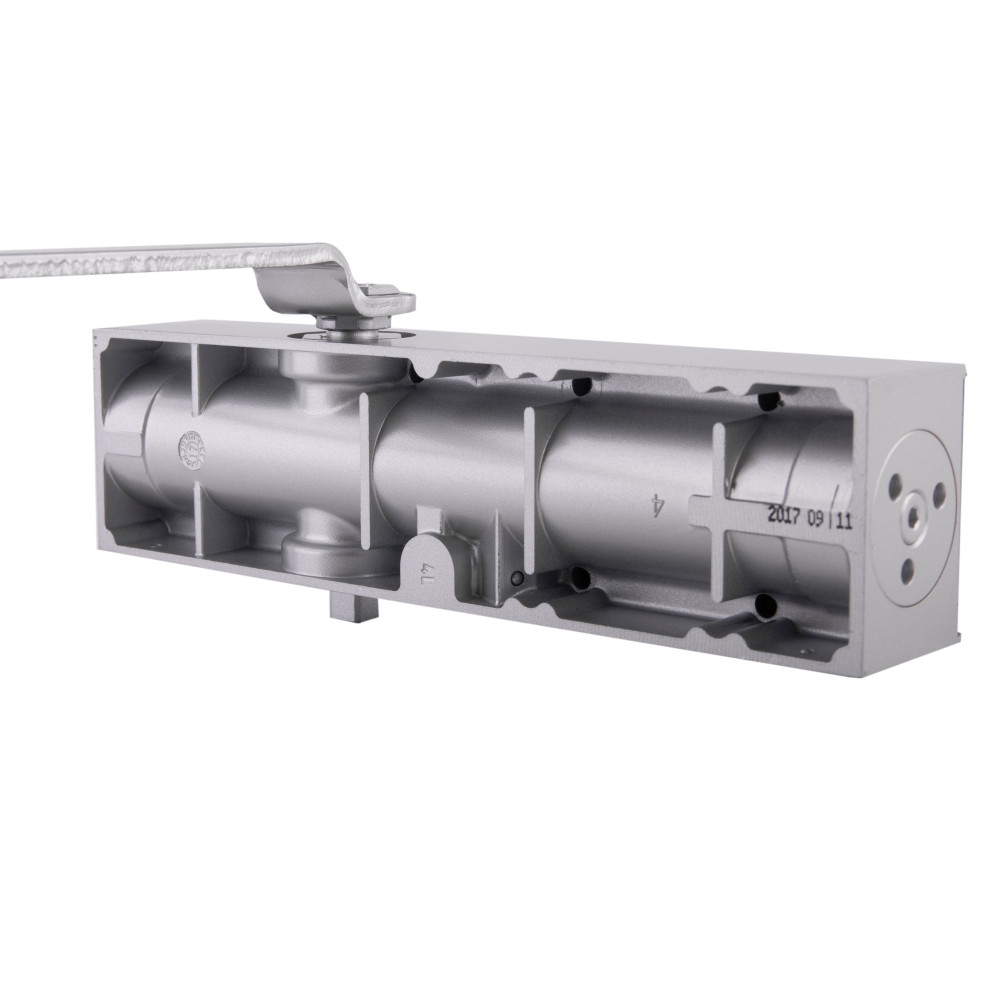

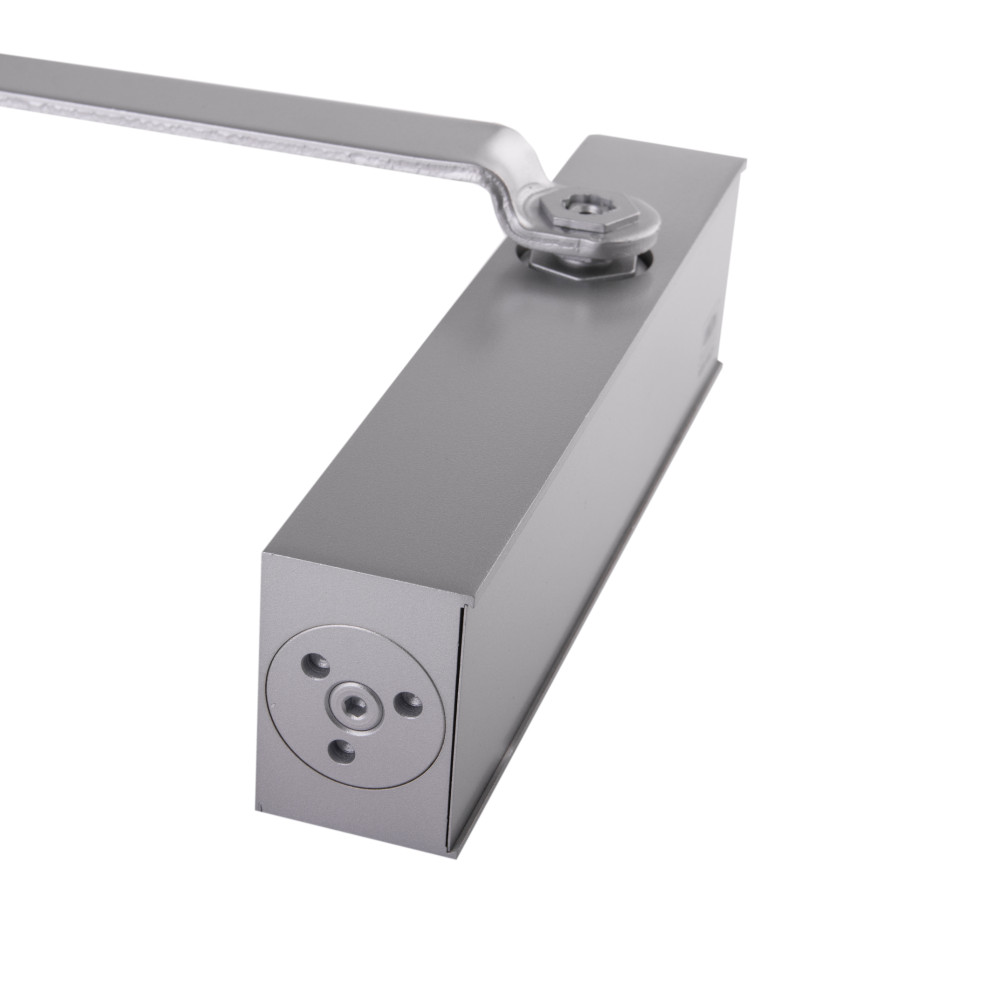

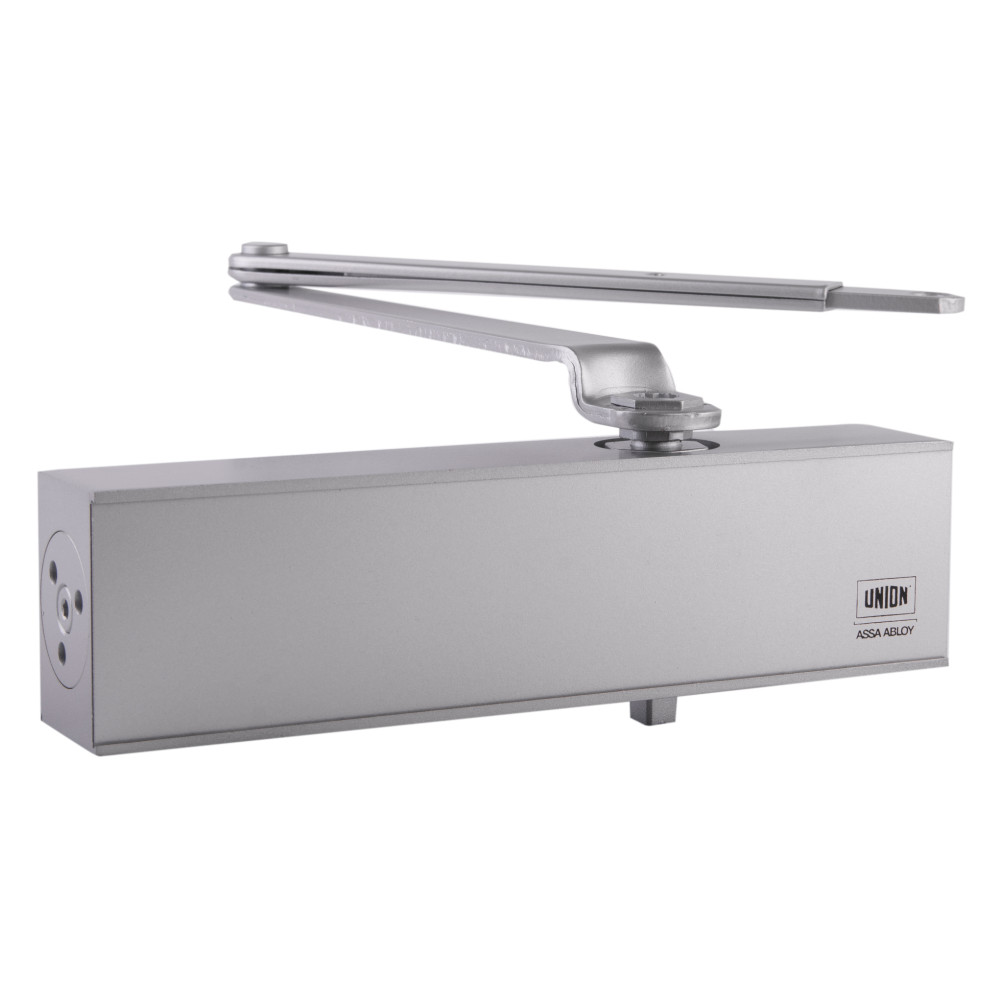

Union CE24V Overhead Door Closer - Power Size EN 2 - 4
The Union CE24V rack and pinion overhead door closer features an adjustable power size (EN 2-4) and is suitable for installation on fire resistant doors rated up to 120 minutes. The adjustable EN power size makes it ideal for doors up to 1100 wide and weighing up to 80kg, perfect for installations in new projects or retrofitting applications. Installers have more flexibility for installation with the versatile fitting options (Fig 1, Fig 61, Fig 66) as the closer comes supplied with fitting templates and universal fixings for push and pull side mounting.
- Suitable for:
- Single action internal doors
- Use on left and right hand opening doors (non-handed)
- Doors up to 1100mm wide and weighing up to 80kg –
- Installation in
- Tested and CE marked to EN 1154 in all 3 fitting configurations
- Certifire approved for use on FD120 timber fire rated doors – CF410 certificate
- Adjustable features to suit any premises
- Closing speed controls how fast the door closes
- Latching action governs the speed the door closes during the last 15° of the closing cycle
- Back check ensures that no damage is caused by the door when it is opened rapidly
- Easy-to-follow pictorial instructions with fitting templates
- Supplied with fixings for all standard fitting applications
- Available in silver finish as standard
- 10 Year Warranty
- Full classification: 3 | 8 | 2-4 | 1 | 1 | 3
Customer Reviews (0)
Reviews by Real Customers
To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.
No Reviews Available
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data
| Product Code | AAJCE24VSIL |
|---|---|
| Brand | Union |
| Back Check | Adjustable |
| Compliance | BS EN 1154: 1997 |
| Certifire - CF410 | |
| Approvals & Markings | CE Marked |
| Closing Speed | Adjustable |
| Door Type | Single Door |
| EN Classification | 3 | 8 | 2-4 | 1 | 1 | 3 |
| Finish | Silver |
| Fire Rating | 120 Minutes |
| Fixing Options | Wooden Door Fixings (Included) |
| Installation Position | Fig 1 |
| Fig 61 | |
| Fig 66 | |
| Top Of Door | |
| Latching Action | Adjustable |
| Maximum Door Width | 1100mm |
| Maximum Door Weight | 80kg |
| Material | Metal |
| Opening Angle | 130° |
| Power Size | EN 2 - 4 |
| Warranty | 10 Years |
| Dimensions (Unit) |
|
| Weight | 2.40kg |
| Datasheets |
