Surface Mounted Fire and Smoke Seals - 5.2m Roll
When fire strikes, gaps around doors provide an easy path for flames and smoke to spread rapidly throughout a building. These Intumescent Fire Door Seals are designed to close those gaps effectively, helping to contain fire and smoke and improve safety. With a self-adhesive, surface-mounted design, they require no routing and are quick and easy to install.
- Suitable for use in 30 minute fire-rated door assemblies
- Helps prevent the spread of fire and smoke through door gaps
- Self-adhesive, surface-mounted design – no routing required
- Tested with up to 4mm gap between door and frame and 8mm gap at bottom
- Can be fitted directly over hinges – no additional hinge protection needed
- Tested to BS 476-22:1987 at Cambridge Fire Research (Test No: CFR1712201)

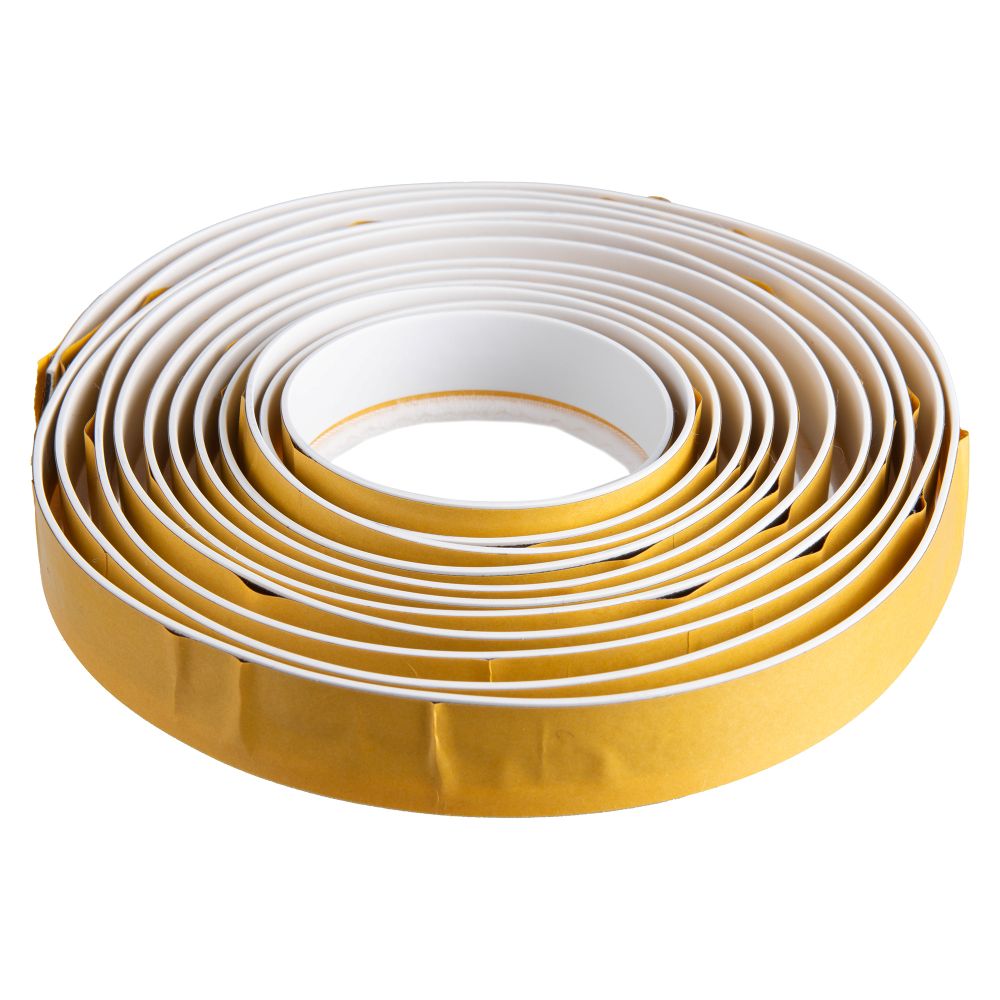

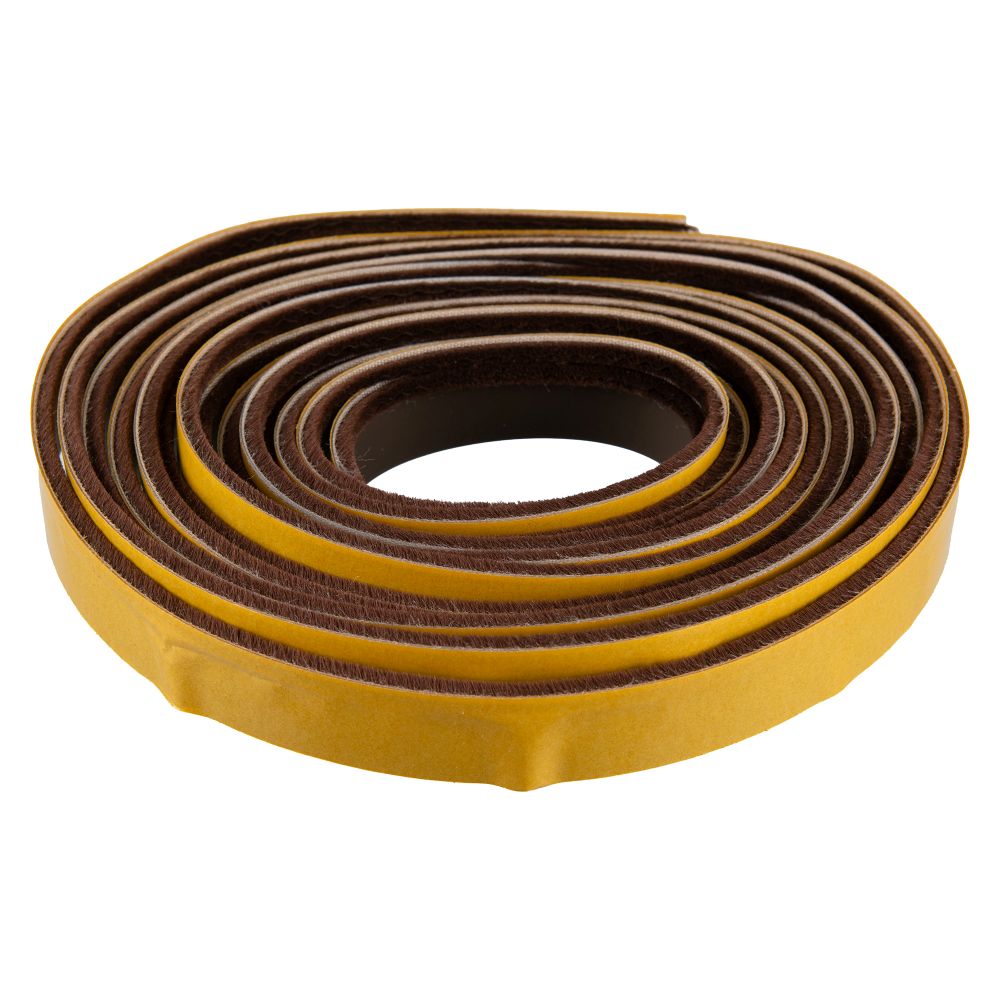

- Supplied in a 5.2m coil – suitable for one single door set
- Available in white or brown to match door finishes

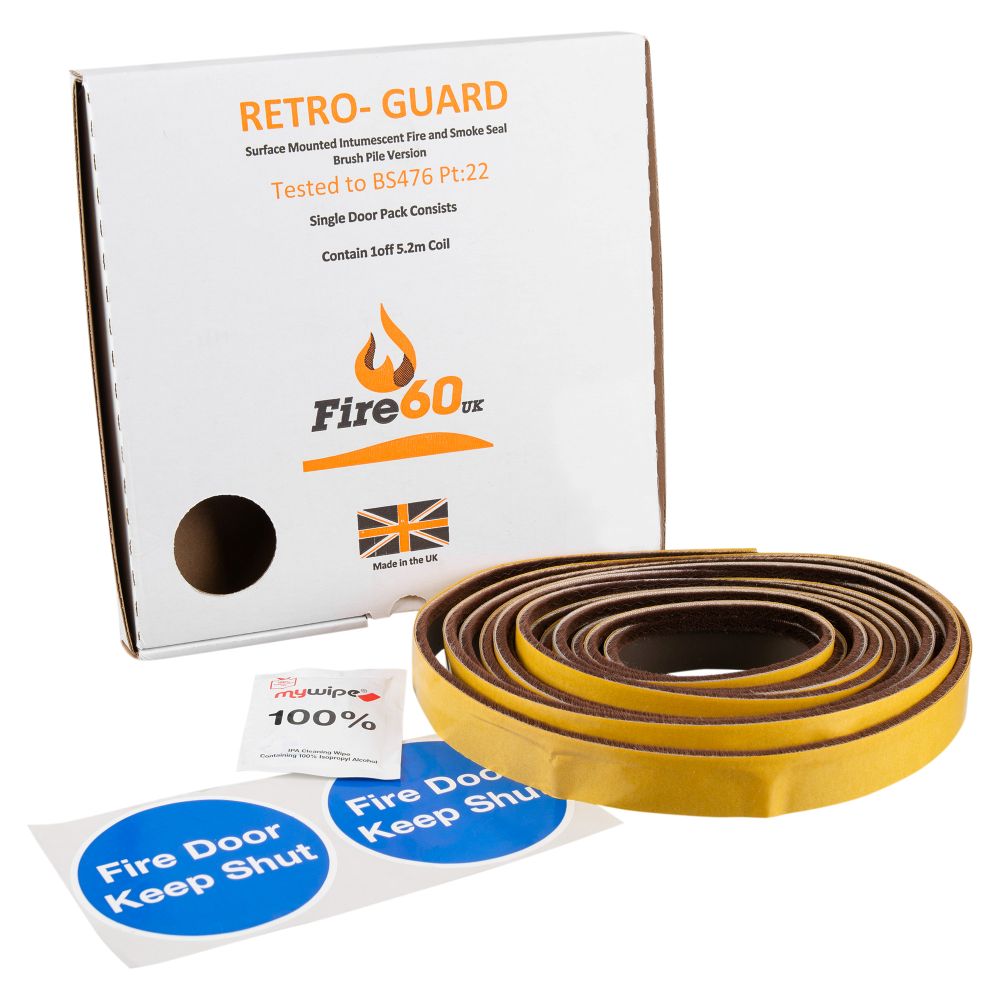

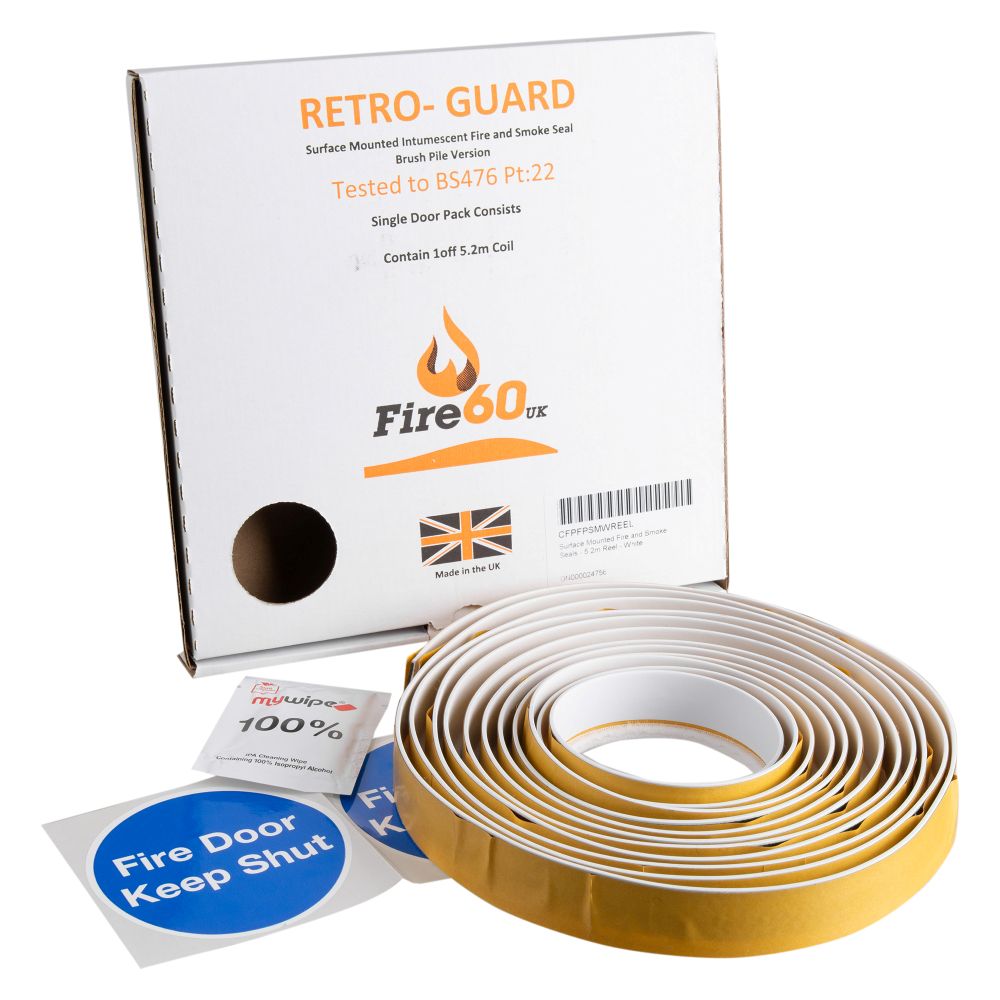

- Box includes: 5.2m roll and 2 self-adhesive “Fire Door Keep Shut” signs
Customer Reviews (0)
Reviews by Real Customers
To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.
No Reviews Available
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data
| Product Code | CFPFPSMWREEL |
|---|---|
| Brand | Complete Fire Protection |
| Colour | White |
| Compliance | BS 476-22 |
| Fire Rating | 30 Minutes |
| Fixing Options | Self Adhesive |
| Surface Mounted | |
| Recyclable | Not Recyclable |
| Suitability | Single Doors |
| Dimensions (Unit) |
|
| Weight | 393g |
| Datasheets |
Additional Information

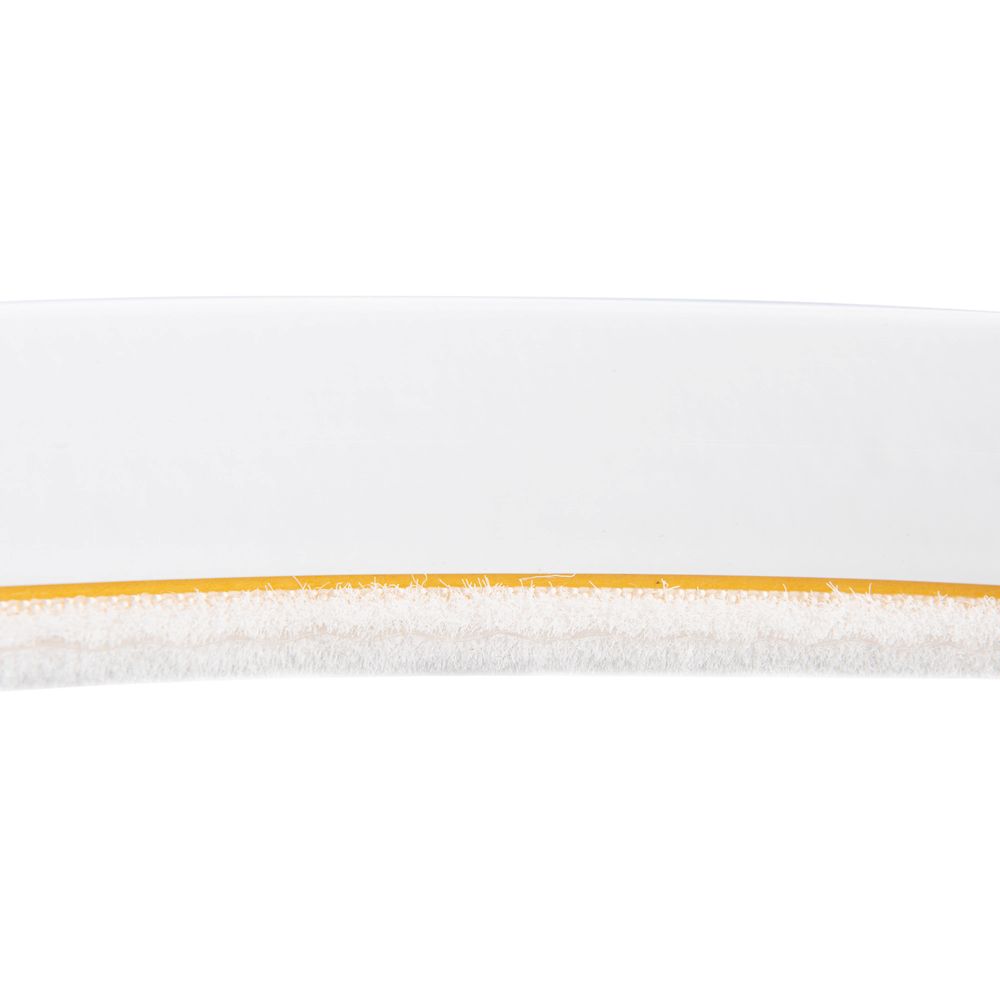

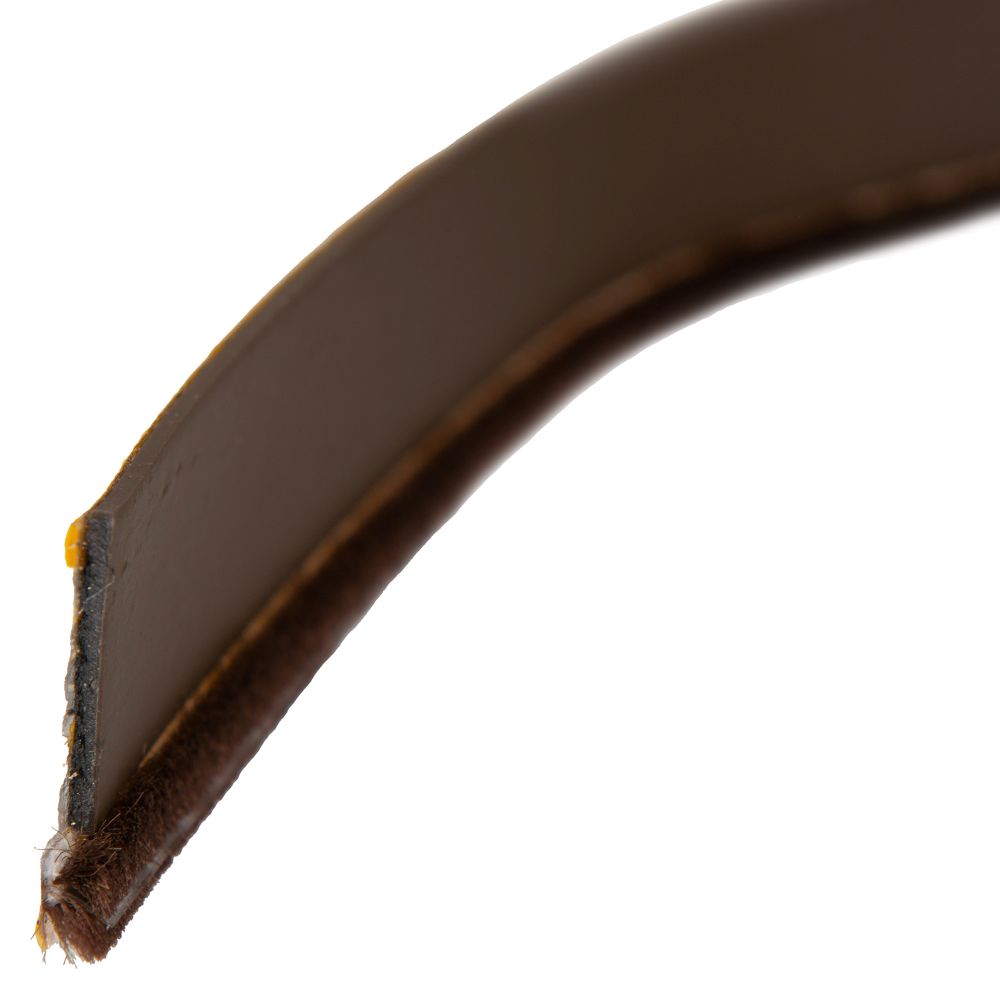

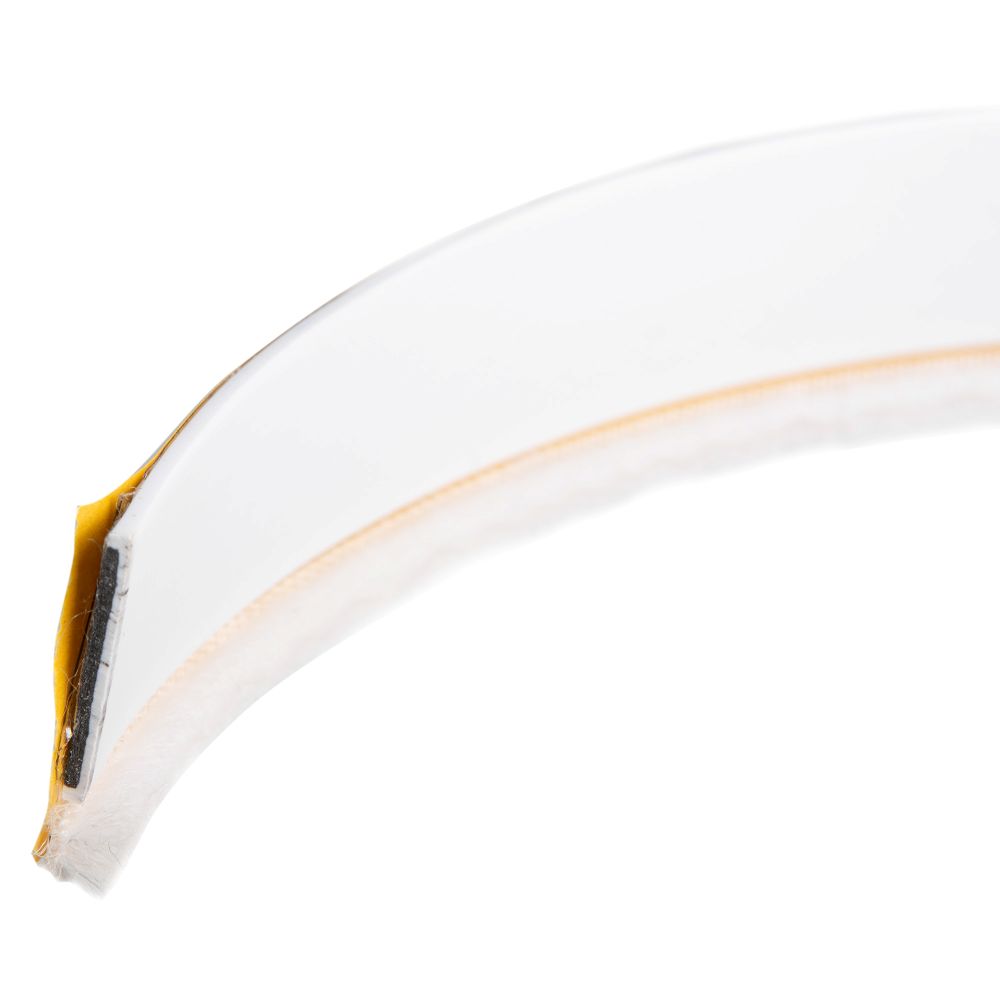

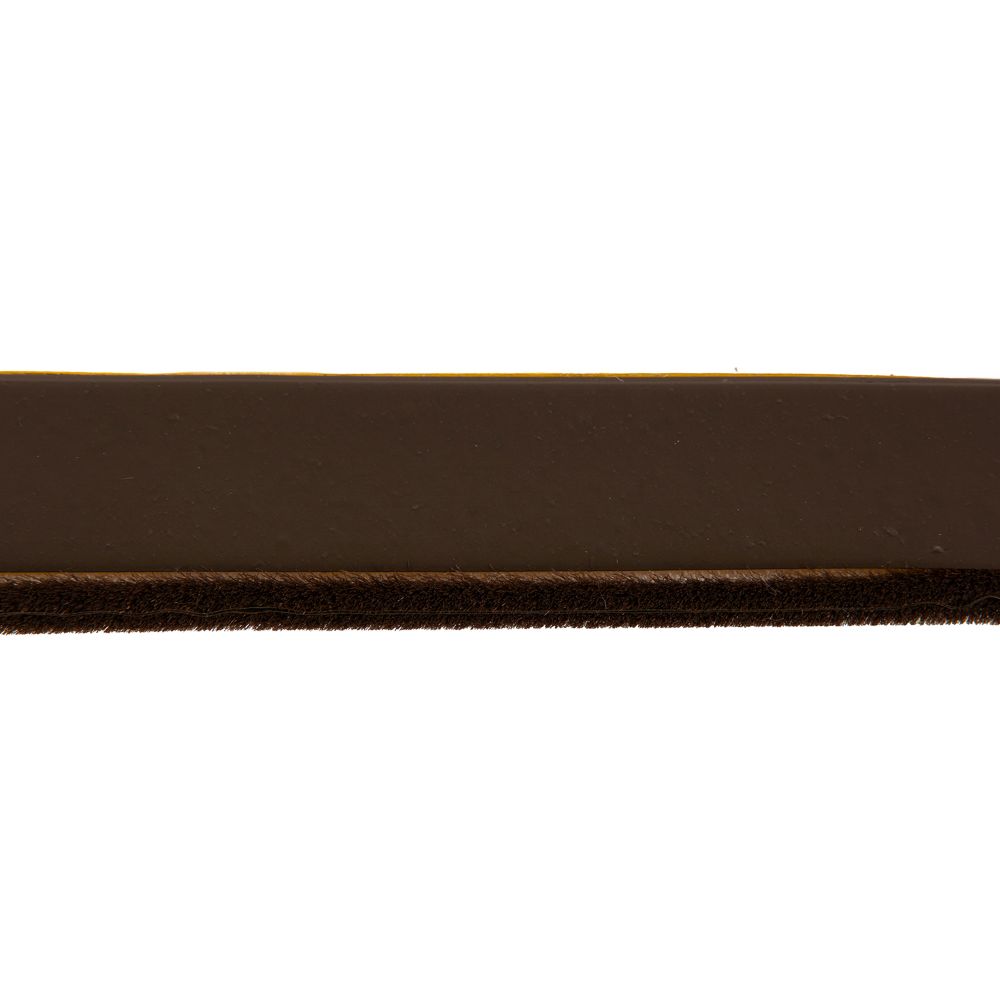

The seals are manufactured from intumescent material and are faced with a coloured vinyl finish. They also feature a brush smoke seal fitted at one edge and the back of the seal is fitted with an adhesive backing strip for ease of fitting. Once fitted, the seal can be painted over (excluding the smoke brush). The seals are available in brown or white finishes.
The seal fits directly over the hinges (this does not cause any binding to the hinge action).
Fitting Instructions
- Measure and cut the required length off the roll.
- Simply remove the adhesive tape backing from the cut length and carefully offer to the door frame with the smoke seal butting against the door stop.
- Repeat this process for both sides and across the head of the door. Be careful to make sure that each length of Fireplug FPSM butts tightly against the other. There is no need for fire protection at the bottom of the door.
- Provided with the Fireplug FPSM are 2 x self adhesive vinyl Fire Door Keep Shut stickers. If not a domestic dwelling, one should be placed on each side of the door. This is usually at the top.
The Fireplug FPSM is placed directly over the hinges, some cutting out of the strip may be needed on the striking plate to allow the latch to engage. A gap of 3 to 4mm is required to head and jambs to allow the door to close fully.
Tools Required
- Tape measure
- Sharp knife/scissors
