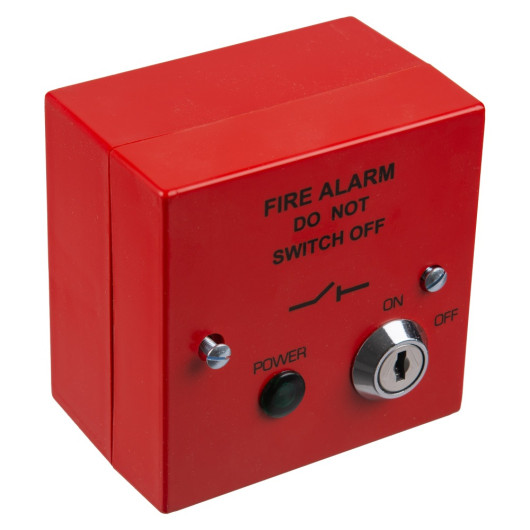

Secure Mains Voltage Safety Isolator
Safety isolator switches are designed to be installed at intervals along a fire alarm system circuit, and help to reduce the size of area affected by a mains voltage short circuit supply. Our safety isolators have a key lock switch, meaning that the supply can only be isolated by an authorised person. Available in red or white, the secure mains voltage isolators are supplied in a complete enclosure, suitable for mounting on a surface or 20mm conduit box.
- Safely isolates the mains voltage supply in accordance with BS 5839: Part 1 (both 2013 and 2017 revisions)
- Double pole isolation – both the Live and Neutral lines are switched
- CE marked
- Fire resistant ABS casing
- On/off key lock switch - supplied with 2 keys
- Single gang format complete enclosure
- Available in red or white
- Integral fuse protected by the cover
- Green LED indicator - shows mains power is present at the switched output
- The fuse is disconnected from the supply when in the off position
- Enclosure has preformed holes for mounting on a surface or 20mm conduit box
- 12 month warranty
Customer Reviews (0)
Reviews by Real Customers
To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.
No Reviews Available
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data
| Product Code | VXMVIR |
|---|---|
| Brand | Vimpex |
| Colour | Red |
| Compliance | BS 5839-1 |
| RoHS Compliant | |
| Approvals & Markings | CE Marked |
| Display | LED Indicators |
| Equipment Type | Accessories |
| Fixing Options | Surface Mounted / Semi-Flush |
| Material | ABS Plastic |
| Power Type | Mains Powered (230V) |
| Recyclable | Partially Recyclable |
| Warranty | 1 Year |
| Dimensions (Unit) |
|
| Weight | 175g |
| Datasheets |
