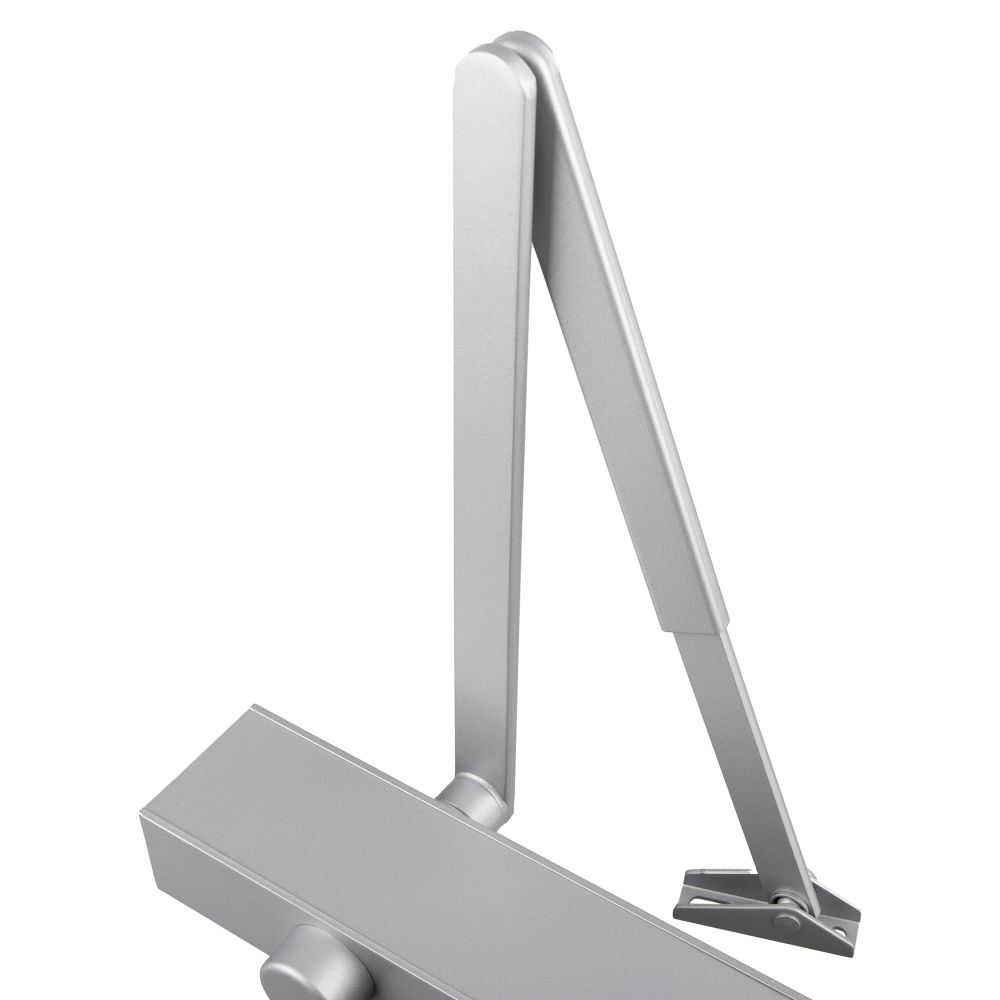

Rutland TS.9205DABC Overhead Door Closer - EN 2-5
The Rutland TS.9205DABC is a high-performance overhead door closer designed for commercial and public buildings. Offering adjustable EN 2-5 power, with back check and delayed action, and full fire door certification, it delivers reliable door control while assisting compliance with BS 8300 accessibility requirements. The TS.9205DABC combines robust performance, extensive certification and versatile installation options in a compact, attractive design.
- Suitable for:
- Single action internal doors

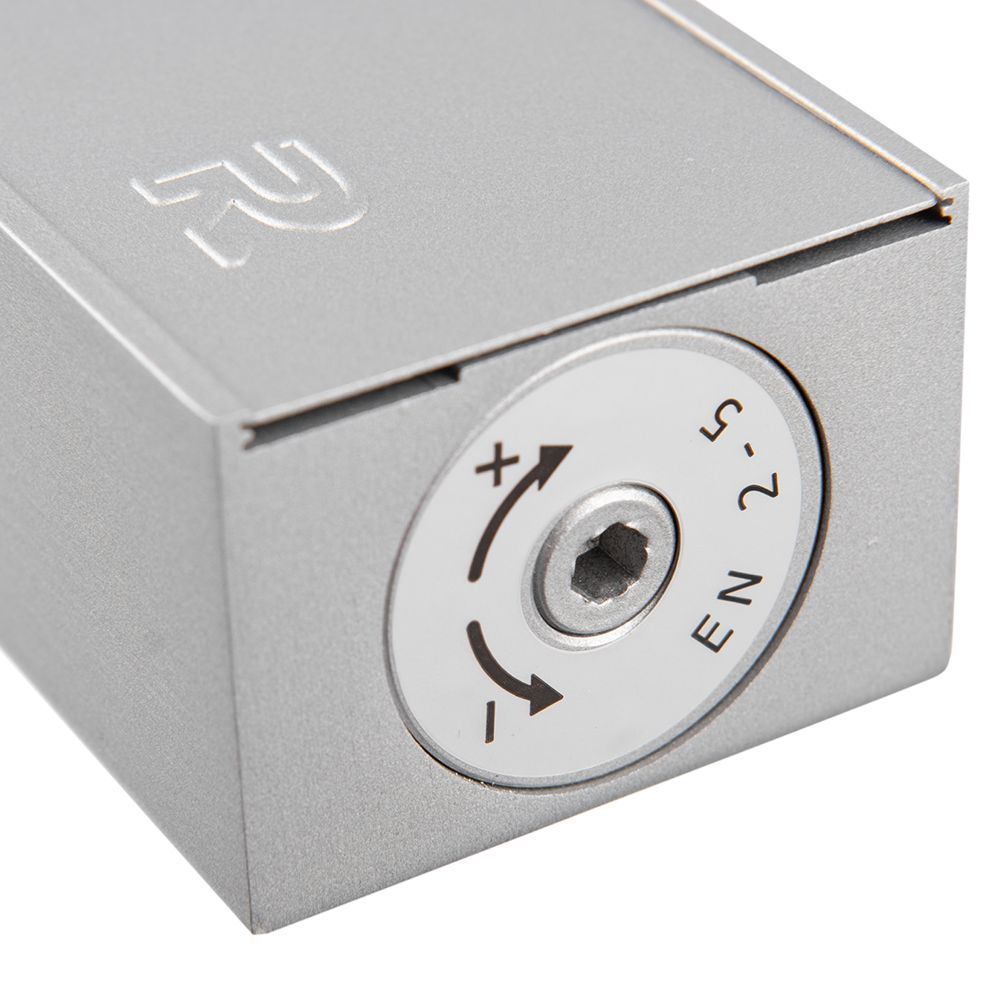

- Variable power sizes, adjustable from EN 2 to 5
- Doors up to 1250mm wide and up to 100kg
- Installation in Fig 1, 61, & 66 configurations
- Back check function helps prevent damage from forceful opening

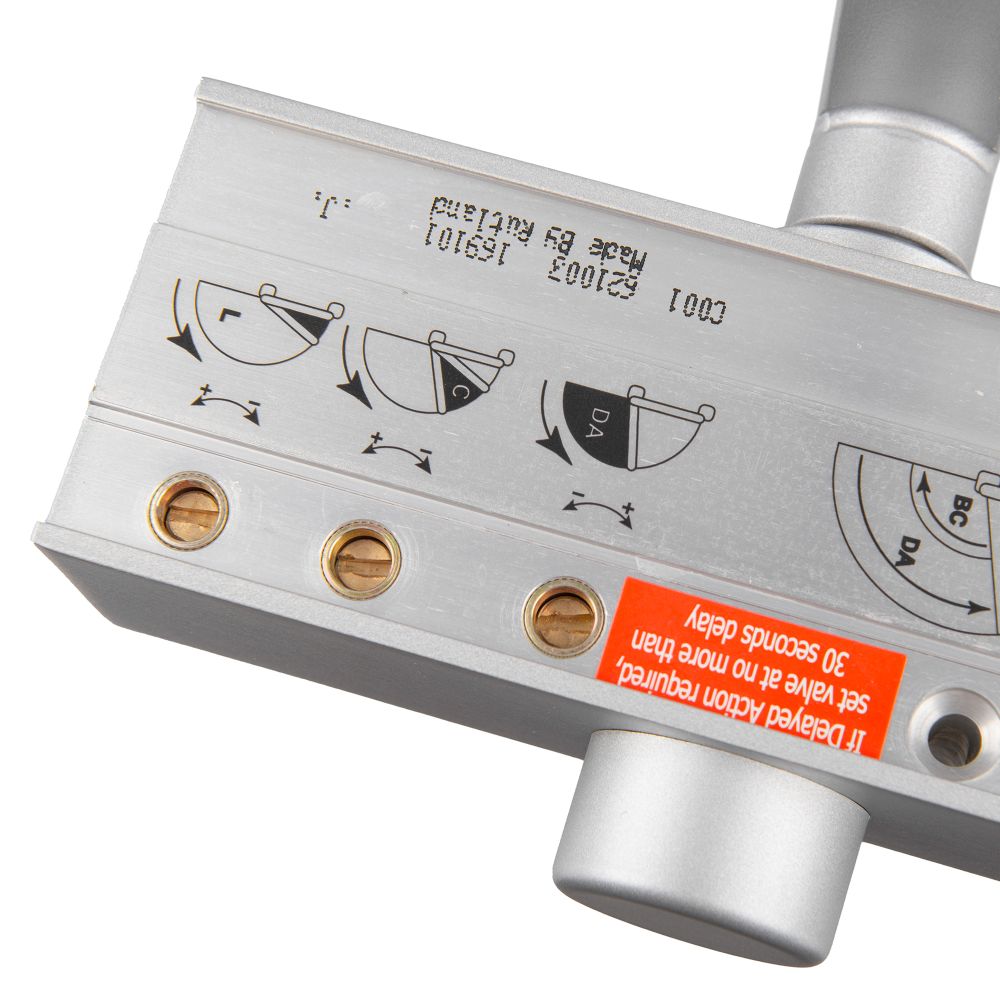

- Delayed action allows for improved accessibility

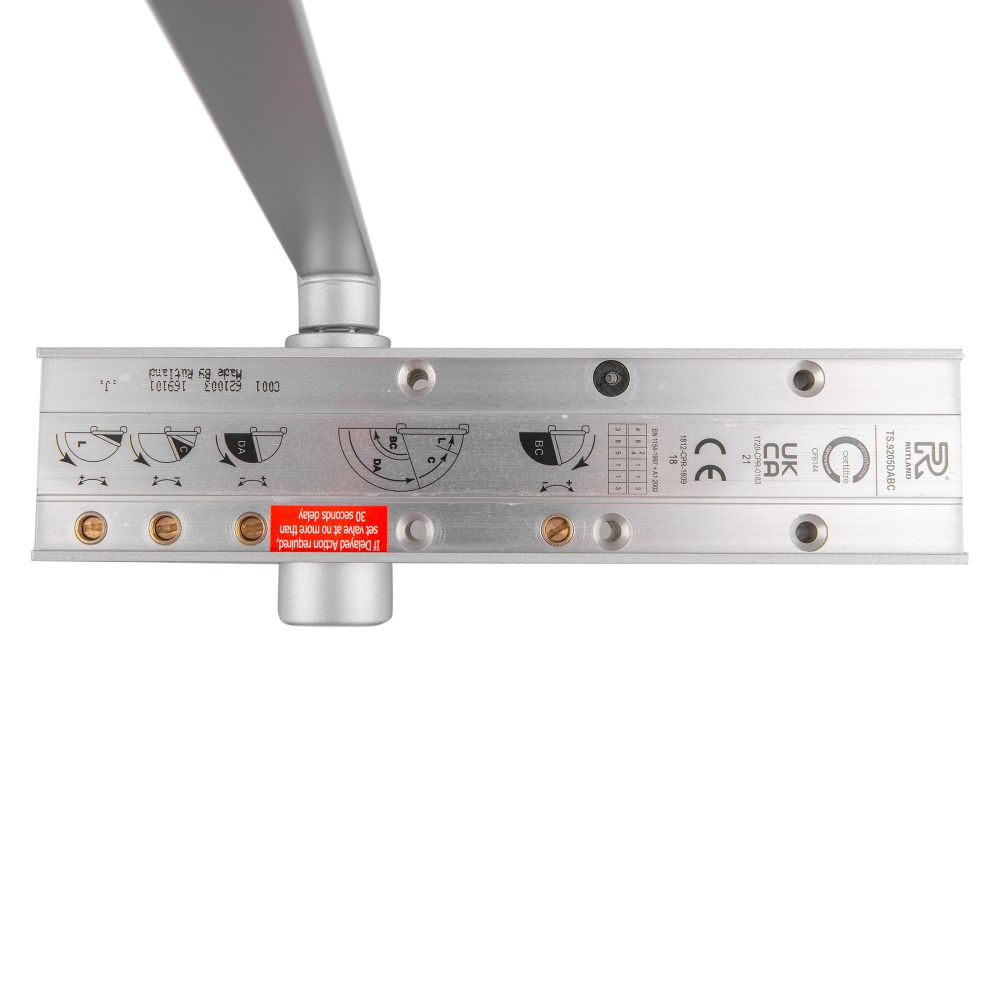

- Two-stage adjustable closing speed and latch action
- Fire tested up to 120 minutes – Certifire CF-6144
- Tested and approved to BS EN 1154 & BS EN 1634
- CE Marked & UKCA Marked
- EN Classification – 4 | 8 | 2-5 | 1 | 1 | 3
- Assists compliance with BS 8300
- 35-year manufacturer's guarantee

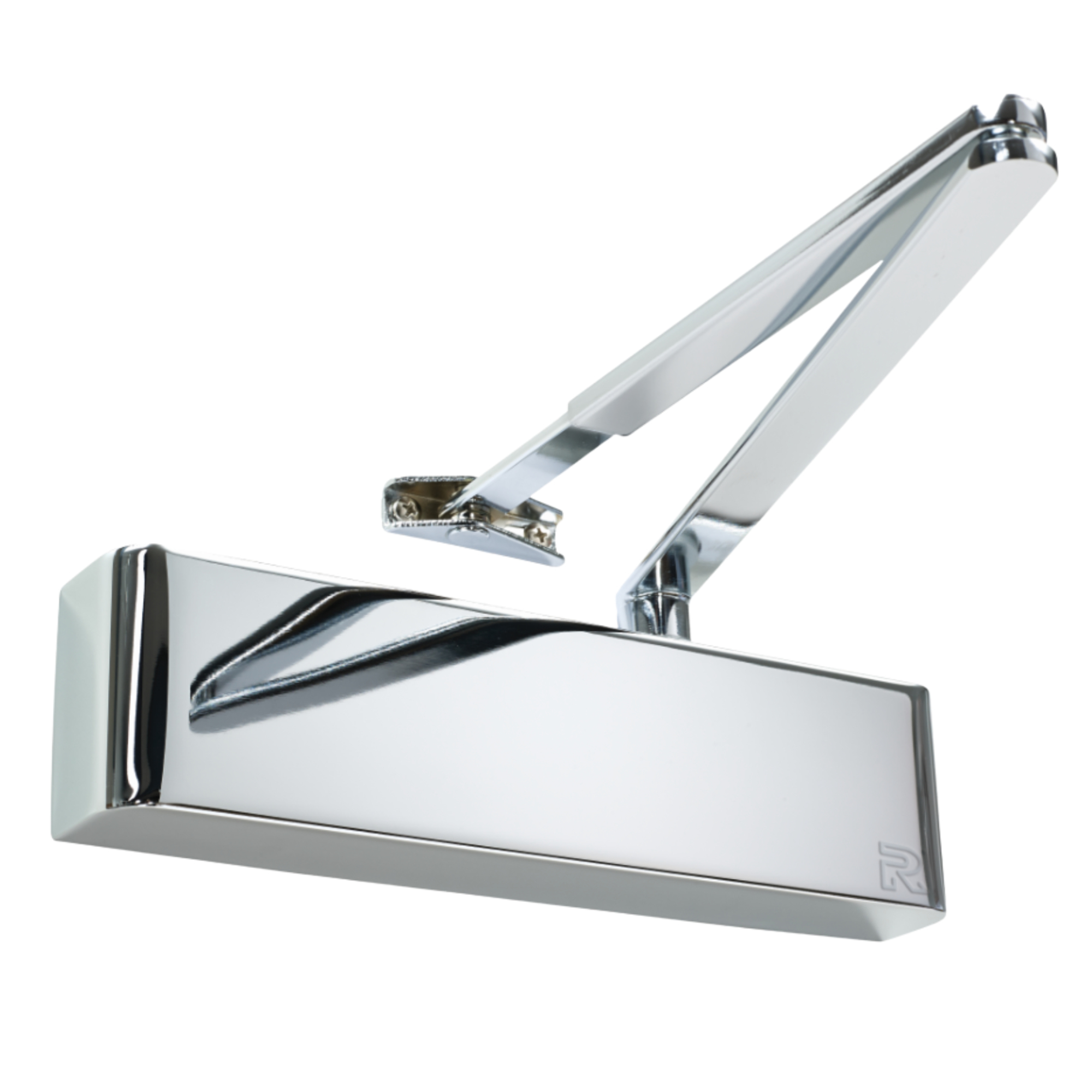

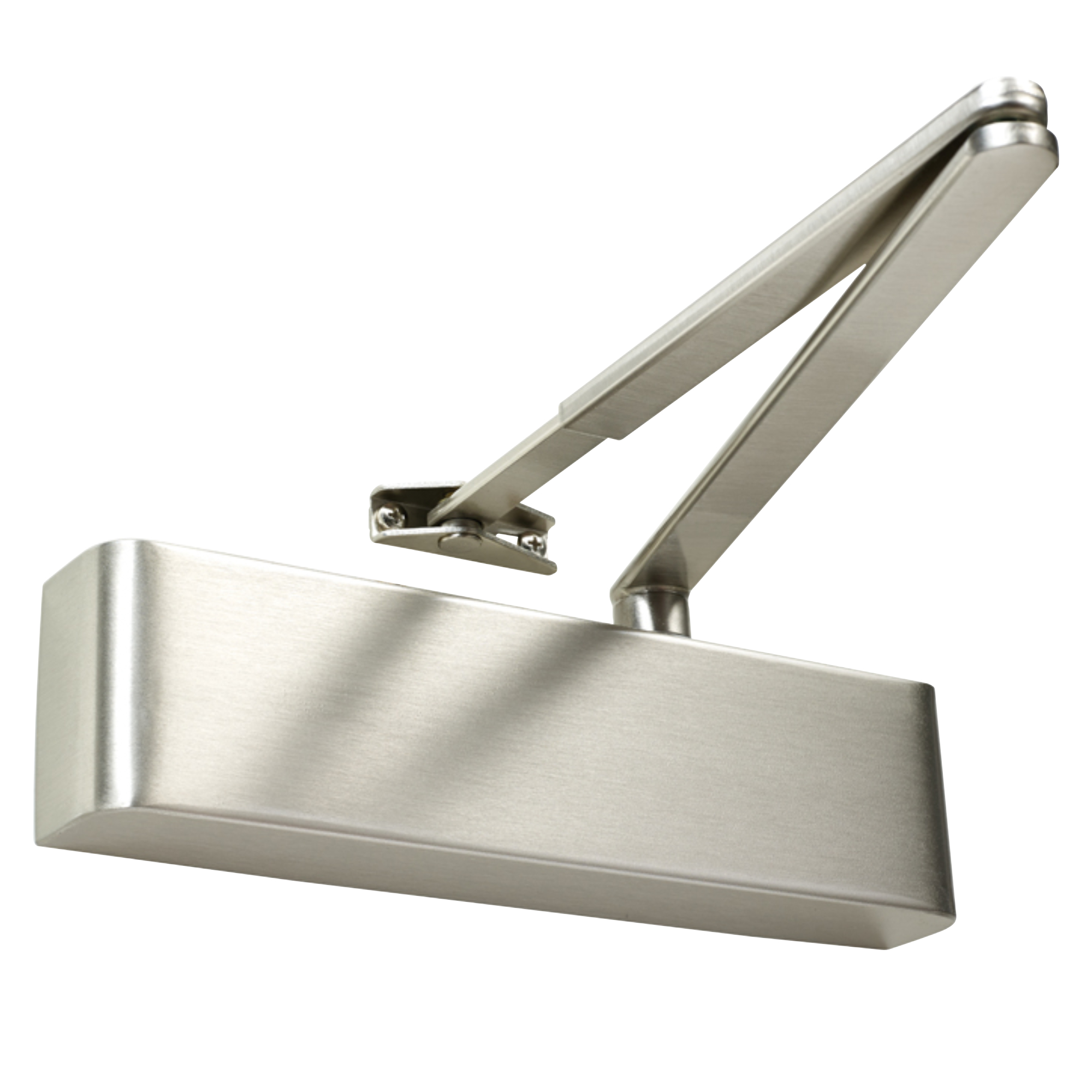

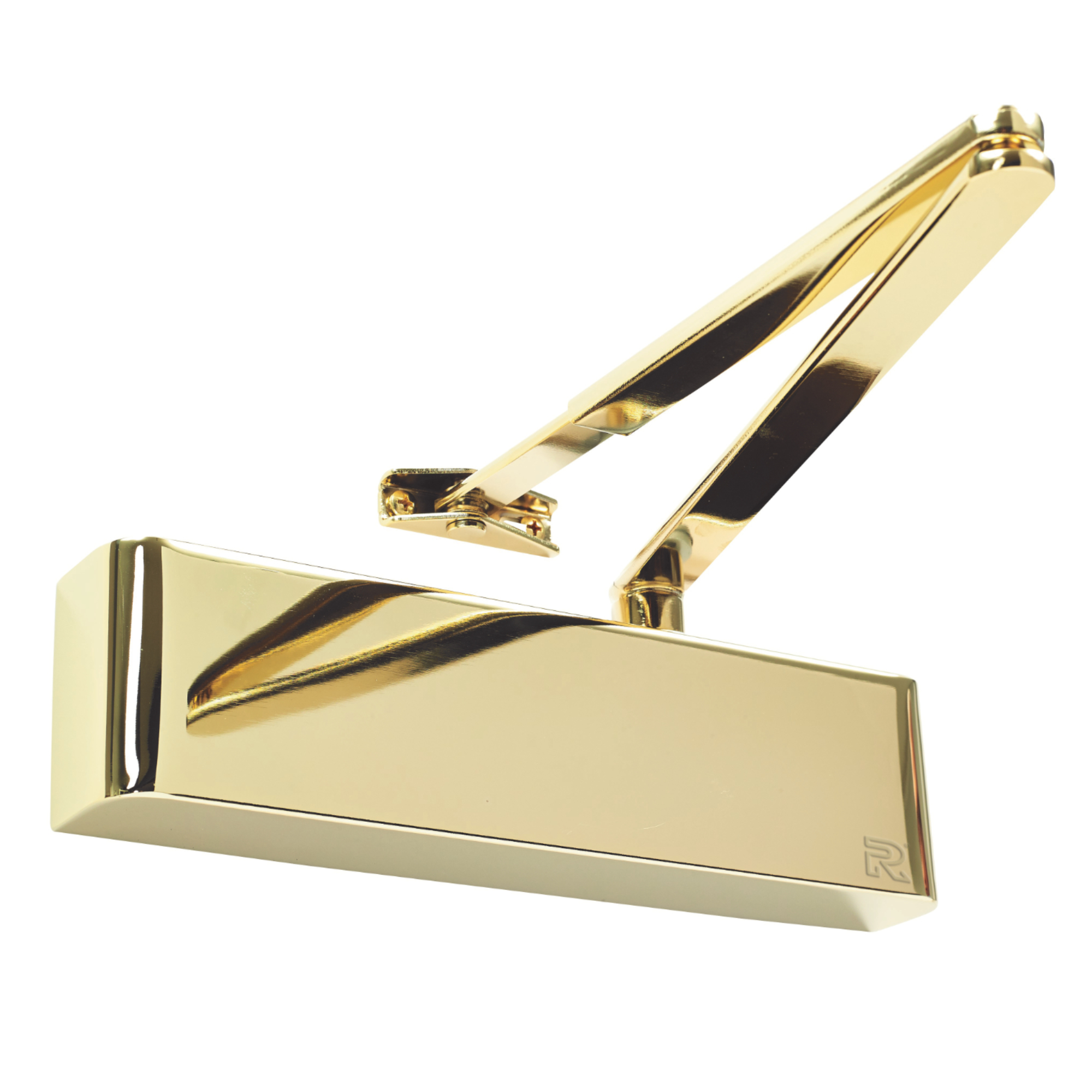

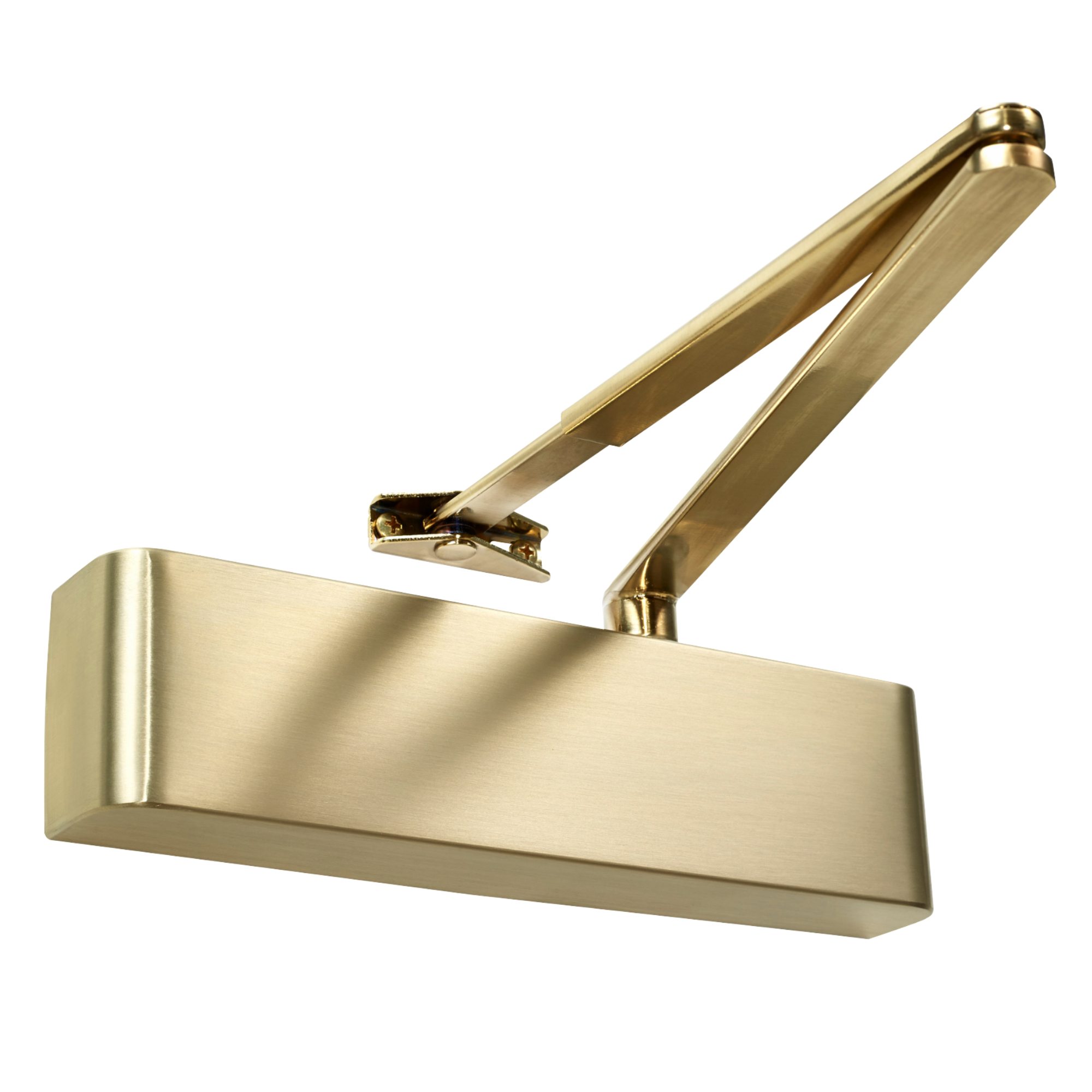

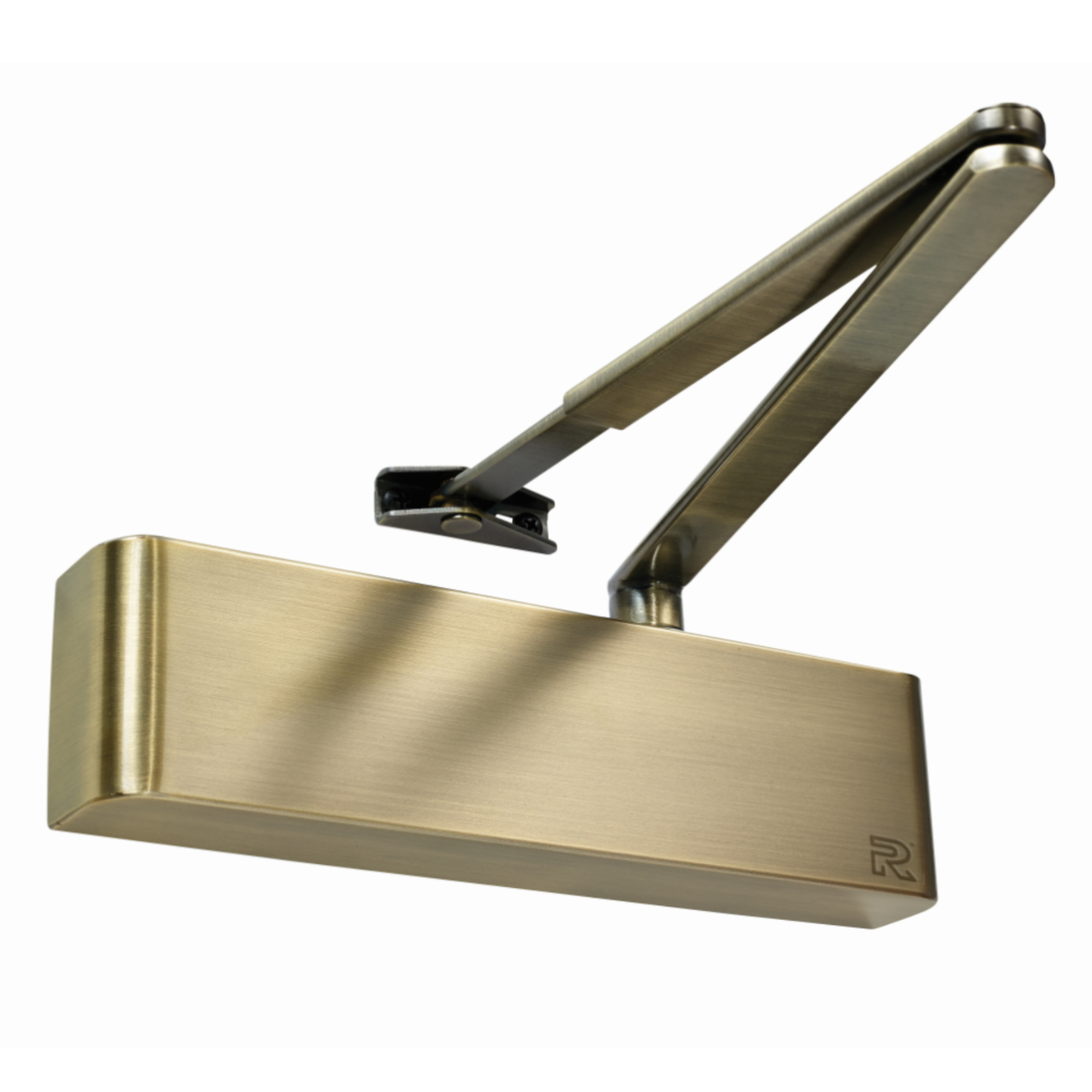

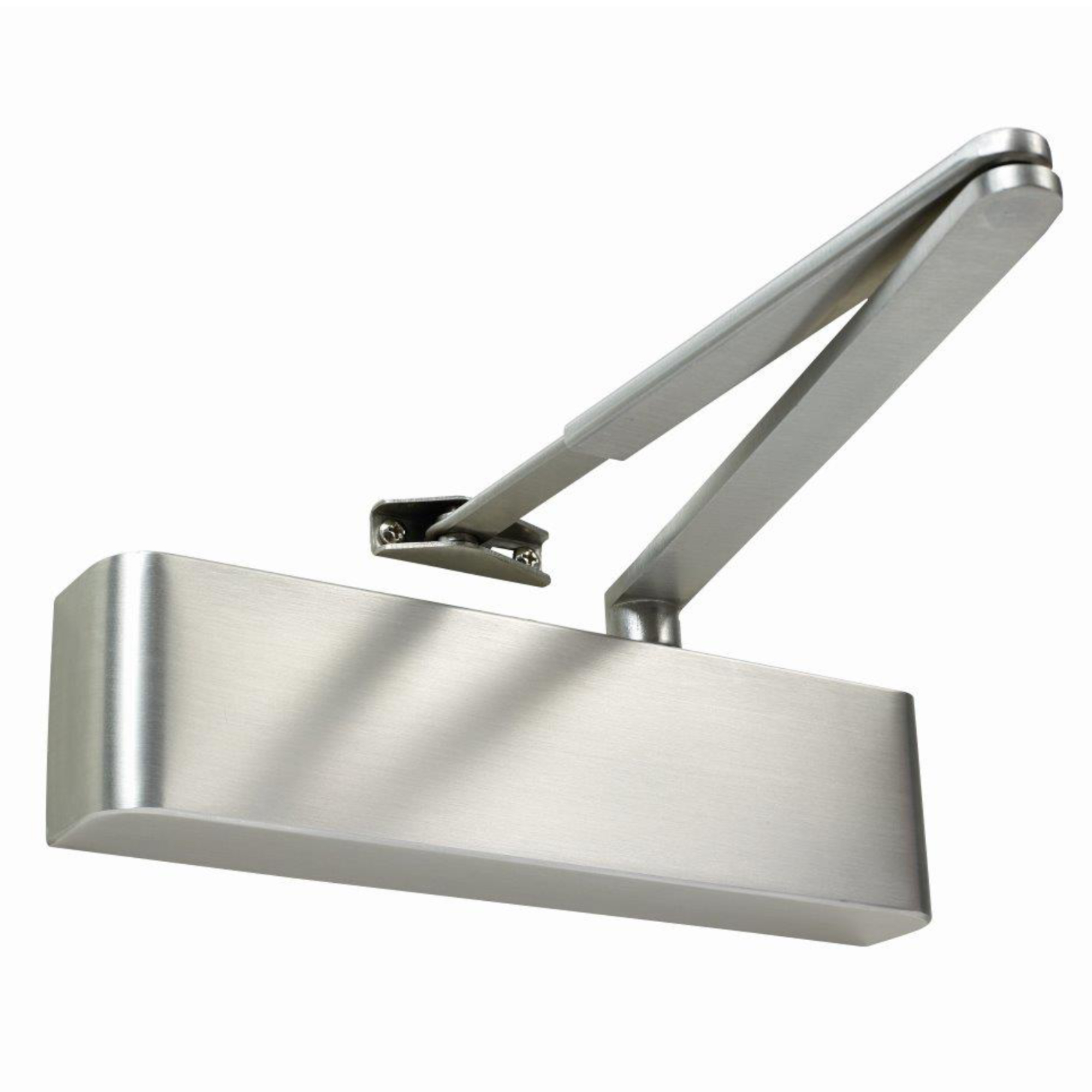

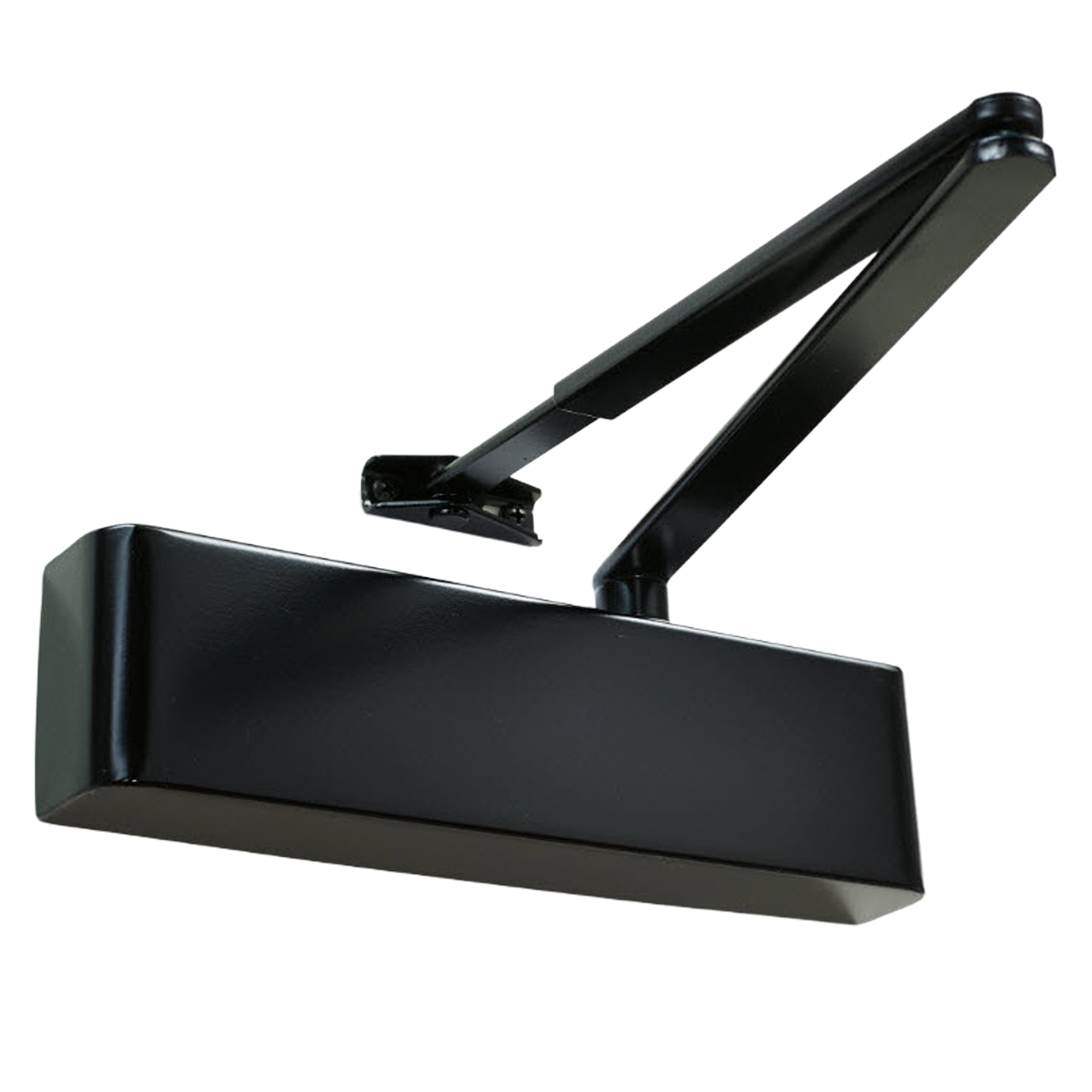

- Available in 9 finishes – Silver, Black, Satin Nickel, Satin Brass, Satin Stainless Steel, Polished Nickel, Polished Brass, Polished Stainless Steel, & Antique Brass
Customer Reviews (0)
Reviews by Real Customers
To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.
No Reviews Available
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data
| Product Code | RUT9205DABCS |
|---|---|
| Brand | Rutland |
| Manufacturer's Part Number | TS.9205DABC.SRFB.SESE |
| Approvals & Markings | CE Marked |
| UKCA Marked | |
| Back Check | Adjustable |
| Closing Speed | Adjustable |
| Compliance | BS EN 1154: 1997 |
| BS EN 1634 | |
| Delayed Action | Yes |
| Door Type | Single Door |
| EN Classification | 4 | 8 | 2-5 | 1 | 1 | 3 |
| Equipment Type | Overhead Door Closer |

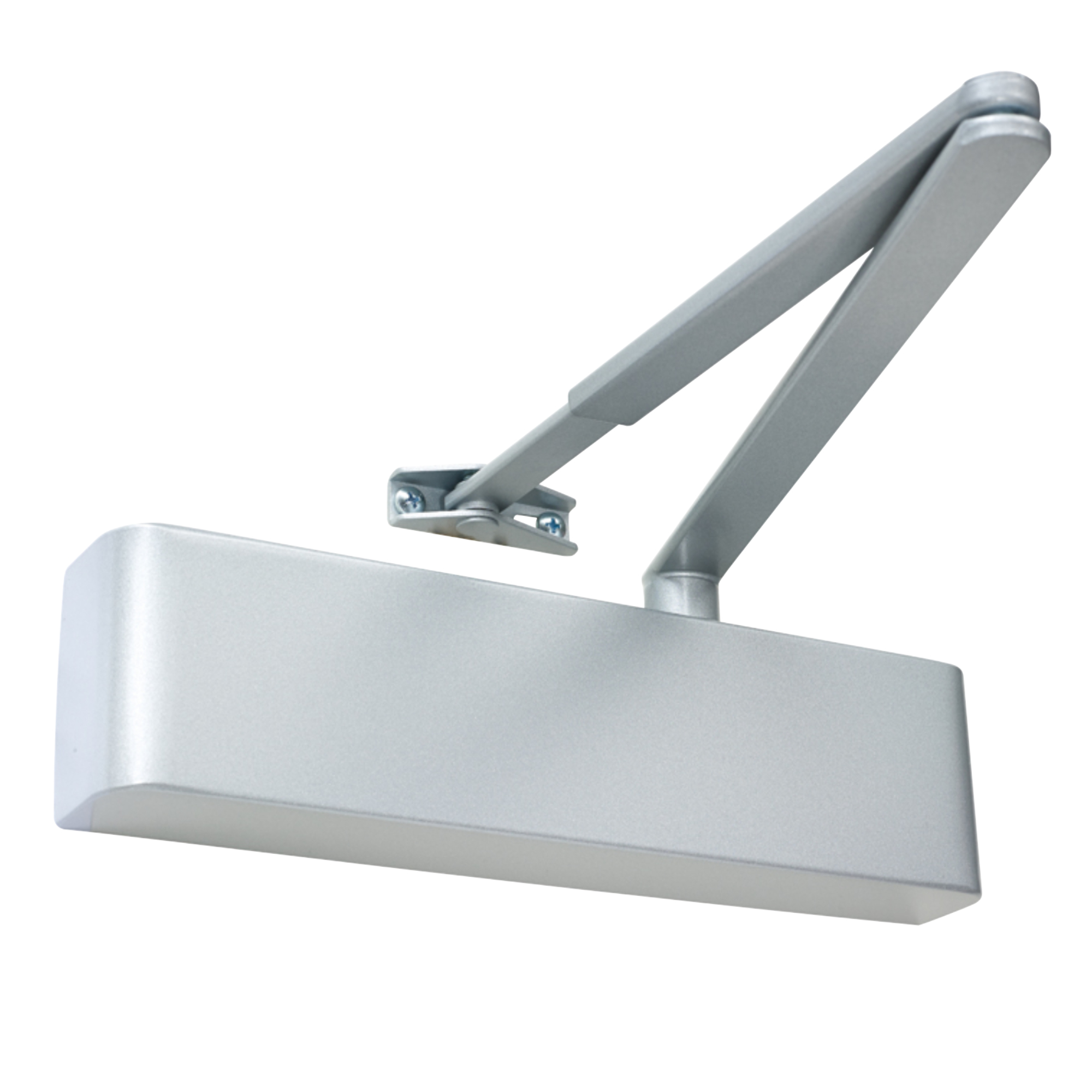

| Finish | Silver |
| Fire Rating | 120 Minutes |
| Installation Position | Fig 1 |
| Fig 61 | |
| Fig 66 | |
| Top Of Door | |
| Latching Action | Adjustable |
| Material | Metal |
| Maximum Door Weight | 100kg |
| Maximum Door Width | 1250mm |
| Opening Angle | 180° |
| Power Size | EN 2 - 5 |
| Suitability | Up To FD120 |
| Warranty | 35 Years |
| Dimensions (Unit) |
|
| Weight | 3.03kg |
