Rutland TS3204 Overhead Door Closer - EN 3-4

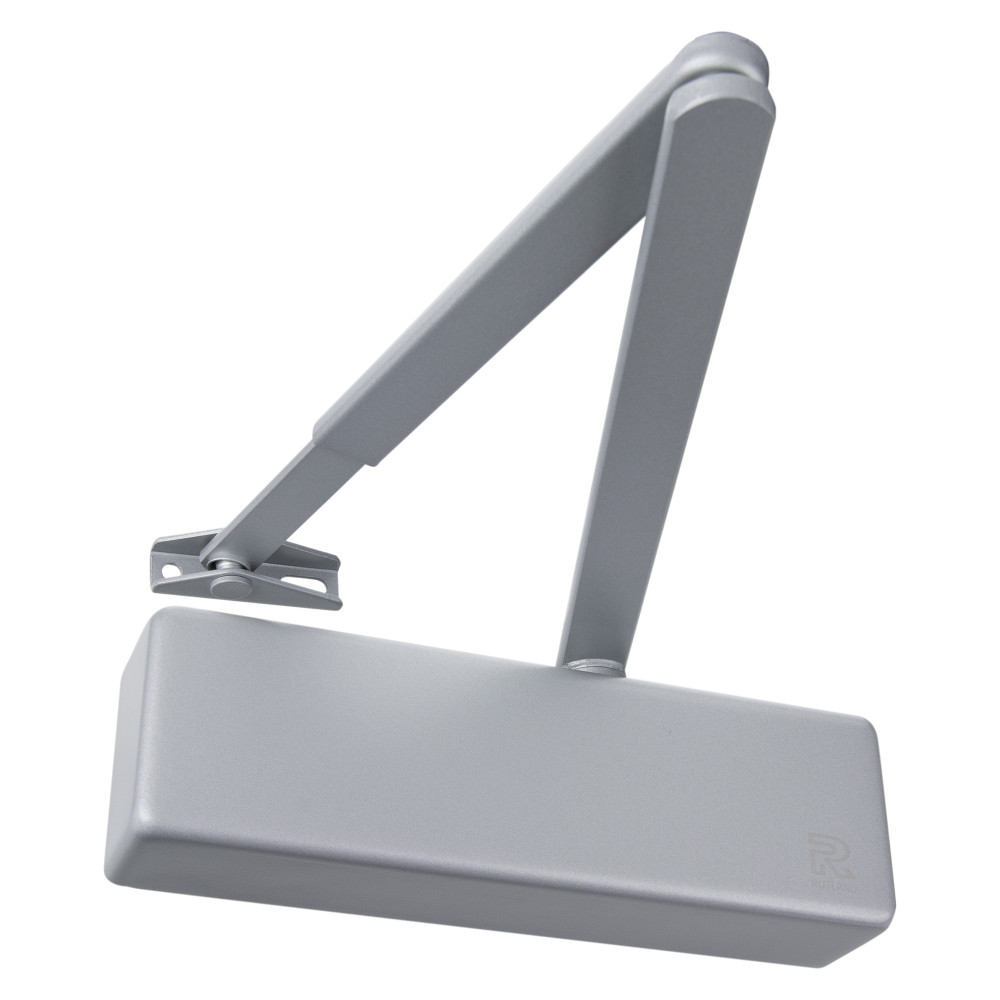

Silver rutland door closer with a square body and attached arm shown against a white background

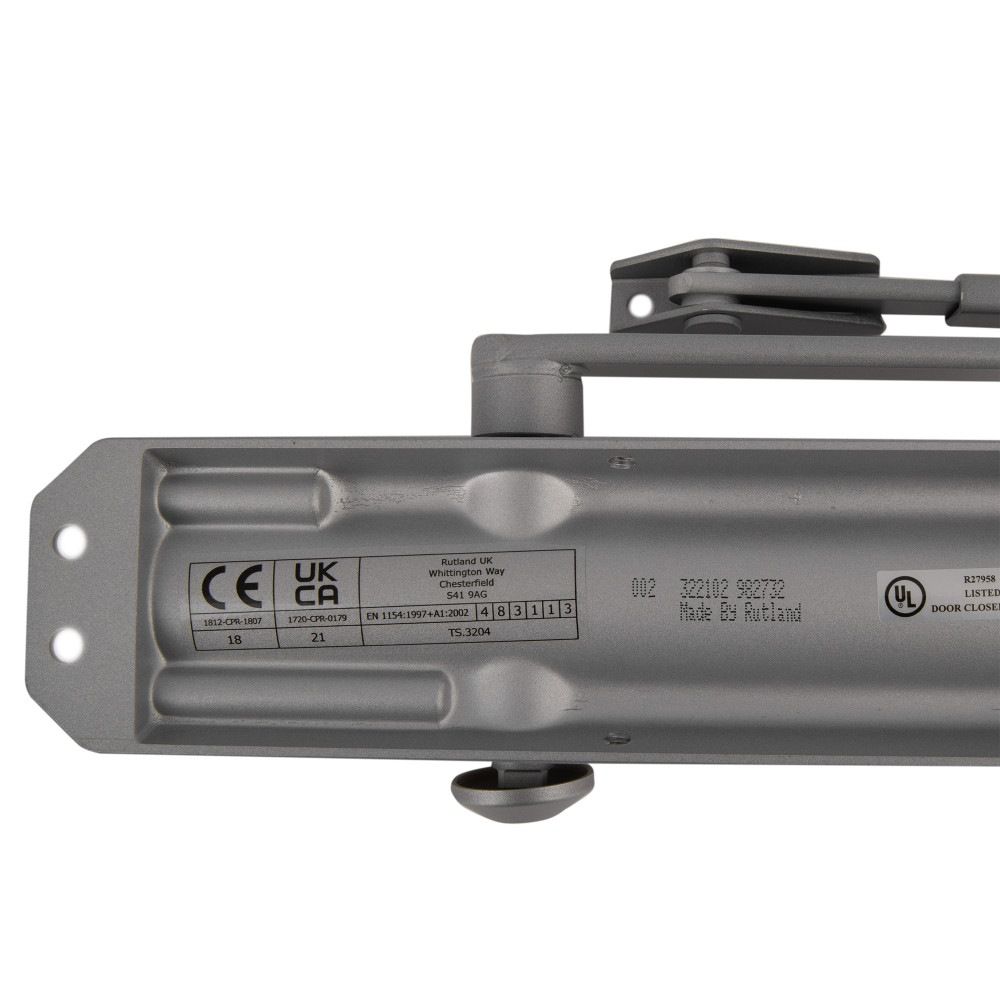

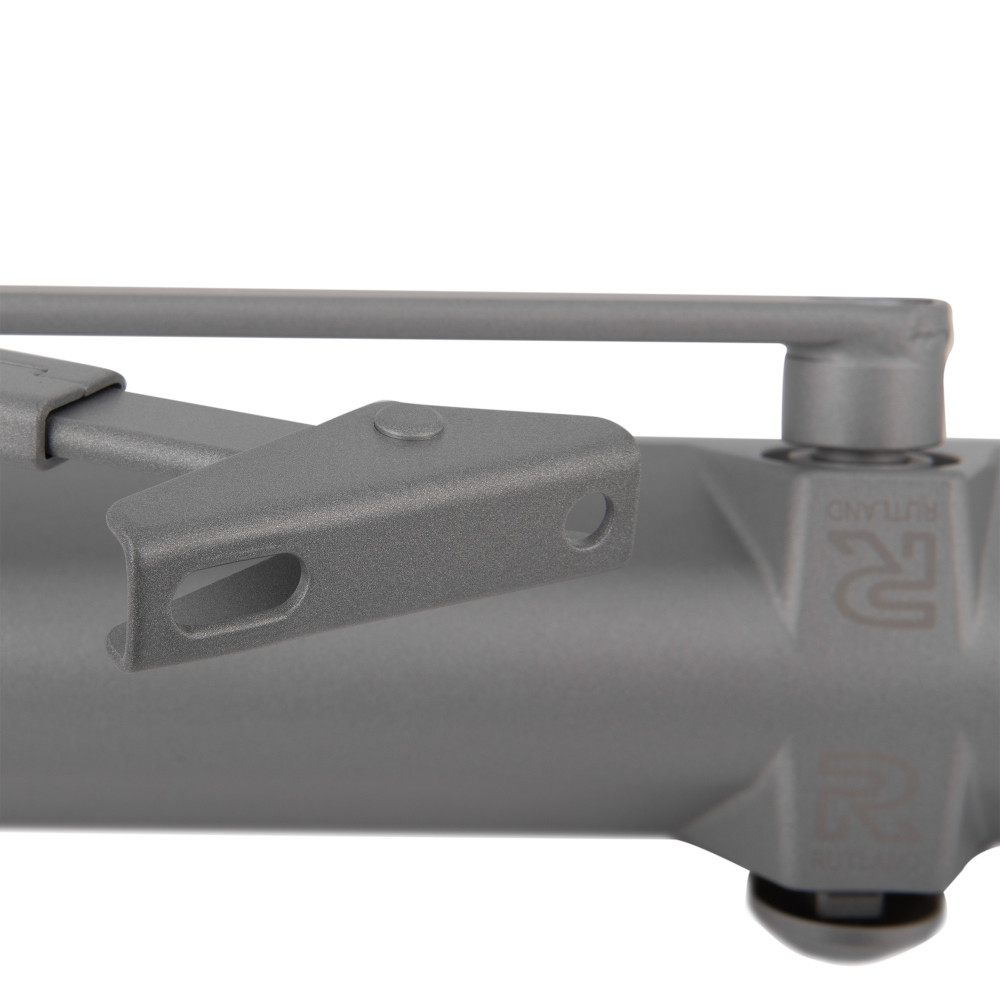

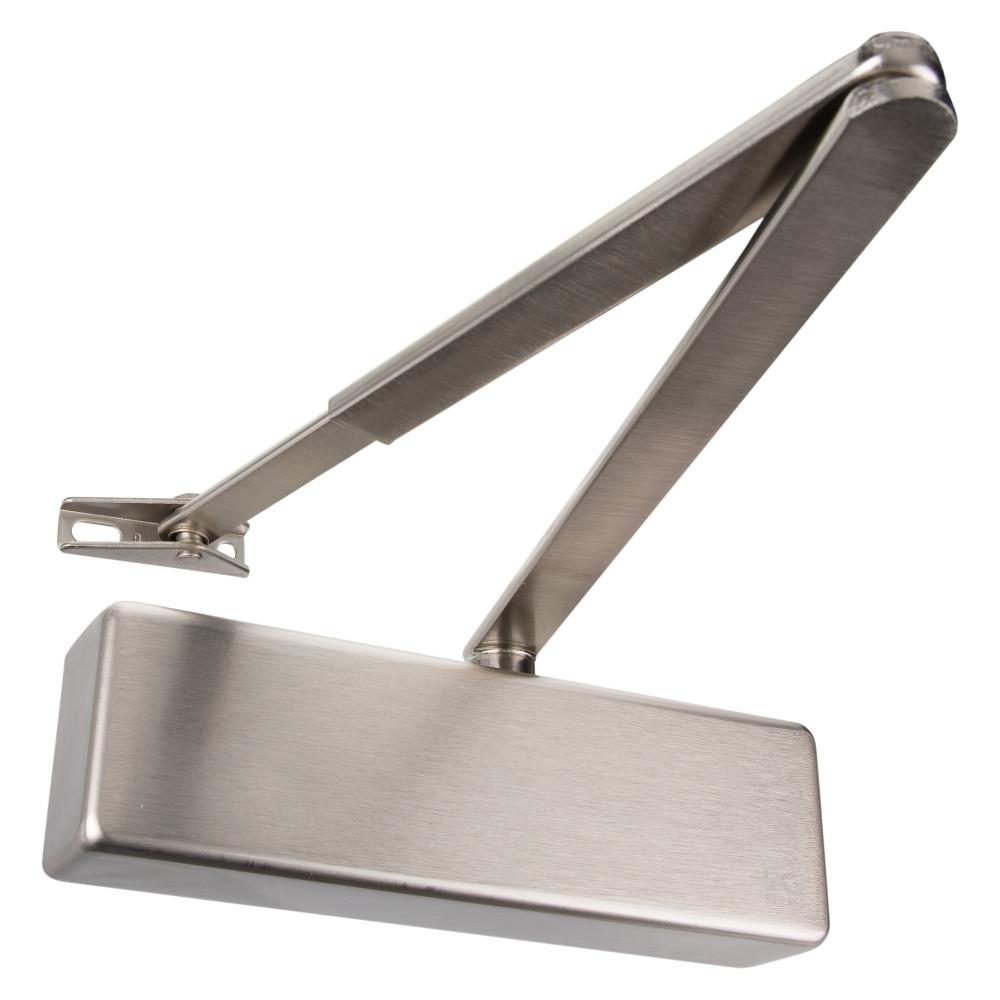

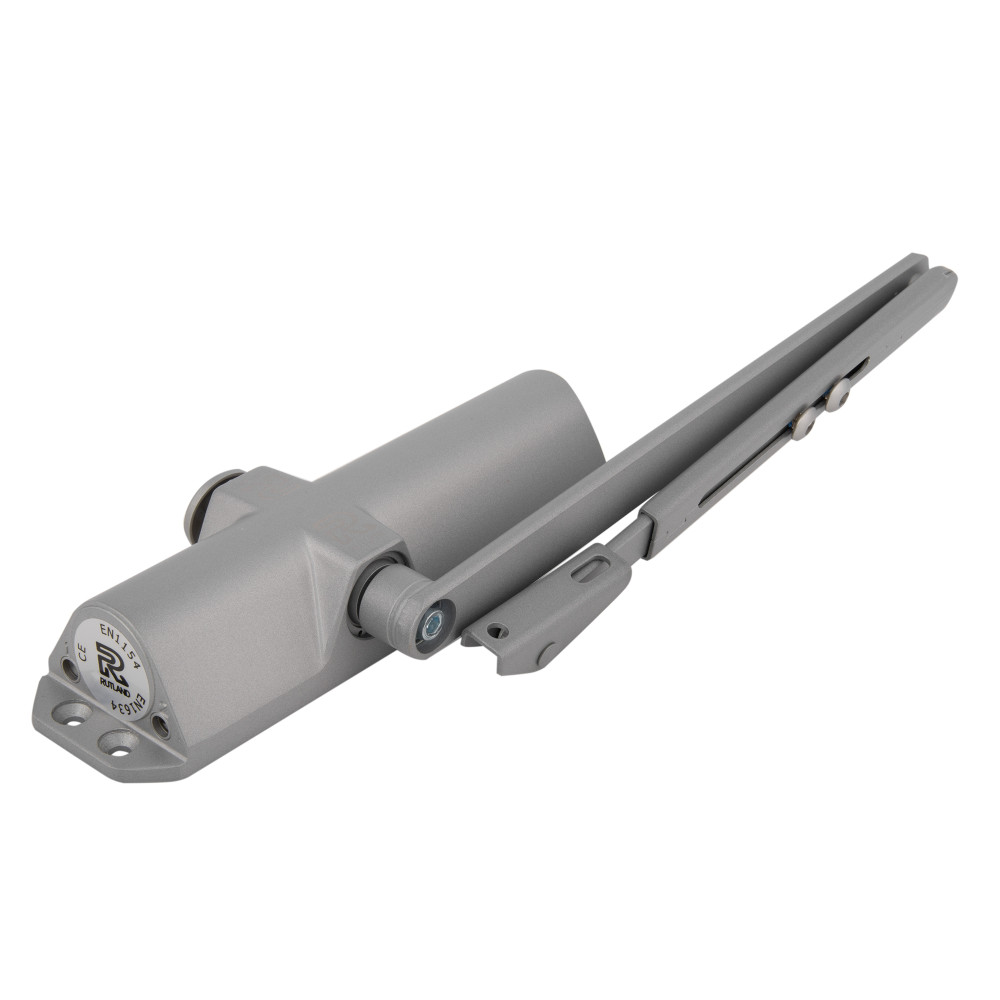

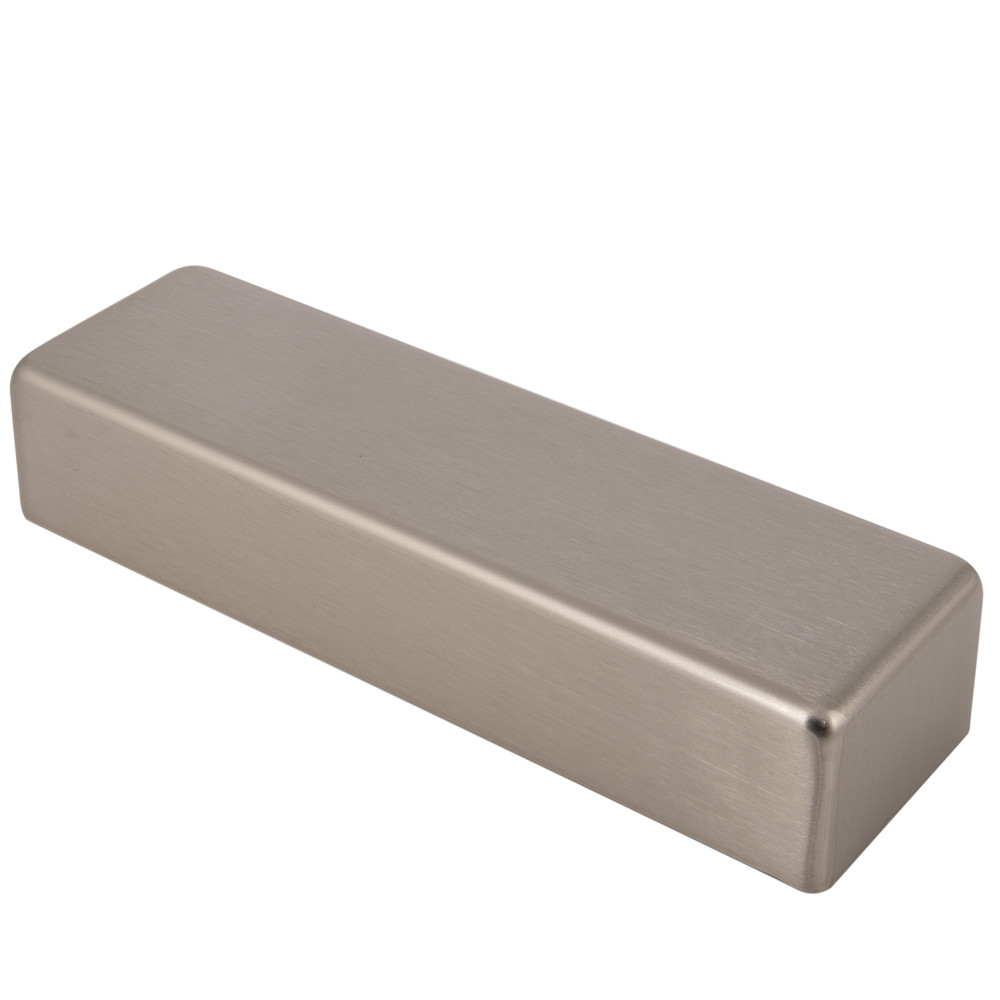

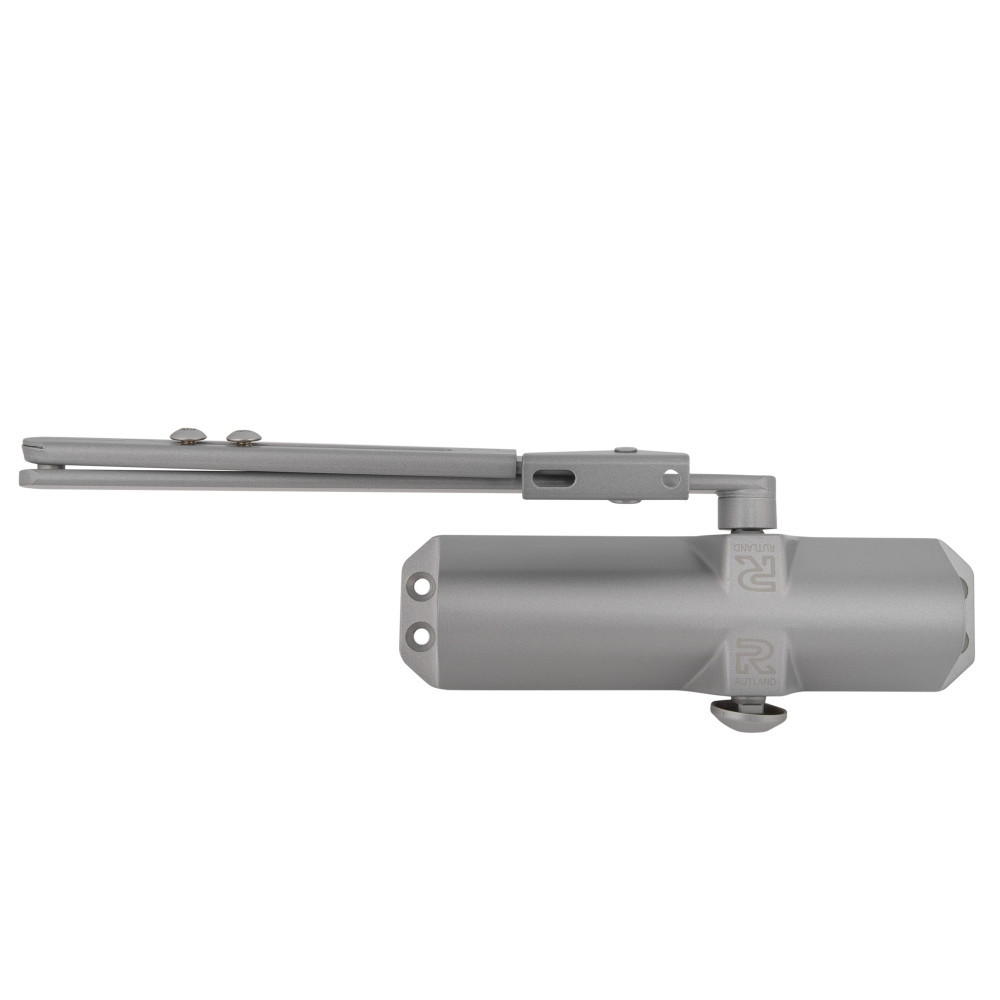

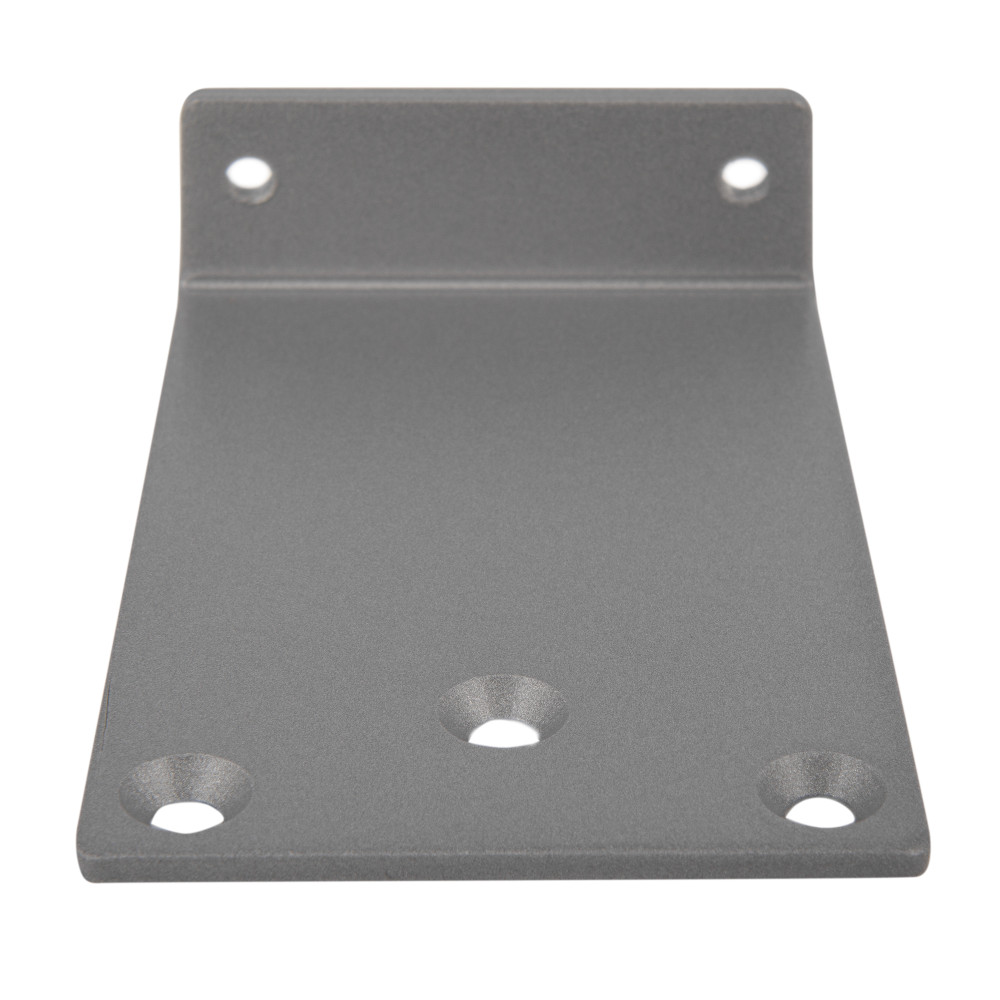

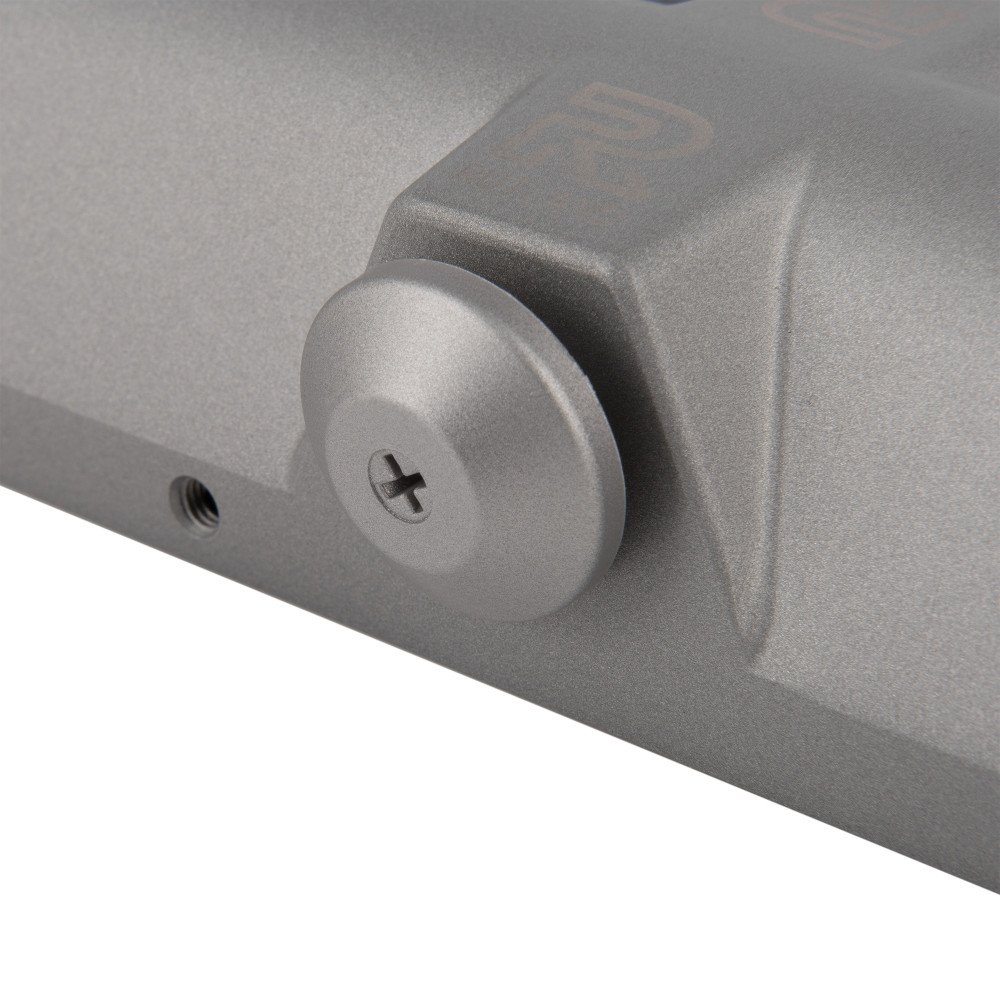

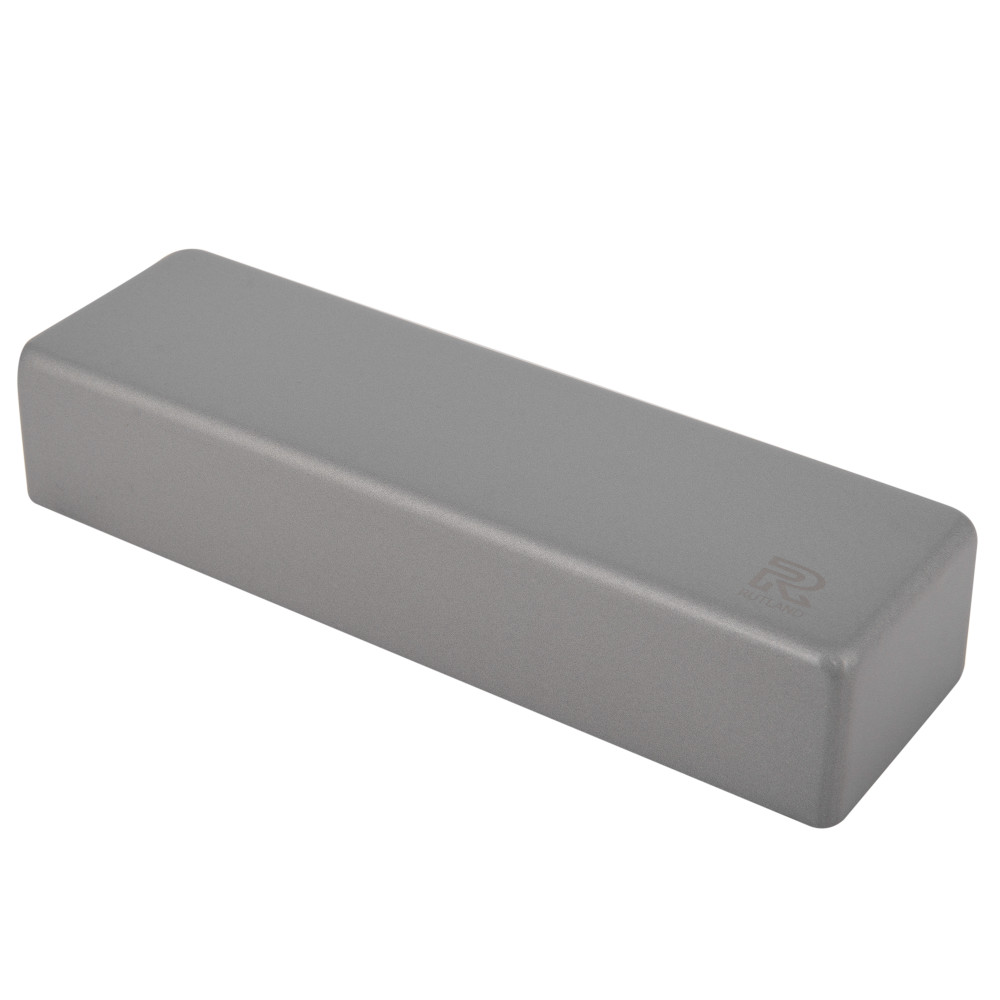

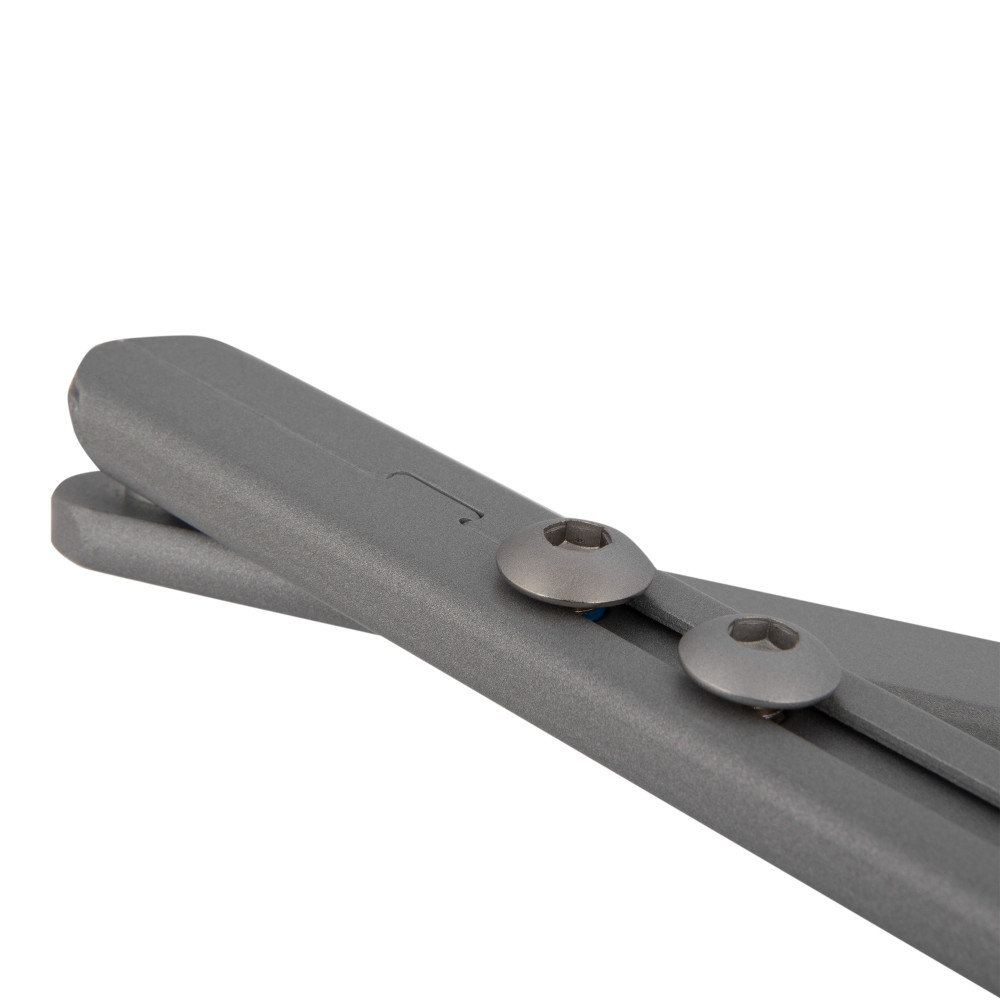

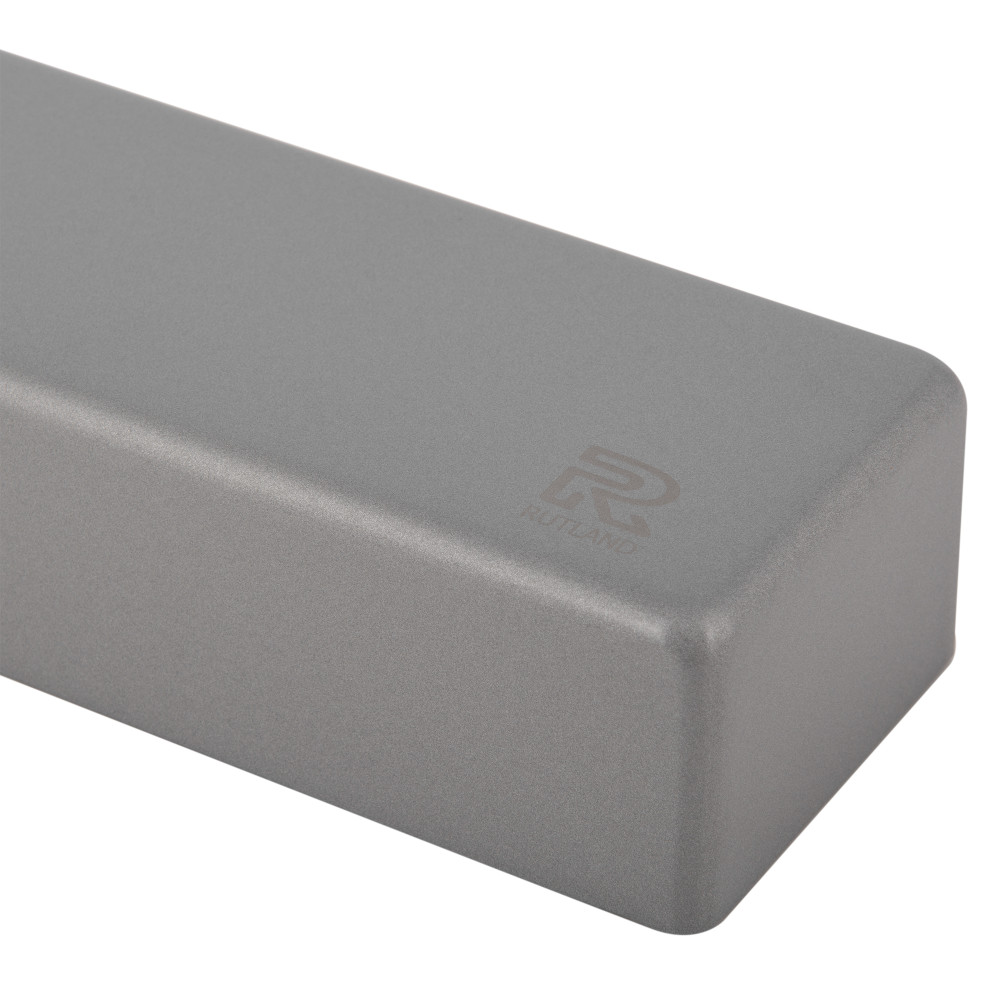

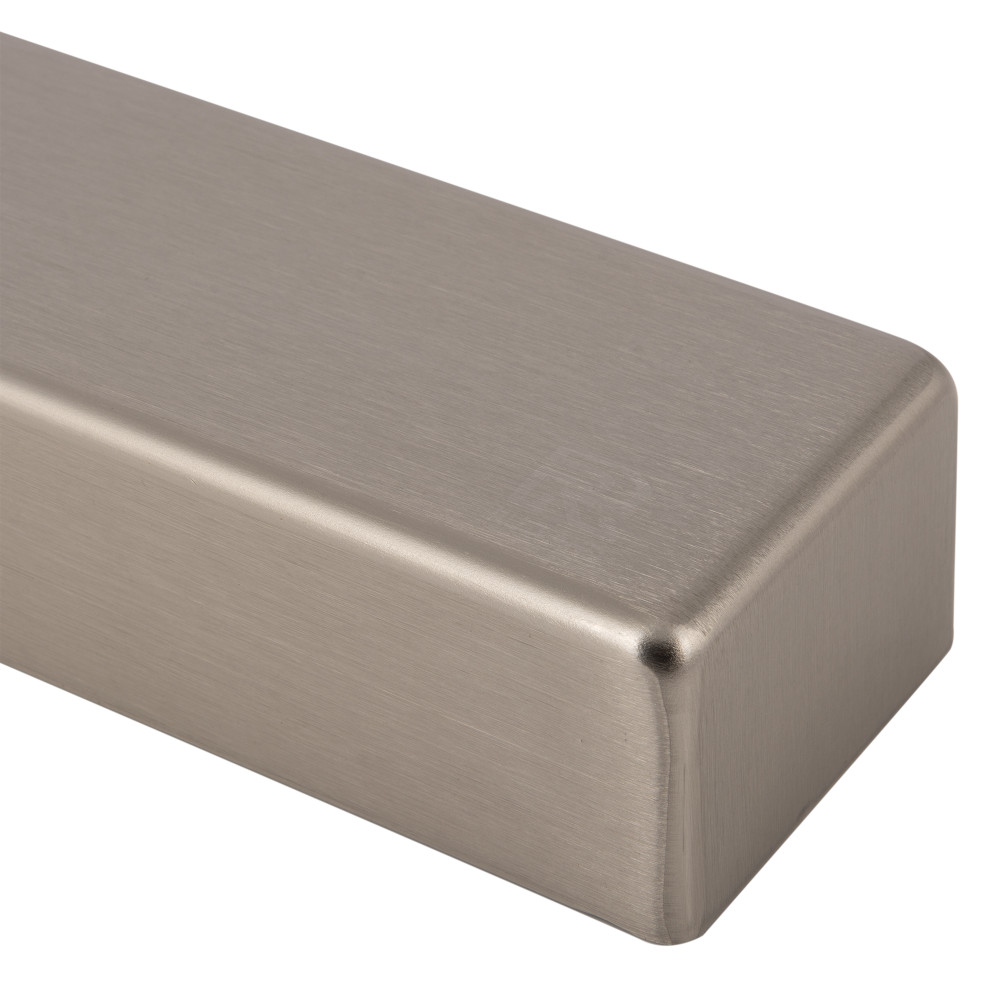

Silver rutland door closer with a square body and attached arm shown against a white background Angled view of a silver Rutland overhead door closer showing its main body and extended arm mechanism Close-up view of the back of a silver rutland overhead door closer showing the label and arm mechanism Silver bracket for rutland overhead door closer with five holes for fixing shown from a front angle Closeup of the adjuster on a Rutland overhead door closer silver showing the screw and part of the casing Closeup of the arm bracket on the Rutland overhead door closer silver showing detail of the metal component Closeup of the arm on a silver rutland overhead door closer showing screws and metal parts front view of rutland overhead door closer silver showing the main body and arm in a silver finish Closeup of the silver cover on a Rutland overhead door closer showing smooth surface and embossed logo Silver rectangular cover part of the rutland overhead door closer viewed at an angle Rutland door closer satin finish with a square body and angled arm in brushed metal effect Angled view of the rutland overhead door closer in satin nickel finish showing the arm and body of the closer Back view of rutland overhead door closer in satin nickel finish showing product label and arm mechanism Bracket part of rutland overhead door closer satin nickel in matte grey finish with five mounting holes visible Closeup of the adjuster on a Rutland overhead door closer in satin nickel finish Closeup of the arm bracket on a rutland overhead door closer satin nickel in grey metal finish Closeup of the arm on a Rutland overhead door closer in satin nickel finish Front view of rutland overhead door closer in satin nickel finish showing the main body and arm mechanism Closeup of the satin nickel cover of the rutland overhead door closer showing its smooth metal surface Rutland overhead door closer satin nickel rectangular cover with a smooth brushed finish
Customer Reviews

17 In Stock

For dispatch today order within
12 Hrs 49 Mins

£33.59 inc VAT

£27.99 ex VAT

Standard Delivery

Will usually be delivered in 2-3 working days

£5.40 inc VAT

Next Day Delivery

Will usually be delivered the next working day

£8.50 inc VAT

The Rutland TS3204 overhead door closer is designed for doors up to 1100mm wide and 80kg in weight. Offering EN power size 3–4 performance, it can be mounted in Fig 1 or Fig 66 configurations to suit a variety of installation requirements. Supplied with a fitting template, the closer ensures accurate installation aligned with the specified power size. Available in silver and satin nickel finishes.

  • Suitable for:
    • Suitable for single action internal doors
    • For doors up to 1100mm wide / 80kg –
    • Installation in
  • Adjustable closing speed, controls how fast the door closes
  • Latching action, allows you to change the speed the door closes during the last 15° of the closing cycle
  • Certified approved for fire rated timber doors from 30 minutes up to 120 minutes - CF 6018
  • CE and UKCA marked
  • Quick and easy installation with handy template
  • 25 Year Warranty
  • Full classification
    • Fig 1 installation: 3 | 8 | 4 | 1 | 1 | 3
    • Fig 66 installation: 4 | 8 | 3 | 1 | 1 | 3
Customer Reviews

Customer Reviews (0)

Rating Not Available

Reviews by Real Customers

To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.

No Reviews Available

No reviews have been written for this product yet.

If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.

Review this product now
FAQs

There are no FAQs to display for the selected item.

Technical Data

Technical Data

Product Code RUT3204S
Brand Rutland
Closing Speed Adjustable
Compliance BS EN 1634
Certifire - CF6018
Approvals & Markings CE Marked
Door Type Single Door
EN Classification 3 | 8 | 3-4 | 1 | 1 | 3 (Fig 1 Only)
Finish Silver
Fire Rating 120 Minutes
Installation Position Fig 1
Fig 66
Top Of Door
Latching Action Adjustable
Material Metal
Maximum Door Width 1100mm
Maximum Door Weight 80kg
Opening Angle 180°
Power Size EN 3 - 4
Suitability Up To FD120
Warranty 25 Years
Dimensions (Unit)
  • Height: 68mm
  • Width: 224mm
  • Depth: 44mm
Weight 2.30kg
