Rutland Responder 24 Electromagnetic Door Closer
The Rutland Responder 24 is a versatile electromagnetic door closer designed to improve life safety while providing convenient day-to-day access. Offering both hold-open and swing-free modes, it allows for areas where fire doors need to remain accessible while ensuring automatic closure upon fire alarm activation. The universal fitting design allows installation on left or right-handed doors, push or pull side, reducing stock requirements and simplifying specification.
- Ideal for care homes, hospitals, education settings, offices, and other high-traffic buildings
- Suitable for:
- Single action internal doors
- Doors up to 1100mm wide and 80kg – EN size 2 - 4
- Installation in Fig 1, 61, and 66 configurations
- Adjustable closing speed and latch action for controlled door closing
- Electromagnetic door closer with hold-open and swing-free functionality
- Suitable for 60-minute timber fire doors
- 24V DC input voltage – the closer should be wired into the fire alarm system by a qualified electrician
- Automatically releases and closes the fire door when connected fire alarms are activated
- Integrated backcheck helps prevent damage caused by forceful opening
- Opening angle up to 150° for improved accessibility
- Fire tested to EN 1634-1 and certified to EN 1154 and EN 1155 standards
- CE and UKCA Marked

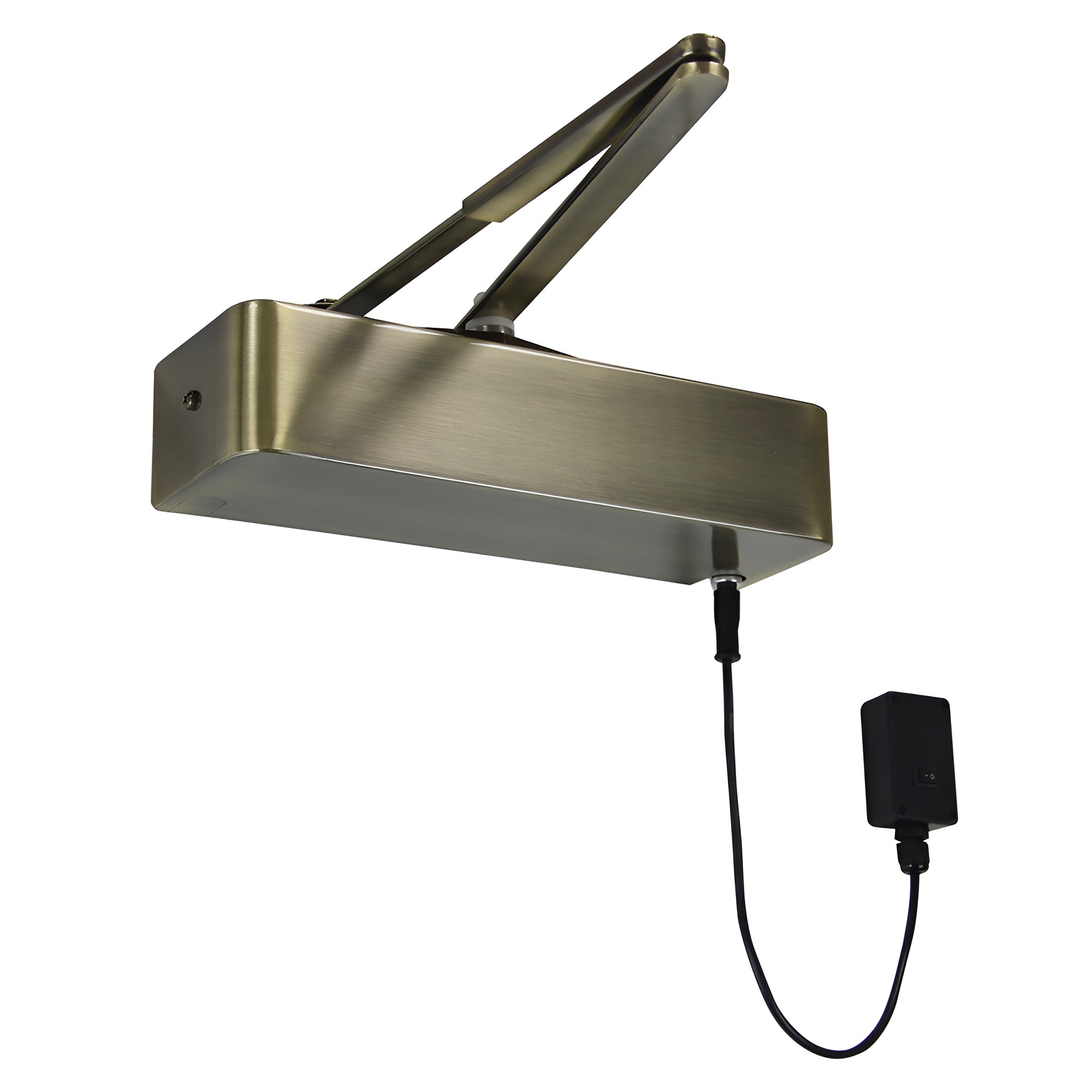

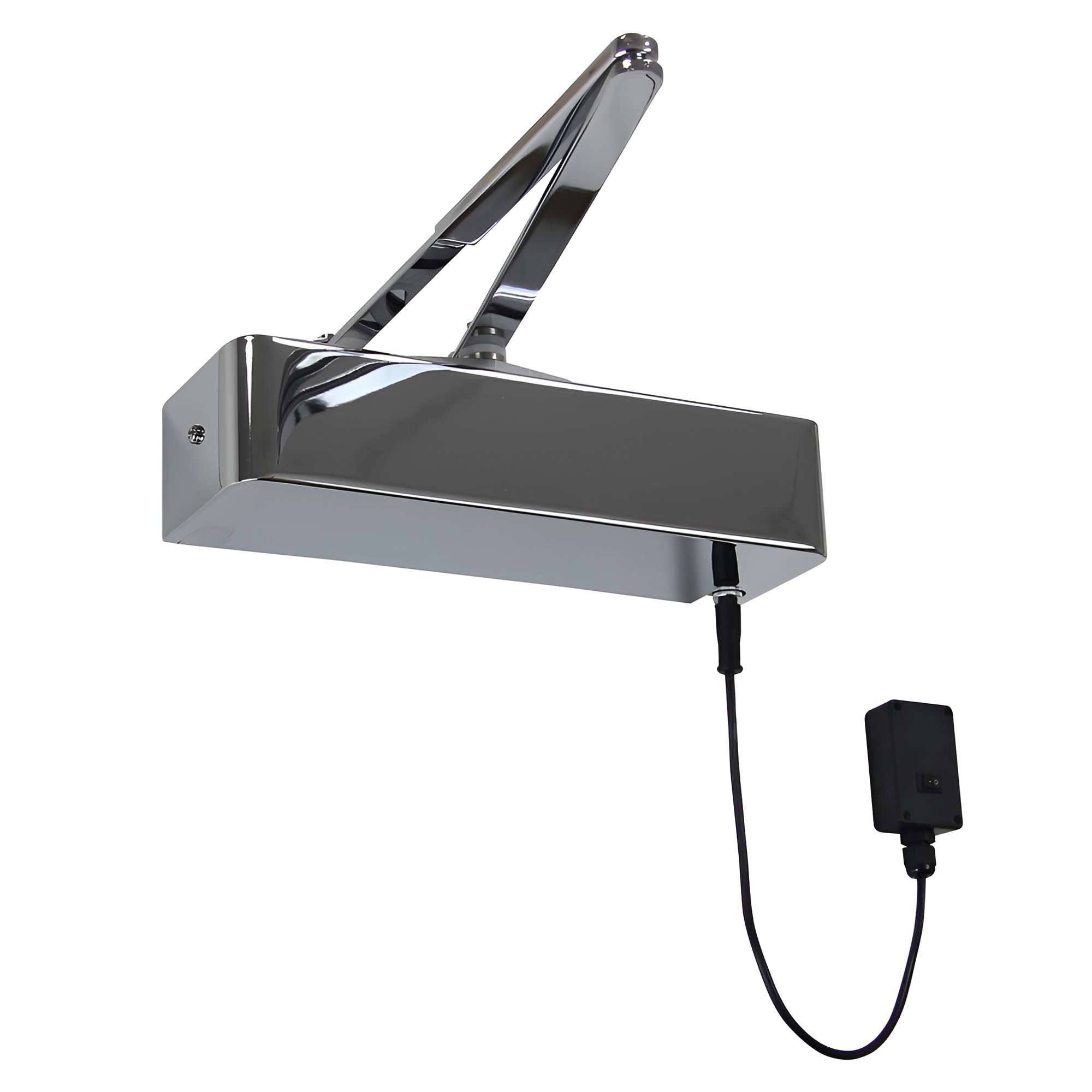

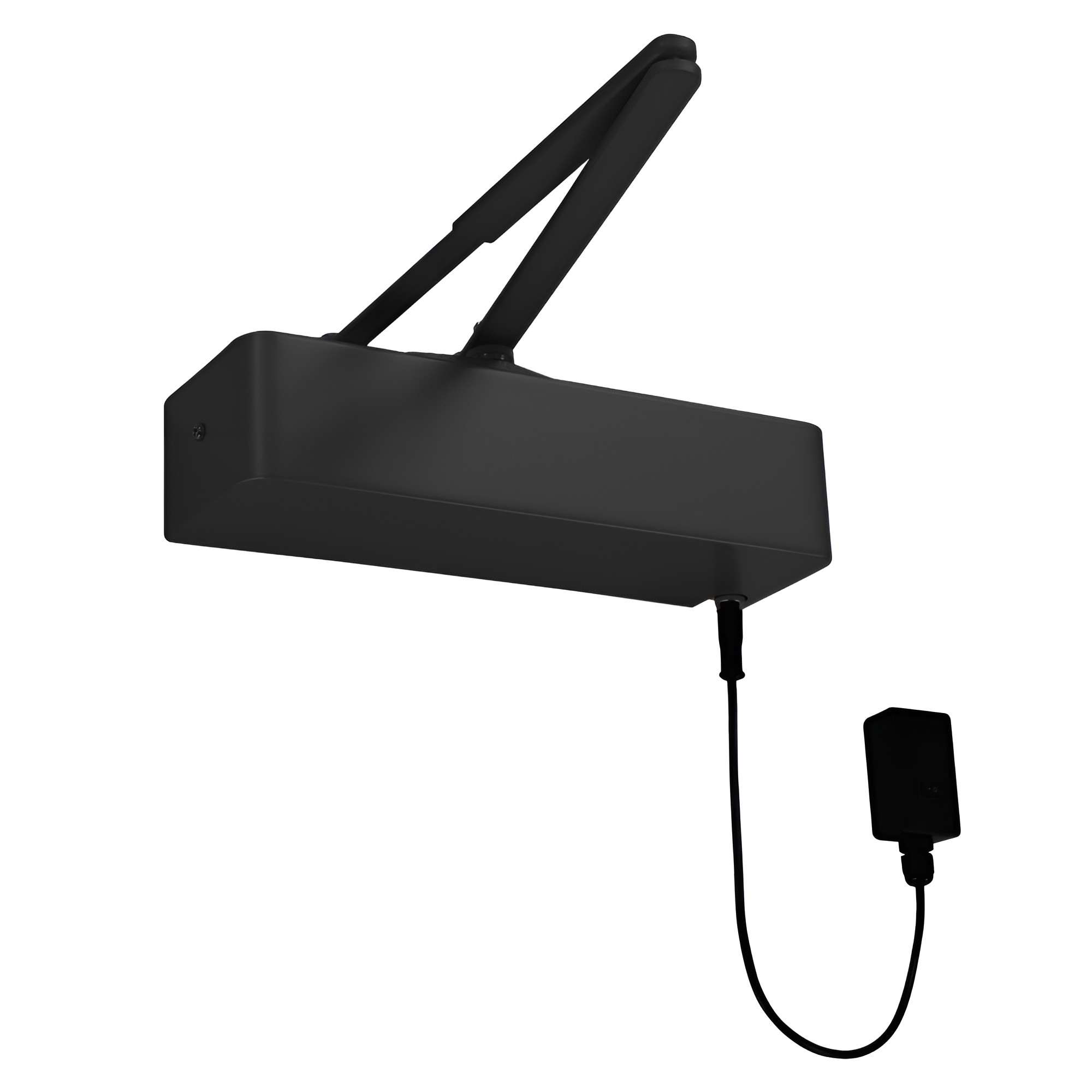

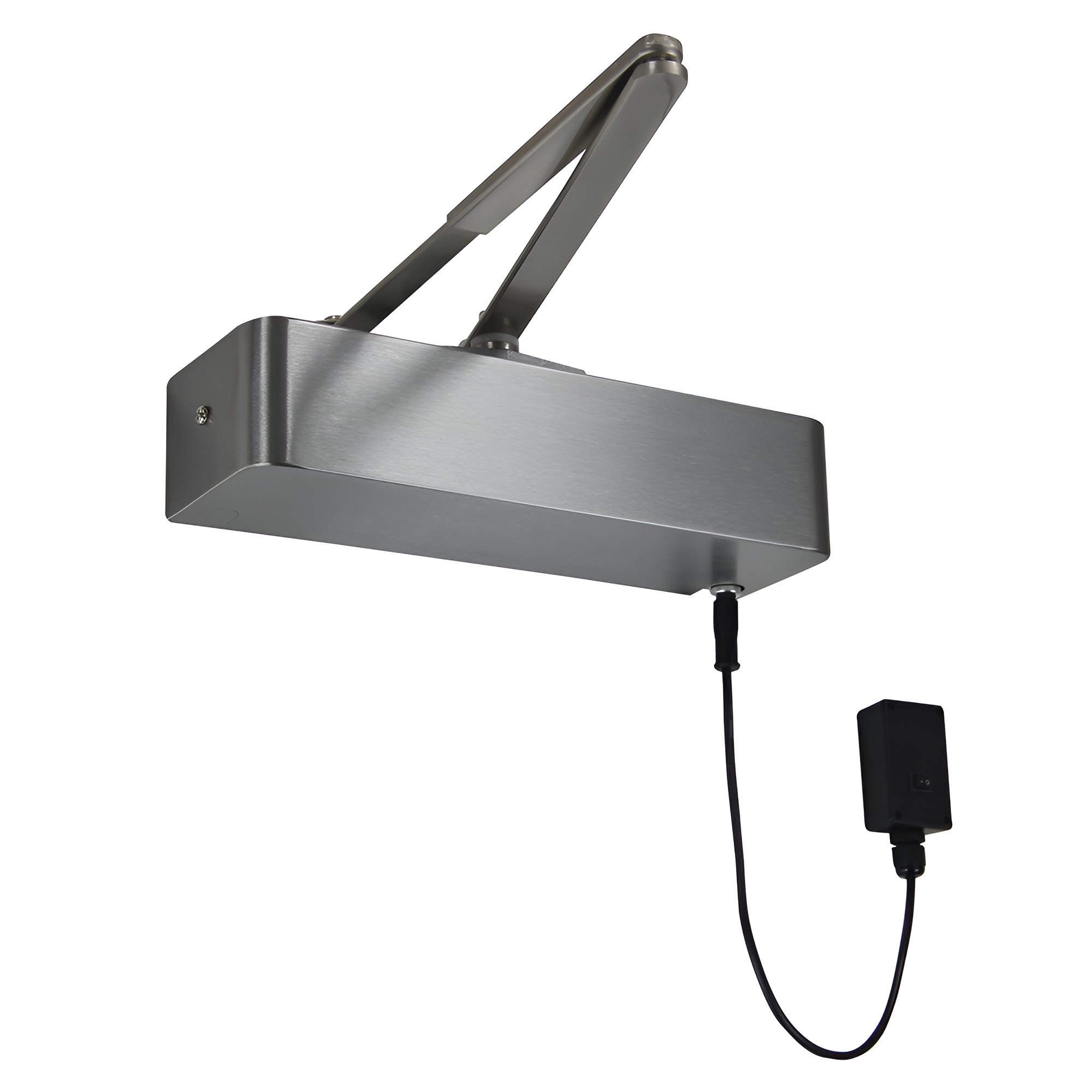

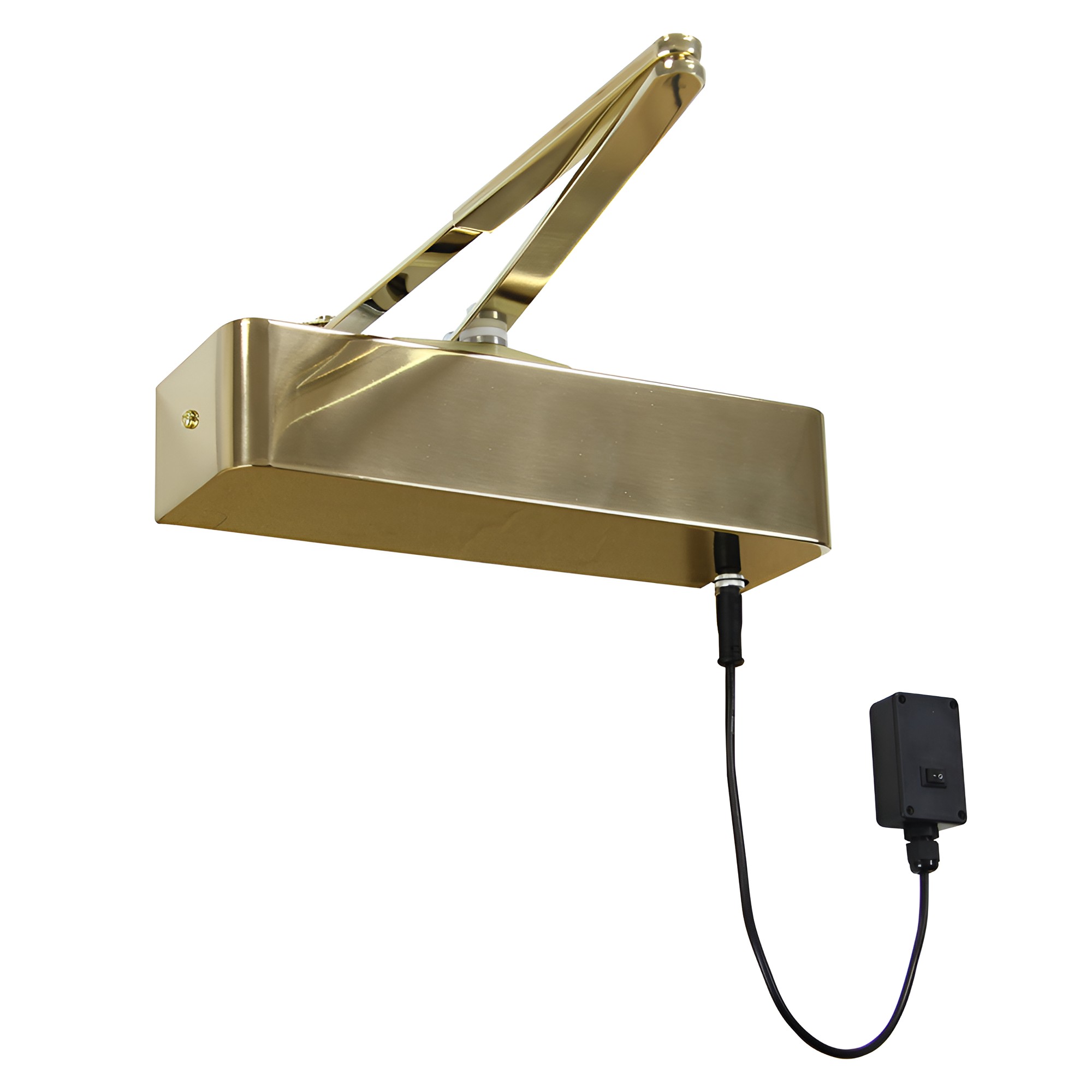

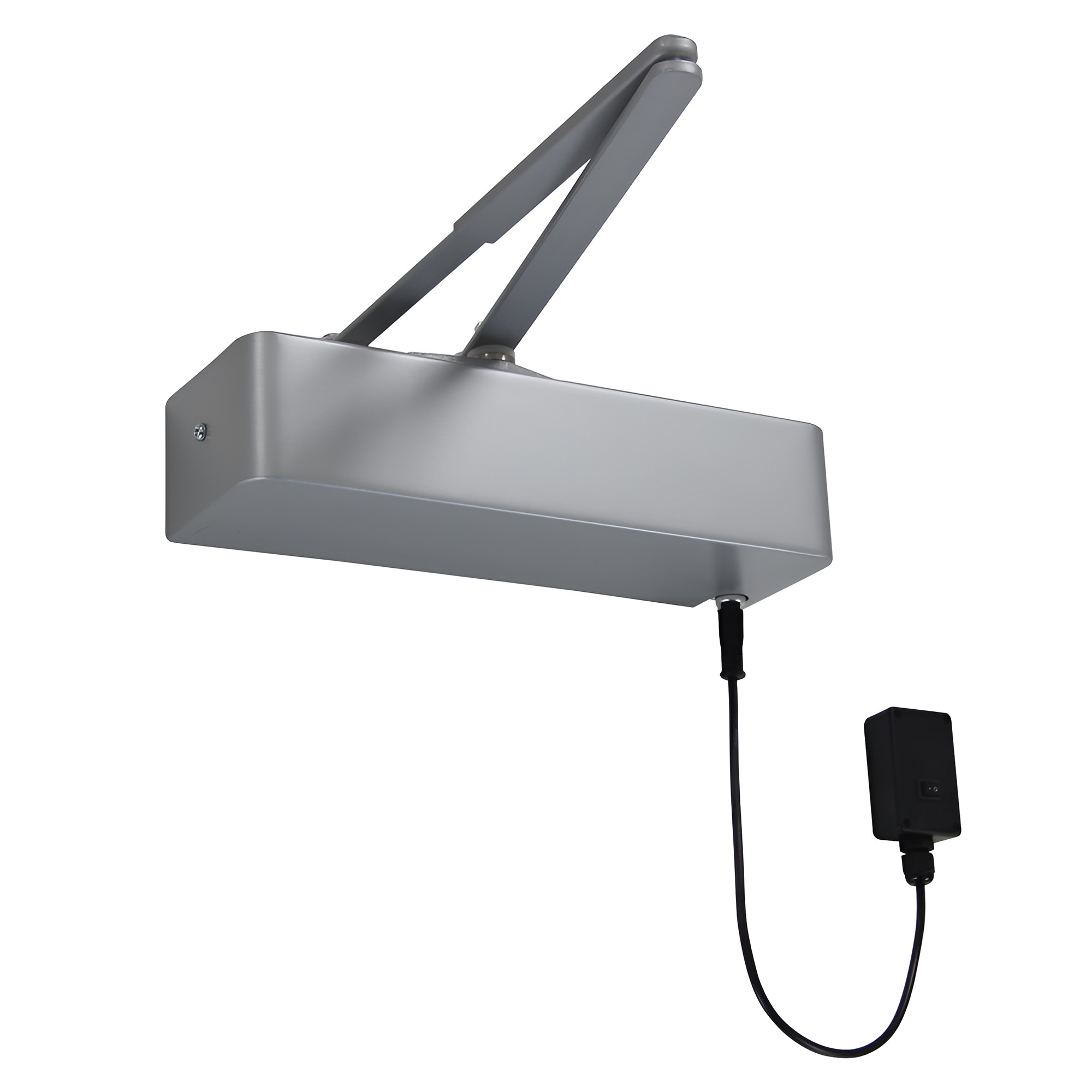

- Available in 6 different finishes – Silver, Black, Satin Nickel, Polished Nickel, Polished Brass, & Antique Brass
- 5 Year Warranty
Customer Reviews (0)
Reviews by Real Customers
To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.
No Reviews Available
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data
| Product Code | RUT24EHDC |
|---|---|
| Brand | Rutland |
| Manufacturer's Part Number | ETS.18314.SE |
| Approvals & Markings | CE Marked |
| UKCA Marked | |
| Closing Speed | Adjustable |
| Compliance | BS EN 1154: 1997 + A1: 2002 |
| BS EN 1155 | |
| EN 1634-1 | |
| Connection | Wired - Fire Alarm Panel |
| Environmental Suitability | Education |
| Healthcare | |
| Transport Hubs | |
| Equipment Type | Hold-Open Door Closer |
| Free-Swing Closer | |
| Feature | Hold Open |
| Finish | Silver |
| Fire Rating | 60 Minutes |
| Installation Position | Fig 1 |
| Fig 61 | |
| Fig 66 | |
| Latching Action | Adjustable |
| Material | Metal |
| Maximum Door Weight | 80kg |
| Maximum Door Width | 1100mm |
| Opening Angle | 150° |
| Power Size | EN 2 - 4 |
| Power Type | 24V DC |
| Suitability | Timber Doors |
| Warranty | 5 Years |
| Dimensions (Unit) |
|
| Weight | 4.52kg |
| Datasheets |
