Perko Powermatic R100 Concealed Fire Door Closer

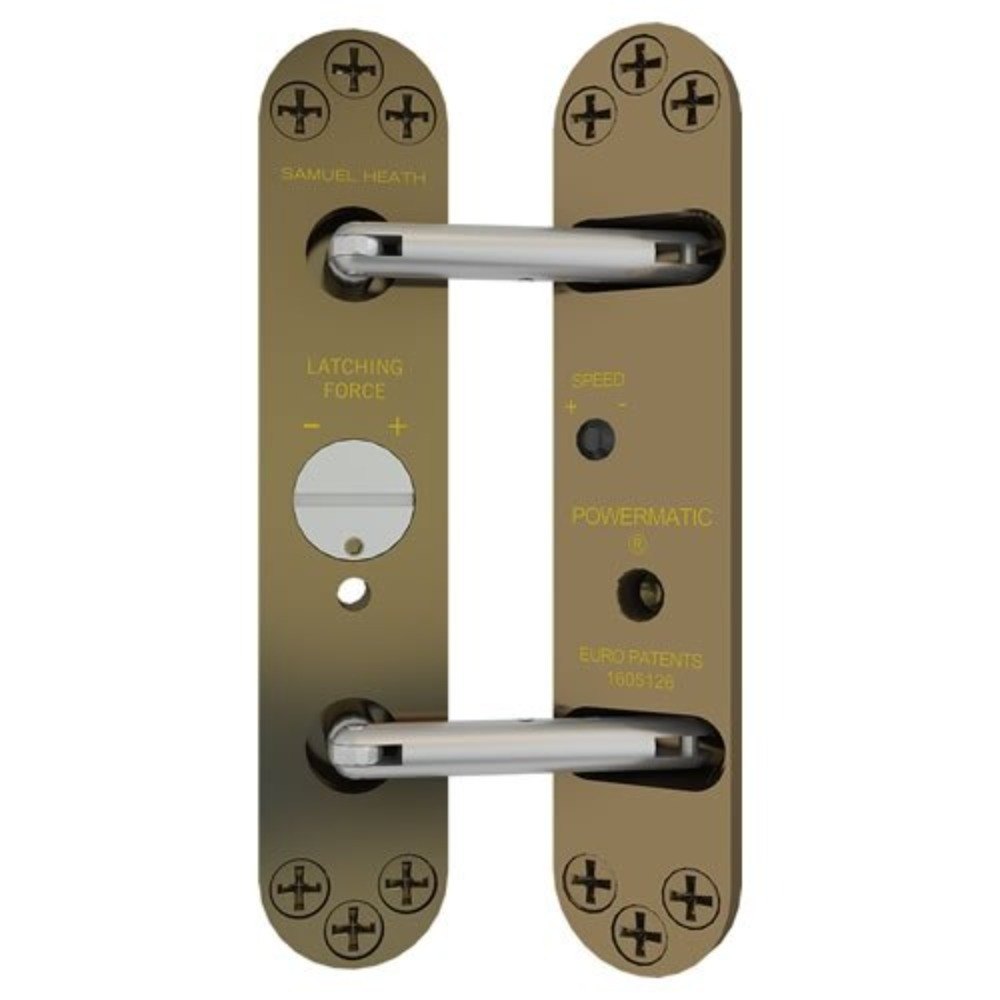

Front view of perko powermatic brass unit showing two connected metal plates with adjustment dials and screws

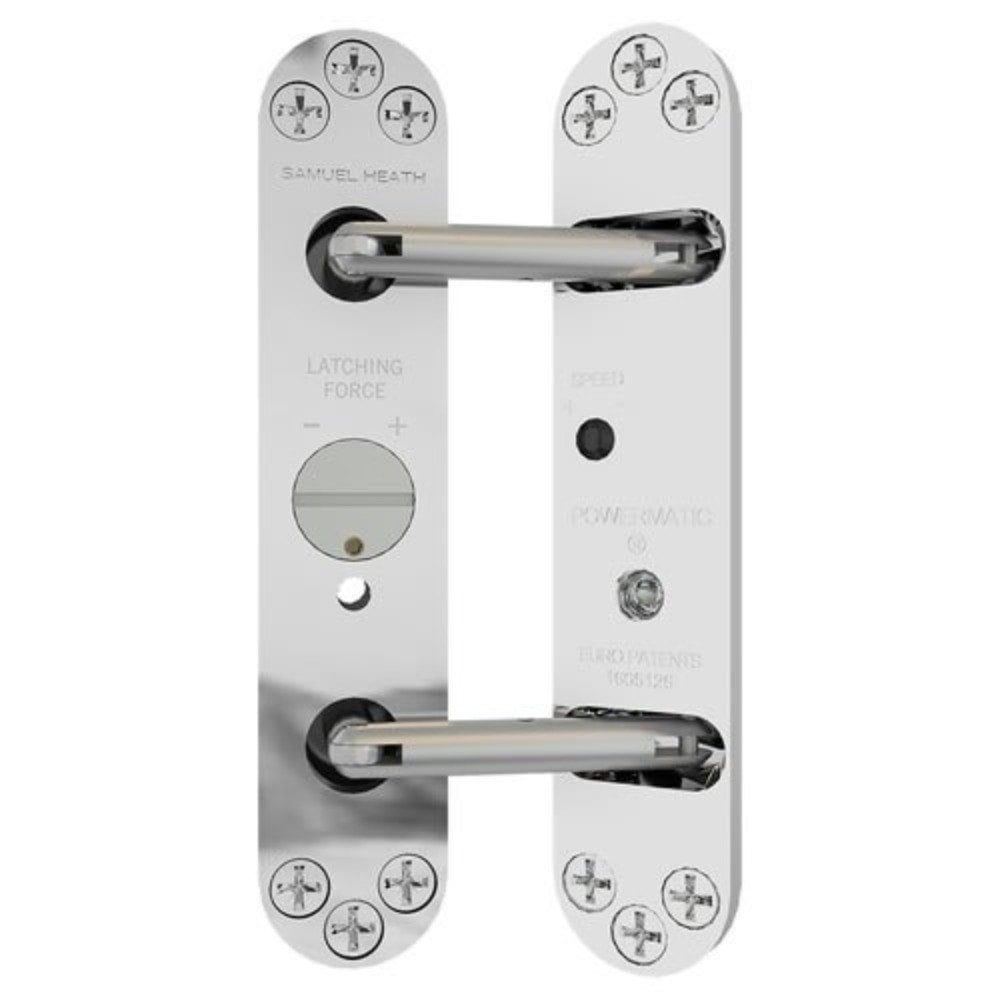

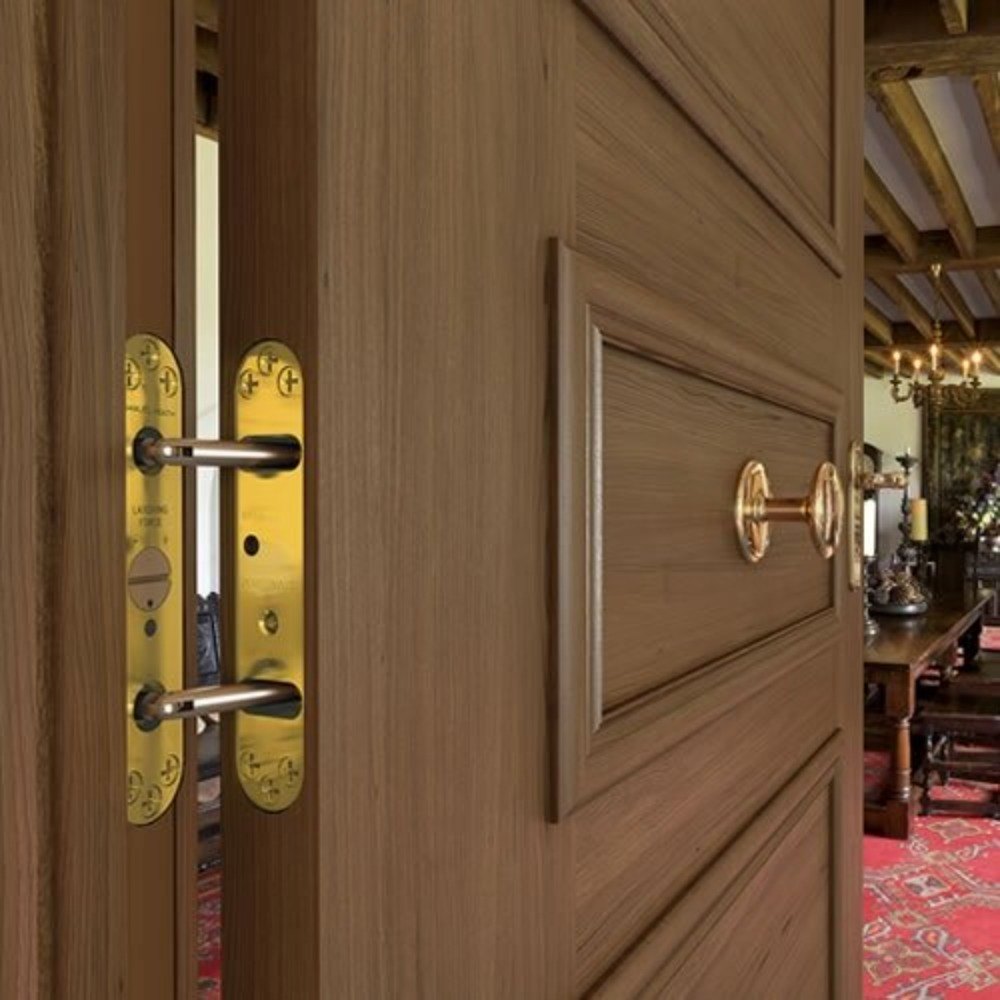

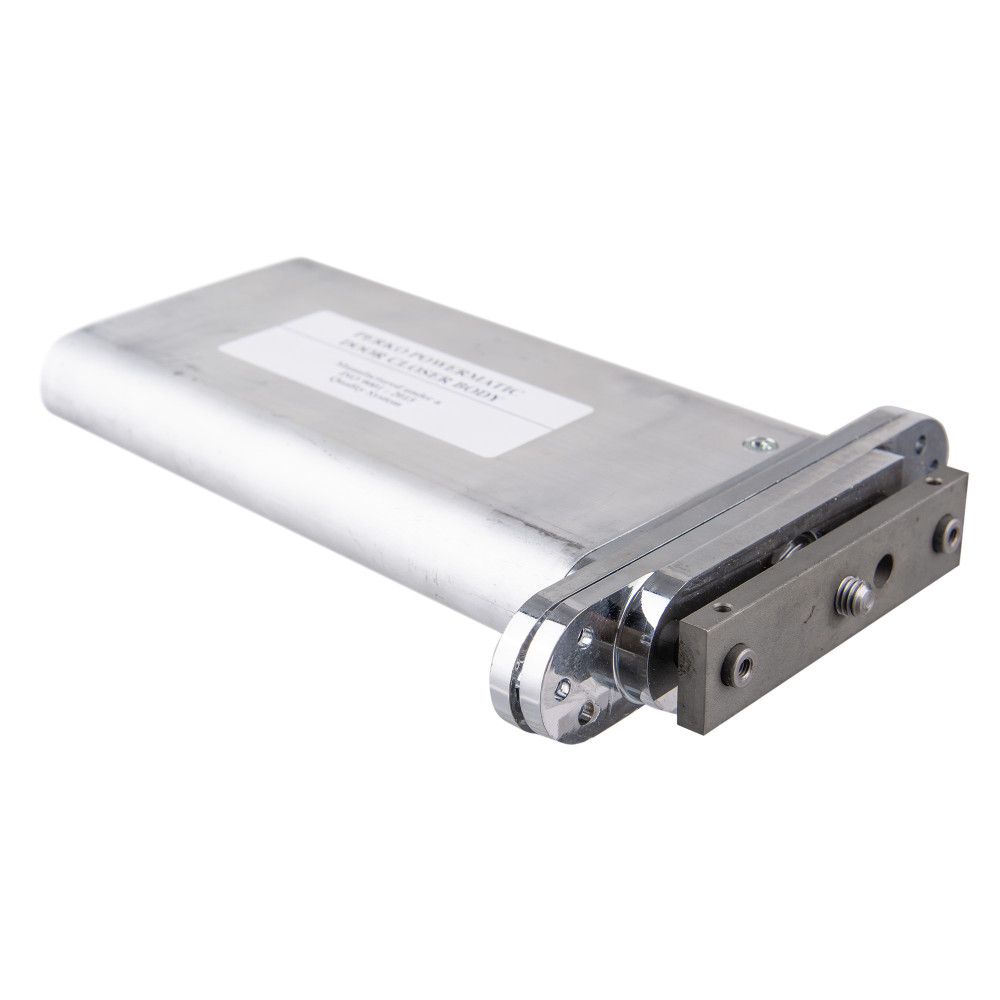

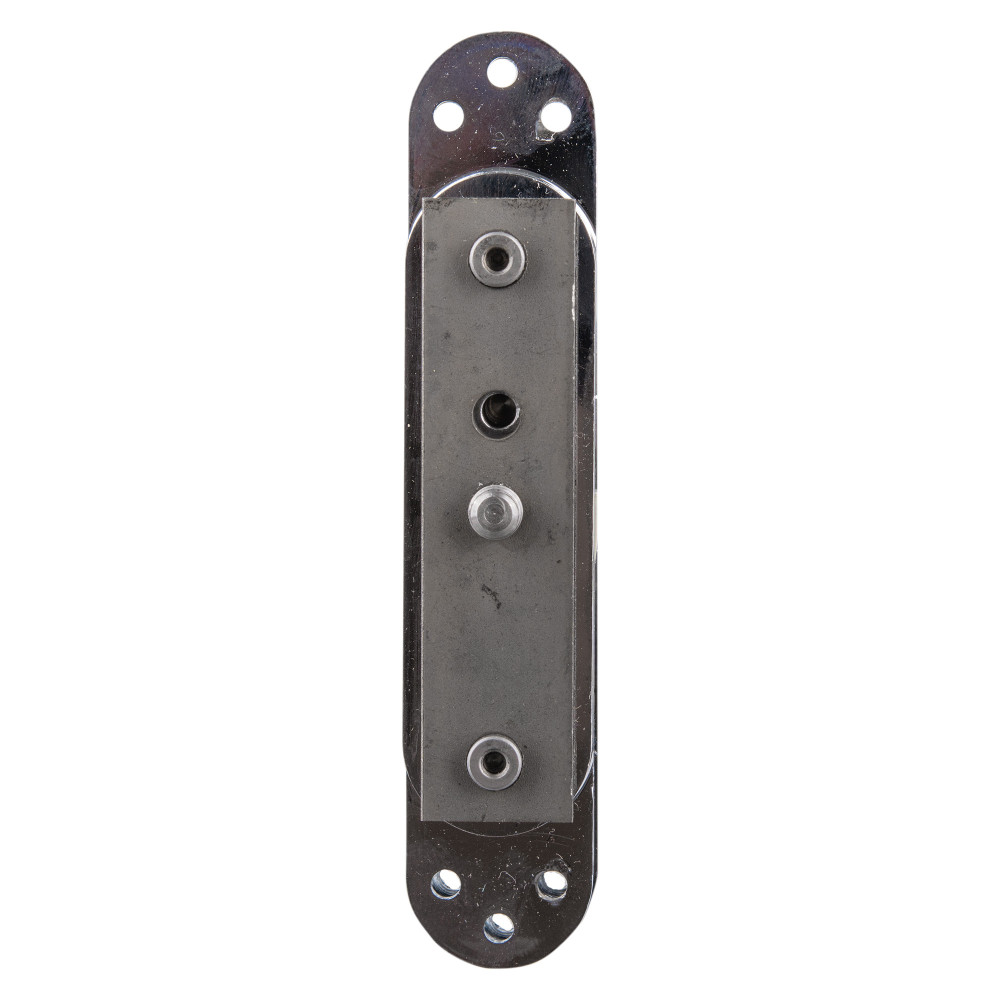

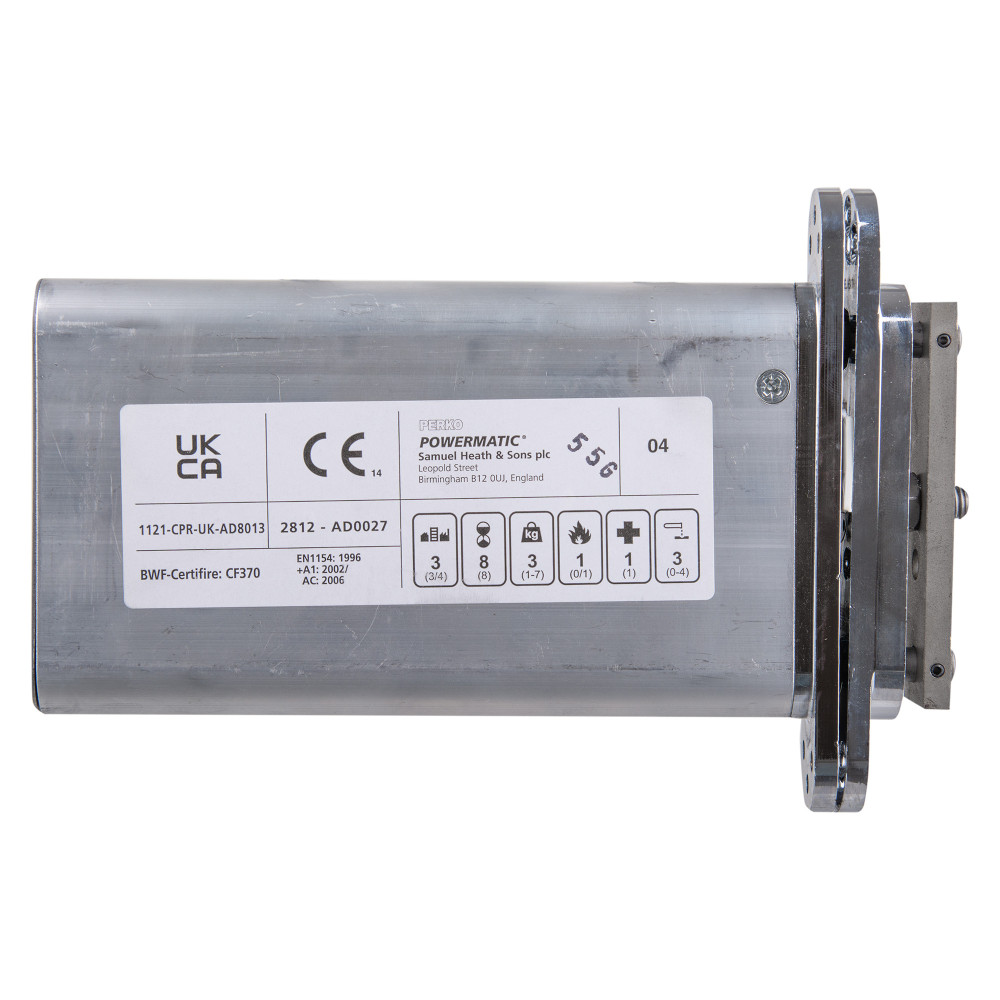

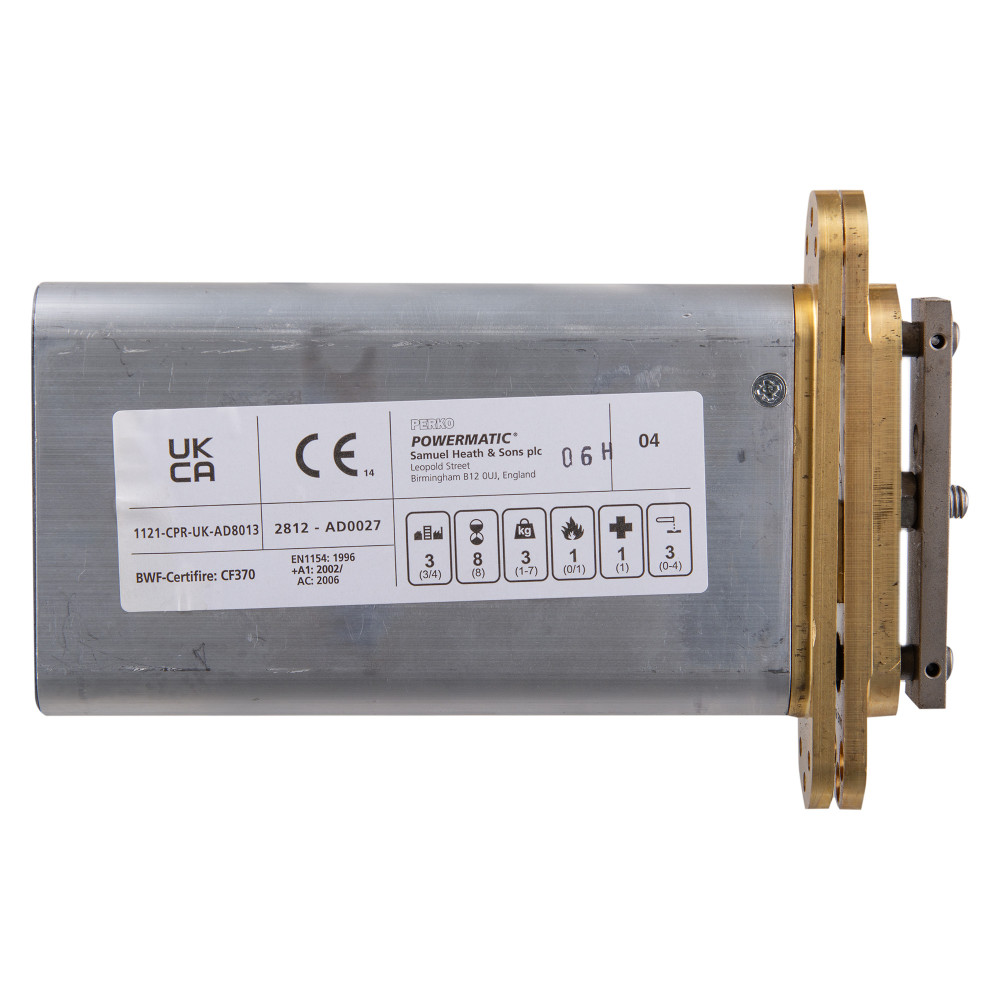

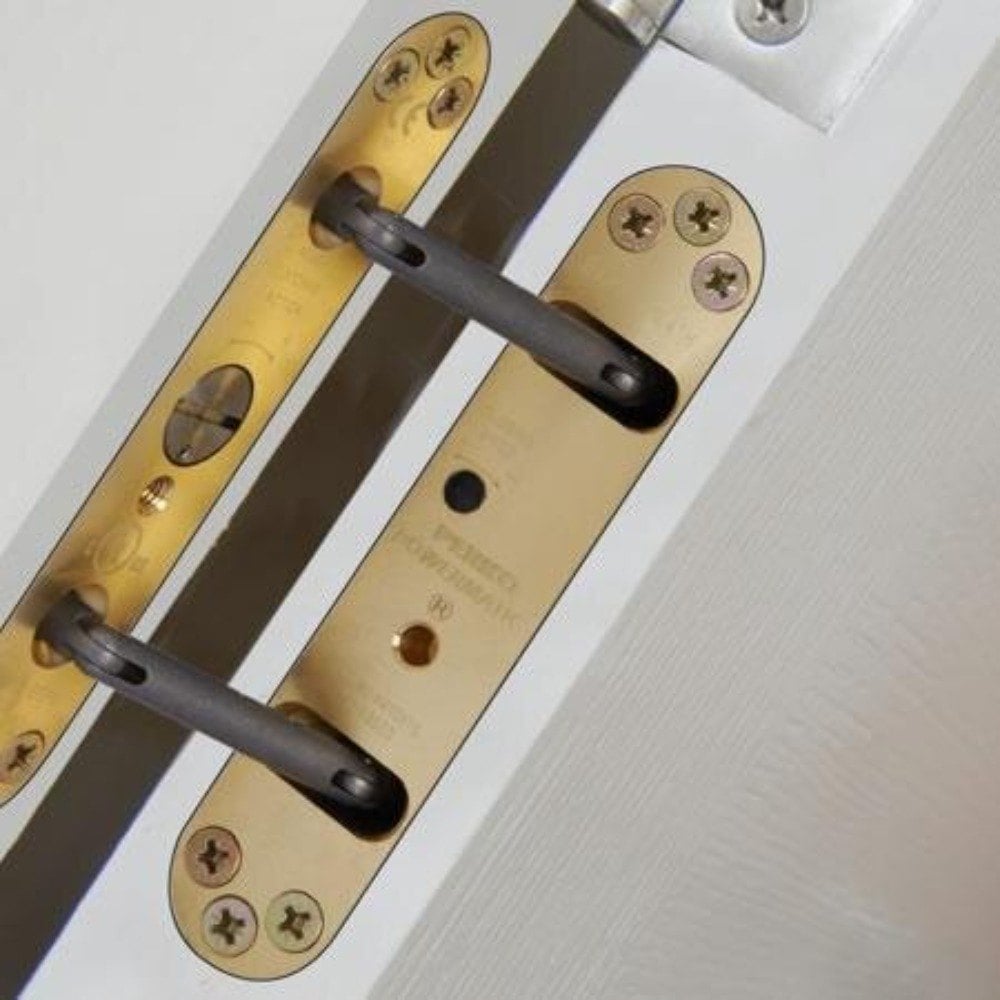

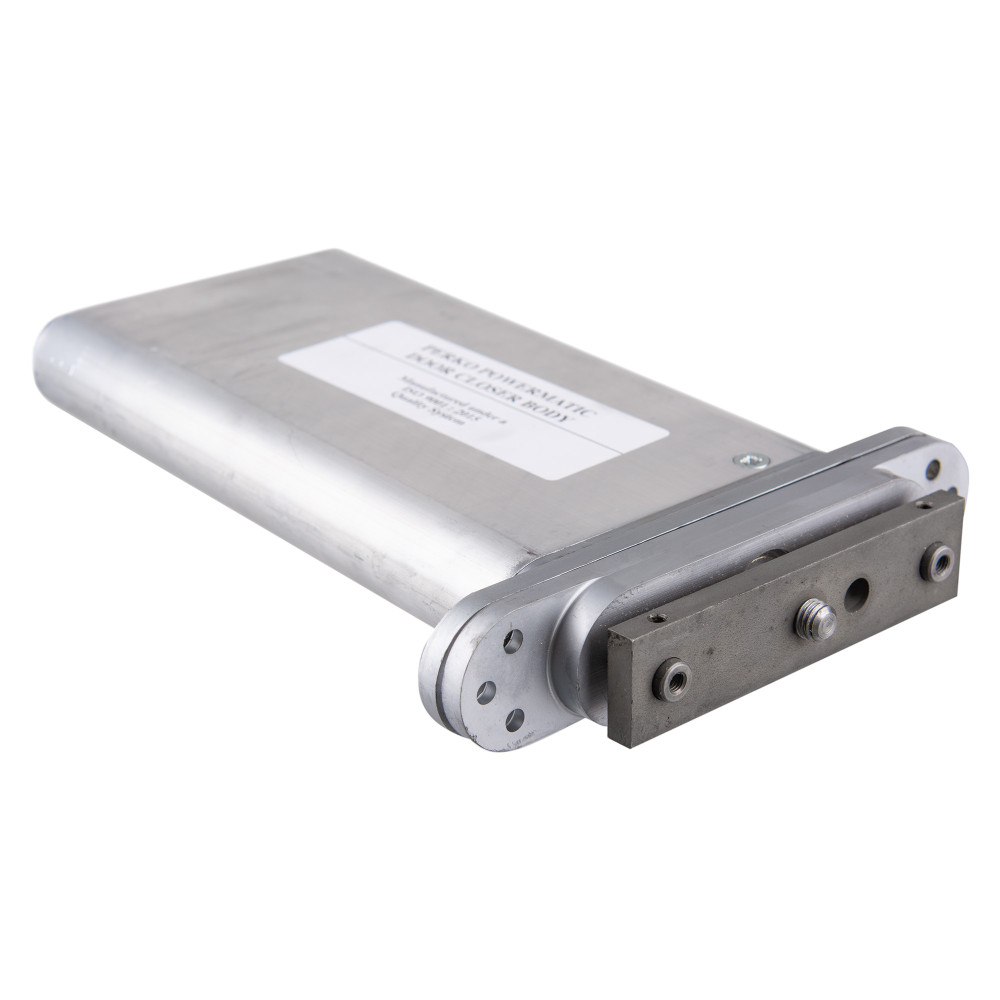

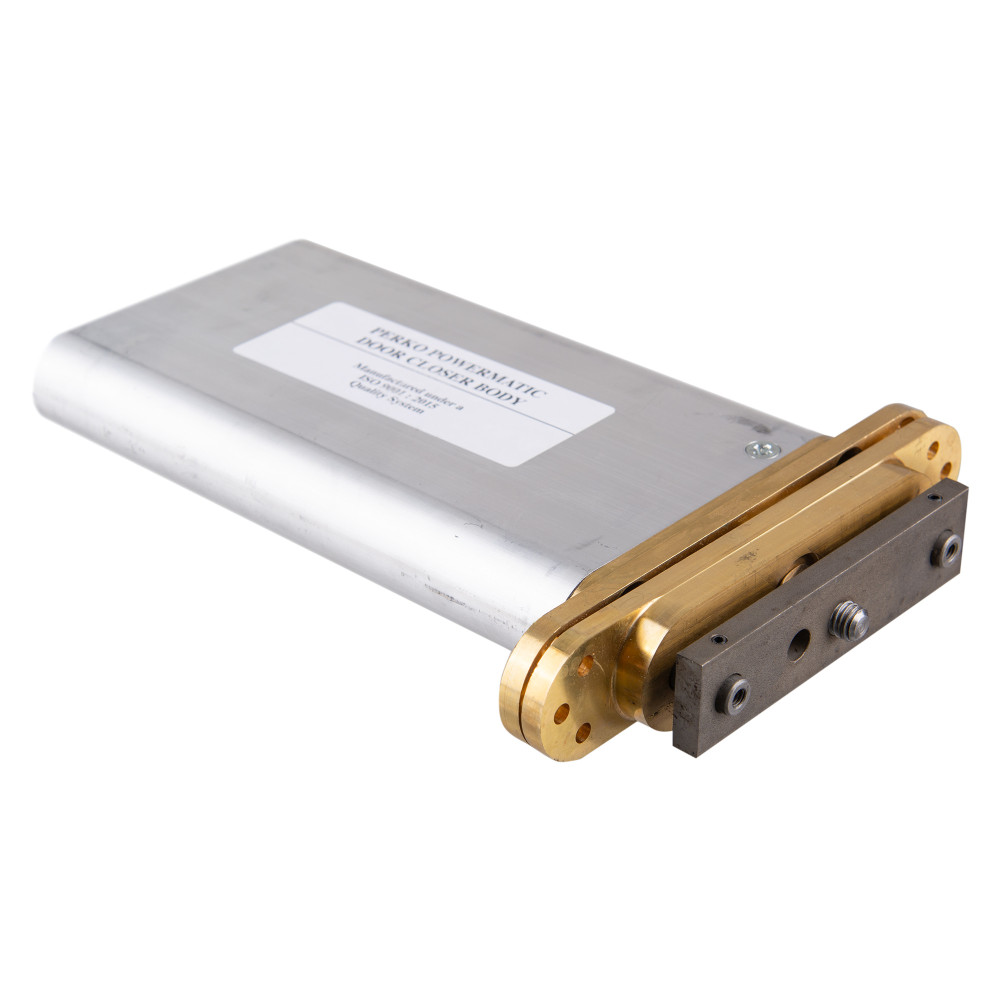

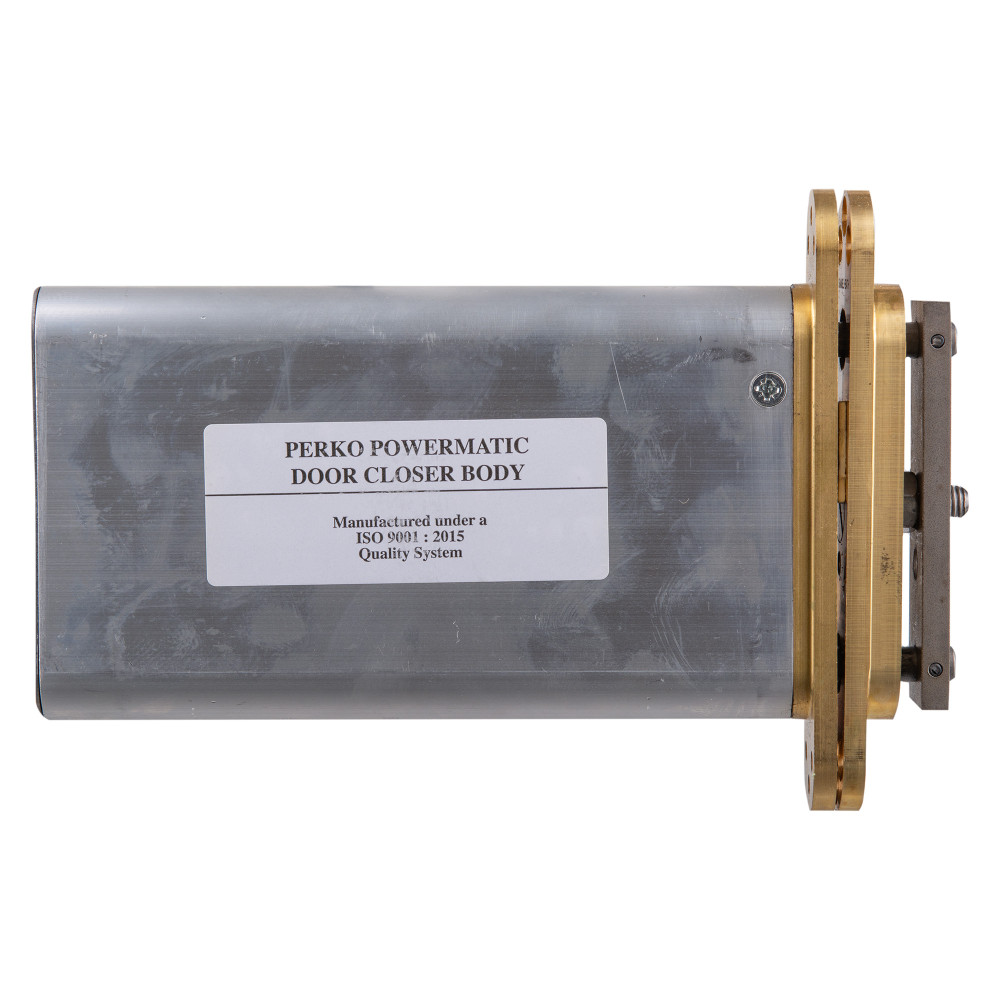

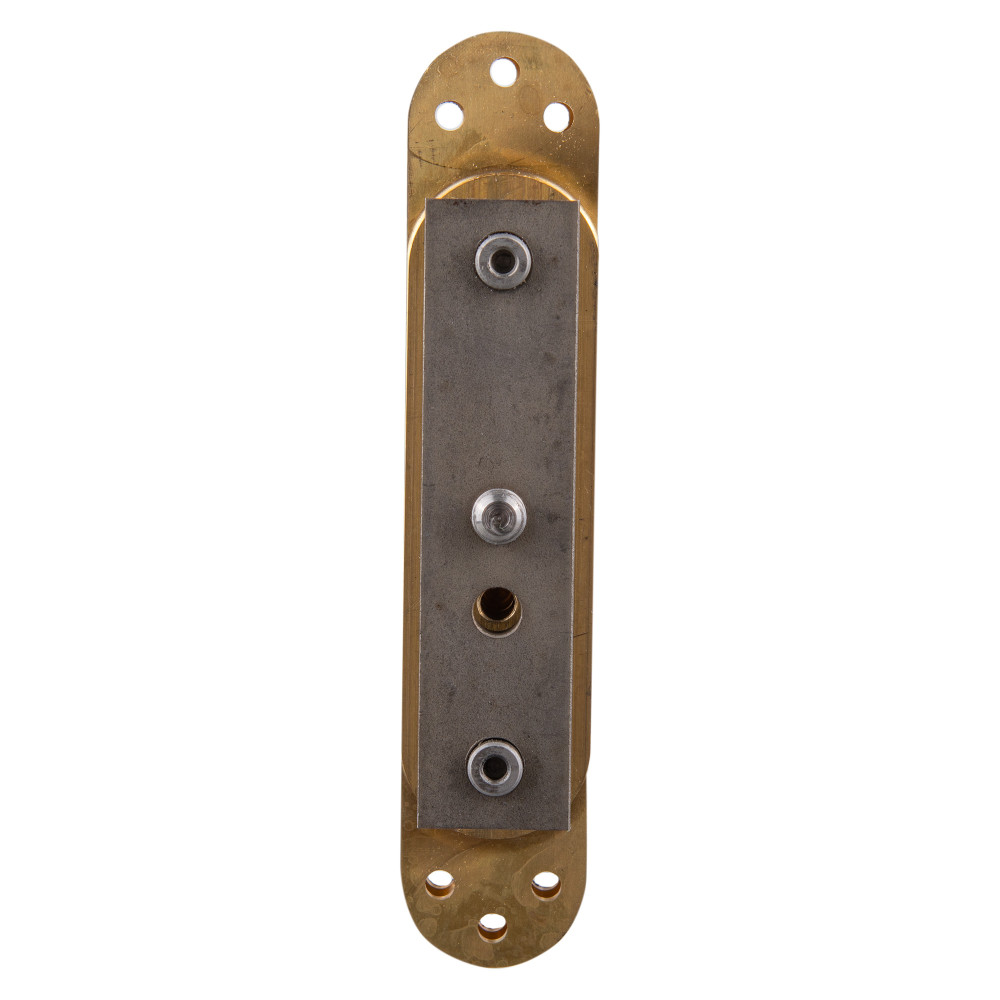

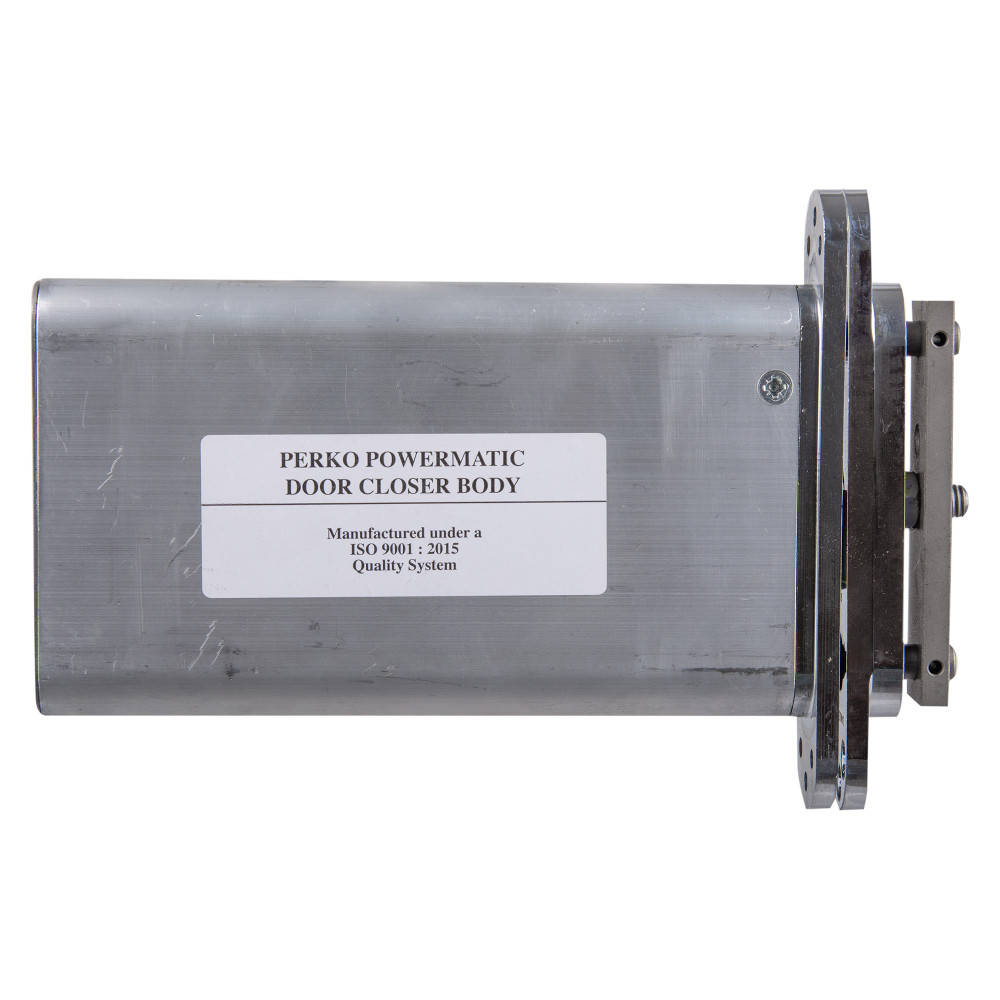

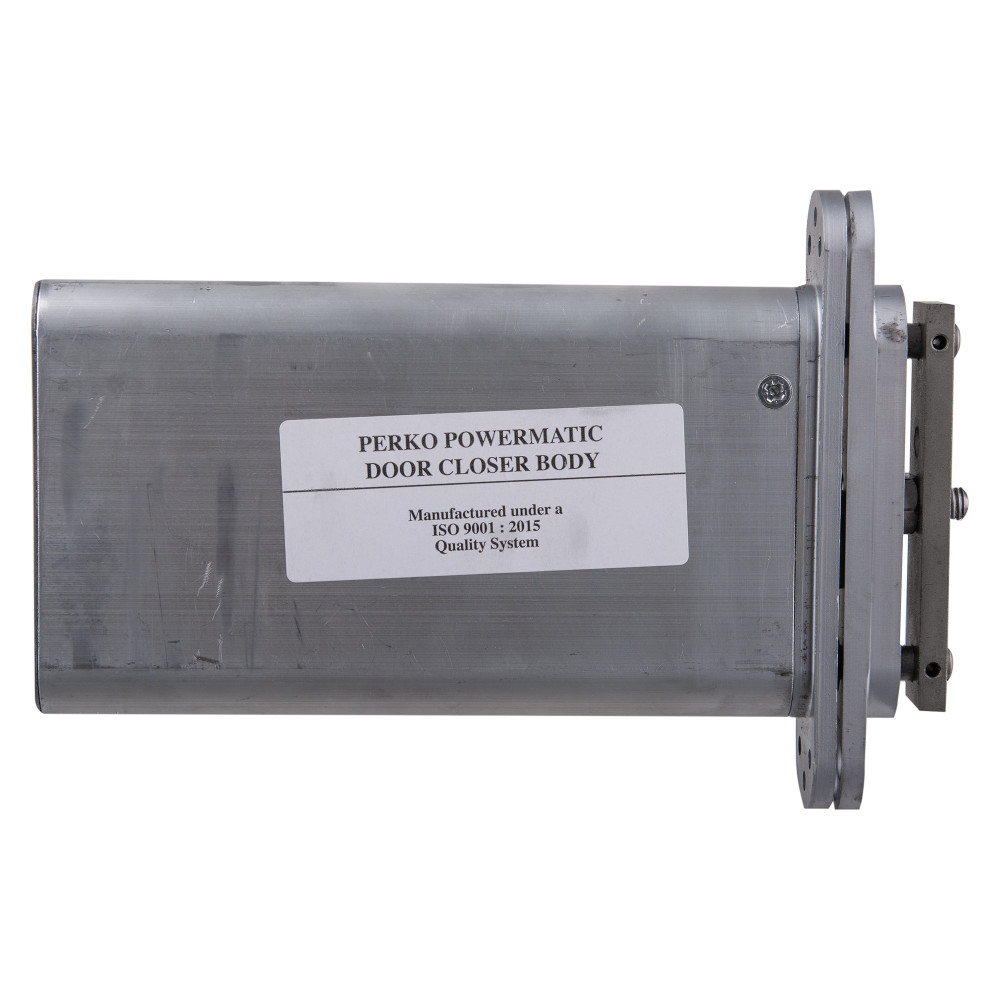

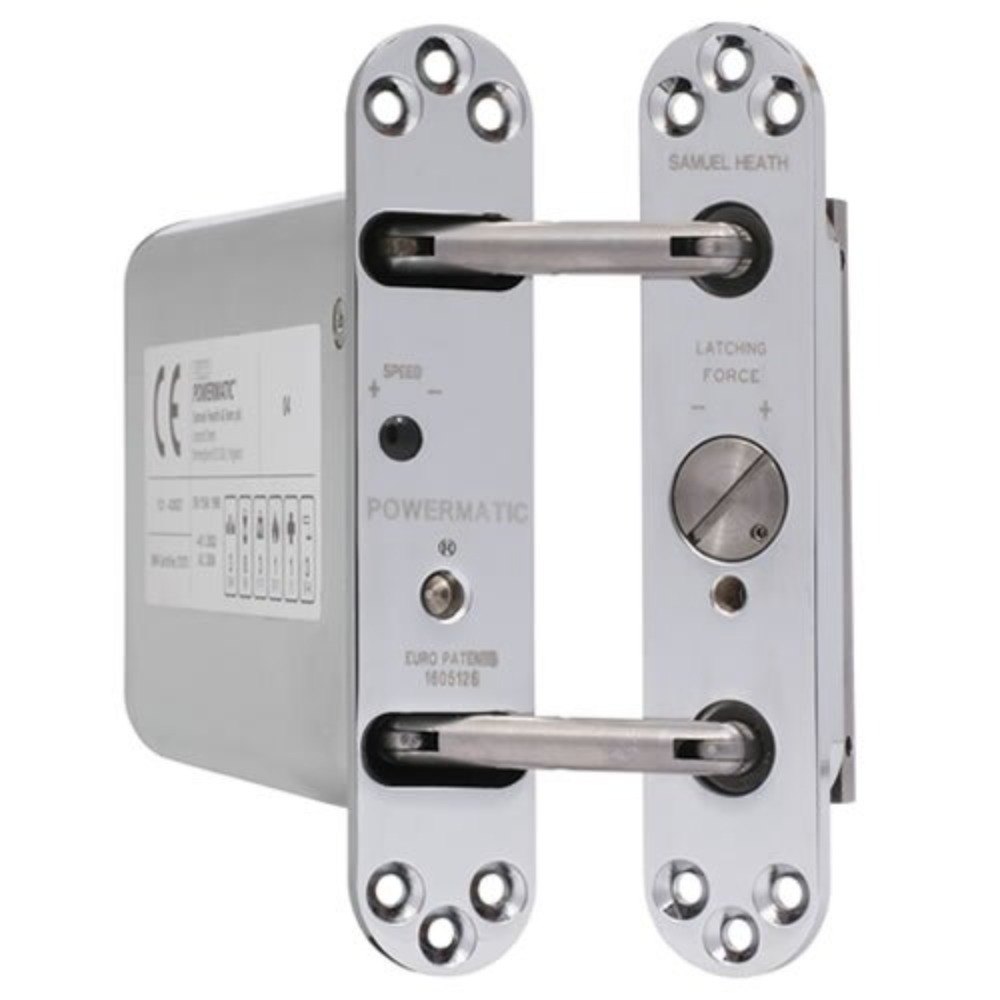

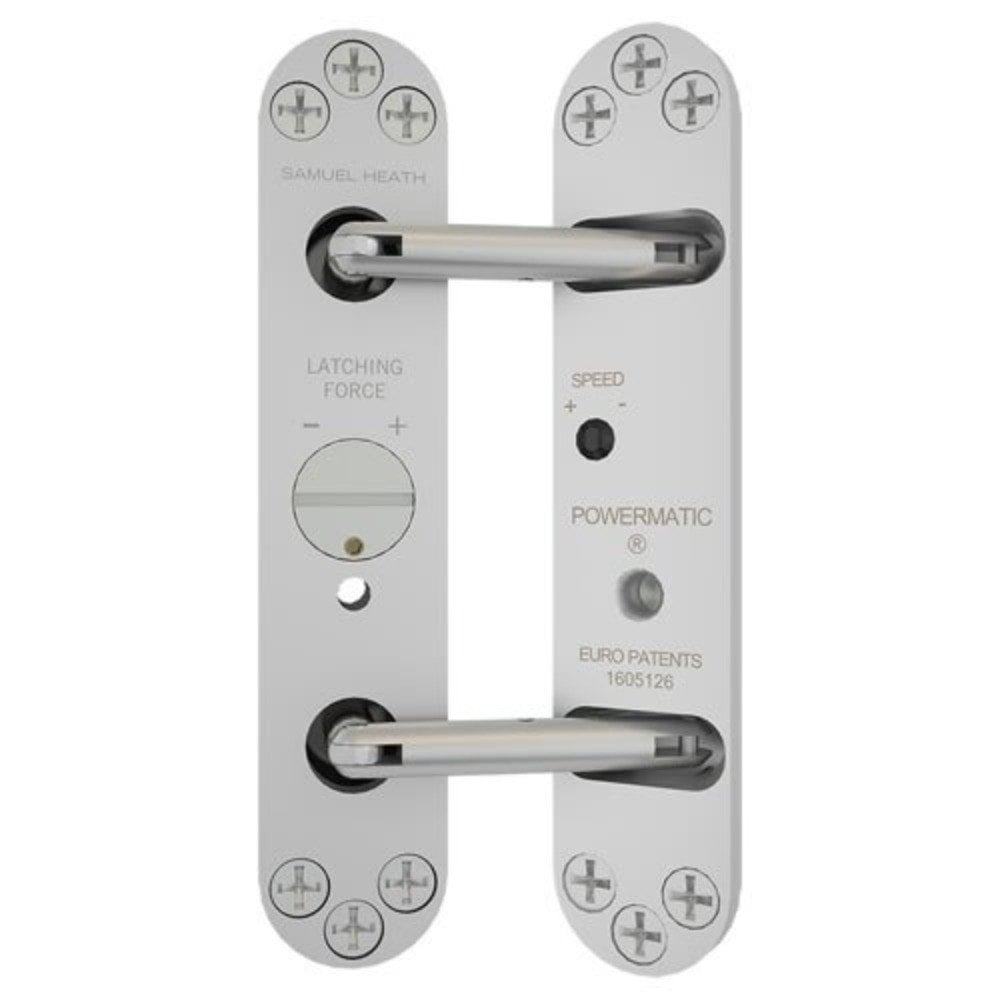

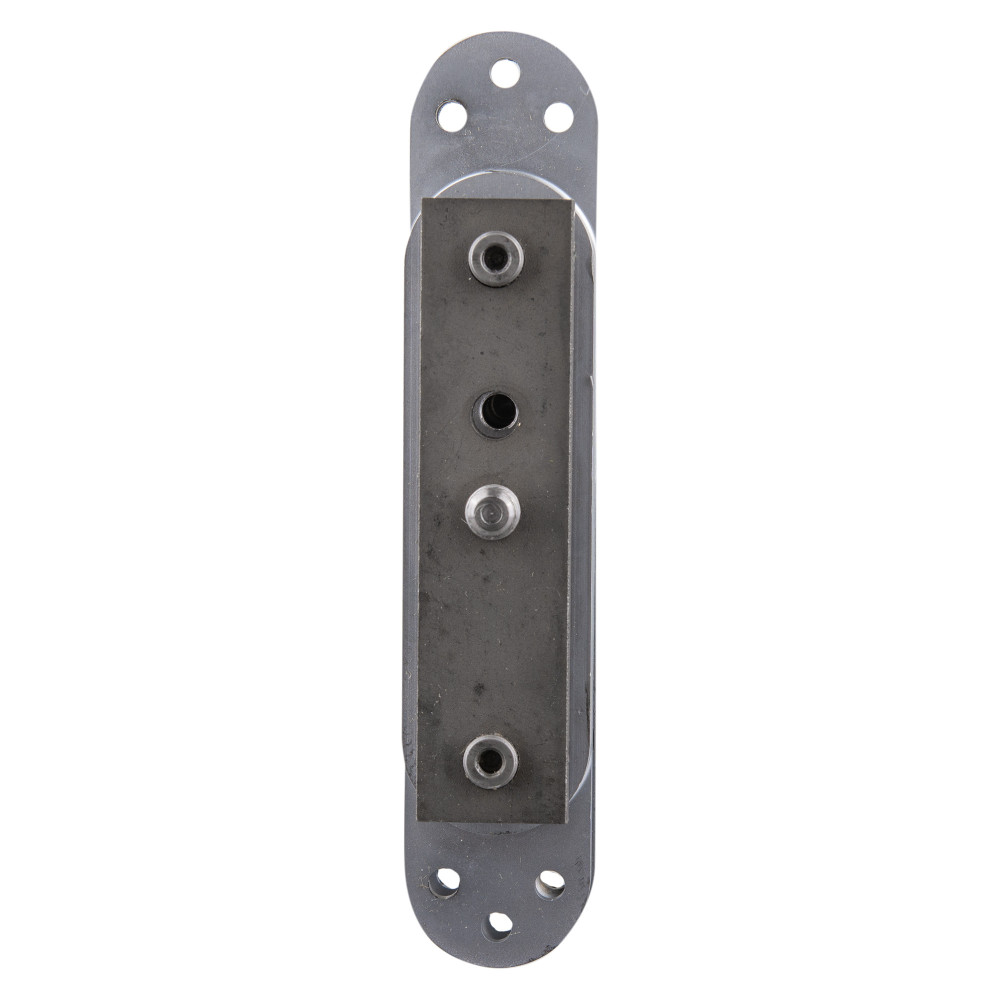

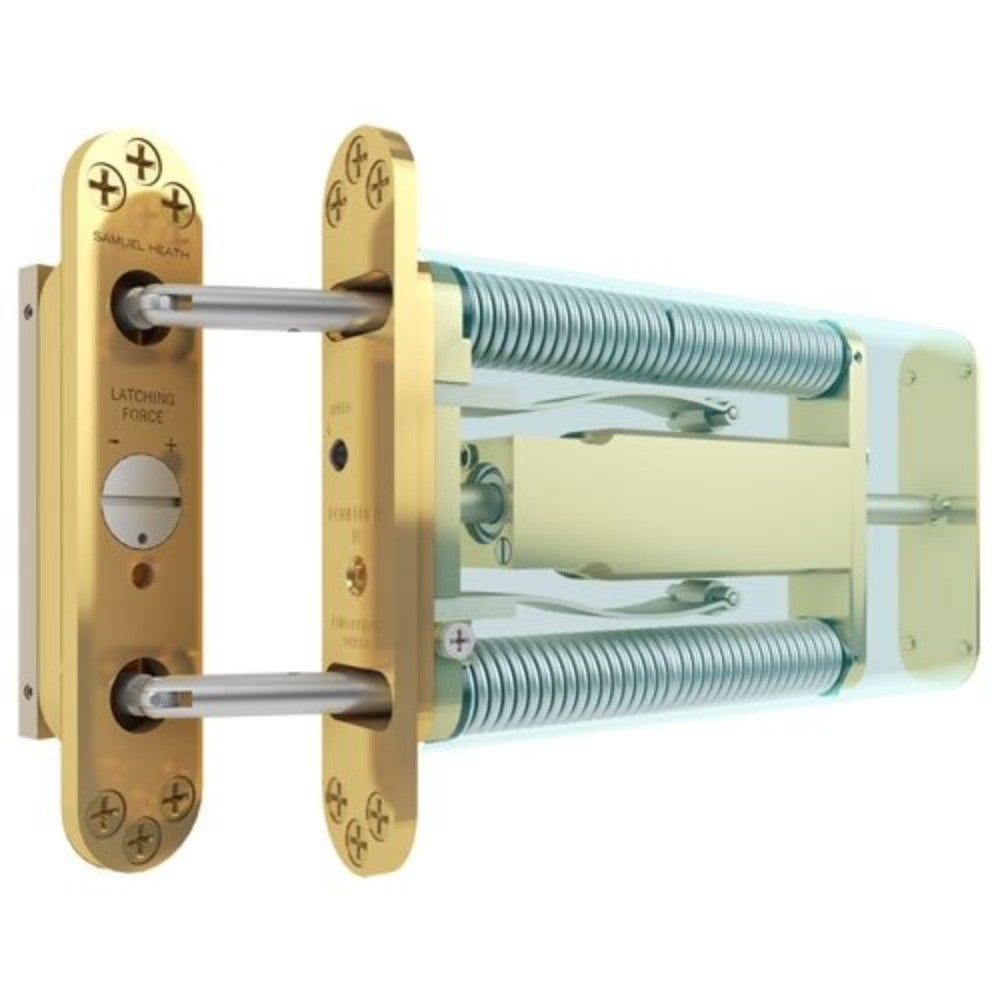

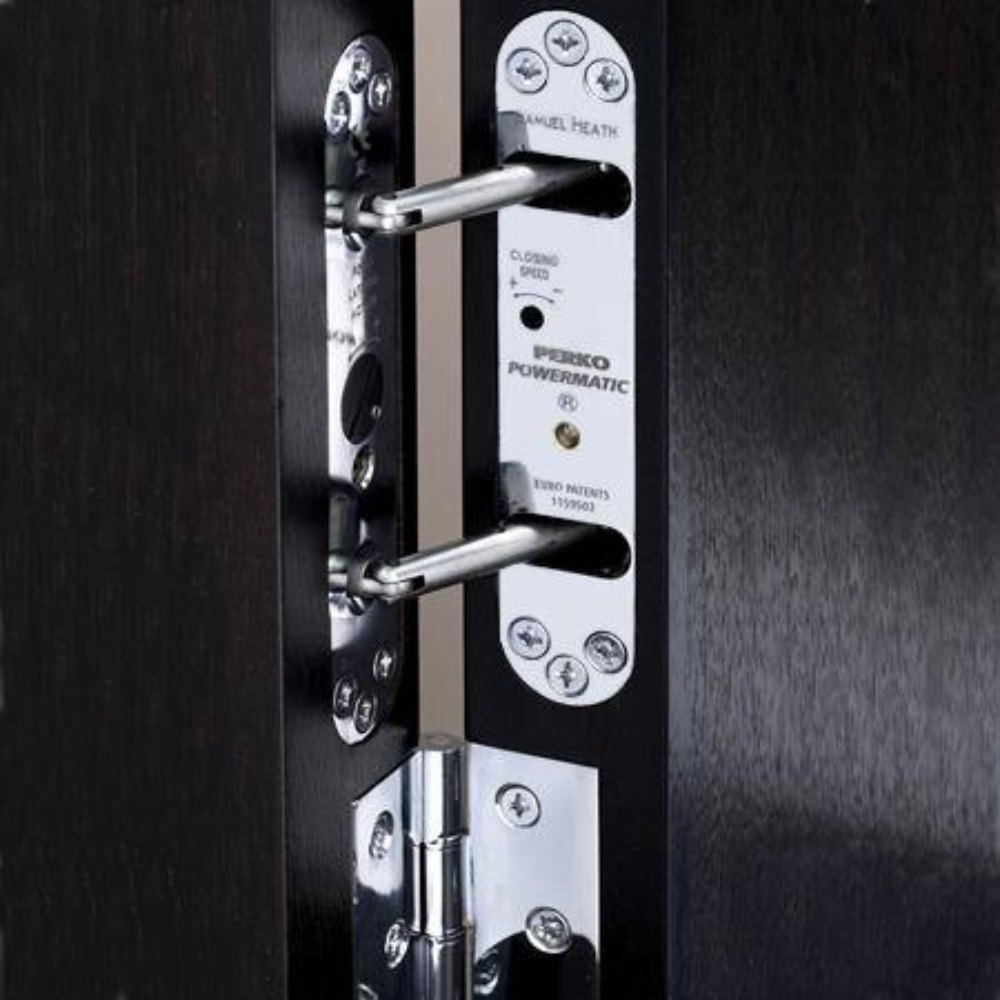

Front view of perko powermatic brass unit showing two connected metal plates with adjustment dials and screws angled view of perko powermatic r100 concealed fire door closer in brass and silver metal parts Back view of the perko powermatic r100 concealed fire door closer brass showing label and metal parts Front view of perko powermatic r100 concealed fire door closer brass showing body and label on metal casing Side view of perko powermatic r100 concealed fire door closer in brass showing mounting holes and screws Angled view of perko powermatic assembly showing metal plates, spring components, and connecting rods Close-up of part of the perko powermatic heritage door installed with brass fittings in a traditional interior perko powermatic close-up of an indoor door handle and locking mechanism on a white door Front view of the perko powermatic chrome showing two chrome plates connected by metal bars and screws visible angled view of the perko powermatic r100 concealed fire door closer in chrome finish showing its metal body and fittings perko powermatic r100 concealed fire door closer chrome shown from the back with label and mounting plate visible Front view of perko powermatic r100 concealed fire door closer in chrome showing its metal body with label Side view of the perko powermatic r100 concealed fire door closer in chrome finish showing mounting points and central mechanism perko powermatic r100 close-up of metal latch fitted to dark coloured door shown indoors perko powermatic satin chrome shown from the front with two horizontal metal levers and labelled controls Angled view of a perko powermatic r100 concealed fire door closer in satin chrome showing metal body and mounting plate Back view of the perko powermatic r100 concealed fire door closer in satin chrome showing label and metal finish Front view of perko powermatic r100 concealed fire door closer in satin chrome showing the main body with a label Side view of perko powermatic r100 concealed fire door closer in satin chrome showing mounting holes and central screws angled view of perko powermatic r100 concealed door closer showing metal body and adjustment controls Front view of perko powermatic satin nickel showing two parallel metal bars and adjustment dials perko powermatic polished nickel showing the front side with screws and control settings visible Front view of perko powermatic antique brass showing two connected rectangular plates with screws and adjustment dials Front view of the perko powermatic matt black chrome showing two horizontal silver handles on a black plate Front view of perko powermatic bronze showing two metal plates with handles and adjustment markings
4.5 out of 5 stars

2 In Stock

For dispatch today order within
6 Hrs 54 Mins

£520.00 inc VAT

£433.33 ex VAT

Next Day Delivery

Will usually be delivered the next working day

£9.59 inc VAT

The Perko Powermatic concealed door closer with EN power size 3, designed for fire and non-fire doors that are vulnerable to vandalism, is completely concealed within the door's body and connects to the frame giving a minimalistic hinge-like appearance. The closer is available in a variety of finishes to suit any door installation, as well as a ten year guarantee.

  • Suitable for:
    • Suitable for internal single action doors
    • Doors up to 950mm wide and weighing up to 80kg – EN size 3
    • Left and right hand opening doors
    • Latched and unlatched doorsets
  • CE and UKCA marked
  • Complies to BS EN 1154: 1997
  • Certifire approved for use on FD30 and FD60 fire rated doors when fitted with intumescent acrylic adhesive
  • Conforms to DDA standards BS8300
  • Adjustable features to suit your door and premises
    • Closing speed controls how quickly the door closes
    • Latching action governs the speed of the door in order for it to overcome the latch
  • 10 Year Guarantee
  • Opening angle up to 105°
  • Endurance tested to 500,000 closing cycles
  • Vandal resistant being completely concealed in the door
  • Minimal visibility whilst using the door

Worried About Fire Door Compliance?

Our comprehensive fire door inspection package and remedial service provides peace of mind that your fire doors are compliant. We offer nationwide services to suit your budget.

View Our Fire Door Services

Customer Reviews

Customer Reviews (8)

4.5 out of 5 stars

Reviews by Real Customers

All of our product reviews are written by real customers that have purchased this product from us and are published without modification.

Rating: 4 / 5

Reviewer

T P

Happy with the product

Published on

22nd August 2020

Rating: 5 / 5

Reviewer

Anonymous

All good

Published on

26th June 2017

Rating: 5 / 5

Reviewer

Anonymous

Great

Very nicely working

Published on

31st May 2017

FAQs

FAQs (3)

Does the Perko Powermatic Concealed Door Closer come with latch action?
Yes, it is suitable for both latched and unlatched installations. The Perko Powermatic Concealed Door Closer is fitted with an adjustable latching mechanism. This allows the speed of the door to be regulated during the last 15 degrees of the closing cycle.
Can the Perko concealed door closer be used with a 30 minute internal wooden fire door and still meet the current UK building control standards?

The Perko concealed door closer is certified to BS 1634-1: 2000 which can be used with 30 minute and 1 hour rated fire doors. The closer also complies with the requirements of Approved Document M for doors.

I have a glass door with a narrow stile. Can I still fit the Perko Powermatic?
The unit can be installed the other way round allowing for narrow stiled doors. For this to happen you will need to create a cavity in the frame/partition to accept the main part of the closer.
Technical Data

Technical Data

Product Code SHR100
Brand Samuel Heath
Manufacturer's Part Number R100-PB
Approvals & Markings CE Marked
UKCA Marked
Closing Speed Adjustable
Compliance BS EN 1154: 1997
Certifire - CF370
Finish Brass
Fire Rating 60 Minutes
Fixing Options Screws (included)
Installation Position Inside Door
Latching Action Adjustable
Material Brass End Plates
Stainless Steel Links
Maximum Door Weight 80kg
Maximum Door Width 950mm
Opening Angle 105°
Power Size EN 3
Suitability 30 Minute Fire Doors
60 Minute Fire Doors
Warranty 10 Years
Dimensions (Unit)
  • Height: 140mm
  • Width: 178mm
  • Depth: 28mm
Weight 2.70kg
Datasheets

Datasheets

Shr100 Perko Powermatic Concealed Door Closer Datasheet
