Panic Bolt MK2 - Redlam

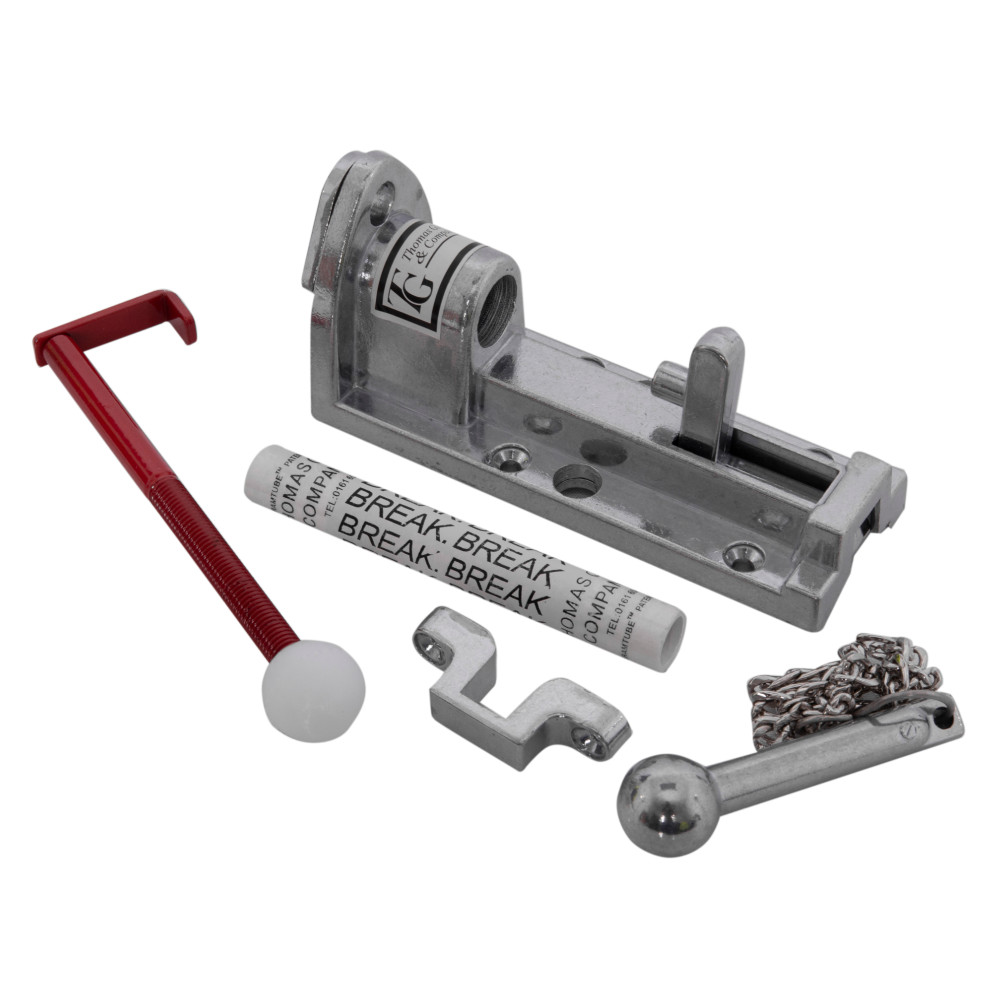

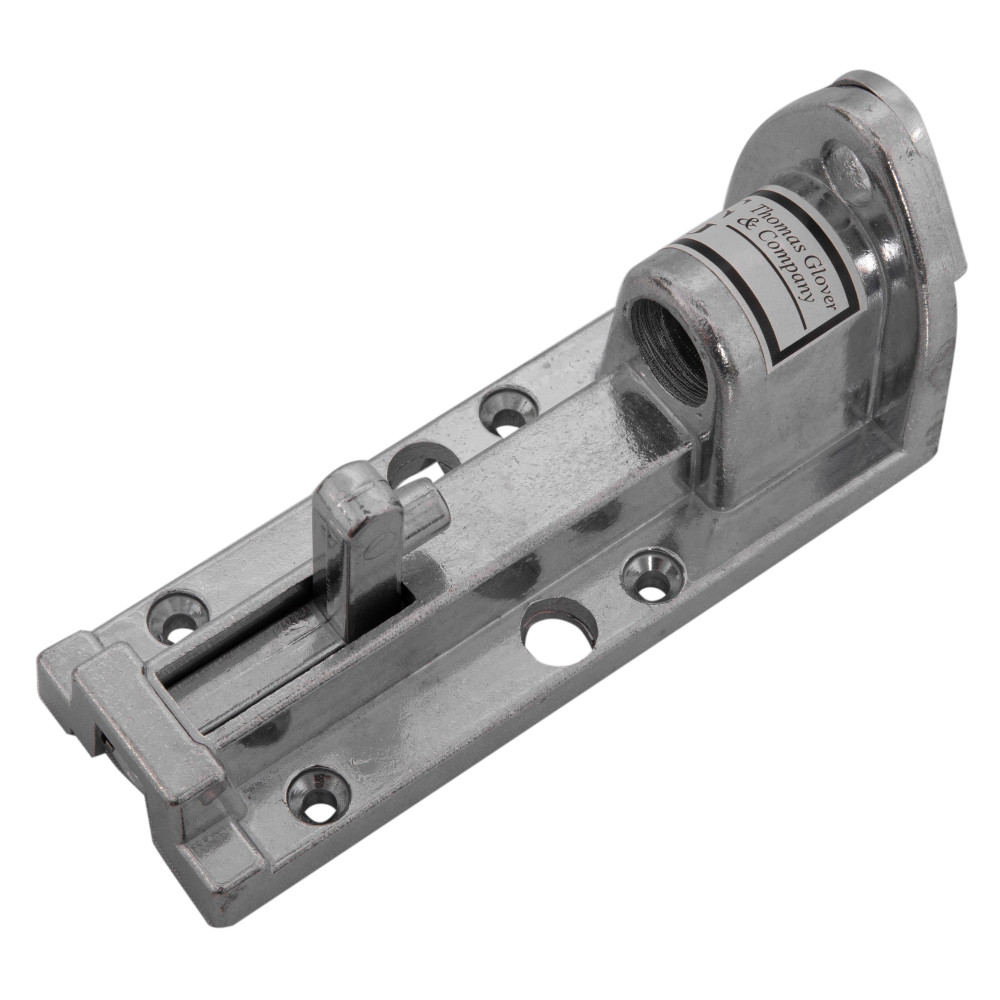

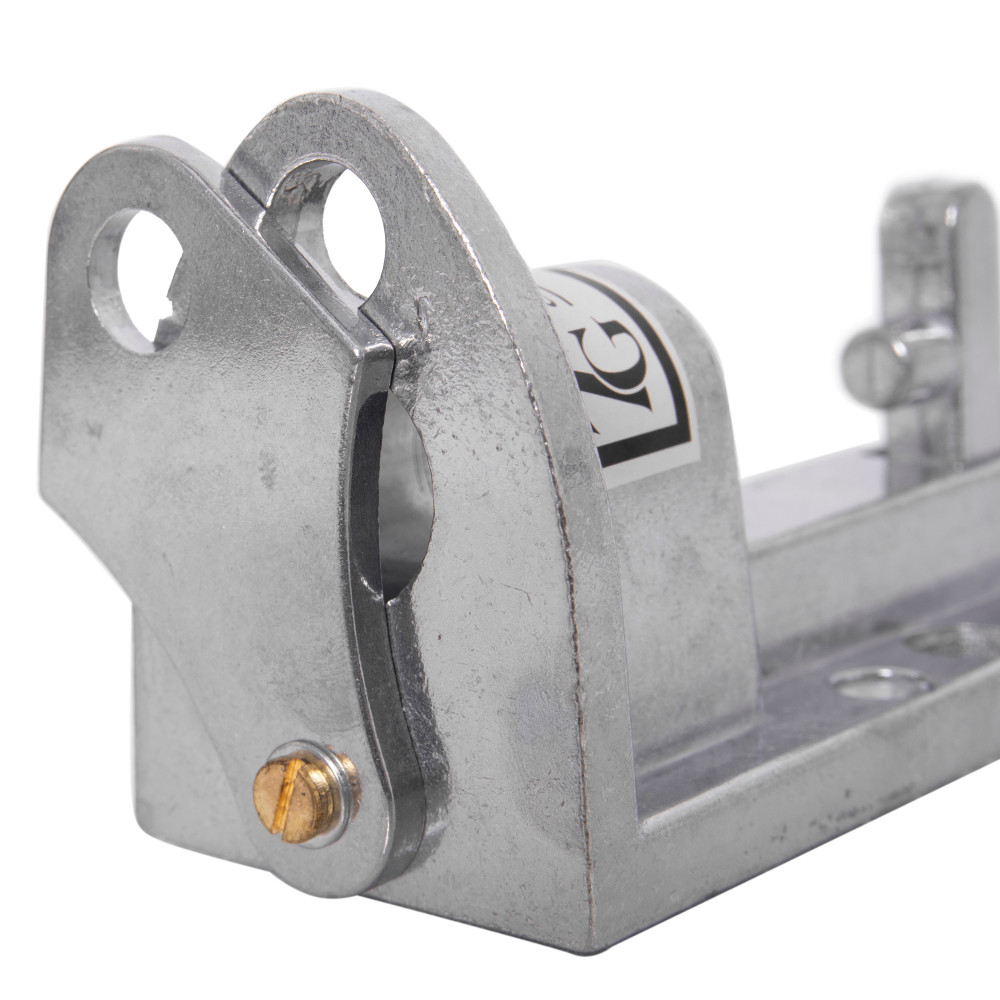

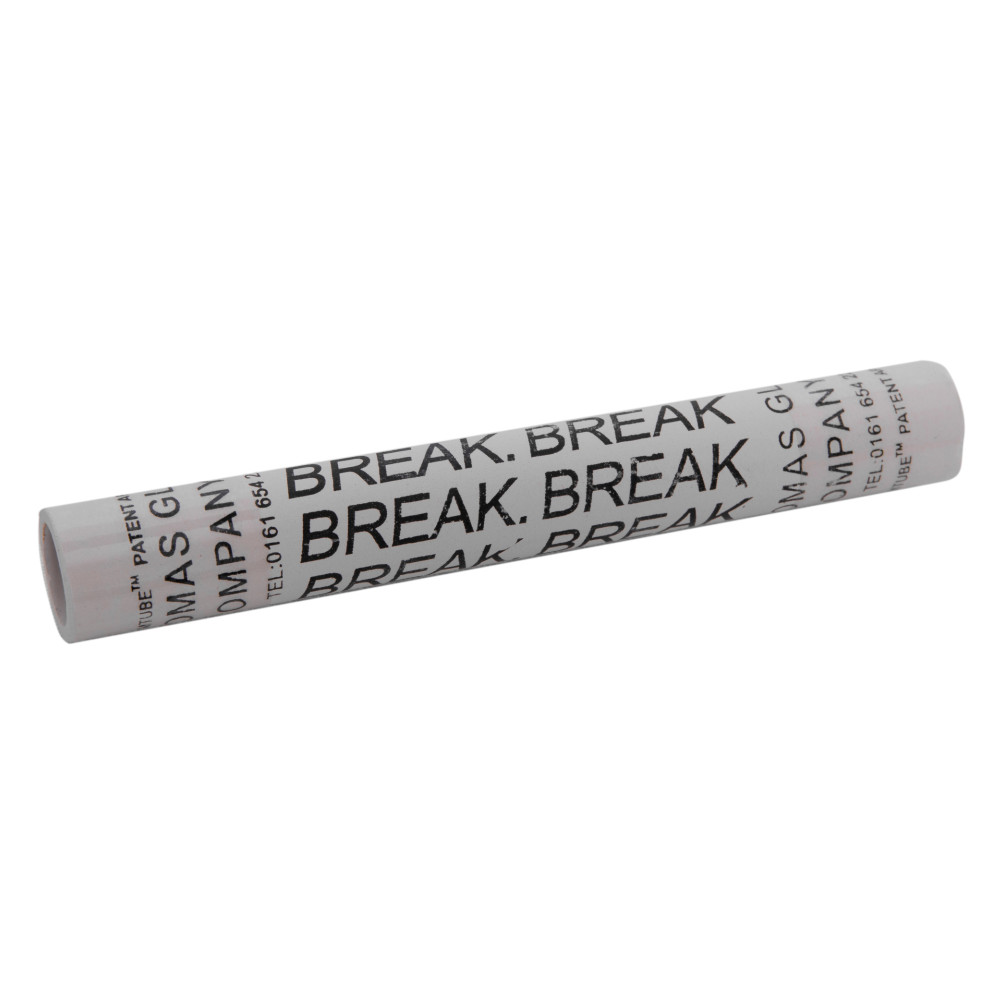

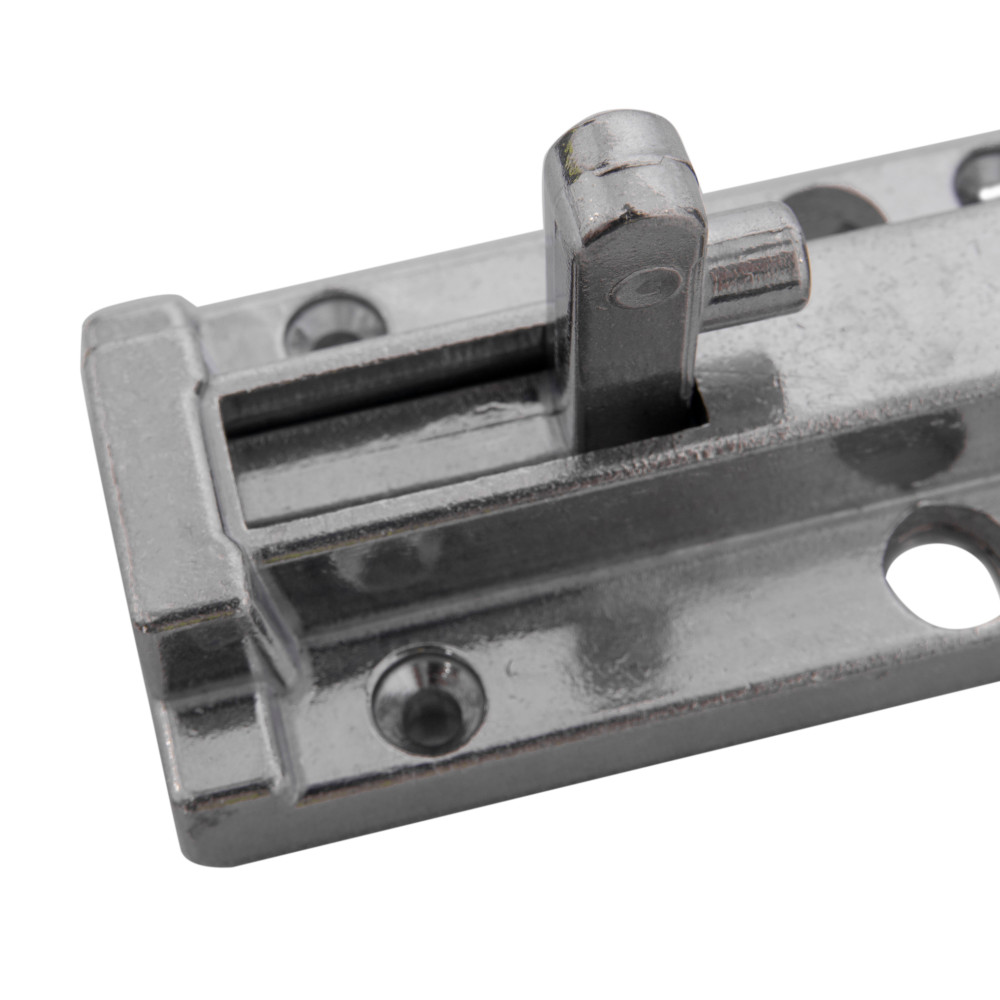

The Redlam panic bolt locks and secures single external fire exit doors from the inside without jeopardising a safe escape. In an emergency the Ceramtube™ is broken with a small hammer chained to the Redlam unit, resulting in the panic bolt sliding back automatically and unlocking the door. The panic bolt can also be released by authorised personnel by removing a padlock (not provided) which keeps the Ceramtube in position. This MK2 version allows the door to be opened from both sides and is supplied with an additional release knob.
- Supplied with one Ceramtube™
- Ceramtubes™ are designed to produce no sharp edges when smashed
- Allows the door to be opened from both sides
- Easy to install and use
- Minimal maintenance required

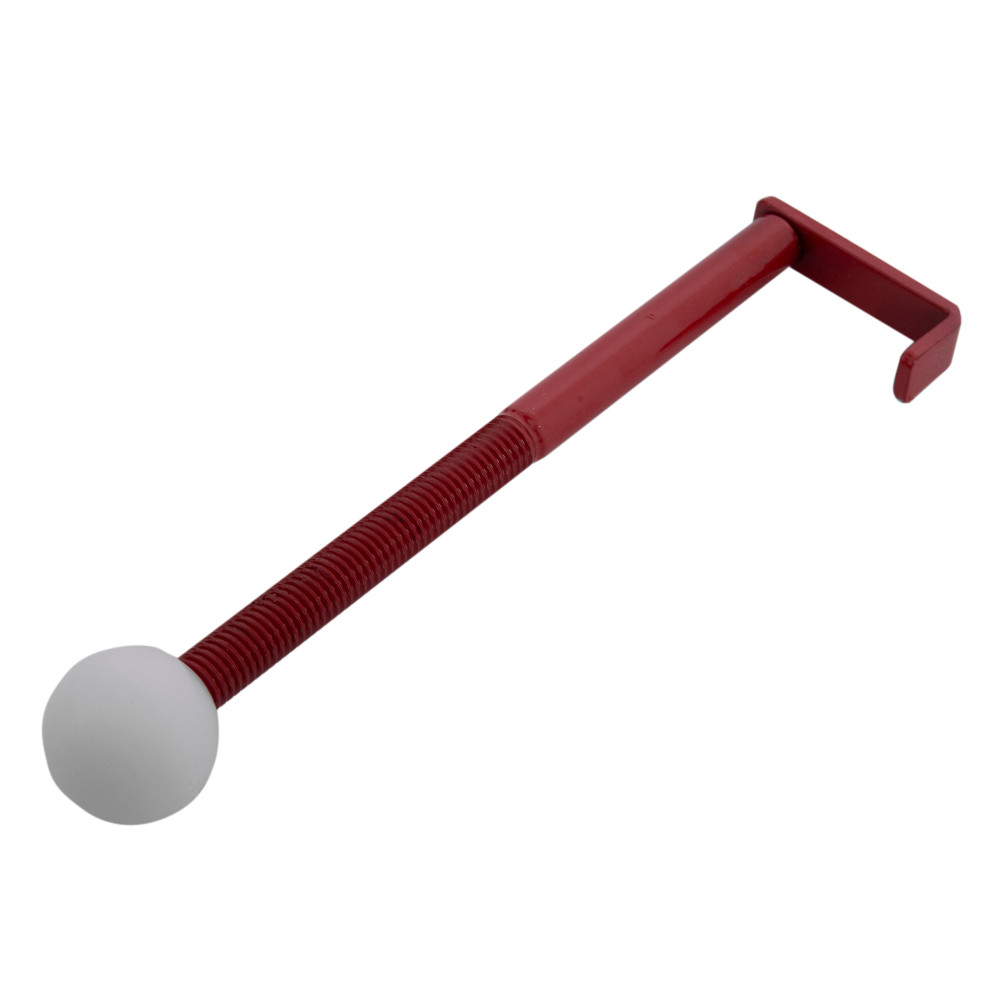

- Supplied with an additional release knob
- Ceramic tube requires replacement after emergency or practice use
- The Redlam Panic Bolt is not a replacement for panic bars or panic latches
- Please note: the Redlam Panic Bolt MK1 is now discontinued and replaced with the MK2 listed here
Customer Reviews (11)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
Anonymous
Published on
23rd October 2017
Reviewed by
Anonymous
Published on
29th April 2016
satisfactory
Reviewed by
Anonymous
Published on
23rd November 2015
Strudy piece of equipment
Reviewed by
Anonymous
Published on
27th February 2015
Excellent Sevice and delivery and will definately be using Safelincs again
The bolt was easy to fit and matched the description on the website perfectly. The delivery was timely and well packed to avoid damage and the payment system quick and easy. We will definately be ordering from you again.
Reviewed by
Anonymous
Published on
31st January 2015
Performs exactly as expected
Technical Data
| Product Code | TGPBMK2 |
|---|---|
| Brand | Redlam |
| Colour | Silver |
| Device Type | Emergency Escape Bolt |
| Door Type | Single Door |
| Environmental Suitability | Offices |
| Workplace | |
| Equipment Type | Emergency Escape Hardware |
| Finish | Aluminium |
| Locking Points | 1 |
| Material | Die-Cast Aluminium |
| Suitability | Indoor |
| Non-Public | |
| Staff Only Areas | |
| Steel Doors | |
| Timber Doors | |
| Dimensions (Unit) |
|
| Weight | 550g |
| Datasheets |
Compatibility Overview
The table below shows the accessories that are compatible for use with the Redlam Panic Bolt MK2.
| Model Number | Type of Unit |
| TGPBTUBE | Spare Ceramic Tubes - Ceramtubes |
| HSTGL1 | Replacement Glass Tubes |

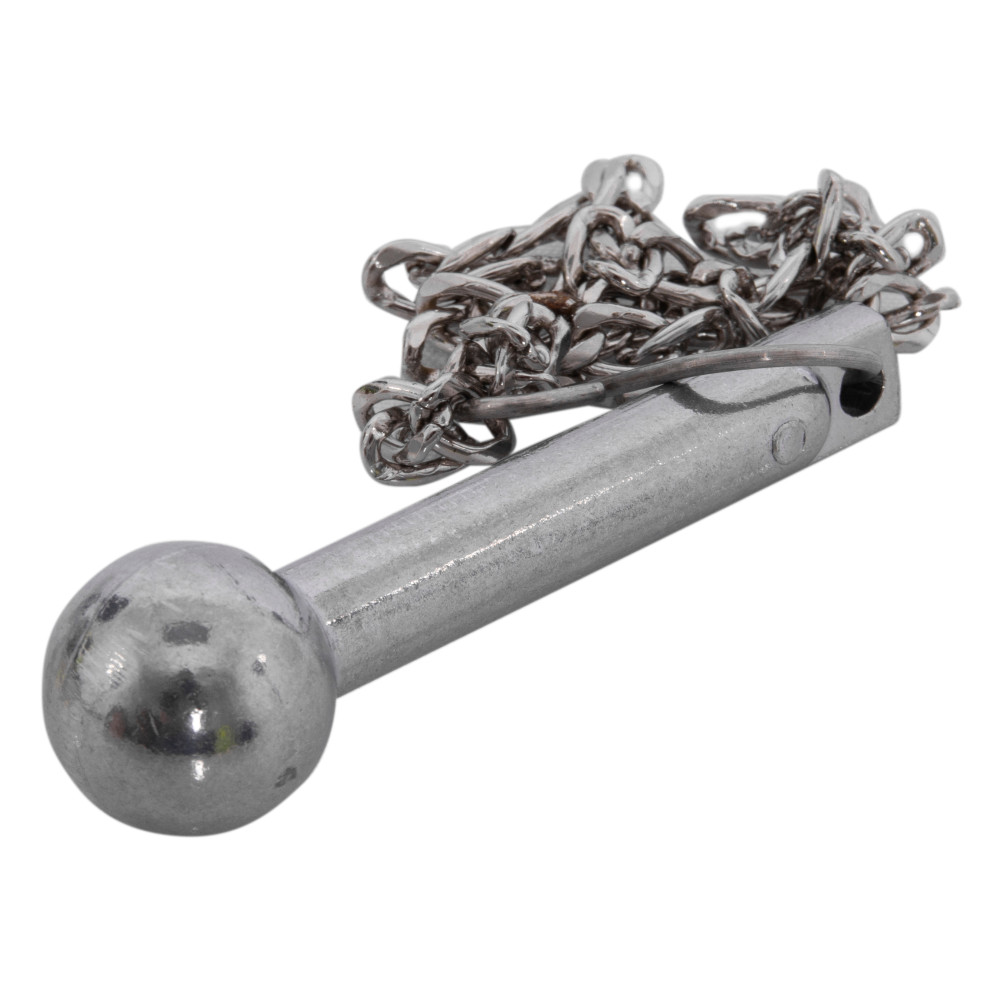

| TG39/51921 | Replacement Hammer and Chain |
