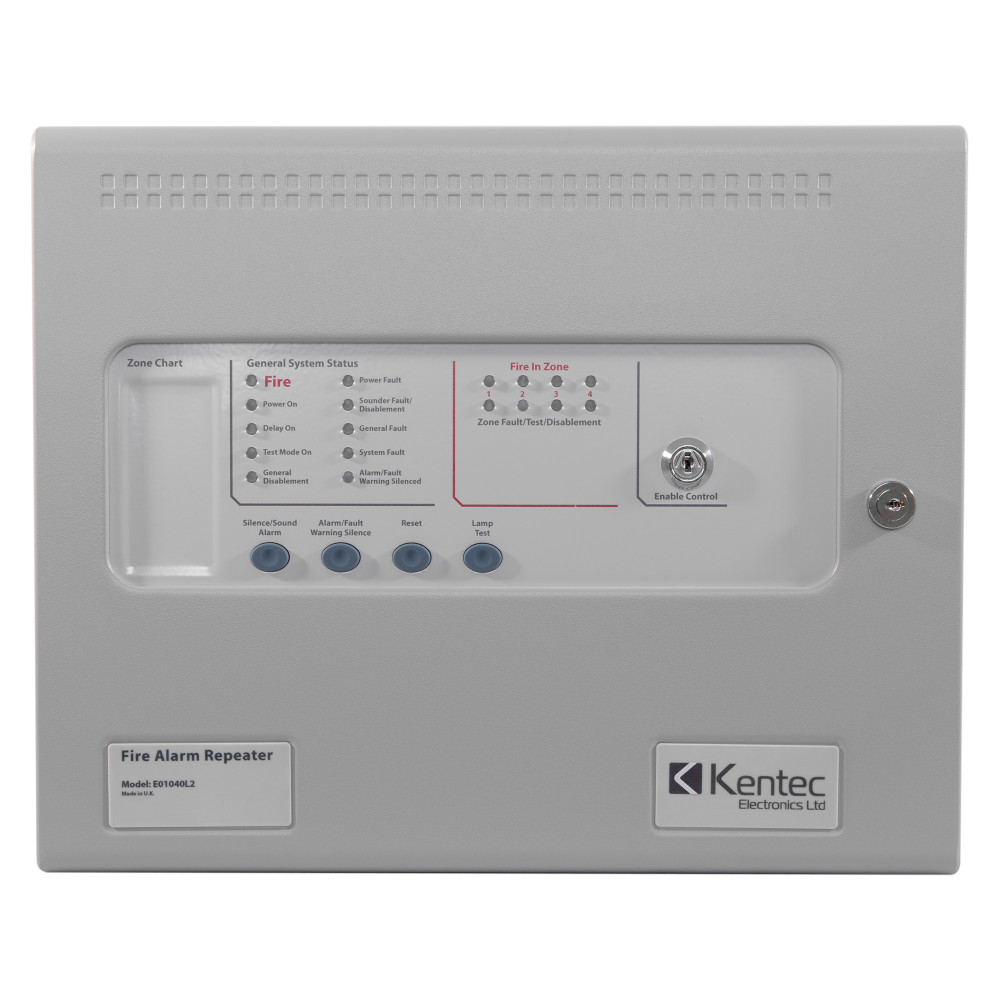

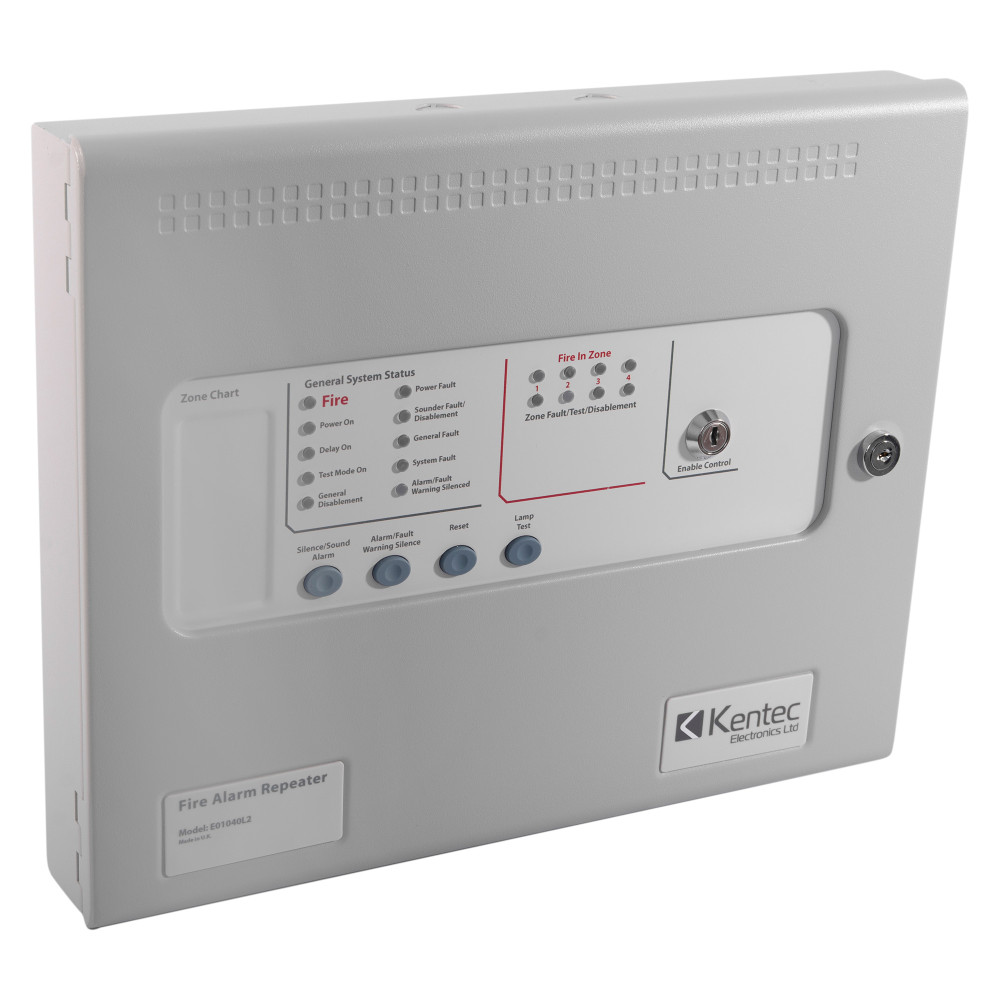

Kentec Sigma CP-R 4 Zone Repeater Panel
The Kentec Sigma CP-R repeater panel is designed to provide access to the indicators and functions of the master Sigma K11 or T11 fire alarm control panel from different areas of the premises. A maximum of 7 Kentec CP-R repeater panels can be connected to a single master conventional panel, and they are available in 230V AC or 24V DC powered versions.
- Can be linked with the following conventional fire alarm panels:
- Kentec Sigma K11 Fire Alarm Panel - 4 Zone
- Kentec Sigma T11 Fire Alarm Panel - 4 Zone
- Up to 7 repeater panels can be connected to one Sigma master panel
- Available in 230V AC or 24V DC powered options
- Mimics the master control unit

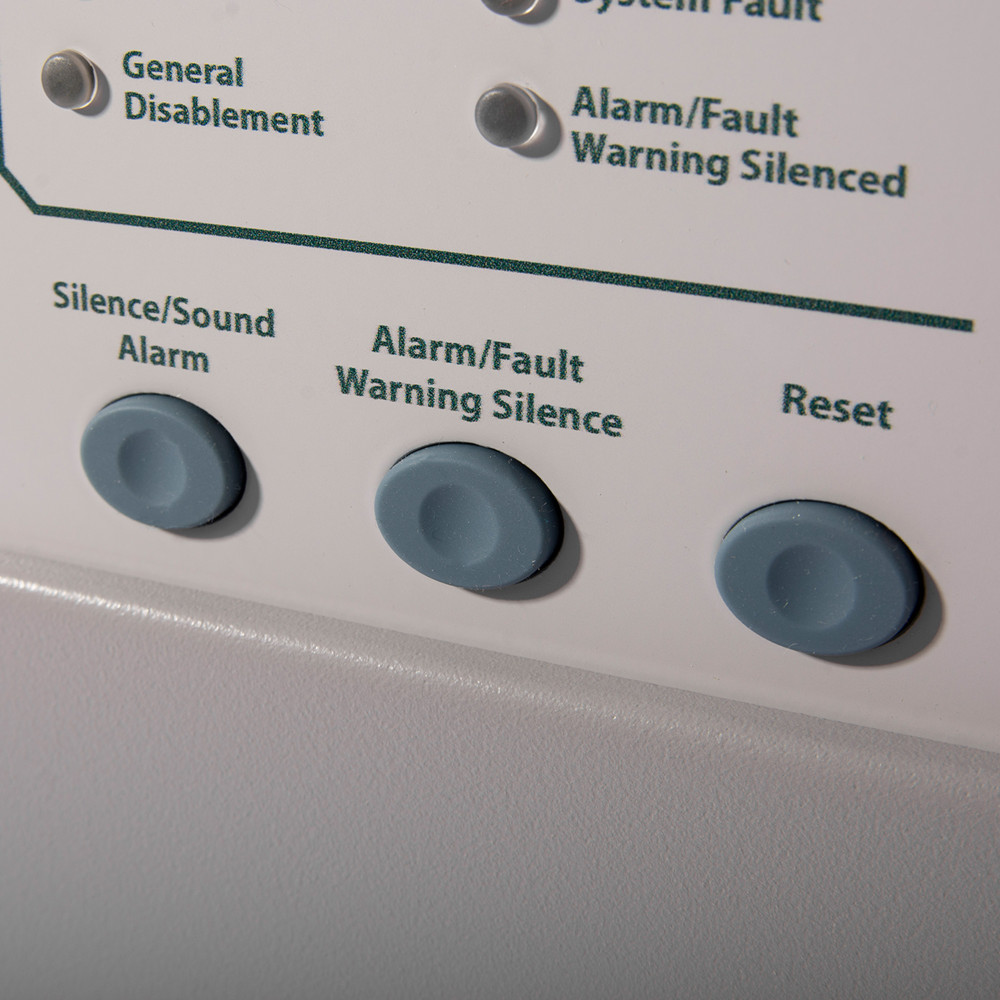

- Allows access to the master panels functions at different site areas
- Maximum length of data cable from the main panel to the last repeater: 1200 meters
- Mains powered (230V AC) panels are available with or without 2 x 12V, 7Ah stand-by batteries. Panel requires stand-by batteries to operate
Book Your Fire Alarm Testing & Servicing
Our comprehensive fire alarm maintenance package includes bi-annual testing and servicing for your fire alarm system in accordance with BS 5839-1.
Customer Reviews (0)
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review form. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data
| Product Code | FLSCPR4 |
|---|---|
| Brand | Kentec |
| Manufacturer's Part Number | P-6004 |
| Colour | Grey |
| Connection | Wired |

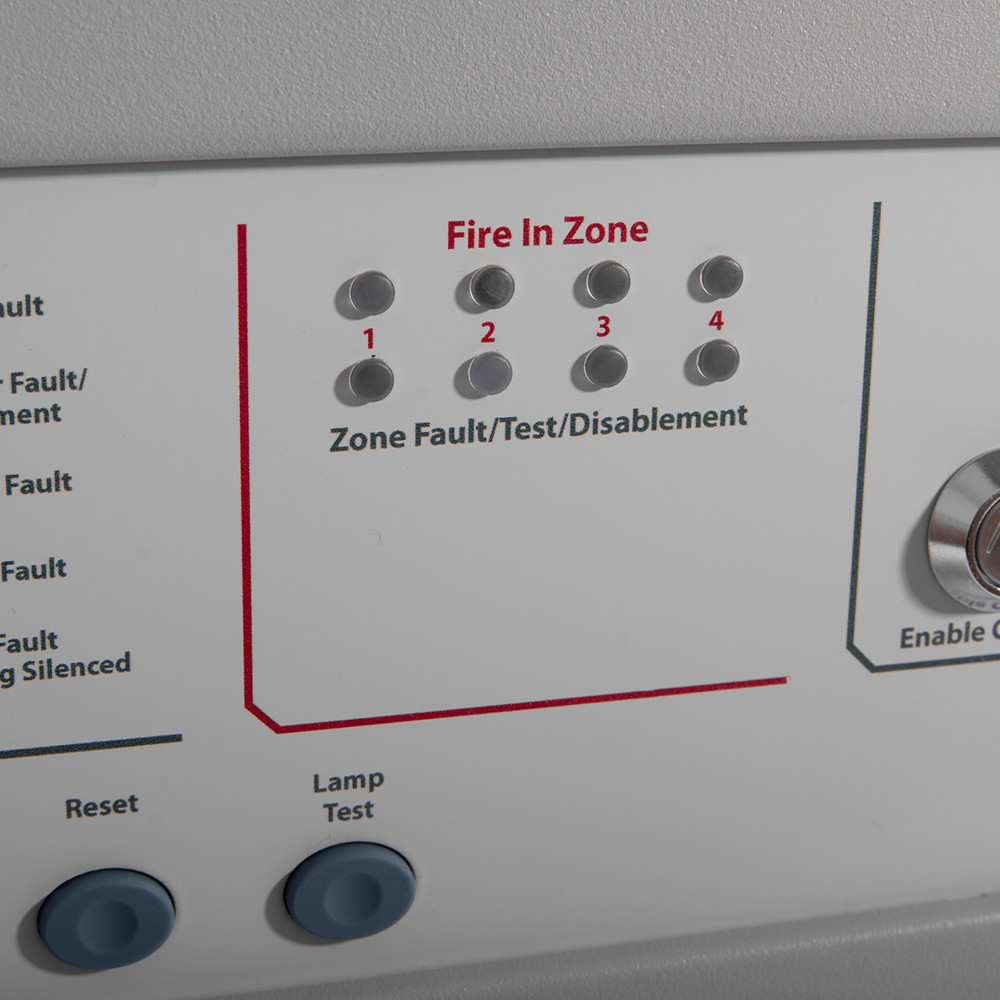

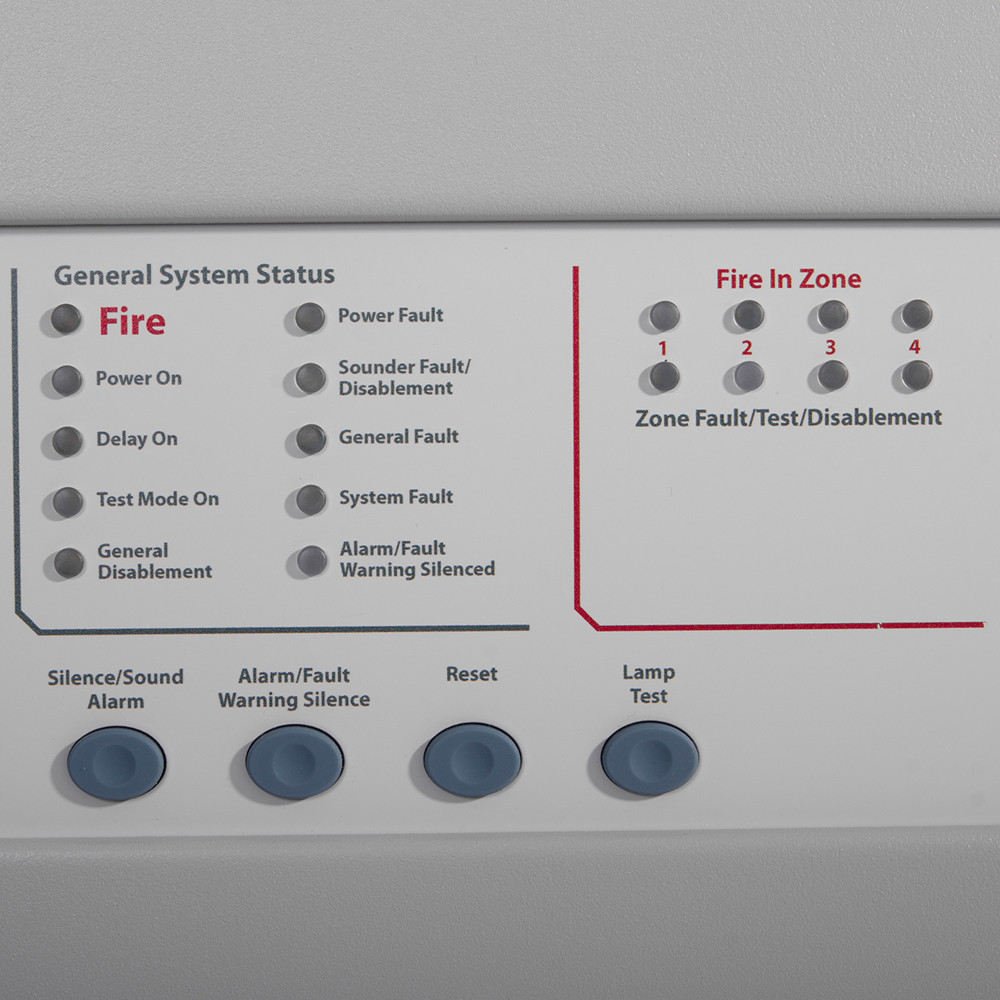

| Display | LED Indicators |
| Equipment Type | Repeater Panel |
| Material | Mild Steel |
| Number of Zones | 4 Zones |
| Operating Temperature | -5°C To +40°C |
| Power Type | 24V DC |
| Recyclable | Partially Recyclable |
| Relative Humidity | Less Than 95% |
| Dimensions (Unit) |
|
| Weight | 6.00kg |
