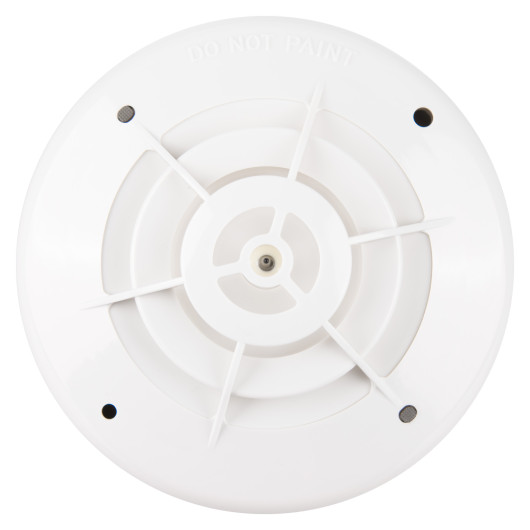

Hochiki ESP IP67 Weatherproof Heat Detector

The ESP Weatherproof Heat Detector incorporates both a fixed and a rate-of-rise temperature sensor which can be controlled from an ESP-compatible panel, allowing engineers to choose whether one or both of the sensors are active in detecting a fire. With its IP67 rating, this detector can be used in workshops where other units could fail due to water contact or large amounts of particulates, or even outside. The ESP Weatherproof Heat Detector is even supplied with waterproof connectors for its flying leads.

• User-selectable sensor modes
• Combines a fixed temperature and a rate-of-rise heat sensor
• Configurable sensor modes: A1R, A1S, BR, BS, CR, & CS
• Twin LEDs allow 360 degree viewing - green when polling, red in alarm
• Pulsing/non-pulsing LEDs (controlled from compatible panels)
• Electronically addressed during installation
• Hochiki ESP protocol for loop communication
• IP67 rating for demanding environments and outdoor use
• Supplied with fixing base and waterproof connectors
• Compatible with Morley DXc and Advanced Electronics' MxPro 5 series panels
• LPCB & VdS approved to Classes A, B & C

Please note: the PL-2 programming lead is required to connect this detector to the TCH-B200 address programmer.
