Mains Powered Optical Smoke Alarm with Alkaline Back-up Battery - FireAngel SW1-R

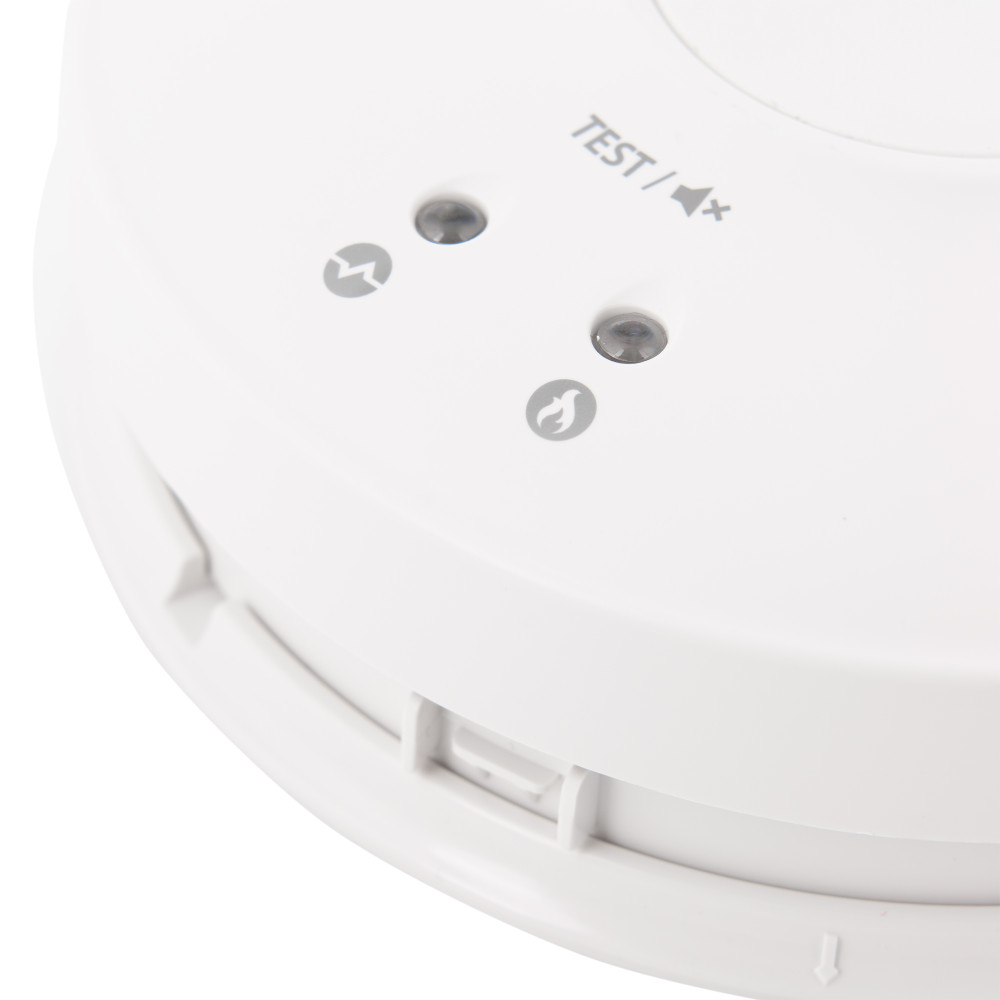

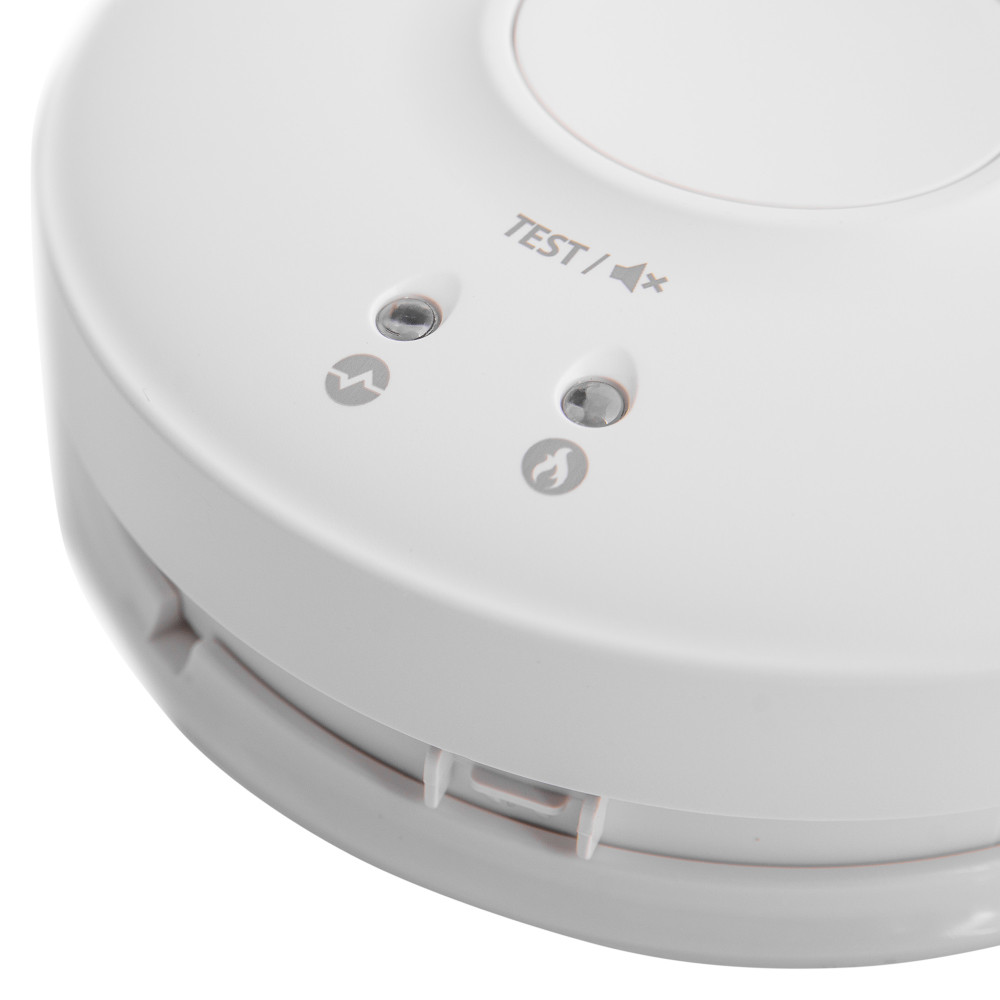

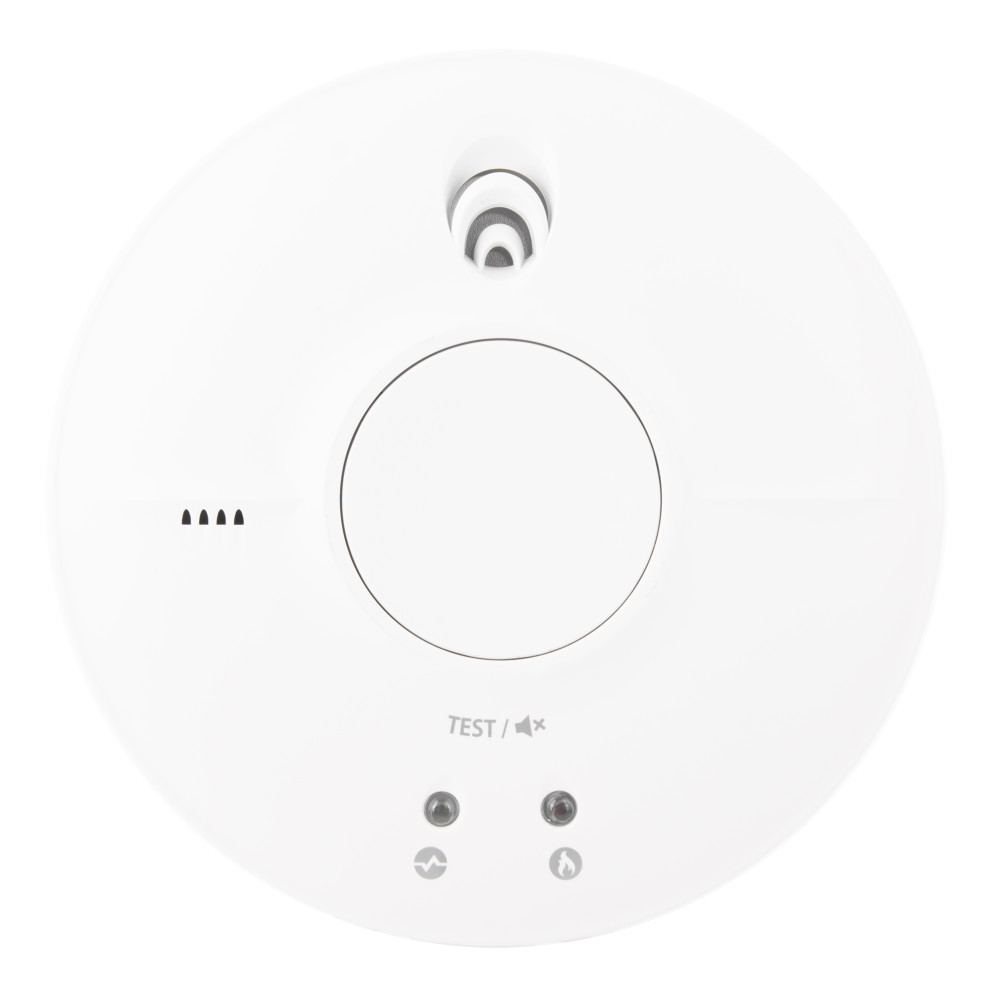

The FireAngel SW1-R optical smoke alarm is mains powered with a replaceable 9V back-up battery and large, central test and silence button. Two LED status indicators are positioned prominently on the alarm, one clearly showing whether or not mains power is active and the other will light up to indicate a fault or alarm when necessary. Up to 12 W1-R and W1-PF series alarms can be interlinked together via a dedicated cable, to provide full coverage and reliable warning of possible danger throughout the premises. To ensure that there is a back-up in case of a mains power failure, these alarms also feature a 'safety clip' which prevents them from being fitted to the base plate without a battery.
- Power: 230V mains powered with backup battery

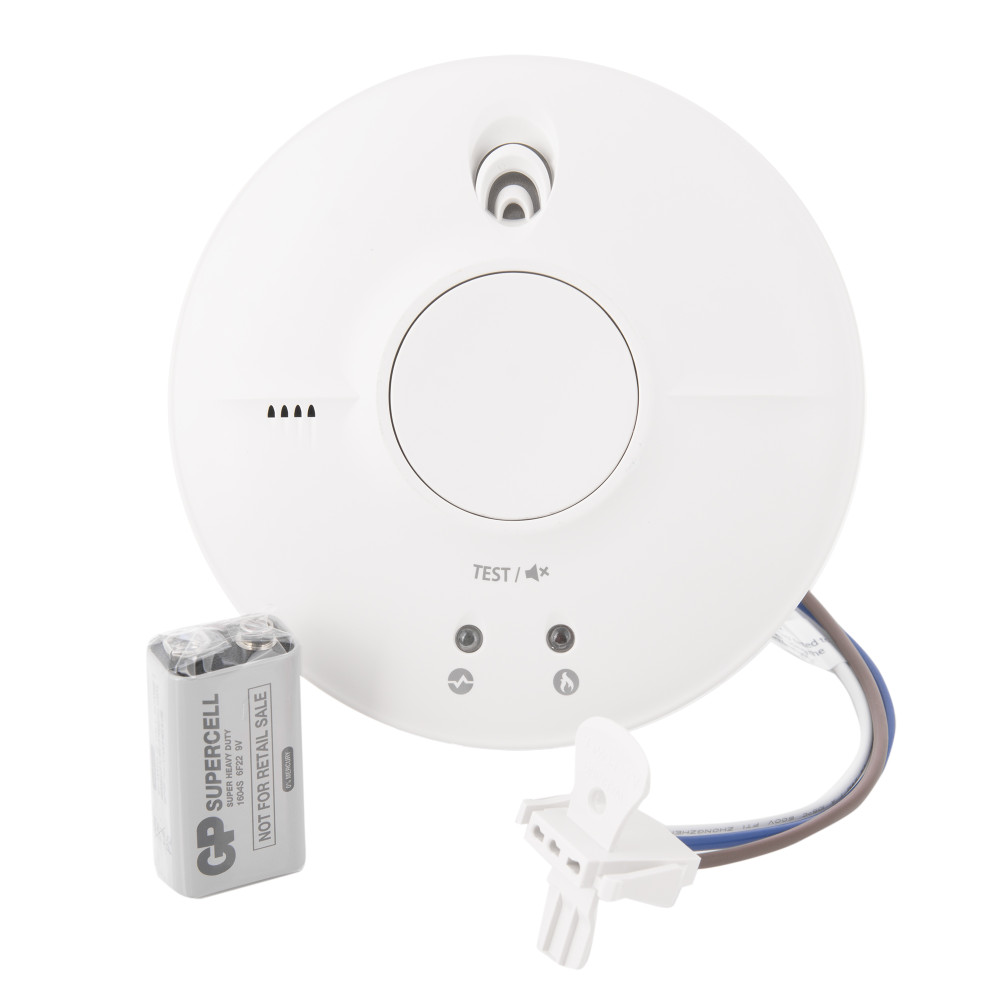

- Backup Battery: 9V alkaline battery (included)
- Warranty: 5 year manufacturer's warranty
- Large, central test and silence button
- Up to 12 W1 series alarms can be hard-wire interlinked within a single system, including:
- Optical smoke detection technology – less prone to nuisance alarms than traditional ionisation sensors

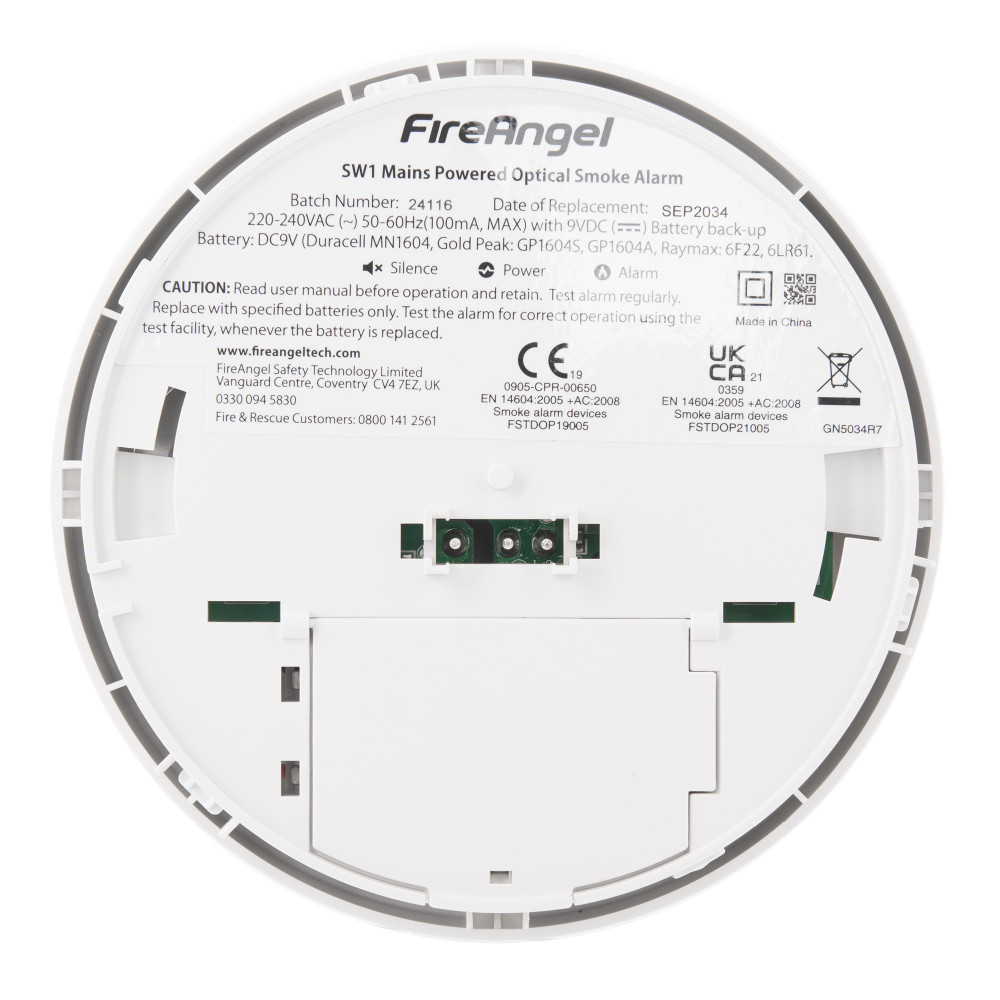

- Integrated 'safety clip' feature prevents them from being fitted without a battery
- Suitable for installations
- Kitemarked to
- This alarm is also suitable for both the Welsh and Scottish updated 2022 legislation
Customer Reviews (21)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
N L
Published on
13th November 2025
Reviewed by
S S
Published on
9th October 2024
Easy to install , works perfectly
Reviewed by
C C
Published on
2nd January 2024
seems fine so far
Reviewed by
C C
Published on
2nd January 2024
seems fine so far
Reviewed by
I S
Published on
27th November 2023
very satisfied
Technical Data
| Product Code | FASW1R |
|---|---|
| Brand | FireAngel |
| Back-Up Battery Type | Alkaline |
| British Standard Grade | Grade D2: Mains Powered (replaceable backup) |
| Colour | White |
| Local Legislation | Northern Ireland Legislation (2024) |
| Scottish Legislation (2022) | |
| Welsh Legislation (2022) | |
| Compliance | BS EN 14604: 2005 |
| BS 5839-6 | |
| Connection | Wired |
| Display | LED Indicators |
| Fixing Options | Screws (included) |
| Installation Position | Ceiling |
| Maximum Number of Linked Devices | 12 Devices |
| Operating Temperature | +5°C To +38°C |
| Positioning | Bedrooms |
| Hallways | |
| Living Rooms | |
| Power Type | Mains Powered (230V) |
| Recyclable | Partially Recyclable |
| Relative Humidity | 10% To 85% |
| Sensor Type | Optical |
| Sound Level | 85dB |
| Suitability | Home |
| Warning Type | Audible - Alarm Sounder |
| Warranty | 5 Years |
| Dimensions (Unit) |
|
| Weight | 200g |
| Datasheets |
