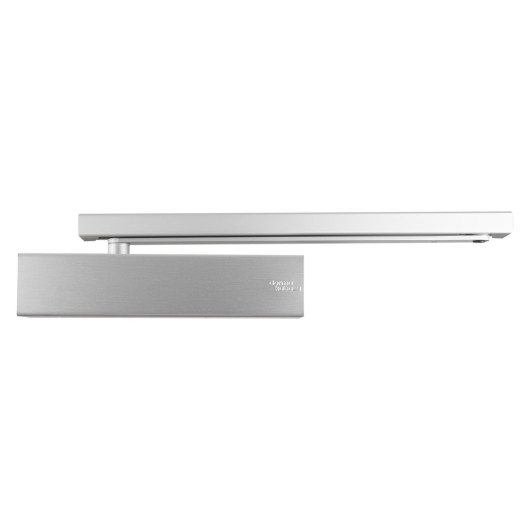

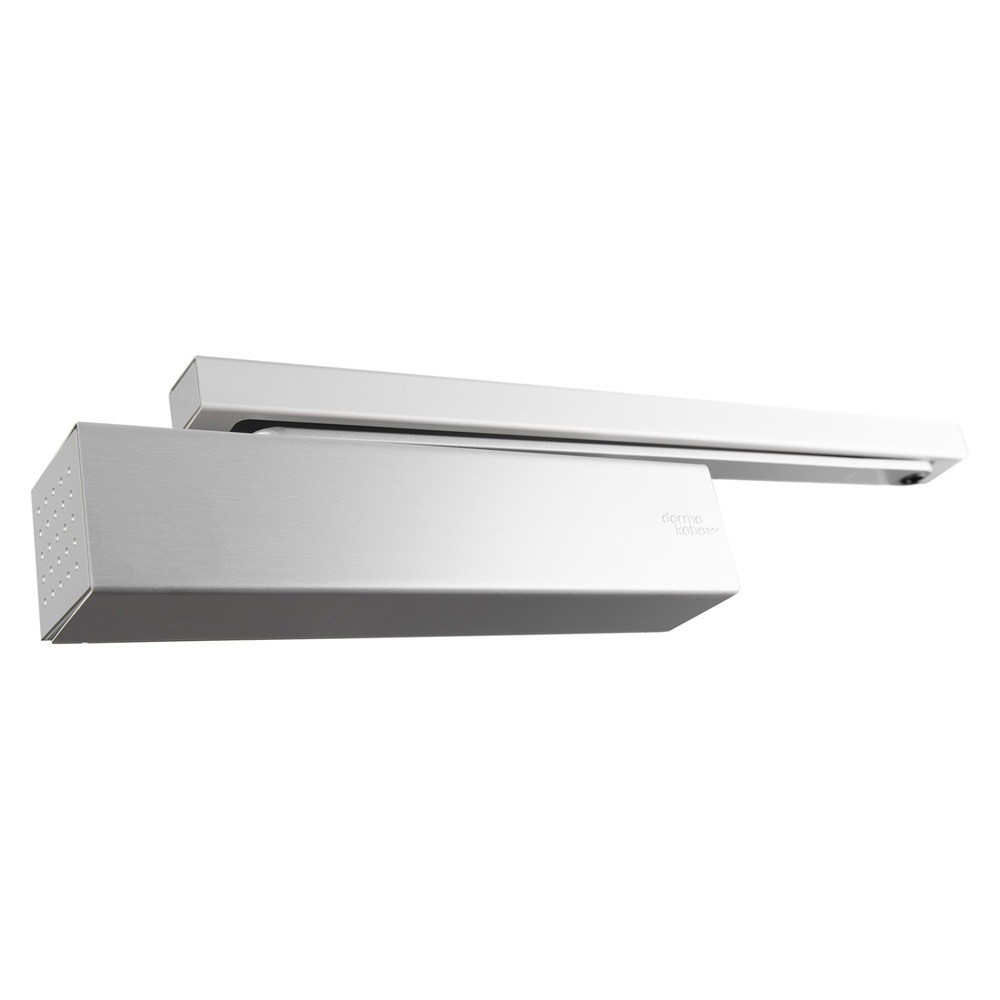

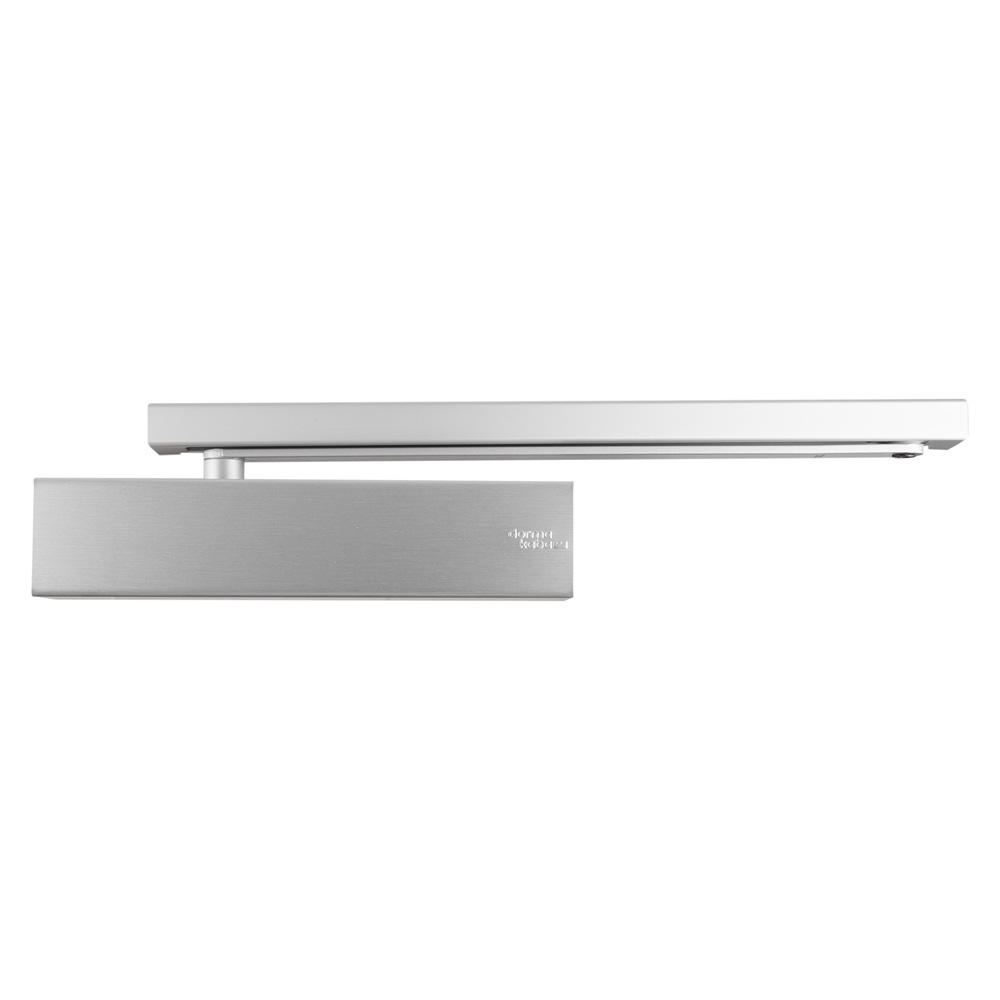

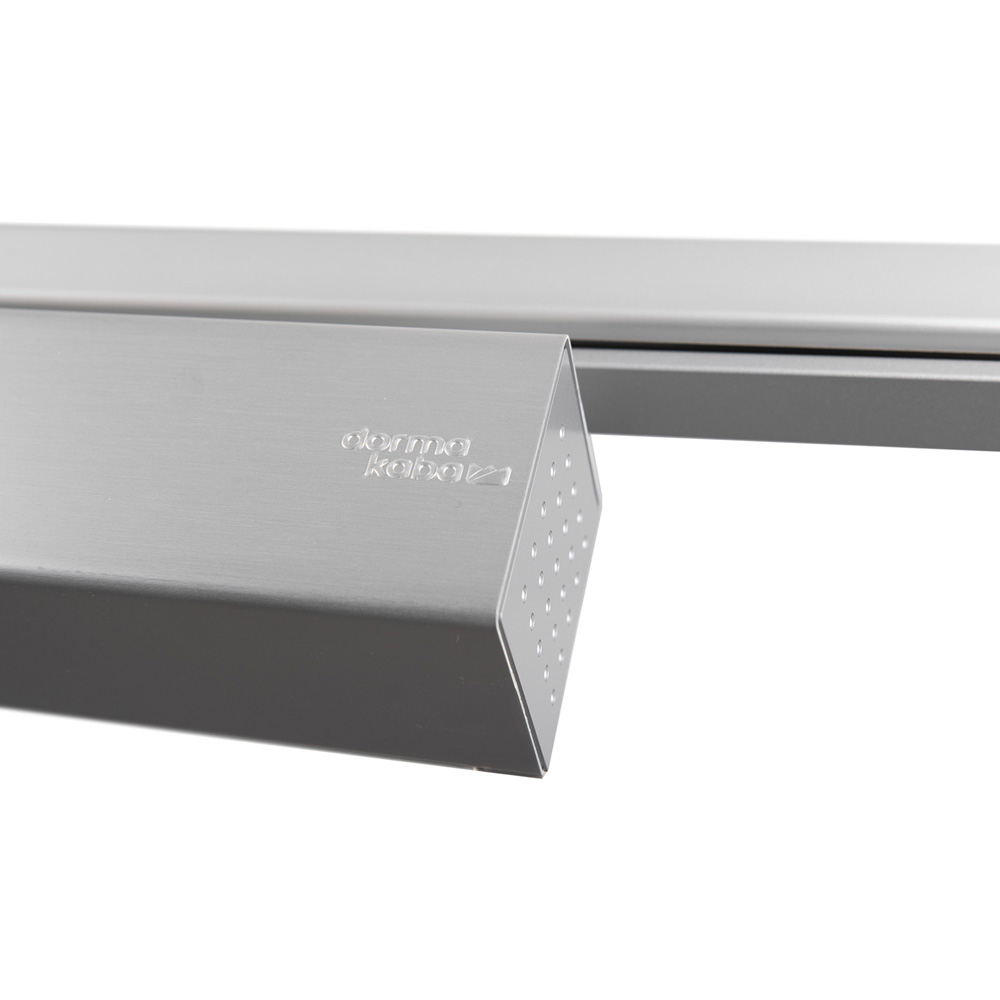

Dorma TS92 Overhead Door Closer with Slide Arm - Power Size EN 2-4

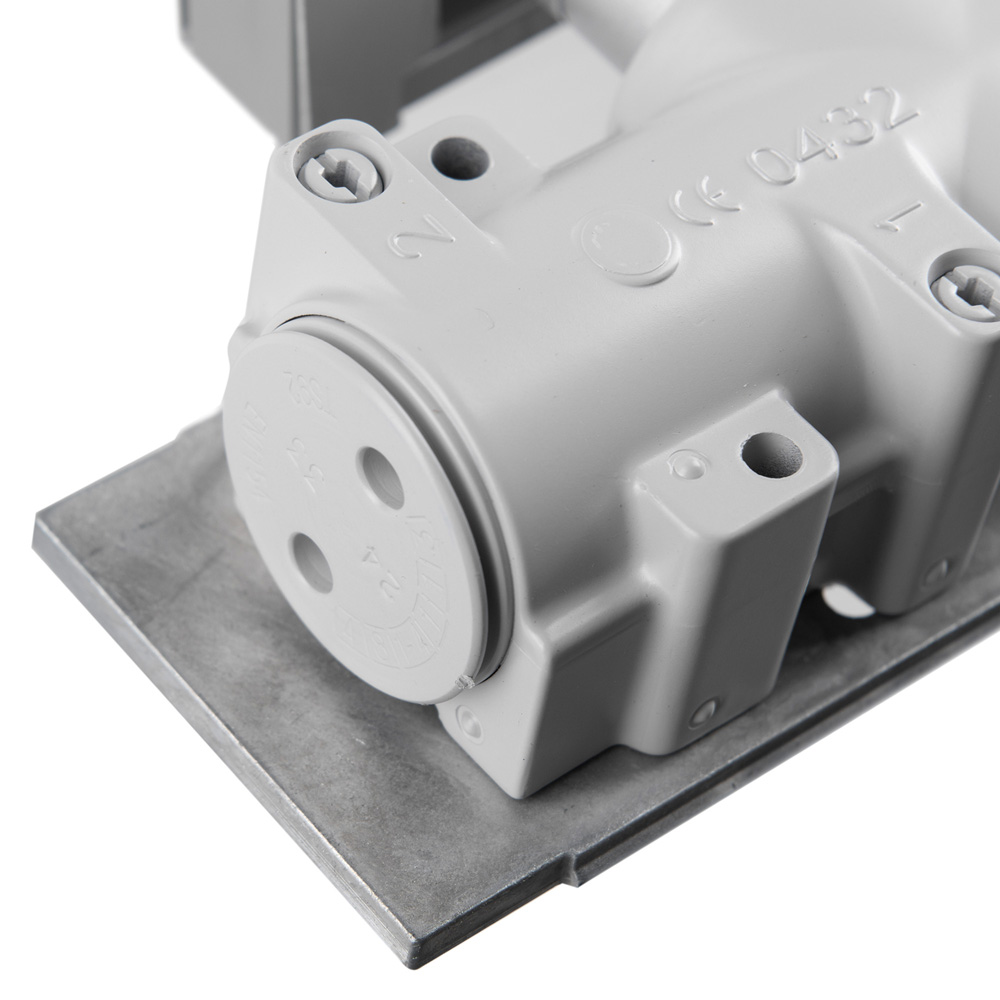

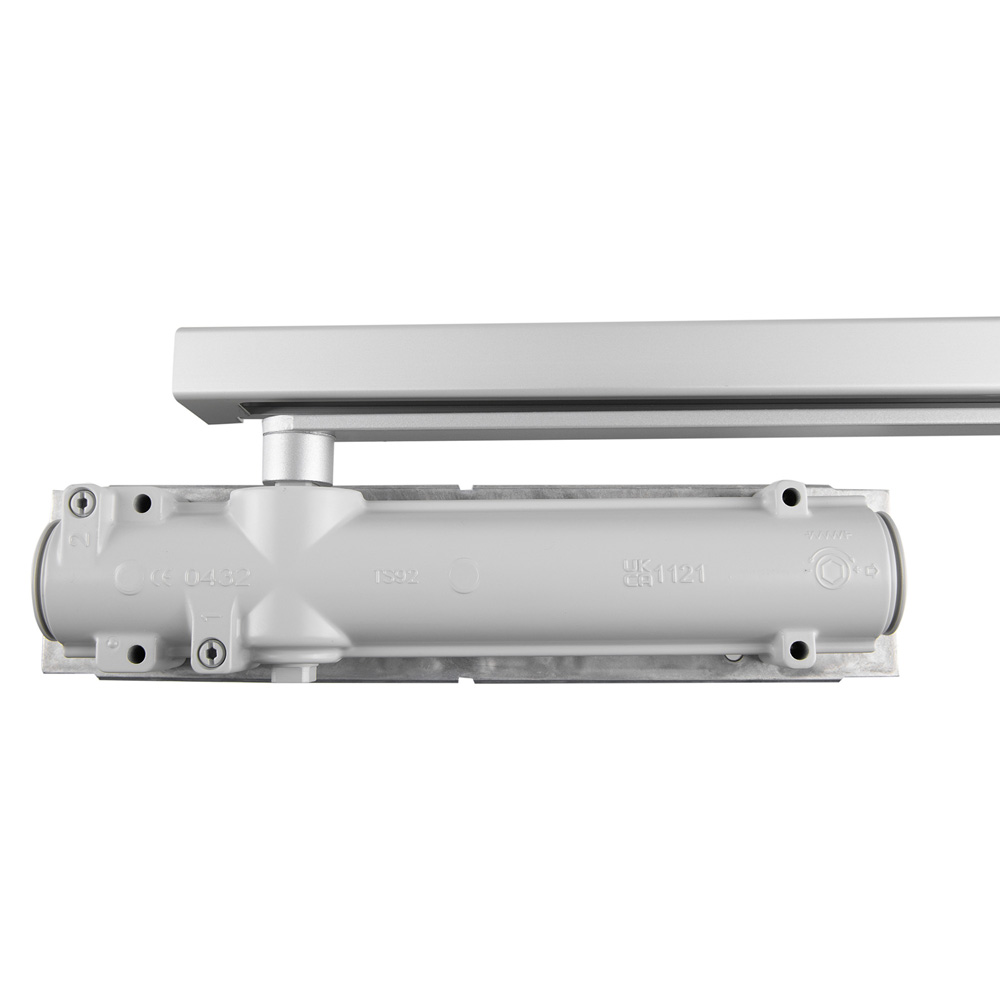

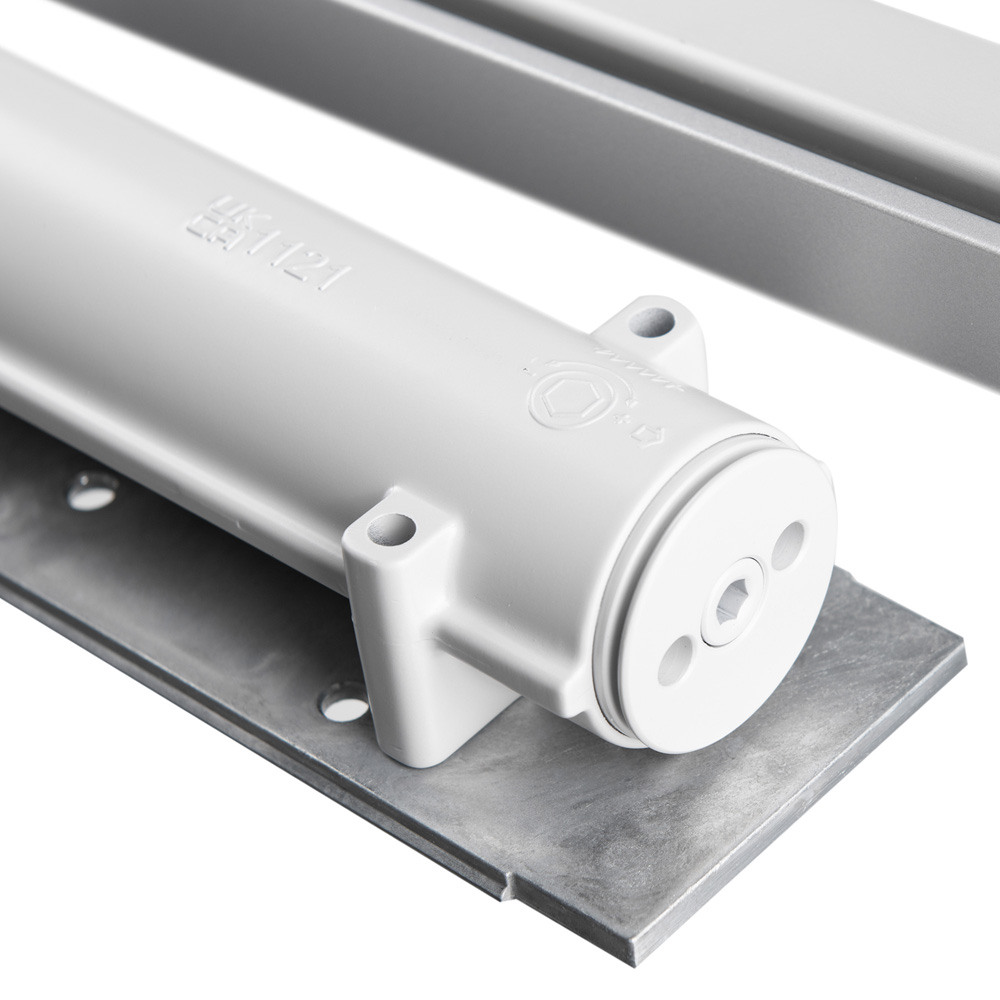

The Dorma TS92 overhead door closer has an adjustable power size of EN 2-4, making it suitable for a maximum door width of 1100mm. The closing speed and latching action can be adjusted easily with two separate valves located on the body of the closer. Available in two versions, the TS92 cam action door closer has a standard slide channel arm, with the option of an electro-magnetic hold-open function. Wired in to the building's fire alarm system, the electro-magnetic hold-open function allows the door to close when the system is activated, the power fails or when manually operated.

• Suitable for use on single action doors
• Certifire approved – CF119 certificate
• 120 minute fire rating
• CE marked and independently tested to BS EN 1154
• 5 year warranty
• Adjustable EN power size 2 - 4

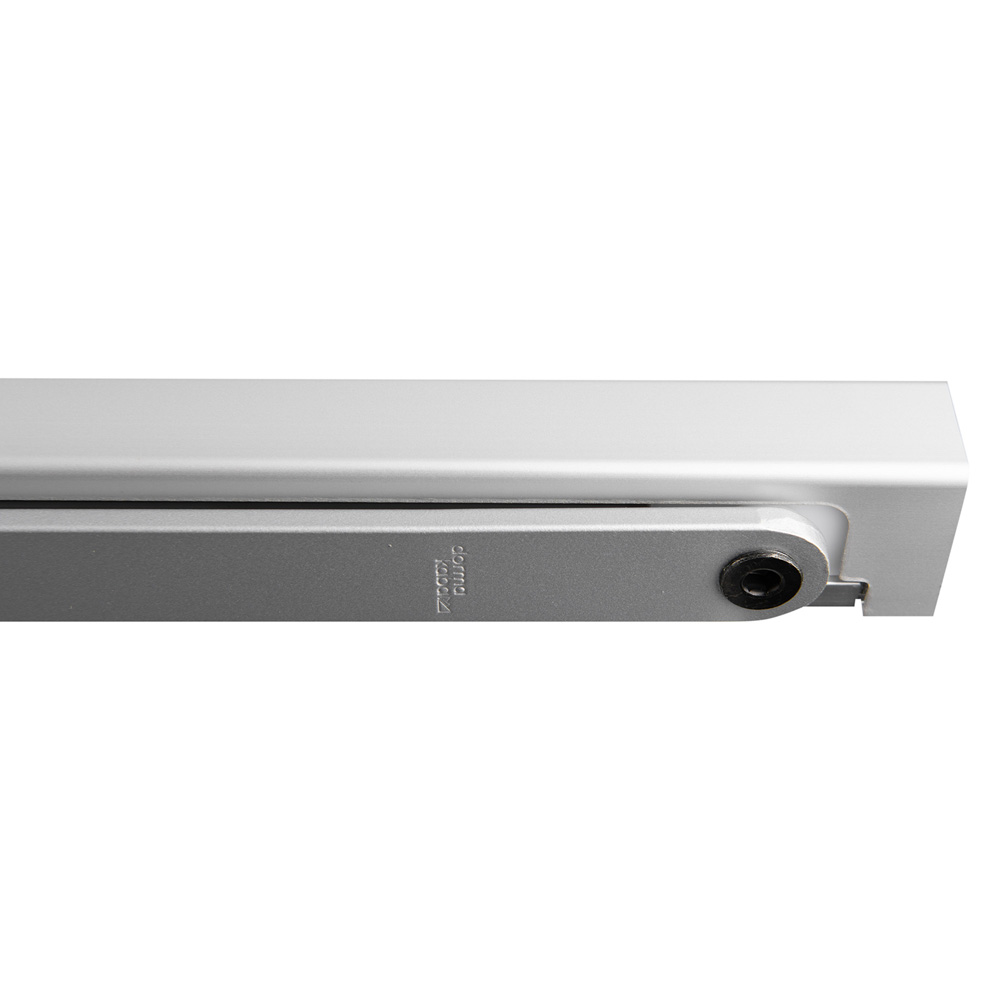

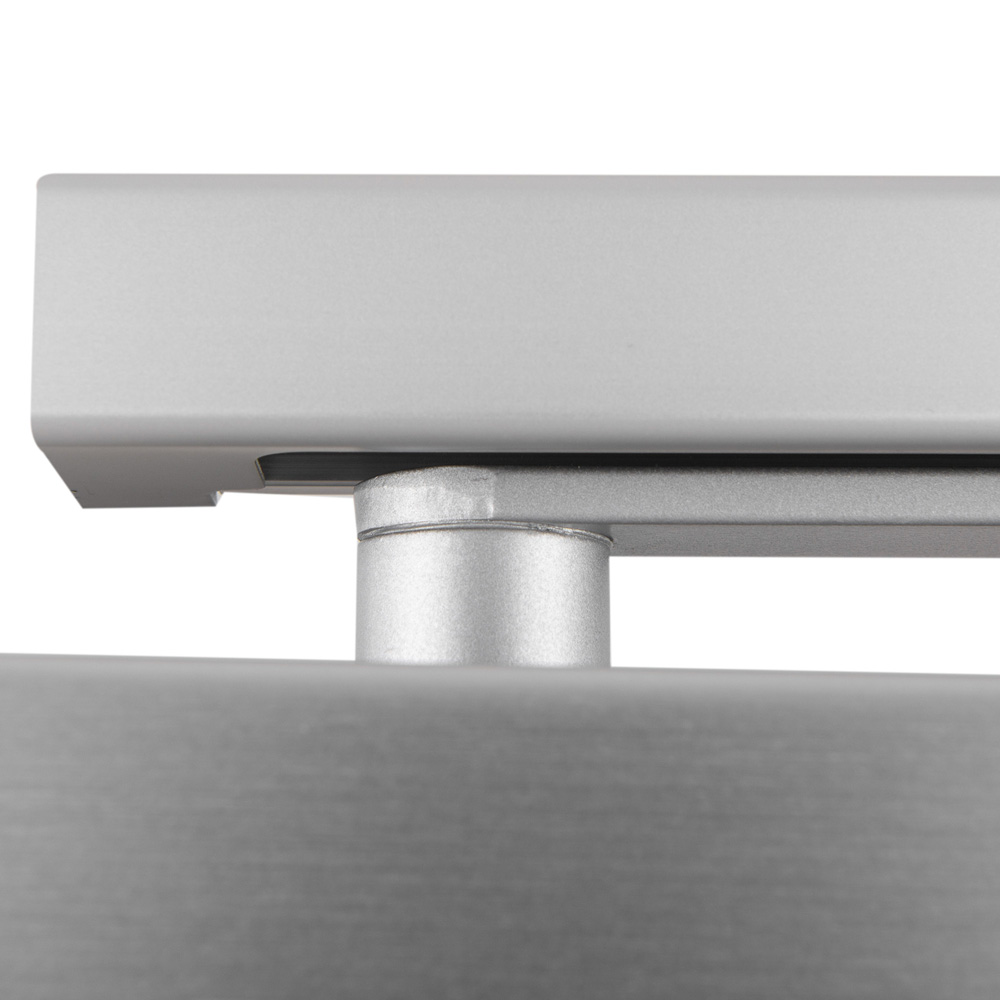

• Cam action overhead door closer with slide channel/track arm
• Suitable for a maximum door width of 1100mm
• Available in two versions:
  • TS92 – Standard Closer

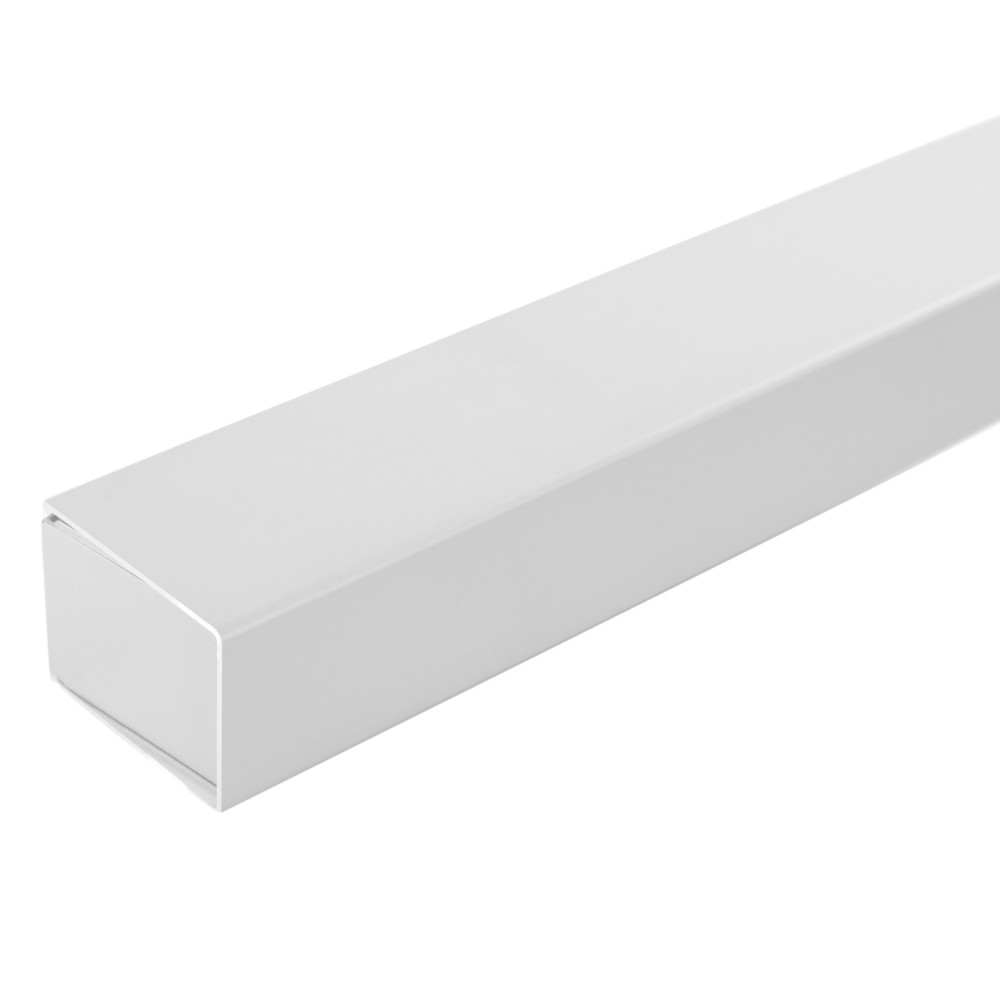

  • TS92EMF – Closer with electro-magnetic hold-open function
• Adjustable closing speed
• Adjustable latching action
• Designed for pull-side door leaf/push-side transom fixing

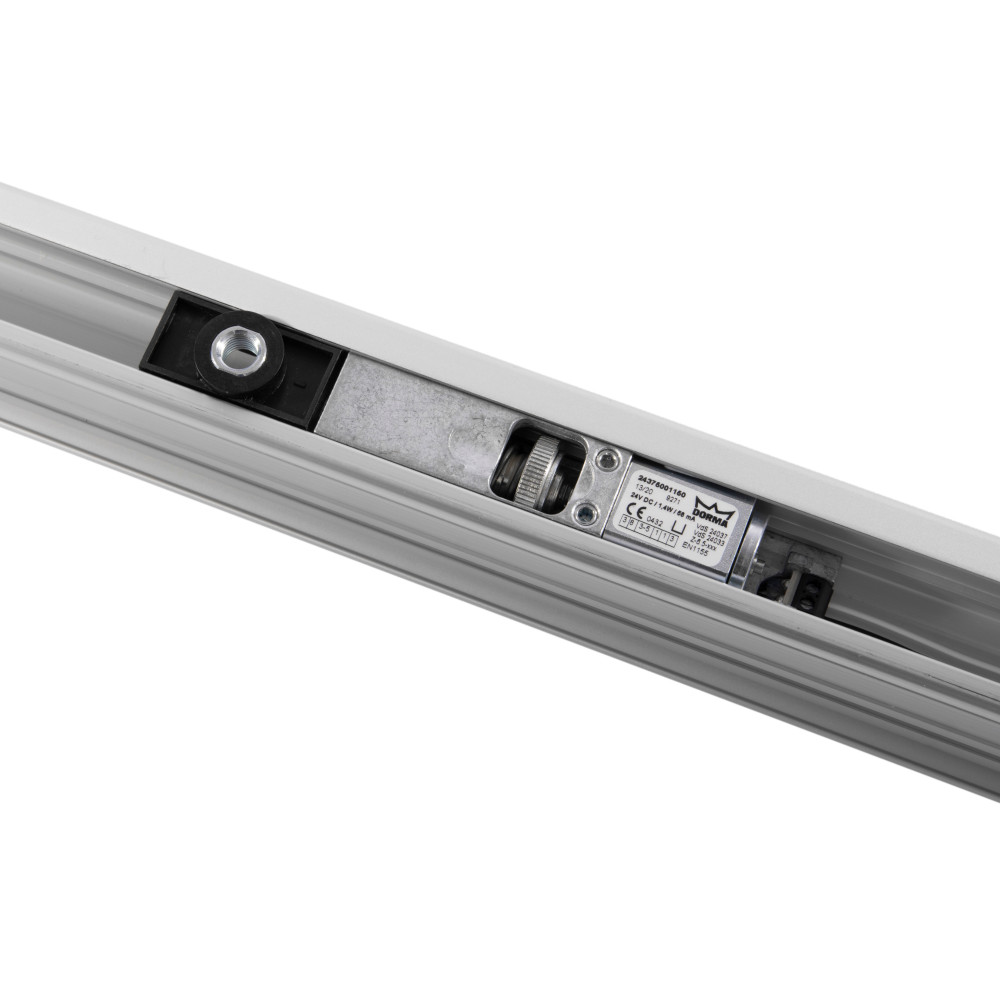

• Electro-magnetic version holds the door open - wired in to the fire alarm system
• Suitable for left and right handed doors
• Supplied in a silver finish as standard
• Door can be opened using a lower amount of force than with a standard rack and pinion closer
• Full classifications:
  • TS92: 4 | 8 | 1-4 | 1 | 1 | 3
  • TS92EMF: 3 | 8 | 3-5 | 1 | 1 | 3
