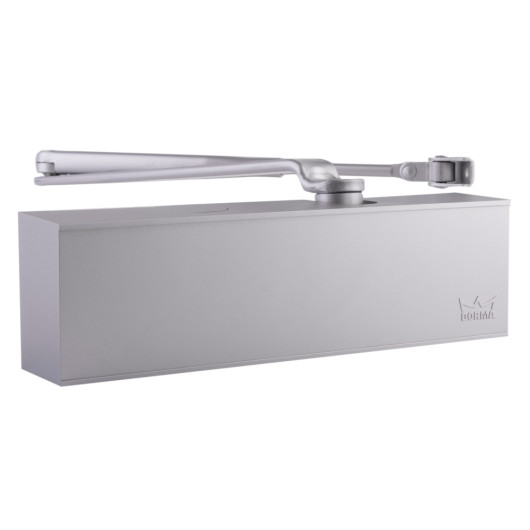

Dorma TS72 Overhead Door Closer - Power Size EN 2-4

The Dorma TS72 is available as a standard overhead door closer or with back check functionality. Suitable for internal doors, the TS72 closer has an adjustable power size of EN 2-4 and can be fitted to doors with a maximum width of 1100mm. The Dorma TS72 overhead door closer has undergone independent testing to BS EN 1154 and has Certifire approval. The closing force, closing speed and latching action can be adjusted to suit the door, and the optional back check helps to protect the door when opened roughly and at speed.

• Suitable for:
  • Use on internal single action doors
  • Doors up to 1100mm wide and weighing up to 80kg – EN size 2 - 4
  • Left and right handed doors
  • Installation in Fig 1, 61 and 66 configurations
• CE marked and Kitemarked to EN 1154
• Certifire approved for use on FD120 fire rated timber doors – CF 268 Certificate
• Available in two versions:
  • TS72V – Standard overhead door closer with adjustable closing speed and latching action
  • TS72VBC – Overhead door closer with adjustable back check
• 5 year warranty
• Simple to install with no need for a mounting plate
• Available in silver finish as standard
• Full classification:
  • Fig 1/61 installation: 4 | 8 | 4-3 | 1 | 1 | 2
  • Fig 66 installation: 4 | 8 | 3 | 1 | 1 | 2
