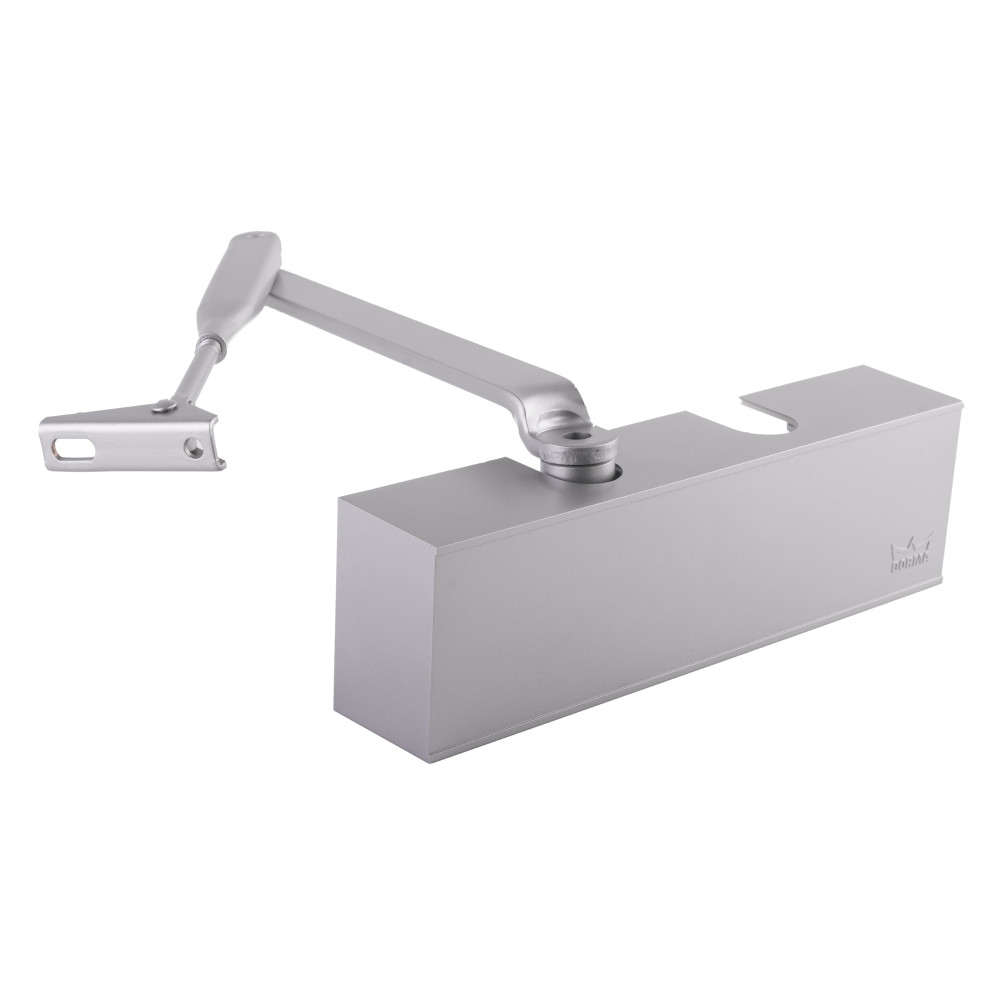

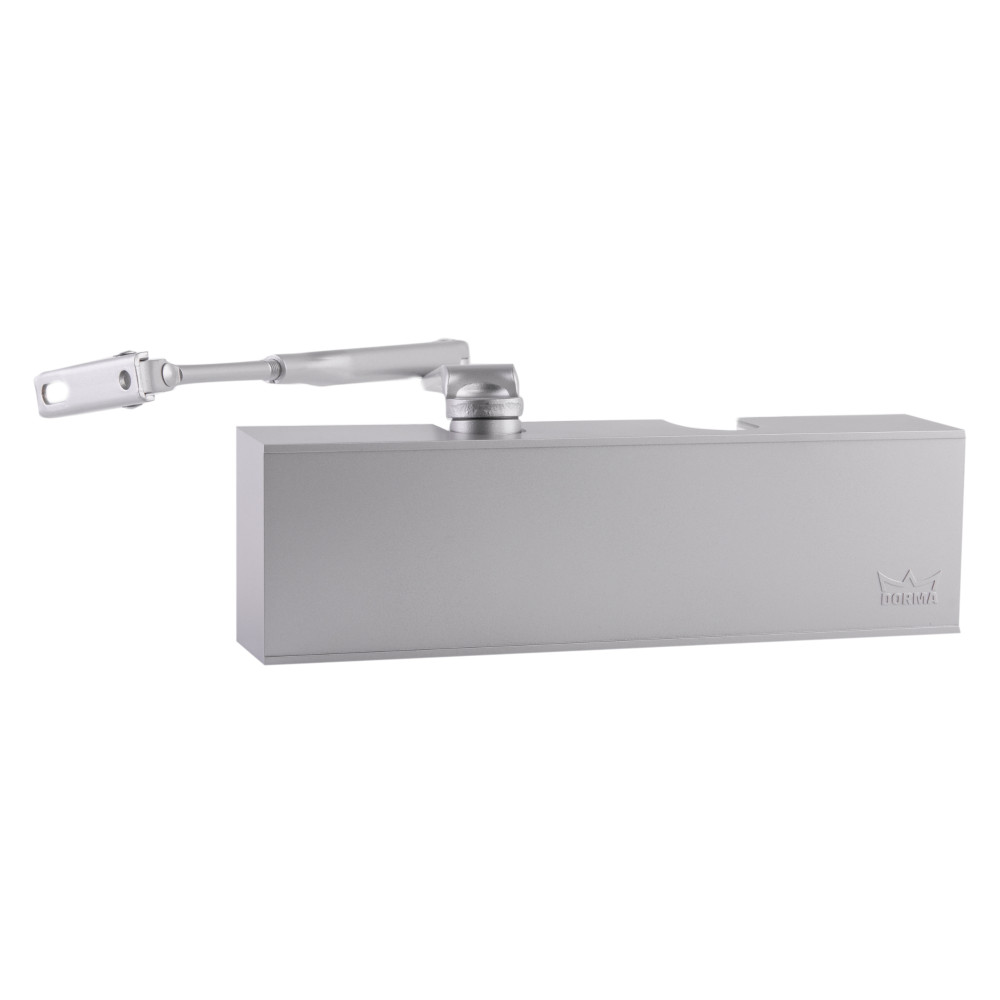

Dorma TS71 Overhead Door Closer - Power Size EN 3-4

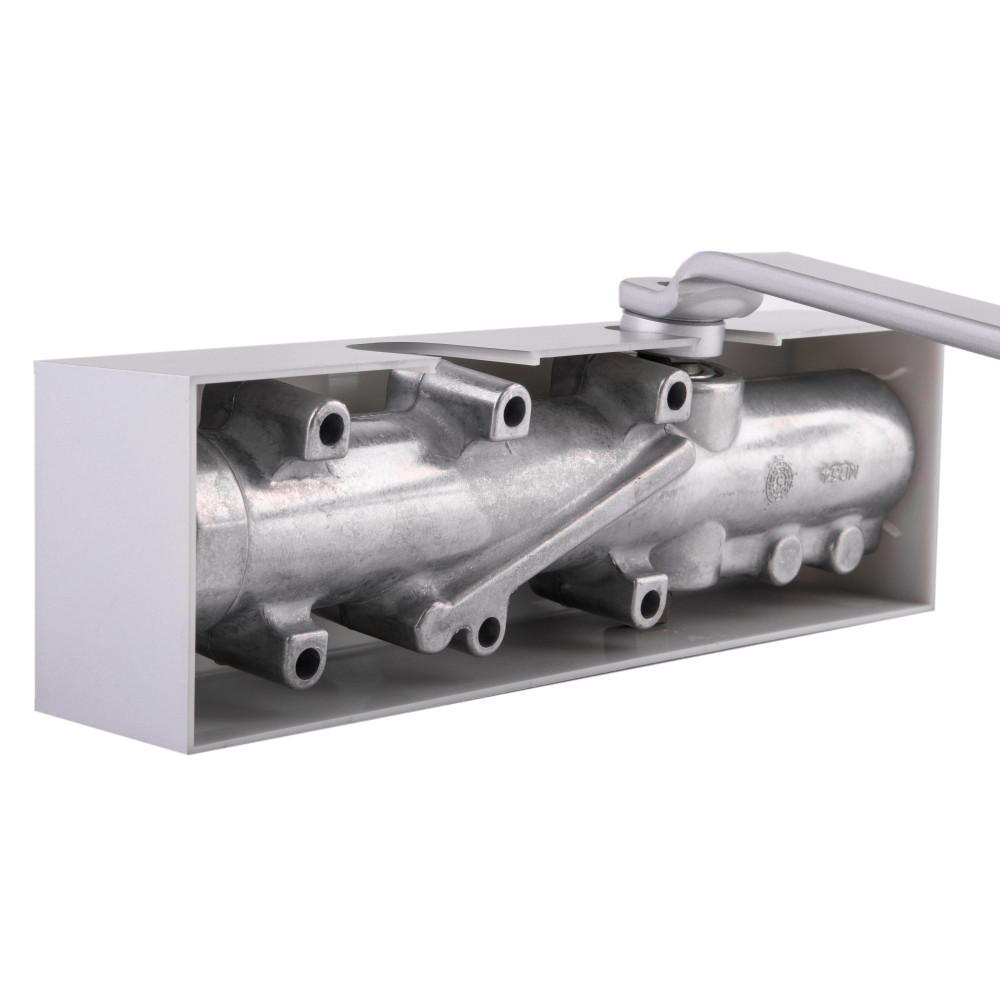

When fitted with the Dorma TS71 overhead closer, the door closing speed and latching action can be easily adjusted using valves located on the closer body and arm. Suitable for doors with a maximum width of 1100mm, the Dorma TS71 has been tested and approved to EN 1154 and has a 120 minute fire rating. This economy closer is easy to install and is suitable for both left and right handed doors.
- Suitable for:
- Single action doors
- Doors up to 1100mm wide and weighing up to 80kg – EN size 3 - 4
- Installation in Fig 1, 61 and 66 configurations
- Non-handed – suitable for left and right handed doors
- Kitemarked to EN 1154
- CE marked
- Certifire approved for use on FD120 fire rated doors – CF 268 Certificate
- Adjustable features to suit your premises
- Closing speed controls how quickly the door closes
- Latching action governs the speed of the door in the last 15° of the cycle
- Easy to install and adjust the power size
- High quality silver finish as standard
- 5 year warranty
- Full classification:
- Fig 1/61 installation: 4 | 8 | 4-3 | 1 | 1 | 2
- Fig 66 installation: 4 | 8 | 3 | 1 | 1 | 2
Customer Reviews (0)
Reviews by Real Customers
To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.
No Reviews Available
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data
| Product Code | DMTS71SE |
|---|---|
| Brand | Dorma |
| Manufacturer's Part Number | 22212401 |
| Approvals & Markings | CE Marked |
| Closing Speed | Adjustable |
| Compliance | BS EN 1154: 1997 |
| Certifire - CF268 | |
| Door Type | Single Door |
| EN Classification | 4 | 8 | 3 | 1 | 1 | 2 (Fig 66 Only) |
| 4 | 8 | 3-4 | 1 | 1 | 2 (Fig 1/61 Only) | |
| Finish | Silver |
| Fire Rating | 120 Minutes |
| Fixing Options | Wooden Door Fixings (Included) |
| Installation Position | Fig 1 |
| Fig 61 | |
| Fig 66 | |
| Top Of Door | |
| Latching Action | Adjustable |
| Material | Metal |
| Maximum Door Weight | 80kg |
| Maximum Door Width | 1100mm |
| Opening Angle | 180° |
| Power Size | EN 3 - 4 |
| Warranty | 5 Years |
| Dimensions (Unit) |
|
| Weight | 1.20kg |
| Datasheets |
