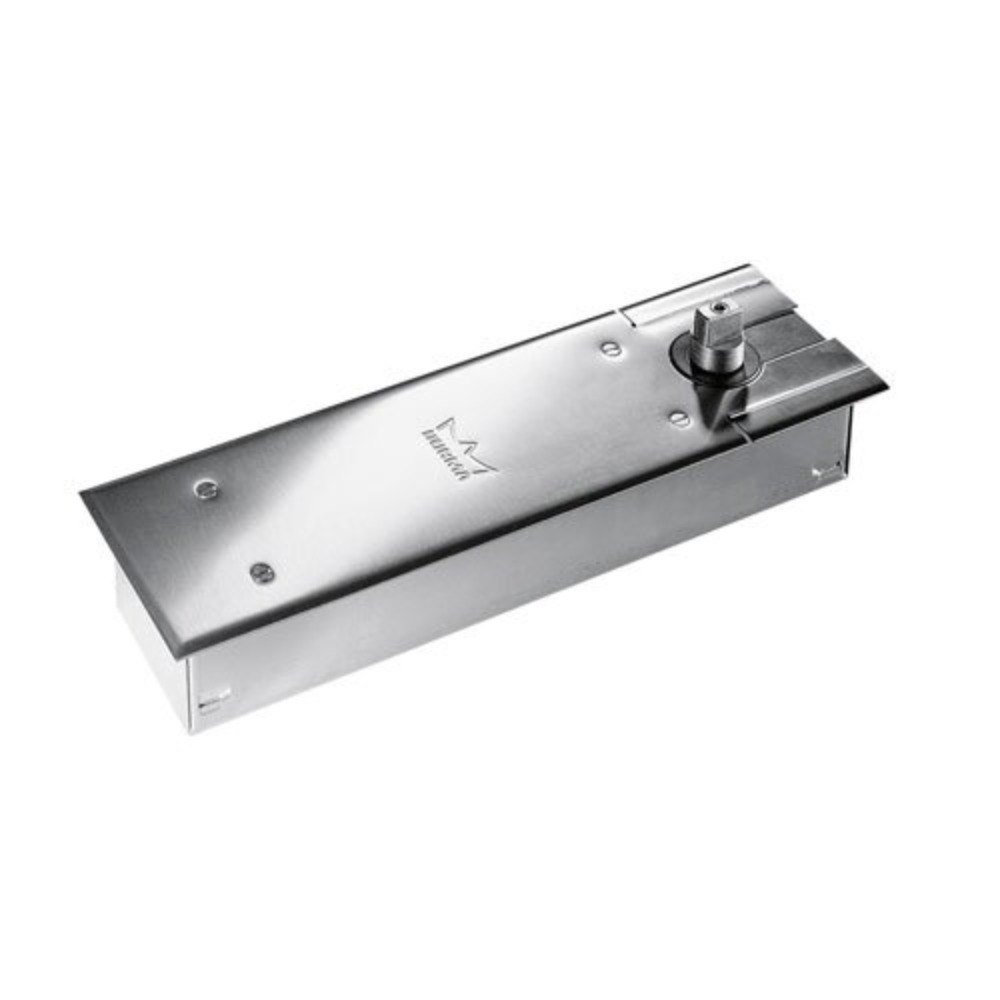

Dorma BTS80F Floor Spring
The BTS80F from Dorma is a floor spring suitable for heavy doors (up to 300kg), as well as fire and smoke check doors. Available in three different EN power sizes (4, 5 and 6), the BTS80F has variable latching action, variable closing speed, delayed closing action and mechanical backcheck. Floor springs are ideal in locations where overhead door closers would spoil the aesthetics and where there is a possibility of vandalism.
- Adjustable closing speed
- Adjustable latching action
- Fixed mechanical backcheck
- Available in double-action versions
- Mechanical efficiency unaffected by temperature
- Certifire approved - CF127 certificate
- CE marked to BS EN 1154
- Full classifications:
- EN 4: 4 | 8 | 4 | 1 | 1 | 4
- EN 5: 4 | 8 | 5 | 1 | 1 | 4
- EN 6: 4 | 8 | 6 | 1 | 1 | 4
Customer Reviews (0)
Reviews by Real Customers
To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.
No Reviews Available
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data
| Product Code | DMBTS80FD4 |
|---|---|
| Brand | Dorma |
| Manufacturer's Part Number | 40800401215 |
| Approvals & Markings | CE Marked |
| Back Check | Fixed |
| Closing Speed | Adjustable |
| Compliance | BS EN 1154: 1997 |
| Certifire - CF127 | |
| Door Type | Single Door |
| EN Classification | 4 | 8 | 4 | 1 | 1 | 4 |
| Finish | Stainless Steel |
| Fire Rating | 60 Minutes |
| Fixing Options | Floor Mounted |
| Installation Position | Bottom Of Door |
| Latching Action | Adjustable |
| Material | Metal |
| Maximum Door Weight | 80kg |
| Maximum Door Width | 1100mm |
| Opening Angle | 175° |
| Power Size | EN 4 |
| Dimensions (Unit) |
|
| Weight | 7.10kg |
| Datasheets |
