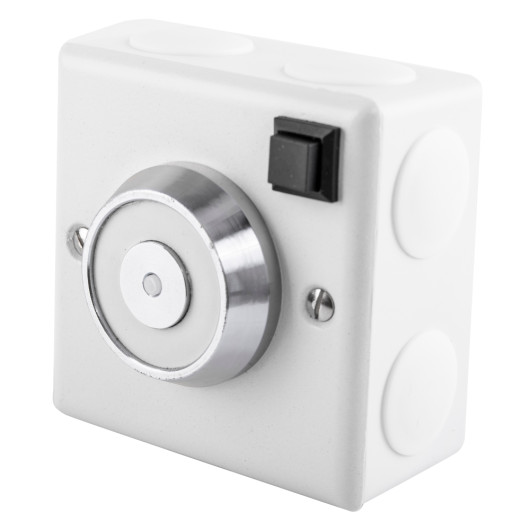

Conquest Surface Mounted Door Holders
Conquest Surface Mounted Door Holders provide a compliant and reliable way to hold fire doors open while ensuring they automatically release in the event of a fire. Designed to integrate with a fire alarm system, these electromagnetic retainers offer strong holding performance combined with safe, controlled door release. Ideal for commercial and public buildings, they provide a high quality, cost effective solution for fire door management.
- A legal alternative to wedging fire doors open, allowing doors to close automatically when the fire alarm activates
- Powerful 200N holding force securely holds doors open under normal conditions
- Designed to operate as an integral part of a building’s fire alarm system for safe, automatic release
- Includes a manual release switch, allowing doors to be closed easily when required
- Zero residual magnetic force ensures the door releases cleanly and fully when power is cut
- Supplied in either 24V DC or 230V AC versions to suit different system requirements
- Features a durable steel back box and fascia for long term reliability
- Rated to , offering protection against dust and vertically falling water drops
- CE marked and approved to BS EN 1155, supporting compliance with fire safety standards
- Supplied complete with an adjustable keeper plate and fitting instructions for straightforward installation
Customer Reviews (7)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
Anonymous
Published on
22nd November 2014
Reviewed by
Anonymous
Published on
18th November 2014
A well constructed and highly rated product which also looks the part.
The only weak points are the two lugs holding the magnet assembly in place. These are simply slotted into the casing and can readily become detached as I have found out today to my cost. I feel the lugs should have been spot-welded to the casing to provide a more robust and durable fitting. Otherwise no complaints, hence the "Excellent" rating.
Reviewed by
Anonymous
Published on
16th June 2014
A superior product at a fair price
The product is well designed and ideally suited to replace the metal-clad door holders that are now nearing the end of their working lives. They can be fitted with the minimum of fuss and bother. Well done Safelincs.
Reviewed by
Anonymous
Published on
16th June 2014
Easy to use
Reviewed by
Anonymous
Published on
3rd December 2013
Great product a a great price!, Solid and Strong, Perfect
These door holders were a great find. We were breaking so many of the ones that were installed that when i found these i chose them as a perfect direct replacement. You won't be able to break these ones in a hurry!, and whats more, what a great price!!. Quick delivery and seamless transactions!!.
Technical Data
| Product Code | GF3590363 |
|---|---|
| Brand | Geofire |
| Activation | Fire Alarm Signal |
| Colour | White |
| Connection | Wired |
| Compliance | BS 7273-4 - Category A |
| BS EN 1155 | |
| Approvals & Markings | CE Marked |
| Fixing Options | Screws (not included) |
| Surface Mounted | |
| Wall Mounted | |
| Holding Force | 200N |
| Hold Open Angle | Fully Open Position Only |
| IP Rating | IP51 |
| Material | Steel |
| Operating Temperature | 0°C To +40°C |
| Power Type | Mains Powered (230V) |
| Suitability | Indoor |
| Equipment Type | Door Retainer |
| Dimensions (Unit) |
|
| Weight | 530g |
| Datasheets |
Very good service and will recommend to anyone
Very good service and will recommend to anyone
Applies to option(s): 230V AC
