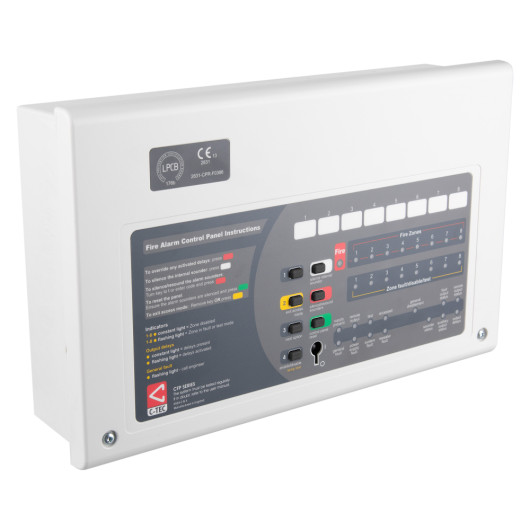

C-Tec CFP AlarmSense Fire Alarm Panel - 8 Zone

Designed for use with the range of C-Tec AlarmSense detectors, call points, sounders and beacons, this conventional 8 zone fire alarm panel is acceptable for BS 5839-1 and BS 5839-6 systems and fully complies with EN 54 Parts 2 and 4. Due to its two-wire setup the C-Tec CFP AlarmSense panel allows for detection and alarm devices to connect to the same pair of supply wires, making it less expensive and more flexible to install than other conventional fire alarm systems.

• Designed to comply with EN 54 Parts 2 and 4
• Two-wire conventional fire alarm panel
• Suitable for use with AlarmSense smoke and heat detectors, manual call points, sounders and strobes
• A wide range of engineering functions
• Indicators light up when in fire or fault condition
• Maximum number of detectors/manual call points per zone: 25
• Keypad and key switch entry to access level 2
• Low quiescent current
• Two relays – fire and fault
• Remote and reset open-collector outputs
• End of line units included (one per zone)
• 'Class change' and alert inputs
• Can be semi-flush or surface mounted
• Acceptable for BS 5839-1 and BS 5839-6 systems
• Using a repeater driver card, the panel can be connected with up to 8 x C-Tec CFP repeater panels

Please Note: The panel requires 1 x 3.2Ah battery which is not included
