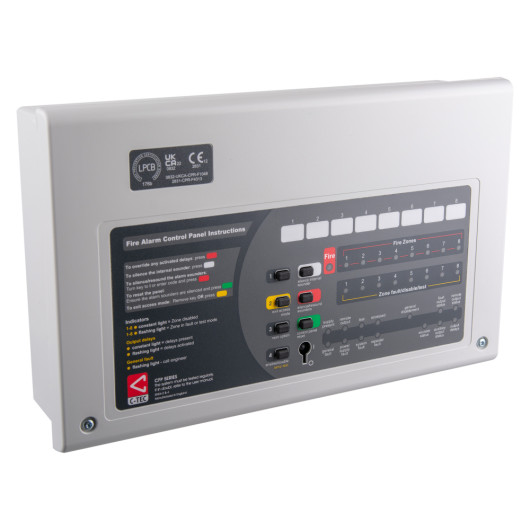

C-Tec CFP AlarmSense Fire Alarm Panel - 4 Zone
The four zone fire CFP AlarmSense alarm panel from C-Tec can have a maximum of 25 detectors and manual call points connected to each zone. Conventional fire alarm panels typically use four wires to separate the detection device and sounder circuits; however the CFP AlarmSense has a two wire design, meaning that all components can be fitted across the same pair of supply wires. The CFP AlarmSense conventional fire alarm panel fully complies with EN 54 Parts 2 and 4 and is acceptable for BS 5839 Part 1 and Part 6 systems.
- Four zone, two-wire conventional fire alarm panel
- AlarmSense detectors, manual call points and sounders can be fitted on the same two wires
- Suitable for surface or semi-flush mounting
- Two auxiliary input connections
- Fire and fault relays
- Maximum number of detectors and manual call points per zone: 25
- Engineering functions include zone test, coincidence (double-knock), zone delay and non-latching zones
- User-friendly interface: colour coded buttons and fire and fault light indicators
- End of line units included (one per zone)
- Using a repeater driver card, the panel can be connected with up to 8 x C-Tec CFP repeater panels
- A more cost-effective and simpler installation than other conventional fire alarm panels
Please Note: The panel requires a 3.2Ah 24V back-up battery. These are sold separately.
Customer Reviews (0)
Reviews by Real Customers
To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.
No Reviews Available
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data
| Product Code | FLCFPAS4 |
|---|---|
| Brand | C-Tec |
| Colour | Grey |
| Compatibility | Conventional |
| Compatible Products | AlarmSense Detectors |
| AlarmSense Manual Call Points | |
| AlarmSense Sounders | |
| Approvals & Markings | CE Marked |
| Compliance | BS 5839-1 |
| BS 5839-6 | |
| BS EN 54-2 | |
| BS EN 54-4 | |
| Display | LED Indicators |
| Equipment Type | Alarm Panel |
| Environmental Suitability | Houses of Multiple Occupation (HMOs) |
| Fixing Options | Wall Mounted |
| IP Rating | IP30 |
| Material | Metal |
| Manufactured in the UK | Yes |
| Maximum Number of Linked Devices | 25 Devices Per Zone |
| Number of Repeater Panels | 8 |
| Number of Zones | 4 Zones |
| Operating Temperature | -5°C To +40°C |
| Power Type | Mains Powered (230V) |
| Recyclable | Partially Recyclable |
| Relative Humidity | 0% To 95% |
| Dimensions (Unit) |
|
| Weight | 1.75kg |
| Datasheets |
