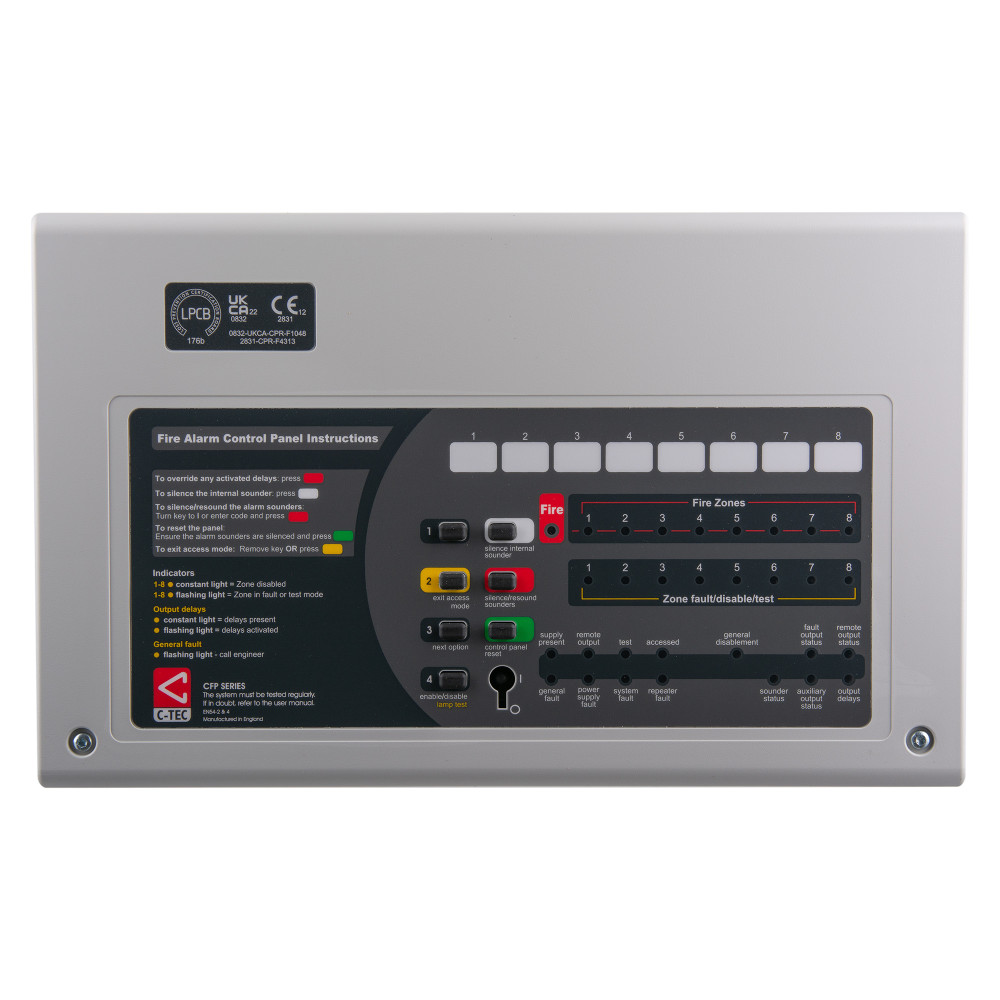

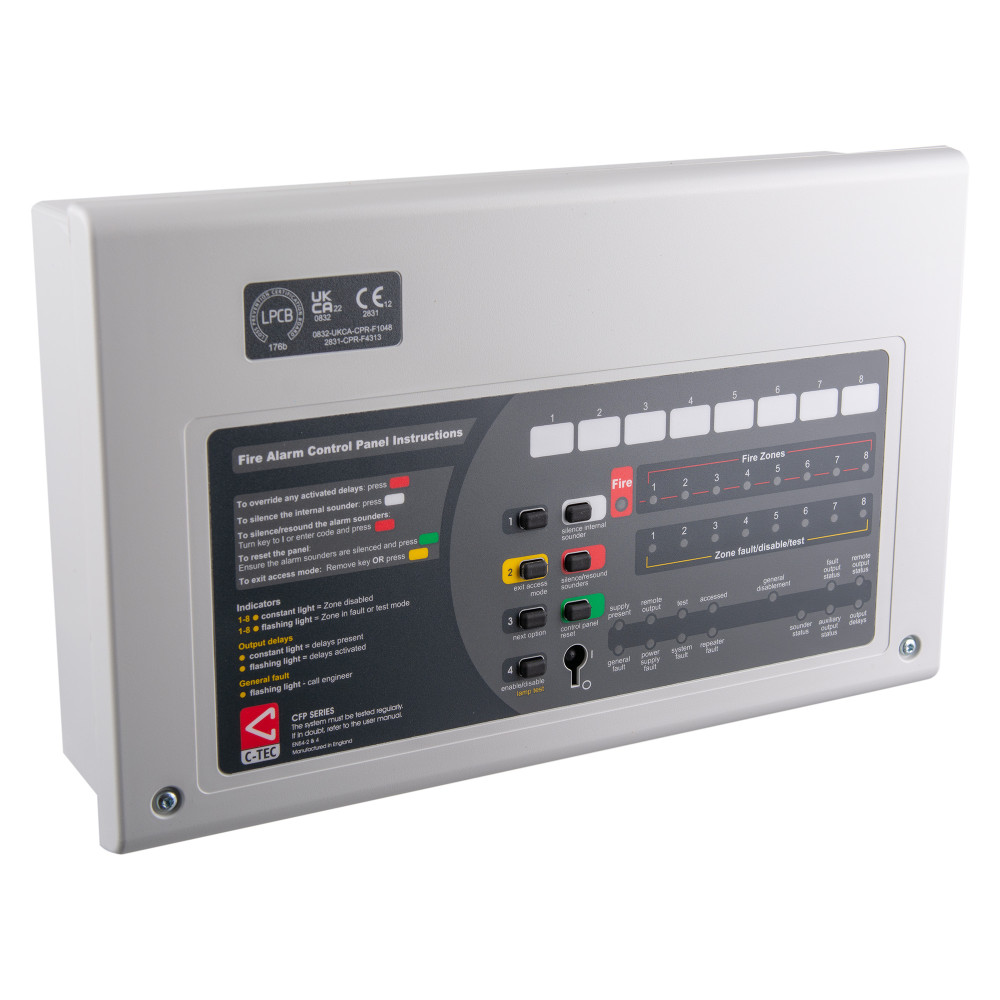

C-Tec CFP AlarmSense Fire Alarm Panel - 2 Zone

The design of the C-Tec CFP AlarmSense 2 zone fire alarm panel allows for detection devices such as smoke detectors, heat detectors and manual call points to be connected to the same pair of supply wires as sounder and strobe components. This allows for a quicker and more cost-effective installation than other conventional fire alarm systems. Acceptable for BS 5839-1 and BS 5839-6, the CFP AlarmSense fire alarm system is particularly useful for Houses of Multiple Occupation (HMOs).

• Designed to comply with EN 54 Parts 2 and 4
• Two-wire conventional fire alarm panel
• A wide range of engineering functions
• User-friendly interface
• Maximum number of detectors/manual call points per zone: 25
• Fire and fault conditions are displayed with light indicators
• Keypad and key switch entry to access level 2
• Features open-collector remote and reset outputs
• Includes fire and fault relays and "class change" and alert inputs
• End of line units included (one per zone)
• Semi-flush or surface mounting options
• Low quiescent current
• Using a repeater driver card, the panel can be connected with up to 8 x CFP repeater panels
• AlarmSense detectors, call points and sounders can be fitted across the same two zone wires

Please Note: The panel requires a 3.2Ah 24V back-up battery. These are sold separately.
